Char-Broil SMART-E Electric Grill User Manual

1. Product Overview

The Char-Broil SMART-E Electric Grill offers an authentic grilling experience with the convenience of electric power. Designed for maximum heat up to 370 °C, it utilizes E-POWER technology, eliminating the need for gas or charcoal. The innovative TRU-Infrared™ system ensures juicy results by distributing heat evenly across the stainless steel grates. This grill features precise digital temperature control, an AUTO CLEAN function for easy maintenance, and practical design elements like foldable side shelves and integrated storage.

Figure 1: Front view of the Char-Broil SMART-E Electric Grill.

Key Features:

• TRU-Infrared™ Technology: Ensures 50% juicier grilled food by evenly distributing heat and reducing energy consumption.
• E-POWER System: Provides maximum heat up to 370 °C without gas or charcoal, offering a clean and convenient grilling experience.
• Smart Precision Temperature Control: Digital dial allows precise temperature adjustment between 90 °C and 370 °C, displayed on a digital screen.
• AUTO CLEAN Function: Pyrolytic cleaning system burns off residues, simplifying post-grill cleanup.
• Stainless Steel Grate System: Durable two-part grate system for optimal heat retention and perfect grill marks.
• Integrated Storage: Generous cabinet with an interior shelf for accessories.
• Foldable Side Shelves: Provides ample workspace and saves space when not in use.
• Mobility: Four sturdy wheels for easy relocation.

2. Important Safety Information

Please read and understand all safety warnings and instructions before assembling, operating, or cleaning your Char-Broil SMART-E Electric Grill. Failure to follow these instructions could result in electric shock, fire, or serious injury.

General Safety Guidelines:

• Outdoor Use Only: This appliance is designed for outdoor use only. Do not operate indoors or in enclosed spaces.
• Electrical Safety: Connect the grill only to a properly grounded outlet. Ensure the power cord is not damaged, pinched, or exposed to hot surfaces. Keep the cord away from water.
• Hot Surfaces: The grill surfaces become extremely hot during operation. Use heat-resistant gloves and avoid direct contact with hot parts. Keep children and pets away from the grill.
• Clearance: Maintain a minimum distance of 1 meter (3 feet) from combustible materials (e.g., walls, fences, trees).
• Stable Surface: Always operate the grill on a level, stable, non-combustible surface.
• Unattended Operation: Never leave the grill unattended while in use.
• Ventilation: Ensure adequate ventilation around the grill.
• Power Disconnection: Always unplug the grill from the power outlet before cleaning, servicing, or moving.

3. Assembly and Setup

The Char-Broil SMART-E Electric Grill requires assembly. Please follow the detailed instructions provided in the separate assembly manual included with your product. Ensure all components are present and undamaged before beginning assembly.

Key Assembly Steps (General):

1. Unpack Components: Carefully remove all parts from the packaging and verify against the parts list.
2. Assemble Base and Cabinet: Attach the wheels and construct the main cabinet structure.
3. Install Grill Body: Secure the main grill body to the cabinet.
4. Attach Side Shelves: Mount the foldable side shelves.
5. Insert Grates and Emitter Plate: Place the TRU-Infrared™ emitter plate and stainless steel cooking grates into position.
6. Connect Electrical Components: Ensure all electrical connections are secure as per the assembly guide.

Figure 2: Grill interior showing the stainless steel grates and heating element.

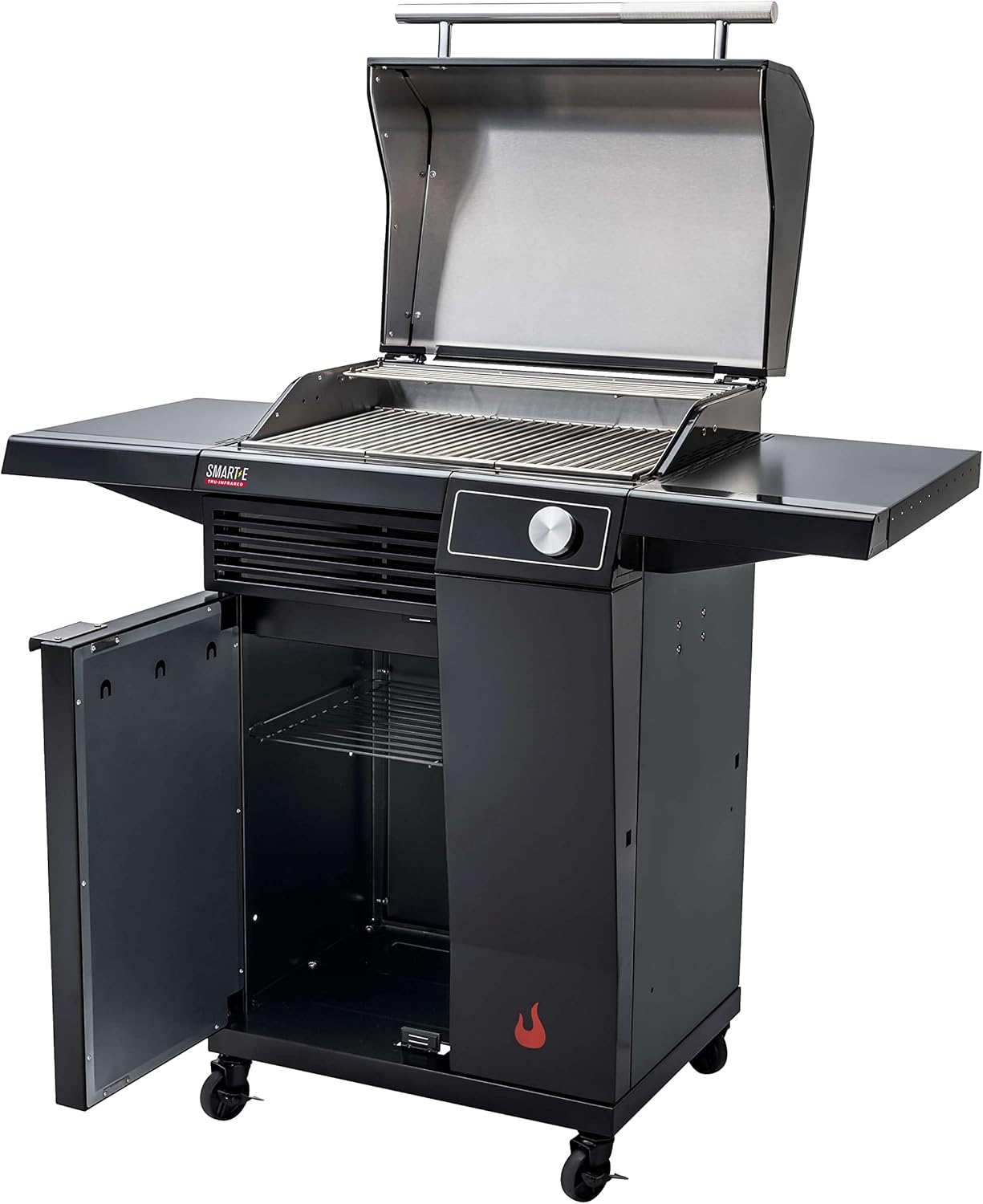

Figure 3: Grill with cabinet door open, revealing internal storage space.

Initial Setup:

• Placement: Position the grill on a stable, level surface outdoors, away from combustible materials.
• Power Connection: Plug the grill into a grounded electrical outlet. Ensure the power cord is safely routed and not a tripping hazard.

Figure 4: Example of power cord management on the side shelf.

4. Operating Instructions

The SMART-E Electric Grill is designed for intuitive operation with precise temperature control.

Powering On and Temperature Setting:

1. Connect Power: Ensure the grill is plugged into a grounded electrical outlet.
2. Power On: Press the power button on the control panel. The digital display will illuminate.
3. Set Temperature: Rotate the control dial to select your desired cooking temperature, ranging from 90 °C to 370 °C. The selected temperature will be shown on the digital display.
4. Preheating: Allow the grill to preheat to the set temperature. The grill will indicate when it has reached the target temperature. This typically takes 10-15 minutes depending on the desired temperature.

Figure 5: Digital control panel for temperature setting.

Grilling with TRU-Infrared™:

• Once preheated, place food directly on the stainless steel cooking grates.
• The TRU-Infrared™ system ensures even heat distribution and prevents flare-ups, resulting in juicier food.
• Monitor food and adjust temperature as needed using the control dial.
• Close the lid to maintain consistent cooking temperatures and reduce cooking time.

Figure 6: Grilling various foods on the SMART-E.

After Grilling:

• Turn the control dial to the lowest setting or press the power button to turn off the grill.
• Allow the grill to cool down before cleaning or covering.
• Always unplug the grill from the power outlet after use.

5. Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Char-Broil SMART-E Electric Grill.

AUTO CLEAN Function:

The AUTO CLEAN function simplifies the cleaning process by burning off food residues.

1. Initiate AUTO CLEAN: After grilling, with the grill still warm, press the AUTO CLEAN button on the control panel. The display will show "CLN".
2. Pyrolysis Cycle: The grill will enter a high-heat pyrolysis cycle to burn off food debris from the grates and emitter plate. Keep the lid closed during this process.
3. Automatic Shut-off: Once the AUTO CLEAN cycle is complete, the grill will automatically shut off.
4. Brush Residues: After the grill has cooled down, use a grill brush to easily remove any remaining ash or burnt residues from the grates and emitter plate.

Figure 7: Digital display indicating the AUTO CLEAN function is active.

General Cleaning:

• Exterior Surfaces: Wipe down exterior surfaces with a damp cloth and mild detergent. Avoid abrasive cleaners.
• Drip Tray: Regularly empty and clean the drip tray to prevent grease buildup.
• Storage: Store the grill in a dry, protected area when not in use. Consider using a grill cover to protect it from the elements.

6. Troubleshooting Guide

If you encounter issues with your Char-Broil SMART-E Electric Grill, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Char-Broil customer support for assistance.

7. Product Specifications

Figure 8: Dimensional diagram of the Char-Broil SMART-E Electric Grill.

8. Warranty and Support

Char-Broil stands behind the quality of its products. For specific warranty information, please refer to the warranty card included with your grill or visit the official Char-Broil website. Keep your proof of purchase for warranty claims.

Customer Support:

If you have any questions, require technical assistance, or need to order replacement parts, please contact Char-Broil customer support. Contact details can typically be found on the Char-Broil website or in your product packaging.

• Online Support: Visit the official Char-Broil website for FAQs, product registration, and support resources.
• Phone Support: Refer to your product documentation for regional customer service phone numbers.
