Introduction
This manual provides essential information for the safe and efficient operation of your Klarstein Albaron Ice Maker. Please read these instructions thoroughly before first use and retain them for future reference.
Image: The Klarstein Albaron Ice Maker, a compact countertop unit in blue, designed for home use.
Safety Instructions
- Always ensure the appliance is placed on a stable, level surface.
- Do not immerse the appliance, power cord, or plug in water or other liquids.
- Keep out of reach of children.
- Unplug the appliance before cleaning or when not in use for extended periods.
- Do not operate the appliance with a damaged cord or plug.
- Use only potable water for ice production.
- Ensure proper ventilation around the unit.
Setup
- Unpacking: Carefully remove the ice maker from its packaging. Retain packaging for future transport or storage.
- Placement: Place the unit on a flat, stable countertop away from direct sunlight and heat sources. Ensure adequate space around the unit for ventilation.
- Initial Cleaning: Before first use, clean the interior of the ice maker. The unit features an automatic cleaning function (refer to the Maintenance section). For manual cleaning, wipe surfaces with a damp cloth.
- Fill Water Reservoir: Open the lid and fill the water reservoir with potable water up to the MAX fill line. The reservoir has a capacity of 1.5 liters.
Image: Visual guide showing the steps to fill the water reservoir, select ice size on the control panel, and the resulting ice cubes.
Operating Instructions
- Power On: Plug the ice maker into a suitable power outlet. Press the POWER button on the control panel to turn on the unit.
- Select Ice Size: Use the SELECT button to choose between small (S) or large (L) ice cubes. The selected size indicator will illuminate.
- Start Ice Production: The unit will automatically begin the ice-making cycle after selecting the size. The first batch of ice cubes will be ready in approximately 9 minutes.
- Monitor Indicators:
- A red indicator light will illuminate when the water reservoir is empty, signaling a need for refill.
- Another indicator light will illuminate when the ice basket is full, prompting you to remove ice.
- Continuous Operation: The ice maker can produce up to 12 kg of ice per day under optimal conditions.

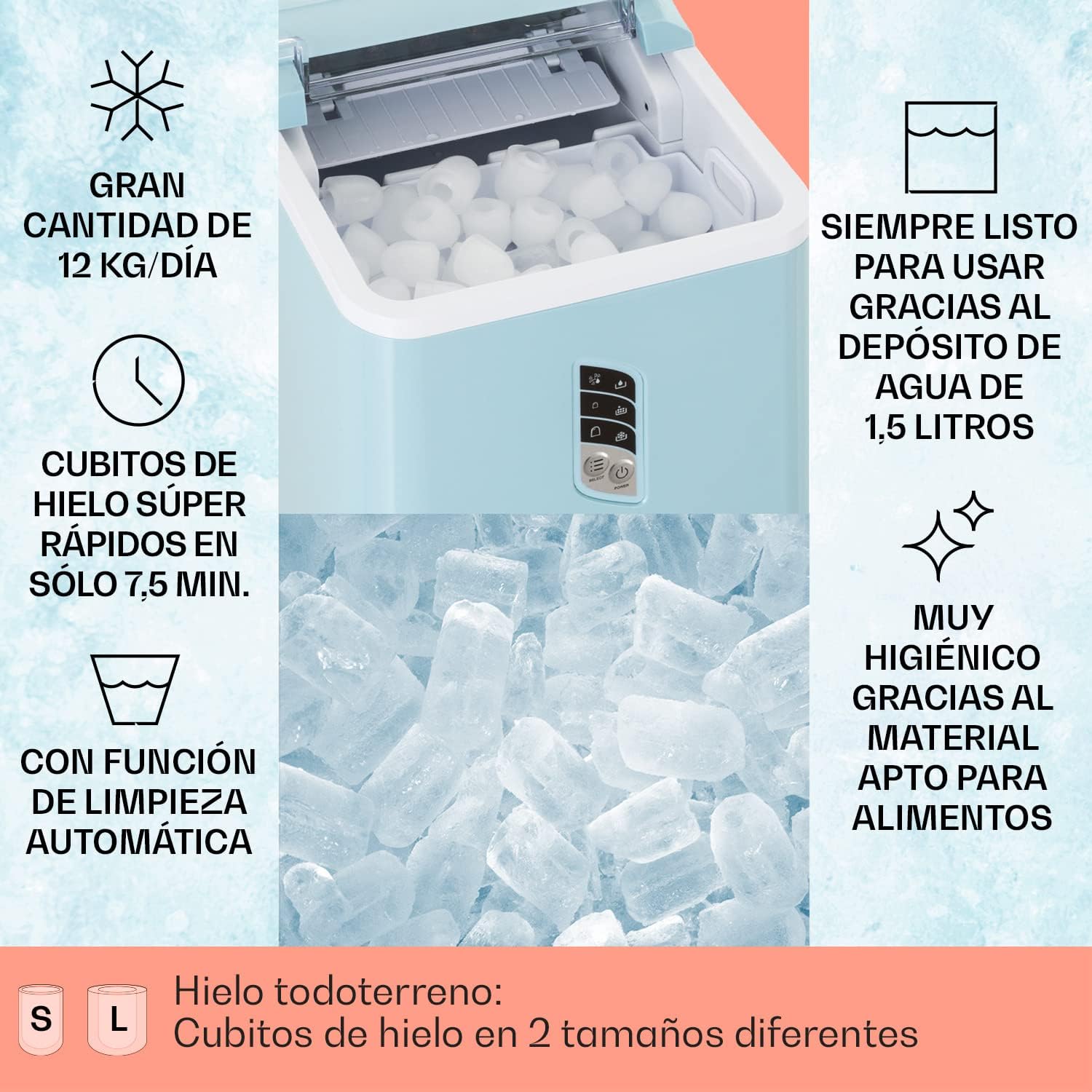

Image: Infographic highlighting key features such as 12 kg/day production, 7.5-minute ice cycle, automatic cleaning, hygienic materials, and two ice cube sizes (S and L).
Maintenance
Regular cleaning ensures optimal performance and hygiene of your ice maker.
- Automatic Cleaning Function: The Klarstein Albaron Ice Maker is equipped with an auto-cleaning function. Consult the specific instructions in your full manual for activating this feature.
- Manual Cleaning:
- Unplug the appliance from the power outlet.
- Remove the ice basket and any remaining ice.
- The collector tray is removable for easy cleaning. Wash it with warm, soapy water and rinse thoroughly.
- Wipe the interior and exterior surfaces of the unit with a soft, damp cloth. For stubborn stains, use a mild detergent.
- Ensure all parts are completely dry before reassembling and operating the unit.
- Water Drainage: Periodically drain any remaining water from the reservoir, especially if the unit will not be used for an extended period. Refer to the full manual for the location of the drainage plug.

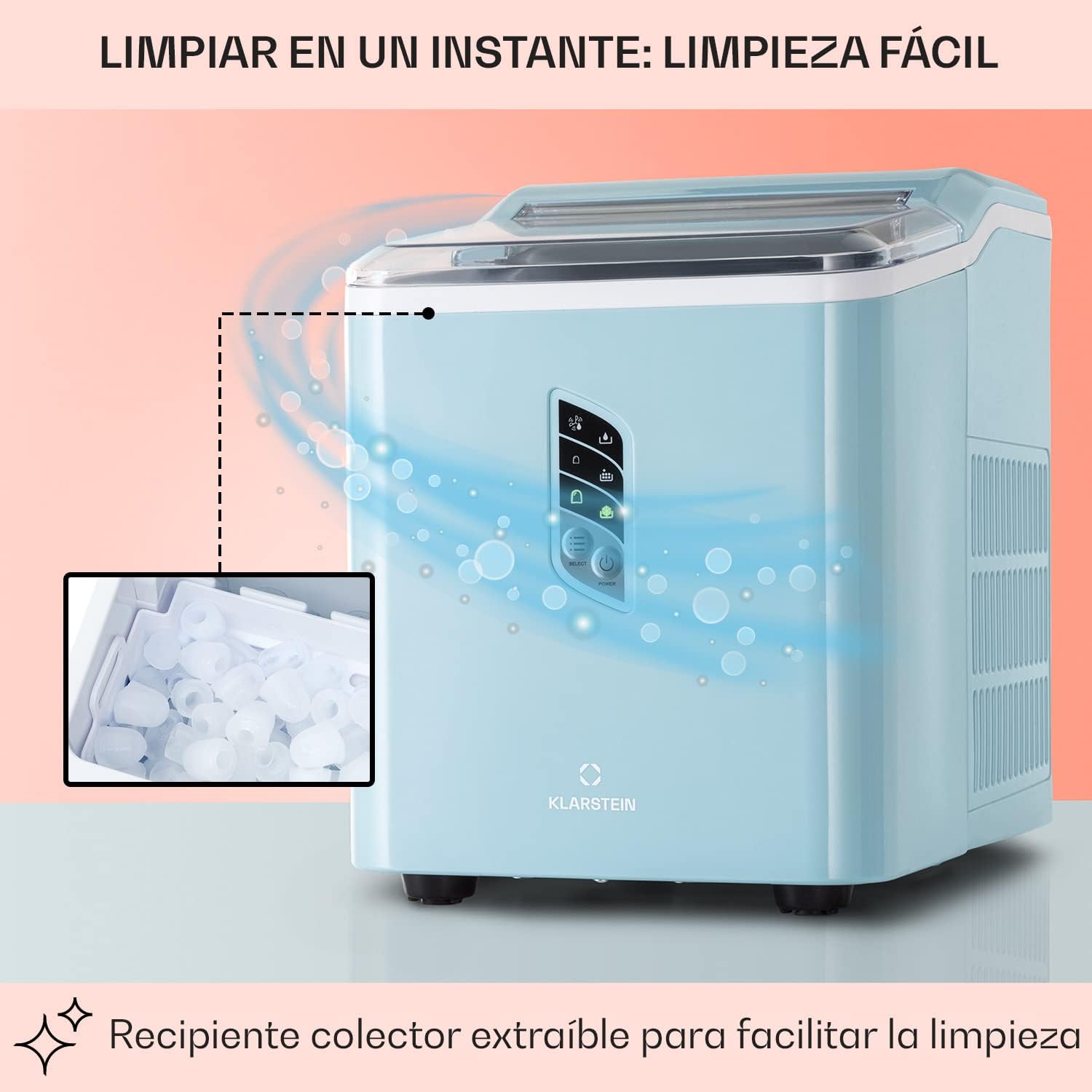

Image: Diagram illustrating the easy cleaning process, highlighting the removable ice collector basket.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Ice production stops, "Ice Full" indicator is off. | Ice cubes are stuck on the sensor, preventing new production. | Gently clear any ice cubes obstructing the ice full sensor. |
| "Add Water" indicator is on, but reservoir has water. | Water level sensor malfunction or obstruction. | Ensure the water level is above the minimum sensor. If the problem persists, clean the sensor area or consult support. |
| Water leaks from the unit. | Drainage valve not properly closed. | Check the drainage valve at the bottom of the unit and ensure it is securely closed. |
| Ice cubes are too small or soft. | Water temperature is too high, or ambient temperature is warm. | Use colder water. Ensure the unit is in a cool, well-ventilated area. Select the 'L' (large) ice cube size. |
Specifications
- Brand: KLARSTEIN
- Model Name: Albaron
- Model Number: TK49-Albaron-blue
- Dimensions (W x D x H): 22.5 cm x 29 cm x 32 cm
- Weight: 7.6 kg
- Water Reservoir Capacity: 1.5 Liters
- Ice Production Capacity: Up to 12 kg per 24 hours
- Ice Production Cycle: Approximately 9 minutes per batch
- Refrigerant: R600a
- Material: BPA-free, stainless steel body
Image: Diagram showing the physical dimensions (width, depth, height) of the Klarstein Albaron Ice Maker.
Warranty and Support
For warranty information, technical support, or service inquiries, please contact Klarstein customer service or visit the official Klarstein website.
You can find more information and contact details on the Klarstein Brand Store.
