Heinner Kopy 350WH HEM-350WH Espresso Machine User Manual

1. Introduction

Thank you for purchasing the Heinner Kopy 350WH HEM-350WH Espresso Machine. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your appliance. Please read these instructions carefully before first use and keep them for future reference.

The Heinner Kopy 350WH HEM-350WH is designed to prepare espresso and cappuccino beverages. It features 3.5 bar pressure, 800 W power, a 240 ml capacity, a stainless steel filter, an aluminum boiler, and a glass carafe.

2. Safety Instructions

To ensure safe operation, always follow these basic safety precautions:

• Read all instructions before operating the appliance.
• Do not immerse the appliance, power cord, or plug in water or any other liquid.
• Unplug the machine from the power outlet when not in use and before cleaning.
• Do not operate the appliance with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner.
• Close supervision is necessary when any appliance is used by or near children.
• Use the appliance only for its intended household purpose.
• Avoid contact with hot surfaces. Use handles or knobs.

3. Product Overview

Familiarize yourself with the components of your Heinner Kopy 350WH HEM-350WH Espresso Machine.

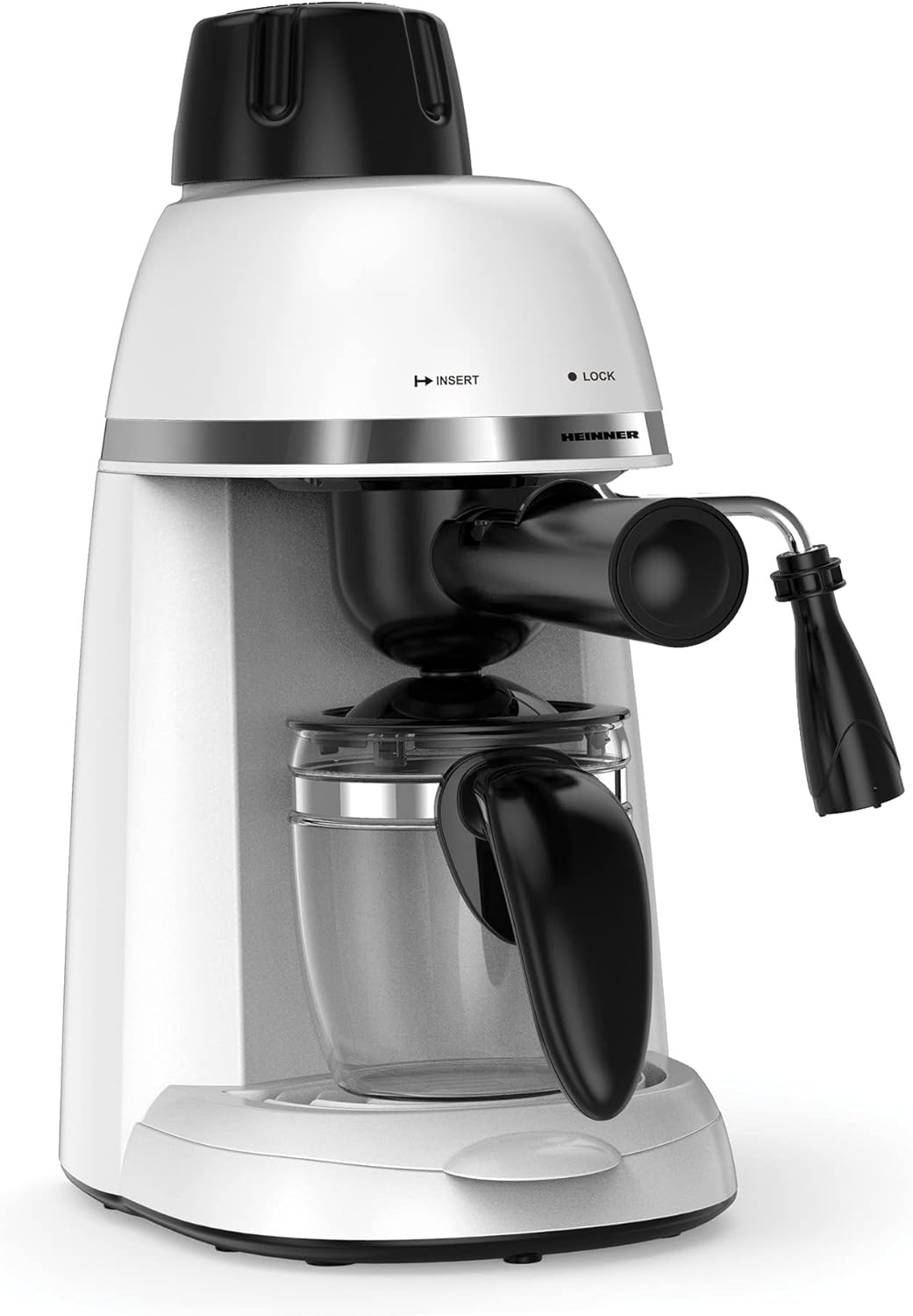

Figure 1: Heinner Kopy 350WH HEM-350WH Espresso Machine, front view. This image shows the espresso machine from the front, highlighting its compact design, white and black color scheme, and the portafilter assembly.

Figure 2: Heinner Kopy 350WH HEM-350WH Espresso Machine with two cups of coffee. This image displays the espresso machine in a kitchen setting, with two prepared coffee beverages (espresso and cappuccino) in glass cups, demonstrating its output.

Main Components:

• Water Tank
• Control Knob
• Portafilter Handle
• Stainless Steel Filter
• Steam Wand (Milk Frother)
• Glass Carafe
• Drip Tray

4. Setup and First Use

4.1 Unpacking

Carefully remove all packaging materials and ensure all parts are present. Dispose of packaging responsibly.

4.2 Initial Cleaning

Before first use, wash the glass carafe, portafilter, and stainless steel filter in warm, soapy water. Rinse thoroughly and dry. Wipe the exterior of the machine with a damp cloth.

4.3 Filling the Water Tank

Open the water tank lid and fill the tank with fresh, cold water up to the MAX level indicated. Do not overfill.

4.4 Priming the Pump

To prime the pump and remove any air from the system:

1. Ensure the water tank is filled.
2. Place the glass carafe on the drip tray.
3. Plug the machine into a suitable power outlet.
4. Turn the control knob to the coffee brewing position. Water will start to flow into the carafe.
5. Let approximately 100ml of water flow through, then turn the control knob to the OFF position. The machine is now primed.

5. Operating Instructions

5.1 Making Espresso

1. Preheating: Ensure the water tank is filled. Turn the control knob to the preheat position (usually indicated by a coffee cup symbol or a heating element symbol). Wait for the indicator light to show the machine is ready (typically 3-5 minutes).
2. Add Ground Coffee: Place the stainless steel filter into the portafilter. Add desired amount of finely ground espresso coffee (approximately 7g per shot). Tamp the coffee lightly and evenly.
3. Attach Portafilter: Align the portafilter with the group head on the machine and twist it firmly to the right until it is securely locked.
4. Brewing: Place the glass carafe under the portafilter. Turn the control knob to the coffee brewing position. Coffee will begin to flow.
5. Stop Brewing: Once the desired amount of espresso is brewed (e.g., 30-60ml per shot), turn the control knob to the OFF position.
6. Serve: Carefully remove the carafe and serve the espresso.

5.2 Making Cappuccino (Using Steam Wand)

To make cappuccino, you will first brew espresso as described above, then froth milk using the steam wand.

1. Prepare Espresso: Brew your espresso into a heat-resistant cup.
2. Prepare Milk: Fill a small pitcher with cold milk (dairy or non-dairy) to about one-third full.
3. Activate Steam: Turn the control knob to the steam position (usually indicated by a steam cloud symbol). Wait for the indicator light to show the machine is ready for steaming.
4. Froth Milk: Submerge the tip of the steam wand just below the surface of the milk. Open the steam valve (if applicable, or turn the knob further to steam). Move the pitcher up and down gently to create foam. Continue until the milk reaches the desired temperature and consistency.
5. Clean Steam Wand: Immediately after frothing, turn off the steam and wipe the steam wand with a damp cloth to prevent milk residue from drying.
6. Combine: Pour the frothed milk over your prepared espresso.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your espresso machine.

6.1 Daily Cleaning

• Portafilter and Filter: After each use, remove the portafilter, discard used coffee grounds, and rinse the portafilter and filter under running water.
• Glass Carafe: Wash the glass carafe after each use.
• Drip Tray: Empty and clean the drip tray regularly to prevent overflow.
• Exterior: Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or scourers.

6.2 Descaling

Over time, mineral deposits (limescale) can build up in the machine, affecting performance. Descale your machine every 2-3 months, or more frequently if you have hard water.

1. Prepare a descaling solution according to the descaler product instructions (or use a mixture of white vinegar and water).
2. Fill the water tank with the descaling solution.
3. Place the glass carafe under the portafilter.
4. Run the machine through a brewing cycle until half of the solution has passed through.
5. Turn off the machine and let it sit for 15-20 minutes.
6. Run the remaining solution through the machine.
7. Rinse the water tank and fill it with fresh water. Run several cycles with fresh water to thoroughly rinse out any descaling solution.

7. Troubleshooting

If you encounter issues with your espresso machine, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. Keep your proof of purchase for warranty claims.
