KOMFOTT Full Over Full Bunk Bed with Trundle - Instruction Manual

1. Introduction

Thank you for choosing the KOMFOTT Full Over Full Bunk Bed with Trundle. This manual provides essential information for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Product Overview

The KOMFOTT Full Over Full Bunk Bed with Trundle is designed to provide a space-saving sleeping solution with a sturdy wood frame and safety features. It includes a full-size upper bunk, a full-size lower bunk, and a pull-out twin-size trundle bed.

Key Features:

• Solid Wood Construction: Made of pine wood for durability and stability.
• Integrated Ladder: Provides convenient access to the upper bunk.
• Full-Length Guardrails: Ensures safety on the upper bunk.
• Pull-Out Trundle Bed: Offers an additional sleeping space, ideal for guests or multiple children.
• Convertible Design: Can be separated into two independent full-size platform beds.
• No Box Spring Needed: Features sturdy wood slats for mattress support.

Product Components:

Your package includes the bunk bed frame and an instruction manual. All necessary hardware for assembly is provided.

Image 2.1: The KOMFOTT Full Over Full Bunk Bed with Trundle, showcasing its espresso finish and overall structure.

Image 2.2: The bunk bed with the trundle bed neatly stored underneath, demonstrating its space-saving design.

Image 2.3: Detailed view highlighting key features such as the high guardrail for safety, solid ladder, sturdy pine wood frame, and convenient trundle wheels.

3. Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or death.

• Always use the ladder carefully to avoid falls.
• Keep fingers away from casters and other moving parts to prevent injury.
• Do not exceed the weight capacity of 360 lbs for the upper and lower beds.
• Do not exceed the weight capacity of 270 lbs for the trundle bed.
• Follow the assembly instructions carefully to ensure stability and prevent collapse.
• Ensure all connections are tight before use and periodically check for loose hardware.
• The top bunk is not suitable for children under 6 years of age.
• Use only mattresses that are 5-8 inches thick for the bunk beds and 6 inches or less for the trundle bed to ensure proper guardrail height.
• Prohibit more than one person on the upper bunk.
• Always use the guardrails on both sides of the upper bunk.

4. Setup and Assembly

Assembly of the KOMFOTT Full Over Full Bunk Bed with Trundle is required. Please refer to the detailed step-by-step instructions included in your product packaging. Ensure all parts are present and undamaged before beginning assembly.

Before You Begin:

• Clear a spacious area for assembly.
• Identify all components and hardware using the parts list in the separate assembly guide.
• Gather necessary tools (typically a Phillips head screwdriver and Allen wrench, often included).
• It is recommended to have two adults for assembly.

Assembly Tips:

• Do not fully tighten screws until all components are loosely assembled.
• Place a blanket or cardboard on the floor to prevent scratching the bed components during assembly.
• Periodically check and re-tighten all connections after initial assembly and during regular use.

Image 4.1: Illustrates the sturdy pine wood frame and thickened slats that provide noise-free support and eliminate the need for a box spring.

5. Operating Instructions

Using the Trundle Bed:

The trundle bed is designed to slide out from underneath the lower bunk. To use, simply pull the trundle frame outwards from the main bed structure. To store, push the trundle frame back into its position under the lower bunk. Ensure the trundle wheels are clear of obstructions for smooth operation.

Image 5.1: The trundle bed fully extended, ready for use as an additional sleeping surface.

Converting to Two Separate Beds:

This bunk bed can be separated into two individual full-size platform beds. This conversion process involves disassembling the connecting posts and guardrails. Refer to the specific instructions in your assembly manual for detailed steps on how to safely convert the bunk bed into two separate beds.

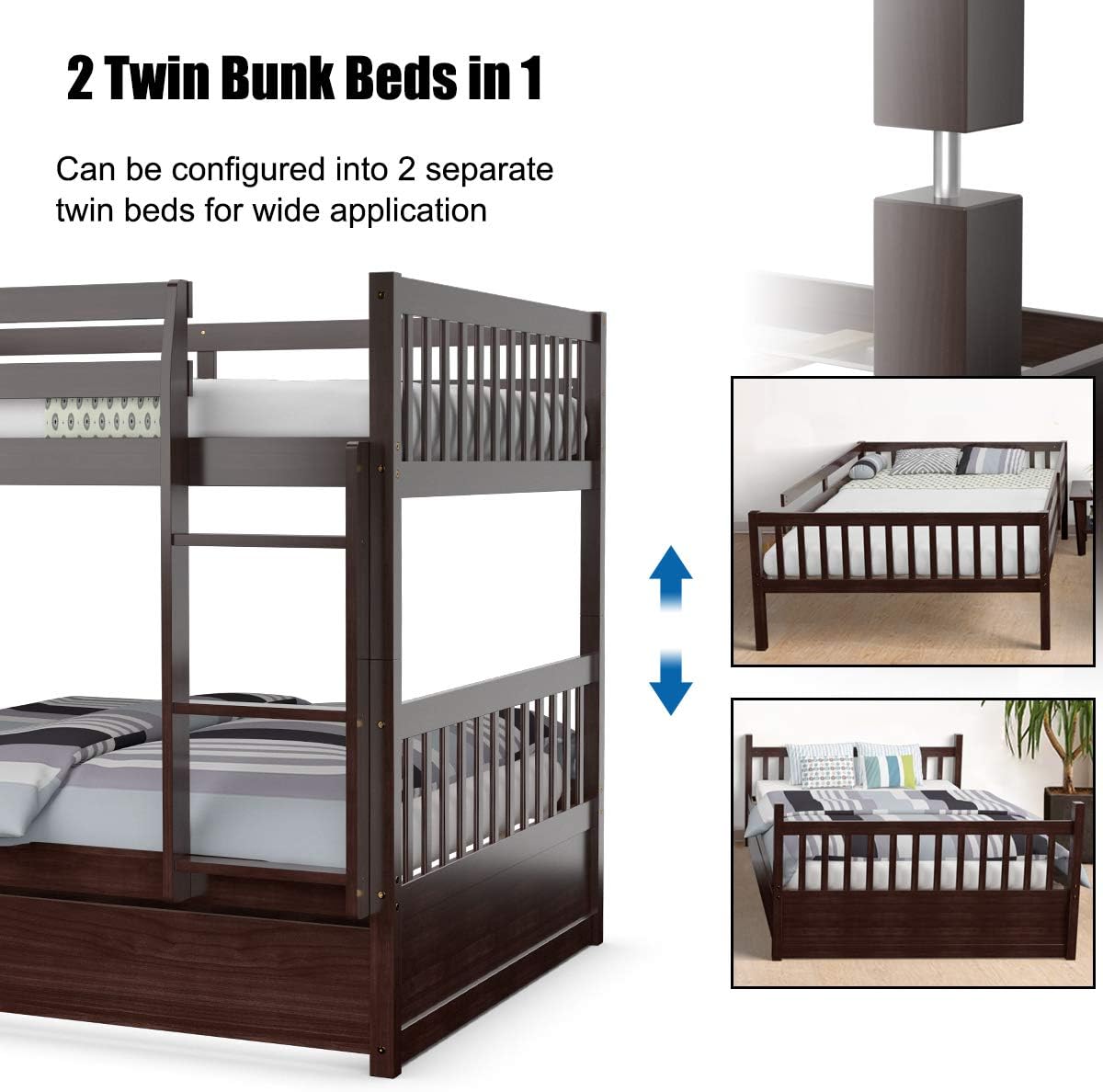

Image 5.2: The bunk bed disassembled and configured as two separate full-size platform beds, demonstrating its versatile design.

6. Maintenance and Care

Cleaning:

• Wipe surfaces with a soft, damp cloth.
• Avoid using harsh chemicals or abrasive cleaners, as these can damage the wood finish.
• Promptly clean up spills to prevent staining.

Regular Inspection:

• Periodically check all bolts, screws, and connections to ensure they are tight. Re-tighten as necessary.
• Inspect the wooden frame and slats for any signs of damage, cracks, or splinters. Address any issues immediately to maintain structural integrity and safety.
• Ensure the ladder is securely attached and stable.

7. Troubleshooting

Squeaking Noises:

If the bed produces squeaking noises, check all bolts and screws. Tighten any loose connections. Ensure the bed is placed on a level surface.

Wobbling:

A wobbling bed often indicates loose hardware. Re-check and tighten all bolts and screws. Ensure the bed is assembled correctly according to the instructions.

Trundle Not Sliding Smoothly:

Check the trundle wheels for any obstructions or debris. Ensure the floor surface is clean and level. Inspect the trundle frame for any damage that might impede movement.

For any issues not resolved by these steps, please contact KOMFOTT customer support.

8. Specifications

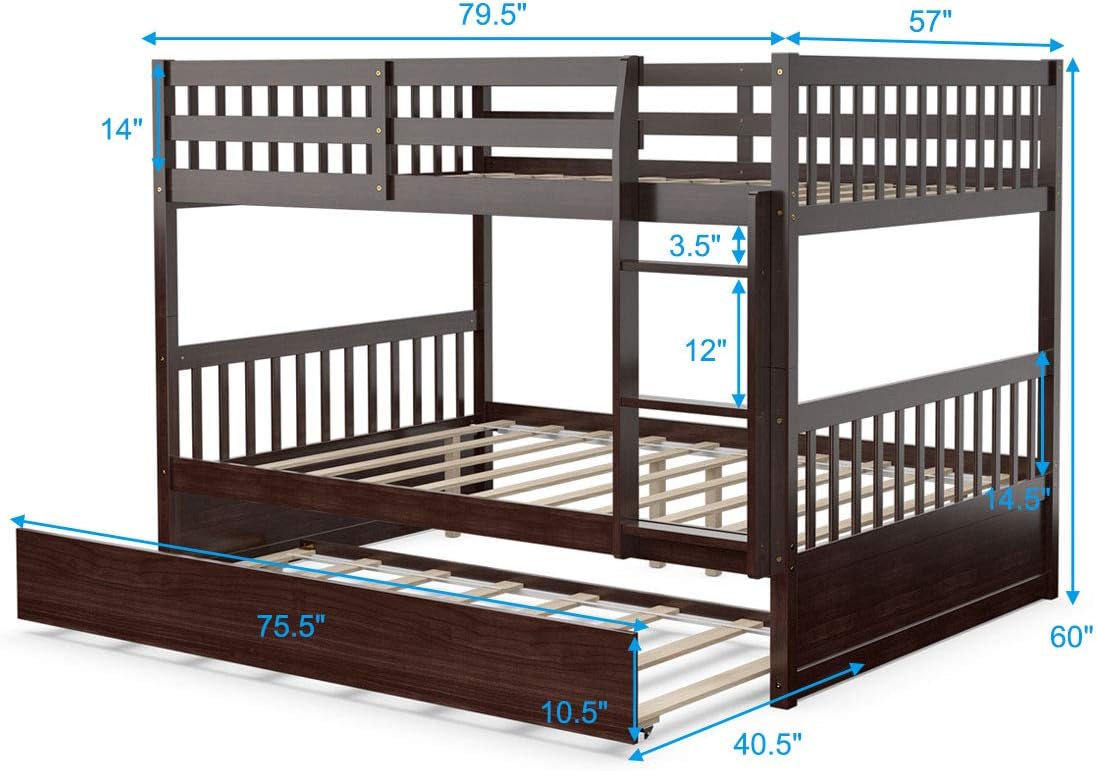

Image 8.1: Detailed dimensional diagram of the bunk bed and trundle unit.

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact KOMFOTT customer service directly. If you encounter any issues with your product, require replacement parts, or have questions regarding assembly or use, please reach out to KOMFOTT customer support for assistance.

Contact Information: Please visit the official KOMFOTT website or refer to your purchase receipt for the most current customer support contact details.
