Lyridz A5119 Dimmable Plug-in Night Light Instruction Manual

Introduction

The Lyridz A5119 Dimmable Plug-in Night Light is designed to provide soft, adjustable illumination for various indoor spaces. Featuring a sensitive dusk-to-dawn sensor and stepless dimming, this compact LED night light offers convenience and energy efficiency. Its foldable plug design ensures it does not obstruct other outlets and is easy to store or transport.

What's in the Box

• 2 x Lyridz Plug-in Night Lights
• 1 x User Manual

Features

• Energy Efficient and Safe: This LED night light consumes only 1KWh for 1000 hours of use at its maximum power of 1W, promoting energy savings. Constructed with V0 Fire-Resistant ABS material, it is suitable for children's rooms and hallways.
• Dusk-to-Dawn Light Sensor: Equipped with a sensitive light sensor, the night light automatically activates at dusk and deactivates at dawn, providing illumination only when needed.
• Adjustable Brightness: Adjust the brightness from 1 to 50 lumens by long-pressing the control area. The device includes a brightness memory function, retaining the last set brightness for subsequent use.
• Minimalist Design: Its sleek, compact design (2.1"W x 3.0"H x 0.6"D) and foldable plug ensure it does not block adjacent outlets, making it highly practical.

Figure 1: Lyridz A5119 Dimmable Plug-in Night Light, showcasing its compact design.

Figure 2: Demonstration of the night light's adjustable brightness feature, ranging from 1 to 50 lumens.

Figure 3: Visual representation of the night light's energy-saving capability, consuming 1KWh over 1000 hours.

Figure 4: Comparison illustrating the high-quality construction of the Lyridz A5119, including a long-lasting bulb, fireproof casing, and durable copper pins.

Figure 5: The compact design of the Lyridz A5119 ensures that the second electrical outlet remains unobstructed when plugged in.

Figure 6: The night light provides comfortable, soft illumination, ideal for a nursery setting.

Figure 7: Examples of the night light's brightness levels (5lm, 10lm, 25lm, 50lm) in different environments.

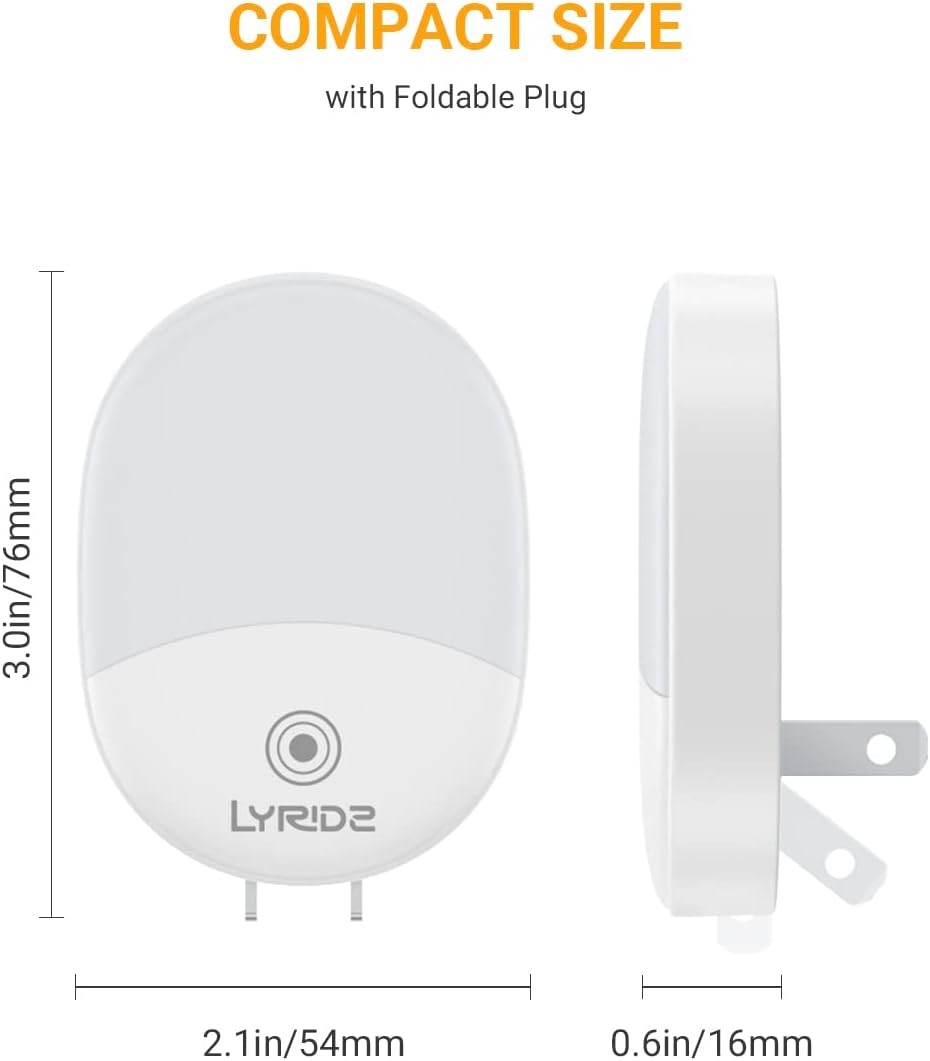

Figure 8: Detailed dimensions of the Lyridz A5119 Night Light, highlighting its compact and foldable plug design.

Setup

1. Unpack: Carefully remove the night light from its packaging.
2. Prepare Plug: If the plug prongs are folded, gently extend them until they lock into place.
3. Plug In: Insert the night light into a standard 120V AC wall outlet. Ensure it is securely plugged in.
4. Placement: For optimal performance of the dusk-to-dawn sensor, place the night light in an area where it can detect ambient light levels without being directly obstructed.

Operating Instructions

1. Automatic Operation: The built-in dusk-to-dawn sensor will automatically turn the night light on when the ambient light is low (dusk) and turn it off when the ambient light is sufficient (dawn). No manual intervention is required for basic on/off functionality.
2. Adjusting Brightness: To adjust the brightness, locate the control area (often a small button or touch-sensitive spot) on the front of the night light. Long-press this area to cycle through brightness levels from 1 lumen (dimmest) to 50 lumens (brightest). Release your finger when the desired brightness is achieved. The night light will remember your last brightness setting.

Maintenance

• Cleaning: Disconnect the night light from the power outlet before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive cleaners or solvents.
• Storage: When not in use, unplug the night light and fold the prongs for compact storage. Store in a cool, dry place.
• Safety: This product is for indoor use only. Do not expose to water or excessive humidity. Do not attempt to disassemble or repair the unit.

Troubleshooting

• Light does not turn on at dusk:
  • Ensure the night light is securely plugged into a working outlet.
  • Check if the surrounding area is too bright. The sensor requires sufficient darkness to activate.
  • Verify that the sensor is not obstructed by furniture or other objects.
• Light does not turn off at dawn:
  • Ensure the surrounding area receives sufficient ambient light during the day.
  • Check for any artificial light sources (e.g., lamps, other electronics) that might be keeping the sensor activated.
• Brightness adjustment is not working:
  • Ensure you are long-pressing the correct control area. A short press might not register the adjustment.
  • If the issue persists, try unplugging the device for a few minutes and then plugging it back in to reset it.

Specifications

Warranty and Support

Your Lyridz A5119 Dimmable Plug-in Night Light comes with up to a 12-month warranty and lifetime technical support. For any inquiries or assistance, please contact Lyridz customer support at suprt@lyridz.com.
