1. Introduction
This manual provides detailed instructions for the safe and effective use of your bonoch Baby Monitor with two cameras. This system is designed to provide secure, high-definition video and audio monitoring of your baby without requiring a Wi-Fi connection, ensuring privacy and reliability.
Please read this manual thoroughly before operating the device and retain it for future reference.
2. Package Contents
Upon unpacking, please ensure all items listed below are present and in good condition:
- 1 x 7-inch HD Baby Monitor (Parent Unit)
- 2 x Baby Cameras (Baby Units)
- 3 x Power Adapters (for Monitor and Cameras)
- 1 x User Manual
- Wall Mounting Kits (screws and anchors)
3. Important Safety Information
Please observe the following safety precautions to prevent injury or damage to the product:
- Strangulation Hazard: Keep all power cords out of reach of children (at least 3 feet / 1 meter away). Never place cameras or cords within a crib or playpen.
- Choking Hazard: This product contains small parts. Keep away from children.
- Water and Moisture: Do not expose the product to rain or moisture. Do not use near water (e.g., bathtub, sink).
- Heat Sources: Do not place the product near heat sources such as radiators, heat registers, stoves, or other heat-producing appliances.
- Ventilation: Ensure proper ventilation. Do not block any ventilation openings.
- Power Adapters: Use only the provided power adapters. Using unauthorized adapters may damage the product and void the warranty.
- Mounting: Ensure cameras are securely mounted if using wall or ceiling mounts.
4. Product Overview
The bonoch Baby Monitor system consists of a Parent Unit (monitor) and Baby Units (cameras). Familiarize yourself with the components:
4.1 Parent Unit (Monitor)
- 7-inch 720P HD Display
- Control Buttons (Power, Menu, OK, Navigation, Talk, Zoom)
- Microphone and Speaker
- Antenna
- Charging Port
- Battery Indicator
4.2 Baby Unit (Camera)
- HD Camera Lens
- Infrared LEDs for Night Vision
- Microphone and Speaker
- Temperature Sensor
- Pairing Button
- Power Port
- Mounting Holes
5. Setup Guide
5.1 Charging the Parent Unit
- Connect the provided power adapter to the Parent Unit's charging port.
- Plug the adapter into a power outlet. The battery indicator will show charging status.
- Charge the Parent Unit for at least 4 hours before first use to ensure optimal battery life. The 4000mAh battery provides up to 22 hours in VOX mode or 8 hours in regular monitoring mode.
5.2 Powering the Baby Units
- Connect the provided power adapters to each Baby Unit's power port.
- Plug the adapters into power outlets. The Baby Units will power on automatically.
5.3 Positioning the Baby Units
Place the Baby Units in a location that provides a clear view of your baby. Ensure the camera is at least 3 feet (1 meter) away from the crib or playpen to prevent strangulation hazards from the power cord.
- Surface Mount: Place the camera on a flat, stable surface such as a dresser or shelf.
- Wall/Ceiling Mount: Use the included mounting kit to securely attach the camera to a wall or ceiling. Ensure the camera is positioned to capture the desired viewing area.
5.4 Secure Connection (No Wi-Fi Required)
The bonoch Baby Monitor uses a 2.4GHz FHSS (Frequency Hopping Spread Spectrum) wireless connection, which provides a secure and private live stream without the need for Wi-Fi or smartphone applications. This technology prevents unauthorized access to your video feed.
5.5 Pairing Additional Cameras (if applicable)
Your bonoch Baby Monitor comes pre-paired with the included cameras. If you purchase additional cameras or need to re-pair a camera:
- Turn on both the Parent Unit and the Baby Unit you wish to pair.
- On the Parent Unit, navigate to the 'Camera Settings' menu.
- Select 'Add Camera' and follow the on-screen prompts.
- Press the 'Pair' button on the back of the Baby Unit within the specified time frame.
- Once paired, the camera's video feed will appear on the Parent Unit.
6. Operating Instructions
6.1 Power On/Off
- To Power On: Press and hold the Power button (U) on the Parent Unit until the screen illuminates. Baby Units power on automatically when connected to power.
- To Power Off: Press and hold the Power button (U) on the Parent Unit until the screen turns off. Unplug Baby Units from power to turn them off.
6.2 Display Features
The 7-inch 720P HD display provides a clear view of your baby. The system supports up to four cameras simultaneously.
- Single Camera View: Displays the feed from one camera at a time. Use navigation buttons to switch between paired cameras.
- Split Screen View: Allows simultaneous viewing of two cameras side-by-side on the screen. This feature is ideal for monitoring multiple children or different areas of a room.
6.3 Camera Control (Pan, Tilt, Zoom)
The Baby Units offer extensive coverage of the nursery:
- Pan: Use the navigation buttons on the Parent Unit to pan the camera horizontally up to 355°.
- Tilt: Use the navigation buttons to tilt the camera vertically up to 120°.

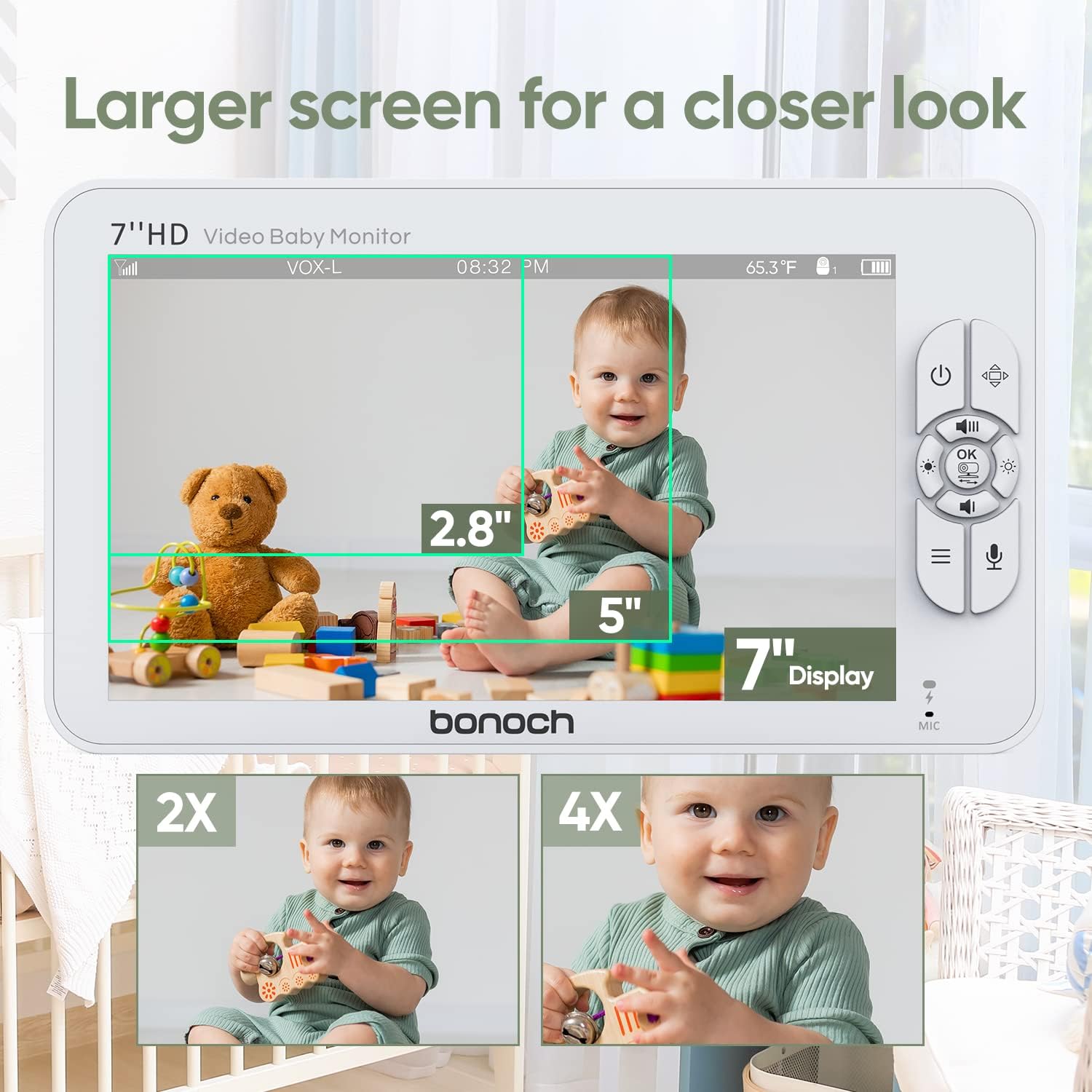

- Digital Zoom: Press the Zoom button on the Parent Unit to digitally zoom in up to 4 times (4x).
6.4 Audio Features
- Real-time Sound: Hear your baby clearly through the Parent Unit's speaker. Adjust volume using the dedicated buttons.
- Two-Way Talk: Press and hold the Talk button on the Parent Unit to speak to your baby through the Baby Unit's speaker. Release the button to hear your baby again.
- Lullabies: The monitor includes 8 pre-programmed lullabies. Access this feature through the menu to play soothing melodies for your baby.
6.5 VOX Mode (Voice Operated Exchange)
VOX mode conserves battery life by turning off the Parent Unit's screen and audio transmission when no sound is detected from the baby's room. The monitor will automatically reactivate when sound is detected.
- Activating VOX: Enable VOX mode through the Parent Unit's menu. You can adjust the sensitivity level to detect different sound thresholds.
- Battery Saving: In VOX mode, the 4000mAh battery can last up to 22 hours.
6.6 Auto Night Vision
The Baby Units are equipped with infrared LEDs that automatically activate in low-light conditions, providing clear black-and-white video of your baby even in complete darkness. This feature operates without emitting visible red lights that could disturb your baby.
6.7 Temperature Monitoring
Each Baby Unit has a built-in temperature sensor that monitors the room temperature. The temperature reading is displayed on the Parent Unit's screen, allowing you to ensure your baby's comfort.
6.8 Battery Life
The Parent Unit is powered by a 4000mAh Lithium Polymer battery, offering:
- Up to 22 hours of monitoring in VOX mode.
- Up to 8 hours of continuous monitoring in regular mode.
6.9 Additional Features
The monitor also includes a timer function, accessible via the menu, which can be used for various purposes such as feeding schedules or nap times.
7. Maintenance
7.1 Cleaning
- Ensure both the Parent Unit and Baby Units are powered off and unplugged before cleaning.
- Use a soft, dry, lint-free cloth to wipe the surfaces of the monitor and cameras.
- For stubborn marks, lightly dampen the cloth with water. Avoid using abrasive cleaners, solvents, or chemical wipes, as these can damage the plastic and electronic components.
- Gently clean the camera lens with a lens cleaning cloth to maintain clear image quality.
7.2 Storage
If storing the monitor for an extended period, ensure it is fully charged, then power it off. Store in a cool, dry place away from direct sunlight and extreme temperatures.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No image/sound on Parent Unit | Parent Unit or Baby Unit is off; Out of range; Low battery; Camera not paired. | Ensure all units are powered on and charged. Move Parent Unit closer to Baby Unit. Re-pair camera if necessary. |
| Poor image quality | Camera lens is dirty; Insufficient lighting; Out of range. | Clean camera lens. Ensure adequate lighting or check night vision activation. Move units closer. |
| Static or interference | Other electronic devices interfering; Out of range. | Move Parent Unit or Baby Unit away from other electronics (e.g., Wi-Fi routers, microwaves). Move units closer. |
| VOX mode not activating/deactivating correctly | VOX sensitivity setting is too high/low. | Adjust VOX sensitivity in the Parent Unit's menu. |
| Battery not holding charge | Battery degradation; Faulty adapter. | Ensure using the correct adapter. If issue persists, contact customer support for battery replacement or warranty claim. |
If you encounter issues not listed here or if the problem persists after attempting the solutions, please contact bonoch customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Model Name | BBM05 |
| Display Size | 7 inches |
| Video Resolution | 720P HD (1280 x 720 pixels) |
| Connectivity Technology | 2.4 GHz FHSS Wireless (No Wi-Fi) |
| Number of Cameras Supported | Up to 4 |
| Camera Pan Angle | 355 degrees |
| Camera Tilt Angle | 120 degrees |
| Digital Zoom | 4x |
| Parent Unit Battery | 4000 mAh Lithium Polymer |
| Battery Life (VOX Mode) | Up to 22 hours |
| Battery Life (Regular Mode) | Up to 8 hours |
| Special Features | Split Screen, Two-Way Talk, VOX Mode, Auto Night Vision, Temperature Sensor, Lullabies |
| Mounting Options | Surface, Wall, Ceiling |
| Product Dimensions (Monitor) | 7.87 x 4.53 x 0.79 inches |
| Item Weight | 2.57 pounds (total package) |
| Material | Plastic |
| International Protection Rating | IP54 |
10. Warranty and Customer Support
bonoch provides a 1-year warranty for this product, covering manufacturing defects and malfunctions under normal use. Additionally, customers receive lifetime technical support.
For technical assistance, warranty claims, or any questions regarding your bonoch Baby Monitor, please contact our customer service team:
- E-mail: support@bonoch.com
- Phone (US): 1-877-643-2797
- Online Support Hours: Tuesday - Saturday, 8:00 AM - 5:00 PM (PST)
Please have your model number (BBM05) and purchase information ready when contacting support.
