Important Safety Information
Please read this entire manual carefully before assembling, operating, or servicing your Nexgrill 2-Burner Propane Gas Tabletop Griddle. Failure to follow these instructions could result in property damage, bodily injury, or death.
- For outdoor use only. Do not operate indoors or in an enclosed area.
- Keep children and pets away from the griddle at all times.
- Always operate the griddle on a level, stable, non-combustible surface.
- Maintain a minimum clearance of 10 inches from the back and sides to any combustible materials.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Always turn off the gas supply at the LP cylinder after each use.
- Never leave the griddle unattended while in use.
- Wear protective gloves when handling hot surfaces.
Product Overview
The Nexgrill 2-Burner Propane Gas Tabletop Griddle is designed for versatile outdoor cooking. It features a durable porcelain-enameled cast iron griddle top, two independently controlled burners, and a convenient removable grease cup.
Front view of the Nexgrill 2-Burner Propane Gas Tabletop Griddle, showcasing the griddle surface and control panel.
Side view of the griddle, illustrating its compact design and sturdy construction.
Key Components:
- Porcelain-Enameled Cast Iron Griddle Top: Offers 323 square inches of cooking space with excellent heat retention and non-stick properties.
- Control Panel: High-quality stainless steel, housing two control knobs for independent burner operation.
- Burners: Two 9,500 BTU burners providing a total of 19,000 BTUs for powerful and even heating.
- Piezo Ignition System: Ensures dependable and instant ignition.
- Removable Grease Cup: Located at the side for easy collection and disposal of grease and drippings.
- Sturdy Legs: Provide reliable stability for tabletop use.
Setup and Assembly
The Nexgrill Tabletop Griddle is designed for quick and easy assembly. Follow these steps to prepare your griddle for first use.
Unpacking:
- Carefully remove all components from the packaging.
- Check for any shipping damage. If any damage is found, do not proceed with assembly and contact customer support.
- Ensure all parts listed in the 'Included Components' section are present.
Placement:
- Place the griddle on a firm, level, non-combustible surface outdoors.
- Ensure adequate ventilation and clearance from combustible materials (minimum 10 inches from back and sides).

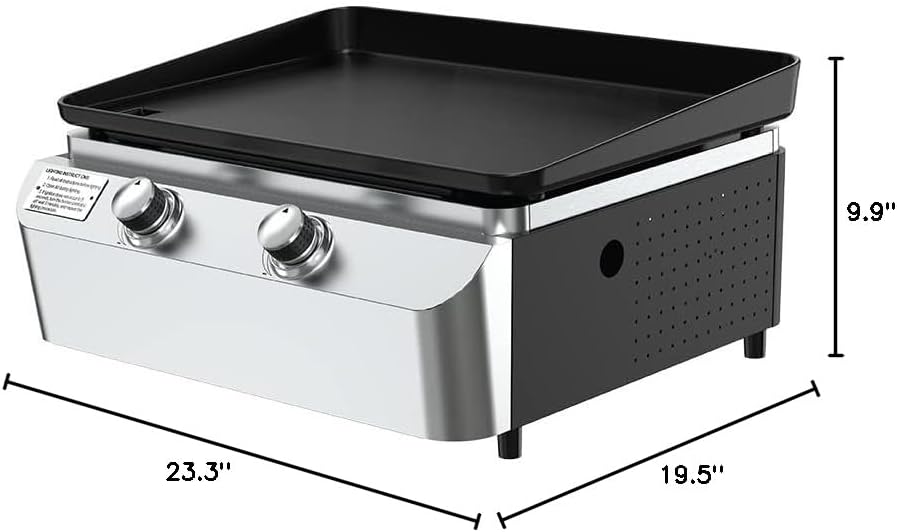

Product dimensions: 19.5"D x 23.3"W x 9.9"H, important for placement considerations.
Connecting the LP Hose and Regulator:
- Ensure the griddle control knobs are in the 'OFF' position.
- Connect the LP hose and regulator assembly (included) to the griddle's gas inlet. Hand-tighten securely.
- Connect the other end of the regulator to a standard 20 lb. LP gas cylinder. Turn the cylinder valve clockwise until snug.
- Perform a leak test: Apply a soapy water solution to all gas connections. Bubbles indicate a leak. If a leak is detected, turn off the gas, tighten connections, and re-test. Do not operate if leaks persist.
Operating Instructions
Follow these steps for safe and efficient operation of your griddle.
Lighting the Burners (Piezo Ignition):
The control knobs feature a 'Push & Turn' ignition system for reliable startup.
- Ensure the LP cylinder valve is fully open.
- Push in and turn one control knob counter-clockwise to the 'HIGH' position.
- You should hear a click, indicating the Piezo igniter is sparking. The burner should ignite within a few seconds.
- If the burner does not light, turn the knob to 'OFF', wait 5 minutes for gas to dissipate, and repeat the lighting procedure.
- Once lit, adjust the flame to your desired cooking temperature by turning the knob between 'HIGH' and 'LOW'.
- Repeat for the second burner if needed.
Preheating:
For best cooking results, preheat the griddle for 5-10 minutes on medium heat before placing food on the surface. This ensures even heat distribution across the 323 sq. inch cooking area.
The griddle provides 19,000 BTUs of total cooking power for efficient heating.
Shutting Down:
- Turn all control knobs to the 'OFF' position.
- Turn off the gas supply at the LP cylinder valve.
- Allow the griddle to cool completely before cleaning or moving.
Maintenance and Cleaning
Regular cleaning and maintenance will extend the life of your griddle and ensure optimal performance.
Cleaning the Griddle Top:
The porcelain-enameled cast iron griddle top is designed for easy cleaning.
The griddle features a durable porcelain-enameled cast iron cooking surface.
- After each use, once the griddle has cooled, scrape off any food residue with a griddle scraper.
- Wipe the surface clean with a paper towel or a soft cloth. For stubborn residue, use warm soapy water and a non-abrasive sponge.
- Rinse thoroughly and dry completely to prevent rust.
Cleaning the Removable Grease Cup:
The side-access removable grease cup makes cleanup hassle-free.
The griddle includes a convenient side-access removable grease cup for easy cleaning.
- Regularly empty and clean the grease cup.
- Remove the cup, dispose of collected grease, and wash with warm soapy water.
- Rinse and dry thoroughly before replacing.
Exterior Cleaning:
- Wipe down the stainless steel control panel and exterior surfaces with a damp cloth and mild detergent.
- Avoid abrasive cleaners or pads that could scratch the finish.
Storage:
When not in use, store the griddle in a dry, protected area. Disconnect the LP cylinder and store it outdoors in a well-ventilated area, away from direct sunlight or heat sources.
Troubleshooting
If you encounter issues with your griddle, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not light | No gas flow; clogged burner port; faulty igniter. | Check LP cylinder connection and gas level; clean burner ports; ensure igniter wire is connected and sparking. |
| Uneven heating | Clogged burner ports; griddle not level. | Clean burner ports; ensure griddle is on a level surface. |
| Low flame, even on HIGH | Low gas in cylinder; regulator bypass activated. | Replace LP cylinder; turn off all controls and cylinder, wait 30 seconds, then slowly open cylinder valve and re-light. |
| Grease flare-ups | Excess grease buildup; high heat. | Clean griddle surface and grease cup regularly; reduce heat setting. |
If troubleshooting steps do not resolve the issue, please contact Nexgrill customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Number | 820-0061 |
| Fuel Type | Propane Gas |
| Total BTUs | 19,000 BTUs (2 x 9,500 BTU burners) |
| Cooking Area | 323 sq. inches |
| Griddle Material | Porcelain-Enameled Cast Iron |
| Control Panel Material | Stainless Steel |
| Ignition System | Piezo Ignition |
| Product Dimensions (D x W x H) | 19.5" x 23.3" x 9.9" |
| Item Weight | 31 Pounds |
| Special Features | Portable, Removable Grease Tray |
| Included Components | One 2-Burner Griddle, LP Hose and Regulator |
Warranty and Support
Nexgrill products are manufactured to high-quality standards and are warranted to be free from defects in materials and workmanship. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Nexgrill website.
For technical assistance, replacement parts, or warranty claims, please contact Nexgrill Customer Support:
- Website: www.nexgrill.com (Please check the official website for the most current contact information)
- Phone: Refer to the product packaging or Nexgrill website for customer service phone numbers.
