FLUENTPOWER 1.5HP Portable Garden Transfer Pump User Manual

1. Product Overview

The FLUENTPOWER 1.5HP Portable Garden Transfer Pump is designed for efficient water transfer and irrigation. It features a durable stainless steel housing, a waterproof on/off switch, and a portable handle for ease of transport and storage. This pump is ideal for various applications including garden sprinkling, lawn irrigation, and water draining from ponds, pools, and shallow wells.

Figure 1: FLUENTPOWER 1.5HP Portable Garden Transfer Pump with included accessories.

Key Features:

• 1.5 HP Power: Provides a Max. Flow Rate of 1200 GPH and a Max. Lift Head up to 148 ft.
• Durable Construction: Stainless steel housing and wear-resistant seal material ensure longevity.
• Thermal Protection: Prevents motor burnout due to overheating.
• Portable Design: Equipped with a handle for easy carrying.
• Easy Maintenance: Dedicated priming and drain ports for convenient water management.

2. Setup Instructions

Before operating the pump, ensure all connections are secure and the pump is properly primed. The pump is designed to work only with clean water.

2.1 Unpacking and Component Check

Carefully remove all components from the packaging. Verify that the following accessories are included:

• Hose Clamp (x2)
• Garden Hose Adapter (x2)
• Check Valve for Intake Hose with 1" Hose Coupling
• 1" Hose Coupling for Intake Hose
• Thread Tape (x1)

Figure 2: All accessories included for pump setup.

2.2 Connecting Hoses and Priming

1. Attach the appropriate hose couplings and adapters to the pump's inlet and outlet ports. Use the provided thread tape to ensure a watertight seal.
2. Connect the intake hose to the inlet port, ensuring the check valve is installed on the intake end submerged in the water source.
3. Connect the discharge hose to the outlet port.
4. Priming the Pump: Before first use or after the pump has been drained, it is crucial to prime the pump. Fill the pump head with clean water (at least 4 liters) through the dedicated priming port until it is full. This helps accelerate the flow rate and ensures proper operation.

Figure 3: Steps for filling water into the inlet hose and pump head for priming.

3. Operating Instructions

Once the pump is properly set up and primed, it is ready for operation.

3.1 Powering On and Off

• Ensure the pump is placed on a stable, level surface.
• Plug the pump into a standard 110V electrical outlet.
• Press the waterproof on/off switch located on the pump to begin operation.
• To turn off the pump, press the switch again.

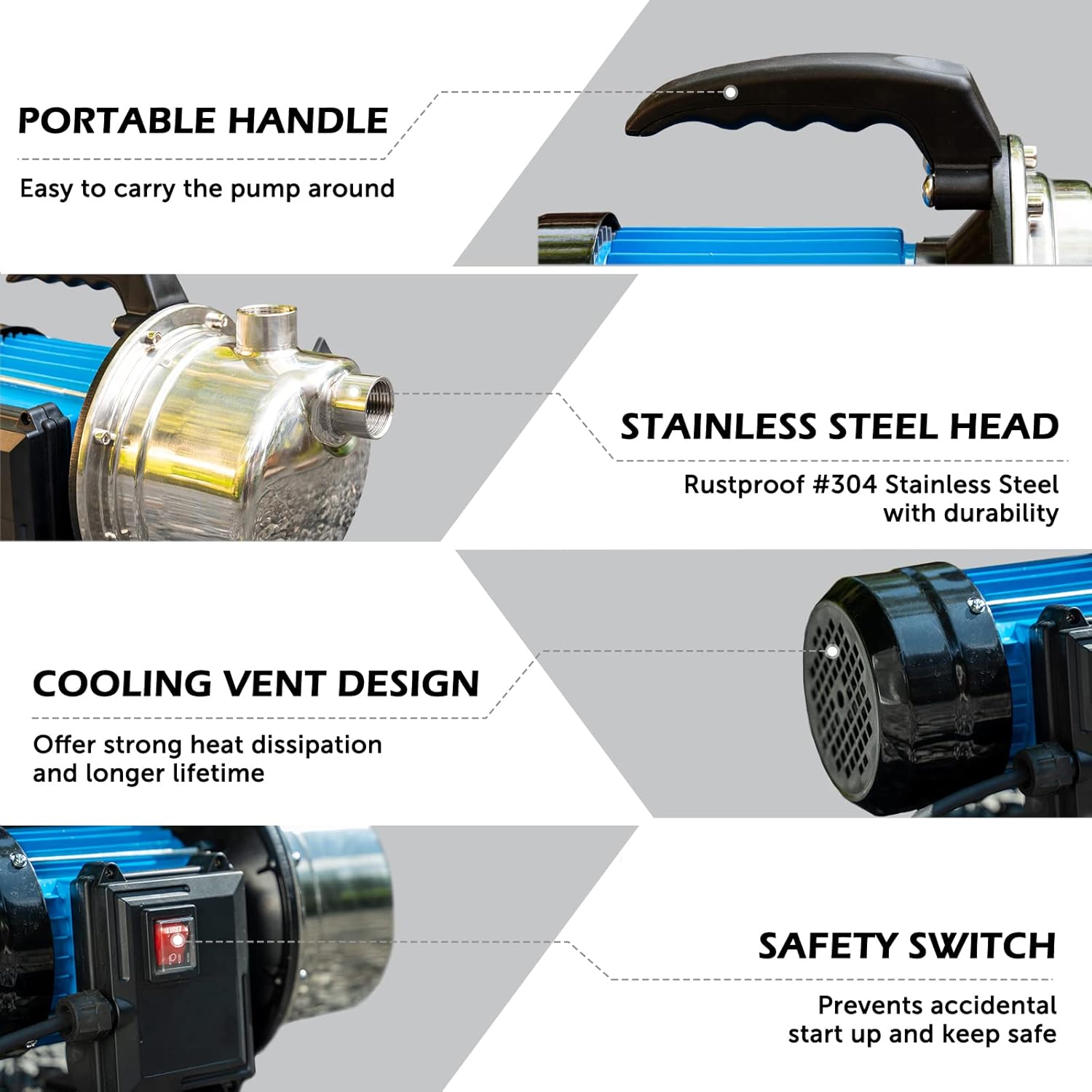

Figure 4: Key components including the safety switch.

3.2 Applications

The pump is versatile and can be used for:

• Lawn and Garden Irrigation: Connect to sprinkler systems or garden hoses for efficient watering.
• Water Transfer: Move clean water between various sources, such as from rain barrels to gardens or from pools for draining.
• Shallow Well Applications: Suitable for drawing water from shallow wells with a maximum suction depth of 26 ft.

Figure 5: Pump in use for garden irrigation.

Figure 6: Illustrates diverse uses of the pump for water management.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your pump.

4.1 Cleaning and Storage

• After each use, especially when pumping water with potential impurities, clean the pump.
• Use the dedicated drain ports to completely empty any remaining water from the pump. This prevents stagnation and potential damage from freezing in cold weather.
• Periodically check and clean the internal filter to prevent clogs and maintain efficient suction. The filter is designed to prevent impurities larger than 0.04" from entering the pump.
• Store the pump in a dry, protected area when not in use.

5. Troubleshooting

If you encounter issues with your pump, refer to the following common troubleshooting tips:

• No Suction or Low Pressure:
  • Ensure the pump is properly primed with sufficient water before starting.
  • Check all hose connections for tightness. Loose connections can lead to air leaks and loss of suction.
  • Inspect the intake filter for clogs from algae, bugs, or other debris. Clean as necessary.
  • Verify that the maximum suction height of 26 ft is not exceeded.
• Pump Not Starting:
  • Check the power connection and ensure the outlet is functional.
  • Look for any warning lights on the back of the pump, which may indicate an issue (e.g., overheating).
• Pump Overheating:
  • Ensure the pump is not running dry. The pump is cooled by the water it processes.
  • Check for blockages in the intake or discharge lines.

For more detailed troubleshooting or complex issues, please refer to the full user manual PDF or contact customer support.

6. Specifications

Figure 7: Pump dimensions and key performance specifications.
