Tefal FV1954
T-fal Steam Essential Plus Iron User Manual
Model: FV1954Q1
Product Overview
The T-fal Steam Essential Plus Iron (Model FV1954Q1) is designed for efficient and effective garment care. It features a 1200W heating element for quick warm-up, a large water tank, and powerful steam functions to smooth out wrinkles.
Image: T-fal Steam Essential Plus Iron, showcasing its blue and white design with a brown soleplate.
Setup and First Use
Unpacking
Carefully remove the iron and all accessories from the packaging. Retain the packaging for future storage or transport.
Filling the Water Tank
- Ensure the iron is unplugged and cool.
- Open the water tank inlet cover, typically located near the handle.
- Fill the water tank with clean tap water up to the 'MAX' indicator line. Do not overfill.
- Close the water tank inlet cover securely.
Image: The T-fal Steam Essential Plus Iron's water tank, indicating the maximum fill level.
The iron features a large 220ml water tank, reducing the need for frequent refills during extended ironing sessions.
Operating Instructions
Powering On and Temperature Setting
- Plug the iron into a suitable power outlet (1200 watts).
- Adjust the temperature dial to the desired fabric setting. The iron will heat up quickly.
- Wait for the indicator light to turn off, signifying that the iron has reached the set temperature.
Steam Functions
- Continuous Steam: For regular ironing, activate the continuous steam function, which provides up to 20 g/minute of steam.
- Powerful Steam Boost: For stubborn creases, press the steam boost button to release a powerful 100 g/minute burst of steam.

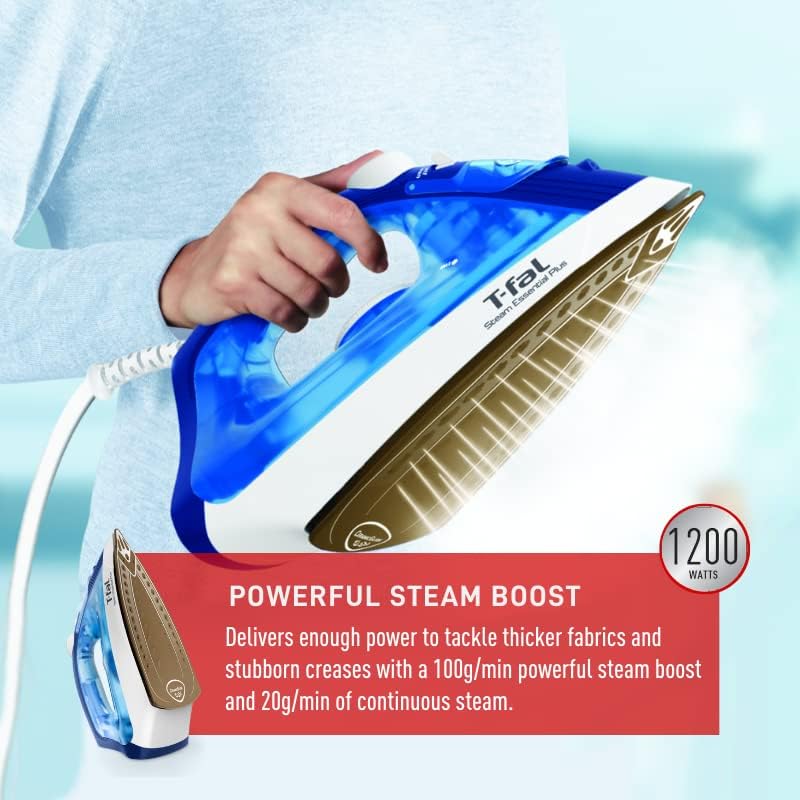

Image: The iron in use, illustrating the powerful steam boost function for effective wrinkle removal.
Precision Tip
The iron features a precision tip on its soleplate, allowing for easy access into small areas such as around buttons, collars, and pleats, ensuring thorough ironing results.

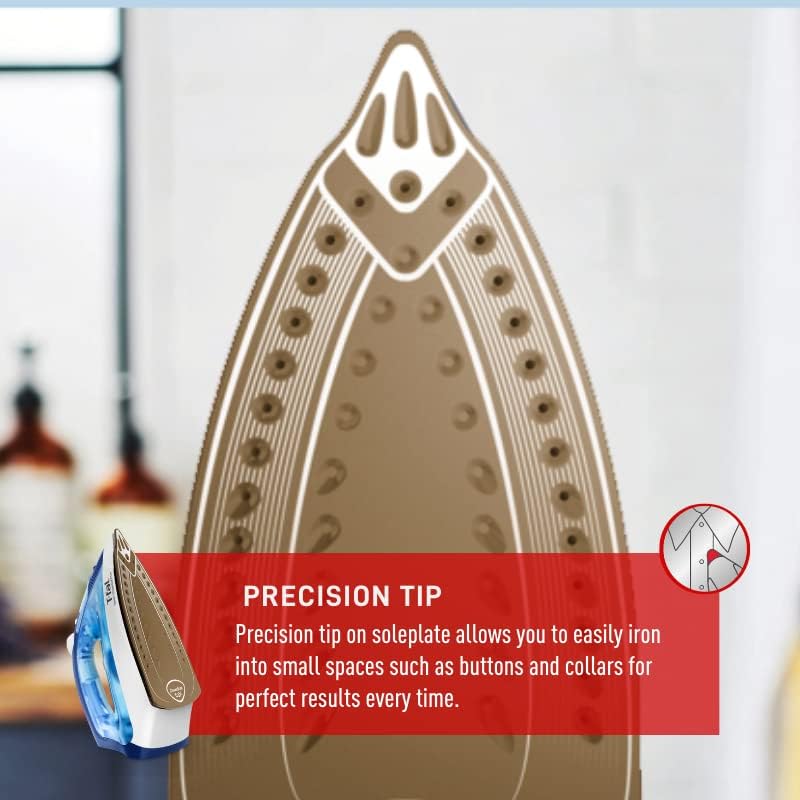

Image: A detailed view of the iron's soleplate, highlighting the precision tip designed for intricate ironing.
Vertical Steaming
The powerful steam burst can also be used for vertical steaming. Hold the iron upright and direct the steam towards hanging garments to refresh fabrics and remove wrinkles without an ironing board.
Image: An illustration demonstrating the vertical steaming capability of the iron, showing steam rising from the soleplate.
Maintenance
Anti-Calc System
The iron is equipped with an anti-calc system to prevent limescale buildup, ensuring long-lasting steam performance. Regular use of this system helps maintain the iron's efficiency.
Cleaning the Soleplate
- Ensure the iron is unplugged and completely cool before cleaning.
- Wipe the soleplate with a damp cloth and a non-abrasive cleaner if necessary.
- Do not use abrasive scouring pads or harsh chemicals, as these can damage the soleplate.
Emptying the Water Tank
After each use, it is recommended to empty any remaining water from the tank to prevent mineral buildup and ensure hygiene.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Iron does not heat up. | Not plugged in; power outlet issue; temperature dial set to minimum. | Check power connection; try a different outlet; adjust temperature dial. |
| No steam or insufficient steam. | Water tank empty; temperature too low for steam; steam holes clogged. | Fill water tank; set temperature to steam-appropriate level; perform anti-calc cleaning. |
| Water leaking from soleplate. | Temperature too low for steam; overfilled water tank; iron not hot enough for steam. | Ensure iron is at proper steam temperature; do not overfill; wait for iron to fully heat up before using steam. |
| White flakes coming from soleplate. | Mineral buildup (limescale). | Perform anti-calc cleaning procedure as per manufacturer's guidelines. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Tefal |
| Model Number | FV1954 |
| Colour | Blue |
| Power/Wattage | 1200 watts |
| Continuous Steam Output | Up to 20 g/minute |
| Steam Boost | 100 g/minute |
| Water Tank Capacity | 220 ml |
| Special Features | Programmable, Anti-Calc System |
| Product Dimensions | 30.48 x 15.24 x 15.24 cm |
| Item Weight | 1.02 kg |
| Base Material | Stainless Steel |
Warranty and Support
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Tefal website. Keep your proof of purchase for warranty claims.
Manufacturer: Groupe SEB Home
