Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Bestway Steel Pro MAX™ Above Ground Pool Set. Please read all instructions carefully before setting up and using the pool. Proper installation and maintenance are crucial for the longevity and safety of the product.
Image: The Bestway Steel Pro MAX Above Ground Pool Set, a round pool with a grey metal frame and blue water, ready for use.
Safety Information
WARNING: Failure to follow these warnings can result in serious injury or death.
- Adult supervision is required at all times when children are in or near the pool.
- Keep children under direct supervision in a competent adult's sight.
- No diving or jumping. Shallow water can cause serious injury.
- Do not set up the pool on a slope or uneven surface.
- Ensure the pool area is clear of obstacles and has adequate drainage.
- Always use the included filter pump to maintain water quality.
- Store pool chemicals out of reach of children.
Image: A family, including two adults and two children, enjoying the Bestway Steel Pro MAX pool, demonstrating proper use with supervision.
Components List
Before beginning assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- Pool Liner (DuraPlus™ material)
- Steel Frame Components (horizontal beams, vertical legs, T-connectors)
- Filter Pump
- Filter Cartridge
- Ladder
- Skimmer
- Repair Patch
- Instruction Manual (this document)
Image: The product packaging for the Bestway Steel Pro MAX pool, illustrating the pool dimensions, key features like DuraPlus and ClickConnect System, and showing the included filter pump and ladder.
Setup
1. Site Preparation
- Choose a solid, level surface free of sharp objects, debris, or loose soil.
- Ensure the area is large enough to accommodate the pool and allow for safe access.
- Avoid setting up under power lines or near trees that may drop leaves or debris.
2. Frame Assembly
- Unfold the pool liner and lay it flat in the chosen area.
- Assemble the steel frame components by connecting them using the ClickConnect System™. Ensure all connections are secure.
- Insert the horizontal beams through the sleeves on the top edge of the pool liner.
- Attach the vertical legs to the horizontal beams using the T-connectors.
3. Liner Installation and Filling
- Once the frame is fully assembled, ensure the liner is centered and smooth.
- Begin filling the pool with water. As the water level rises, gently smooth out any wrinkles from the bottom of the liner, working from the center outwards.
- Fill the pool to approximately 90% capacity, or to the fill line indicated on the liner.
Operating
Filter Pump Operation
The included filter pump is essential for maintaining clean and clear pool water. Connect the pump according to the diagrams in the separate filter pump manual. Ensure the pump is plugged into a grounded outlet and is protected from water exposure.
- Run the filter pump for a minimum of 4-6 hours per day, depending on usage and water conditions.
- Regularly check the filter cartridge for debris and clean or replace as necessary.

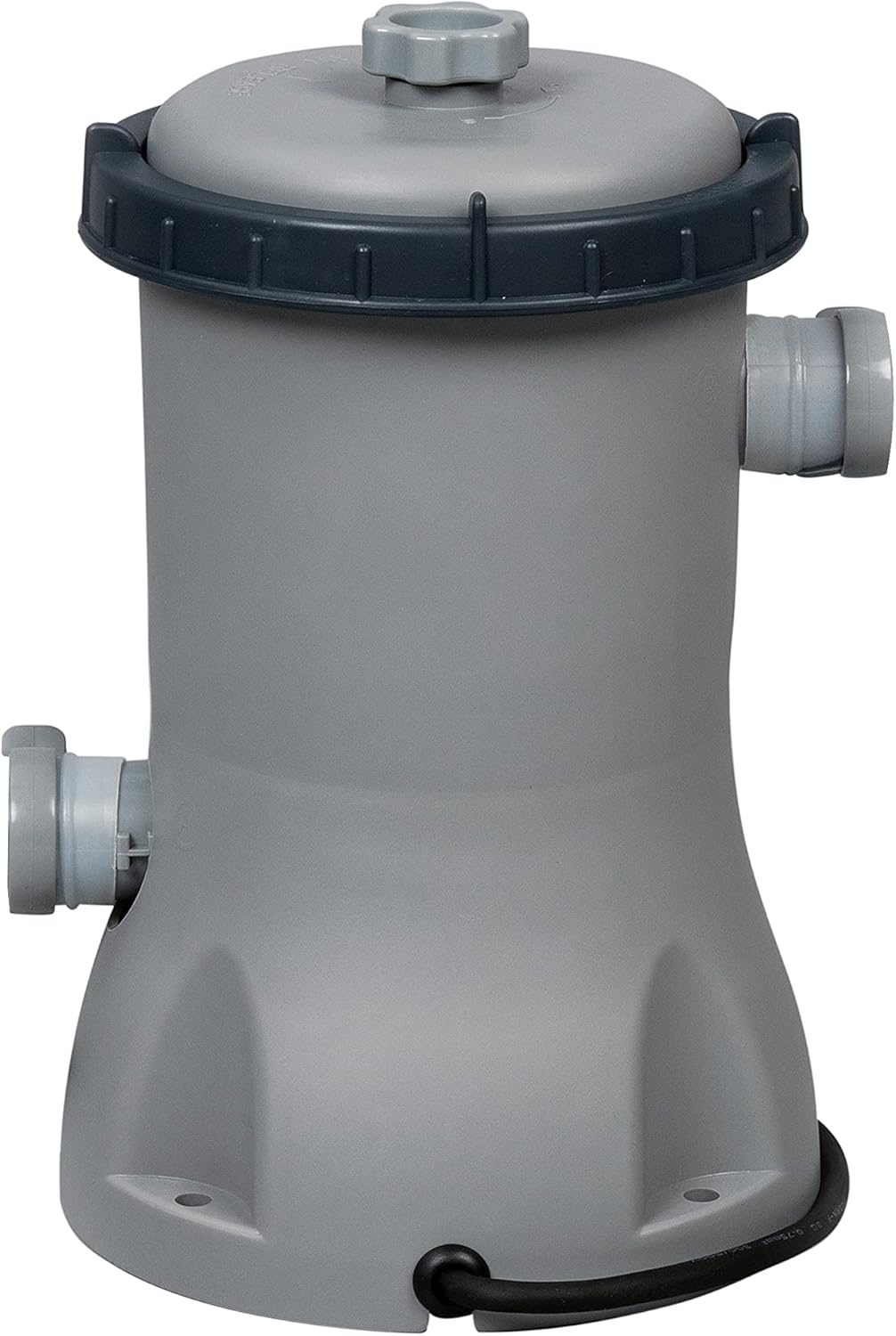

Image: The Bestway filter pump, a grey cylindrical device with hoses, used to circulate and filter pool water.
Water Treatment
Proper water chemistry is vital for pool hygiene and safety. Consult a pool chemical supplier for guidance on appropriate chemicals and dosages for your pool size. Always follow chemical manufacturer's instructions.
Maintenance
Cleaning the Pool
- Regularly skim debris from the water surface using a pool net.
- Brush the pool walls and bottom to prevent algae buildup.
- Vacuum the pool floor as needed.
Filter Cartridge Care
The filter cartridge should be cleaned regularly, typically every few days depending on usage. Turn off the pump before removing the cartridge. Rinse the cartridge thoroughly with a garden hose. Replace the cartridge every 2-4 weeks, or when it becomes discolored and difficult to clean.
Image: A Bestway filter cartridge, a pleated paper cylinder with blue end caps, used inside the filter pump to trap debris.
Winterization and Storage
At the end of the swimming season, properly prepare your pool for storage to prevent damage and prolong its life.
- Drain the pool completely using the drain valve.
- Clean and dry all pool components thoroughly.
- Disassemble the frame and liner.
- Store all parts in a dry, temperature-controlled environment, away from pests and direct sunlight.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water is cloudy | Insufficient filtration, improper chemical balance, high organic load. | Run filter pump longer, clean/replace filter cartridge, test and adjust water chemistry, shock treat pool. |
| Pump not working | No power, clogged impeller, air lock. | Check power connection/breaker, clear debris from impeller, prime the pump. |
| Water level dropping | Evaporation, leak in liner or connections. | Normal evaporation occurs; check for visible leaks and use included repair patch if necessary. Tighten all hose connections. |
Specifications
- Model: 56595
- Dimensions: 4.27m x 84cm (168.11 inches diameter x 33.07 inches height)
- Water Capacity (90%): 10,220 Liters (2,700 Gallons)
- Material: DuraPlus™ reinforced PVC and Stainless Steel frame
- Shape: Round
- Included Components: Pool Liner, Steel Frame, Filter Pump, Filter Cartridge, Ladder, Skimmer, Instruction Manual
- Assembly Required: Yes
Image: A diagram highlighting key features of the Steel Pro MAX, including the ClickConnect System for corrosion prevention and quick setup, Prismatic Stone inner liner, and DuraPlus™ 3-layer material for puncture resistance, higher resistance, and stability.
Image: A visual representation of the Bestway Steel Pro MAX pool with its dimensions (4.27m - 14' diameter, 84cm - 33" height) and water capacity (10,220 L / 2,700 gal).
Warranty and Support
For warranty information and customer support, please refer to the specific warranty card included with your product or visit the official Bestway website. Keep your proof of purchase for any warranty claims.
