1. Introduction
Thank you for choosing the Sojag Diani 10 Ft. x 12 Ft. Gazebo. This manual provides essential information for the safe assembly, proper operation, and effective maintenance of your gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image 1.1: The Sojag Diani 10 Ft. x 12 Ft. Gazebo, showcasing its overall design and structure.
2. Safety Information
Your safety and the safety of others are paramount. Always follow basic safety precautions when assembling and using this product.
- Two-Person Assembly: Assembly requires a minimum of two people for safety and ease of installation.
- Snow Removal: To preserve the durability and stability of your gazebo, it is recommended to remove any significant snow accumulation from the roof.
- Secure Anchoring: Ensure the gazebo is securely anchored to the ground to prevent wind damage.
- Flame Resistance: The polyester shade panels meet CPAI-84 flame-resistant international safety standards. However, keep all flame and heat sources away from the gazebo fabric.
- Structural Integrity: Do not hang heavy objects from the gazebo frame or roof.
3. Setup and Assembly
The Sojag Diani Gazebo is designed for straightforward assembly with pre-drilled parts and hardware. Follow the included illustrated instructions carefully.
Image 3.1: Cover of the Sojag Diani Gazebo Assembly Manual, indicating dimensions and model number.
3.1 Pre-Assembly Checklist
- Verify all parts are present according to the packing list.
- Ensure you have the necessary tools (e.g., ladder, screwdriver, wrench).
- Choose a level and stable location for installation.
3.2 Assembly Steps
- Unpack all components and lay them out for easy identification.
- Assemble the main frame structure, ensuring all connections are secure.
- Attach the polycarbonate roof panels, ensuring proper alignment for UV protection and water resistance.
- Install the polyester shade panels and mosquito netting onto the double track system.
- Anchor the gazebo securely to the ground using appropriate hardware for your chosen surface.
Image 3.2: The assembled Sojag Diani Gazebo without the mosquito netting or curtains deployed.
4. Operating Your Gazebo
The Sojag Diani Gazebo offers versatile functionality for outdoor comfort and protection.
4.1 Shade and UV Protection
The polycarbonate roof panels are designed to block harmful ultraviolet rays while allowing natural light to filter into the gazebo. The included polyester shade panels provide additional sun protection.
4.2 Mosquito Netting and Curtains
Your gazebo features an innovative Double Track System, allowing for the simultaneous use of the included mosquito netting and coordinating outdoor curtains (sold separately). This system provides flexibility for insect protection and privacy.
Image 4.1: Close-up view of the Double Track System, illustrating how both netting and curtains can be installed.

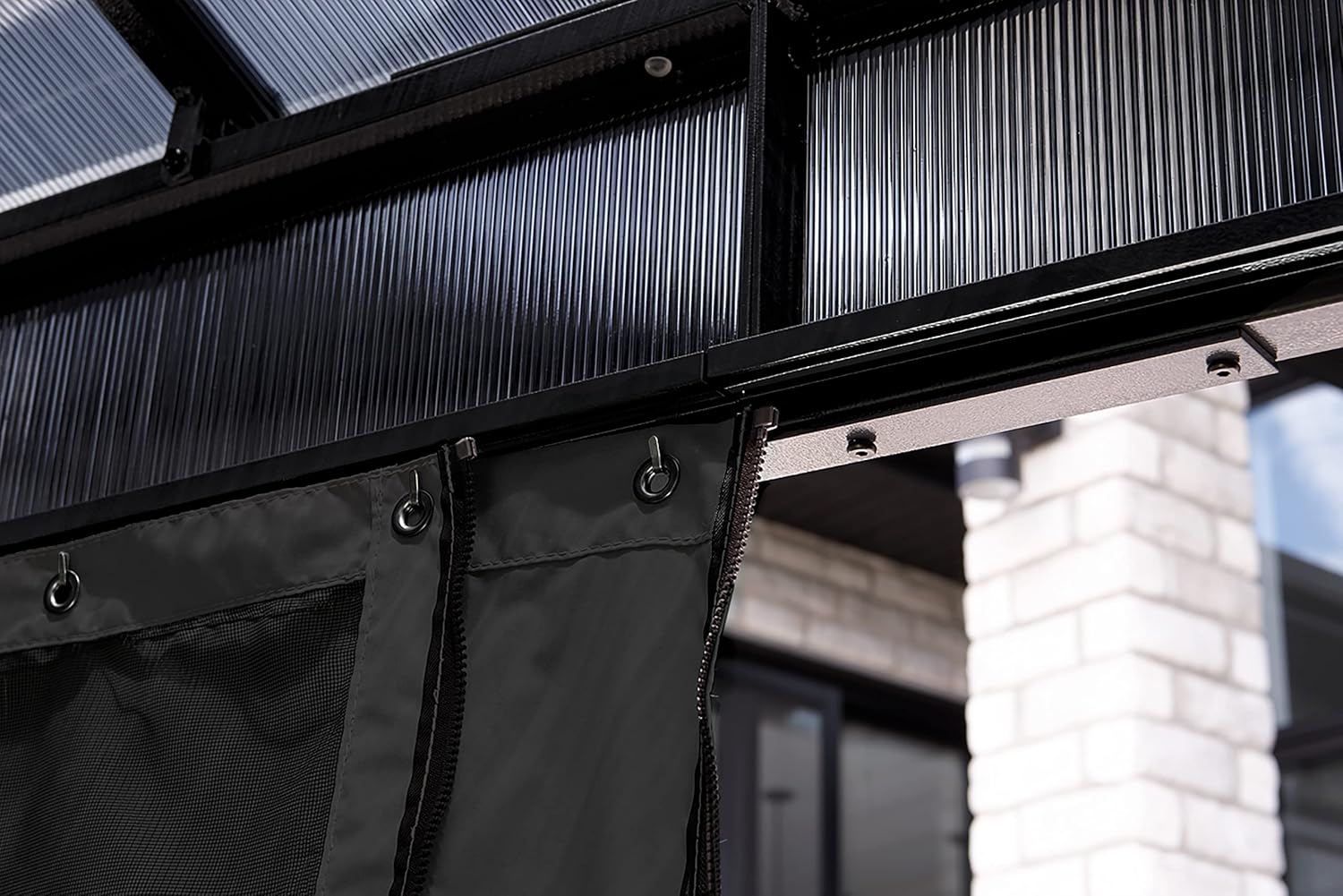

Image 4.2: The Double Track System with a curtain installed, demonstrating its functionality.
Image 4.3: The Double Track System with mosquito netting installed, providing insect protection.
Image 4.4: The Sojag Diani Gazebo with mosquito netting and curtains tied back, showing an open configuration.
5. Care and Maintenance
Regular care will extend the life and appearance of your Sojag Diani Gazebo.
- Cleaning Frame: Clean the AkzoNobel's Interpon powder-coated steel frame with a mild soap solution and water. Rinse thoroughly and dry. Avoid abrasive cleaners.
- Cleaning Roof Panels: Gently clean polycarbonate roof panels with a soft cloth, mild soap, and water. Do not use harsh chemicals or abrasive materials that could scratch the surface.
- Cleaning Fabric: The polyester shade panels and mosquito netting can be spot cleaned with mild soap and water. For deeper cleaning, follow care instructions on the fabric tags.
- Snow Accumulation: As a preventative measure, remove heavy snow accumulation from the roof to prevent structural stress.
- Seasonal Storage: While designed for year-round use, consider removing fabric components during extreme weather conditions or for extended periods of non-use to prolong their lifespan.
6. Troubleshooting
This section addresses common issues you might encounter. For problems not listed here, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Gazebo feels unstable or wobbly. | Improper anchoring; loose connections. | Ensure all frame connections are tightened. Verify anchors are securely fastened to the ground. |
| Water leakage from roof. | Roof panels not properly sealed or aligned. | Inspect roof panel installation for gaps or misalignments. Ensure all screws are tightened. |
| Mosquito netting or curtains do not slide smoothly. | Debris in track; damaged runners. | Clean the double track system of any dirt or obstructions. Check for damaged runners and replace if necessary. |
7. Product Specifications
| Feature | Detail |
|---|---|
| Brand | Sojag |
| Model Name | Diani |
| Model Number | 312-9167979 |
| Dimensions (L x W x H) | 144" x 116.9" x 106.7" (10 Ft. x 12 Ft.) |
| Item Weight | 209 Pounds |
| Frame Material | Alloy Steel with AkzoNobel's Interpon Powder Coating |
| Roof Material | Polycarbonate |
| Shade Panel Material | 300 Denier Polyester |
| Color | Charcoal |
| Water Resistance Level | Waterproof |
| UV Protection | Yes |
| Assembly Required | Yes (2 people recommended) |
| UPC | 772830167979 |
Image 7.1: Technical diagram showing the dimensions of the Sojag Diani Gazebo.
7.1 Key Features
- Reinforced Construction: Steel frame with AkzoNobel's Interpon Powder Coating for scratch and corrosion resistance.
- Optimal Shade Protection: UV protected polycarbonate roof panels.
- Versatile Shade: Double Track System for simultaneous use of mosquito netting and curtains.
- Wide Diameter Columns: Designed for improved strength and durability.
Image 7.2: Illustration highlighting the wide diameter columns for enhanced stability.
Image 7.3: Close-up of a gazebo column base, showing the anchoring points.
Image 7.4: Detail of the polycarbonate roof panels and frame connection.
8. Warranty Information
The Sojag Diani Gazebo comes with a 17-year limited manufacturer's warranty. Please refer to the full warranty document provided with your purchase for complete details on coverage, terms, and conditions.
9. Customer Support
For any questions, missing parts, or assistance with assembly and operation, please contact Sojag Customer Support:
Phone: 1-866-901-1649
Please have your model number (312-9167979) and proof of purchase available when contacting support.
