Kedok 50Hz Record Weight Stabilizer Turntable Clamp User Manual

1. Introduction

This manual provides instructions for the proper use and care of your Kedok 50Hz Record Weight Stabilizer. This device is designed to enhance your vinyl listening experience by stabilizing records and reducing vibrations, contributing to improved sound reproduction.

2. Safety Information

• Handle the stabilizer with care to avoid dropping, which may damage the unit or your turntable.
• Keep the product out of reach of children.
• Do not attempt to disassemble or modify the product.

3. Package Contents

• 1 x Kedok 50Hz Record Weight Stabilizer
• 1 x Exquisite box (packaging)

Image: The Kedok Record Weight Stabilizer neatly placed inside its black retail box.

4. Product Overview

The Kedok Record Weight Stabilizer is constructed from durable aluminum and features a built-in bubble level for precise turntable calibration. It is designed to fit most LP turntables with spindle diameters up to 7mm.

Key Features

• Reduces record surface vibration and stabilizes rotation speed.
• Improves sound reproduction, particularly for slightly warped records.
• Integrated 50Hz high-precision bubble level for speed and level adjustment.
• Soft base pad to protect record labels.

Image: An exploded view diagram highlighting key features: soft base pad, bubble level, speed measurement markings, and aluminum alloy construction.

Image: A detailed image of the stabilizer's top surface, clearly showing the green bubble level and the '50-45' and '50-33' strobe markings for speed calibration.

5. Setup

1. Ensure your turntable is powered off and the record is placed on the platter.
2. Carefully place the Kedok Record Weight Stabilizer onto the center spindle of your turntable, over the record. The spindle diameter should be no more than 7mm.
3. Observe the integrated bubble level to ensure your turntable platter is perfectly horizontal. Adjust your turntable's feet if necessary to achieve a level surface.

Image: The black record weight stabilizer positioned on a vinyl record, which is on a silver turntable next to a laptop.

6. Operation

Once the stabilizer is in place and the turntable is level, you can begin playing your record. The added weight and stabilization will help reduce vibrations and improve playback quality.

Using the Bubble Level

The bubble level indicates the horizontal alignment of your turntable. For optimal performance, the bubble should be centered within the marked circle.

Using the Strobe Markings (50Hz)

The markings around the bubble level are designed for 50Hz turntables. When illuminated by a stable light source (e.g., a fluorescent light or a dedicated strobe light), the appropriate markings (e.g., "50-33" for 33 1/3 RPM or "50-45" for 45 RPM) should appear stationary if your turntable's speed is accurate.

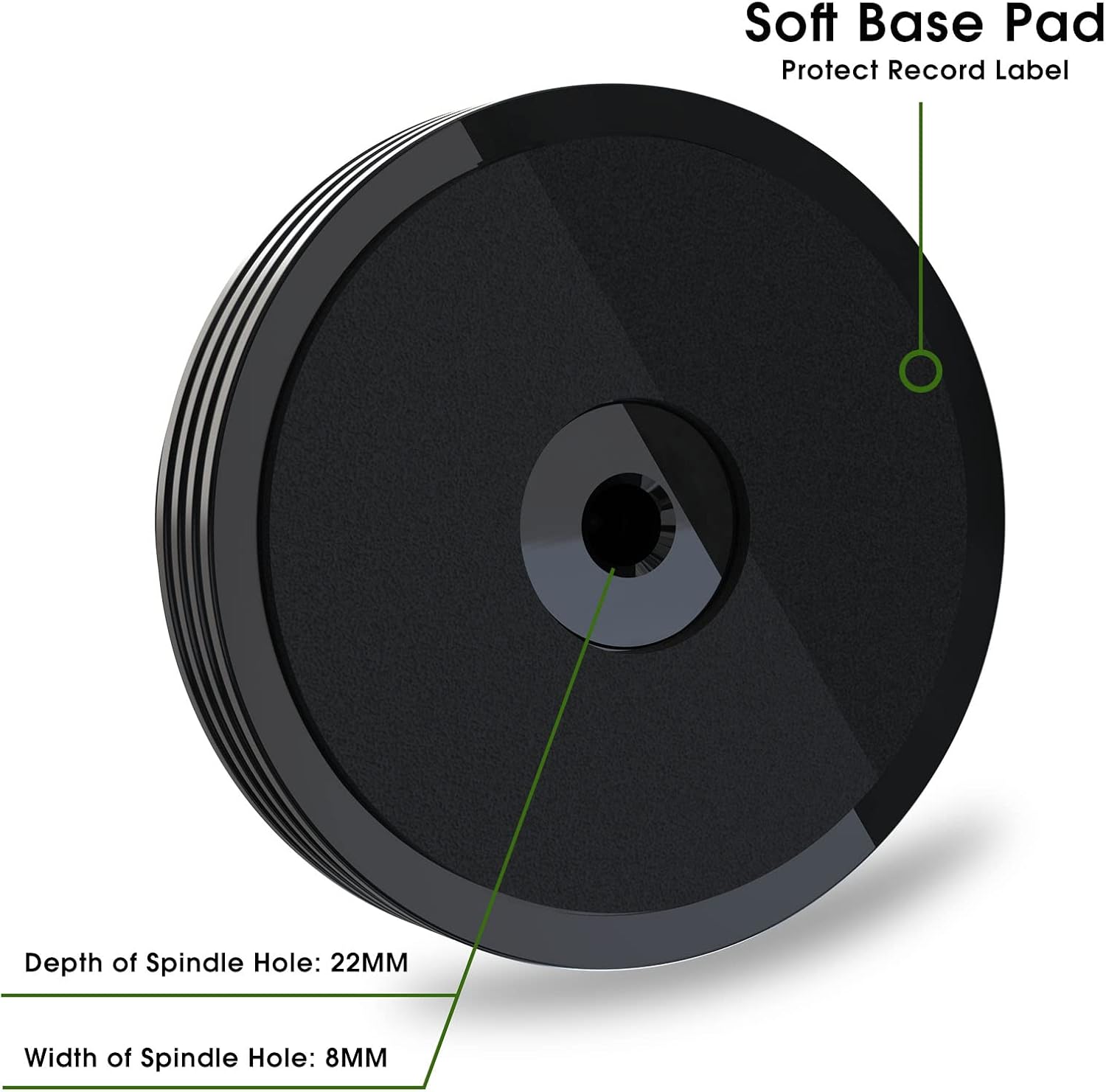

Image: A view of the stabilizer's underside, highlighting the soft, protective base pad designed to prevent damage to record labels.

7. Maintenance

• Clean the stabilizer with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Store in its original packaging or a protective case when not in use to prevent scratches.

8. Troubleshooting

Issue: Stabilizer does not fit on the spindle.

Solution: Ensure your turntable's spindle diameter is no more than 7mm. This stabilizer is designed for standard spindles.

Issue: Bubble level is not centered.

Solution: Adjust the feet of your turntable until the bubble is centered, indicating a level playing surface.

Issue: Strobe markings appear to move.

Solution: This indicates your turntable's speed is not accurate. Consult your turntable's manual for speed adjustment procedures. Ensure you are using a stable light source for observation.

9. Specifications

Image: An image illustrating the dimensions of the stabilizer: 1.57 inches (40mm) height, 3.2 inches (80mm) diameter, and a weight of 13.3 oz (378g).

10. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Kedok website.
