Introduction
This manual provides instructions for the installation, operation, and maintenance of the Cutex Looper Cover Assembly. This component is designed for specific Juki Industrial 5-thread Overlock Sewing Machines to ensure proper thread management and machine functionality.
Compatibility
The Cutex Looper Cover Assembly is compatible with the following Juki Industrial 5-thread Overlock Sewing Machine models:
- Juki MO-2416
- Juki MO-2416N
- Juki MO-2516
- Juki MO-2516N
Ensure your machine model matches one of the listed compatible models before installation.
Setup and Installation
Proper installation of the looper cover is crucial for the correct operation of your overlock sewing machine. Always ensure the machine is powered off and unplugged before attempting any installation or maintenance.
Installation Steps:
- Power Off: Disconnect the sewing machine from its power source.
- Access Area: Open the existing looper cover or access panel on your Juki overlock machine to expose the looper mechanism.
- Remove Old Cover (if applicable): If replacing an existing cover, carefully unfasten any screws or clips holding it in place and remove it.
- Position New Cover: Align the Cutex Looper Cover Assembly with the mounting points on your machine. Ensure all components, such as springs and levers, are correctly seated.
- Secure Cover: Fasten the new looper cover using the appropriate screws or clips. Do not overtighten.
- Verify Movement: Gently move the machine's handwheel to ensure that the looper cover does not obstruct any moving parts and that the looper mechanism operates freely.
- Close Access: Close any other access panels that were opened during installation.

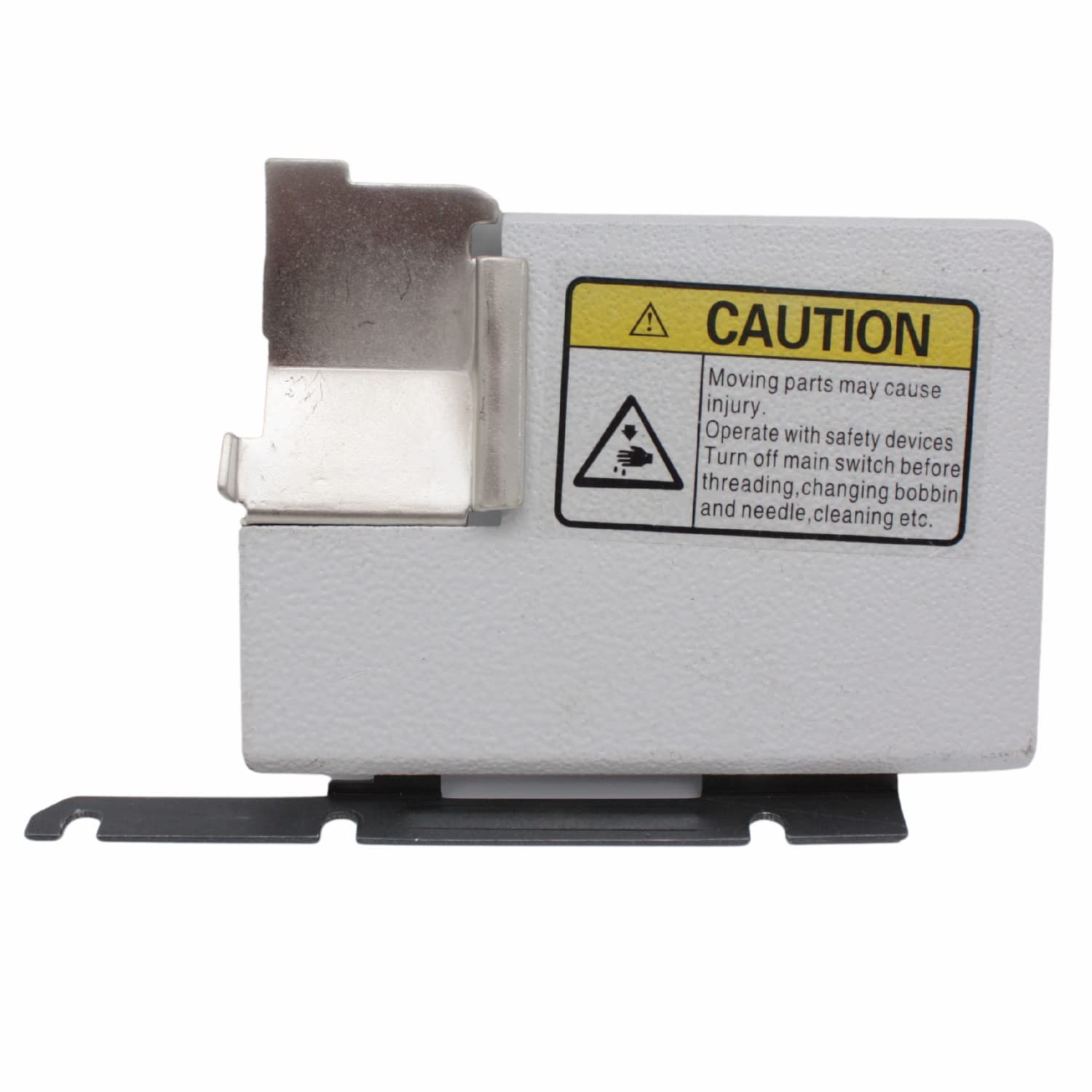

Image: The Cutex Looper Cover Assembly. This image shows the complete assembly, including the main cover plate, tension spring, and attachment points, ready for installation on a compatible Juki industrial overlock sewing machine.
Operation
The looper cover assembly plays a critical role in the proper functioning of your overlock machine by protecting the looper mechanism and ensuring consistent thread path. Once installed, the cover itself does not require direct operational input during sewing. Its primary function is passive: to enclose and safeguard the moving parts and guide the threads correctly.
Ensure the cover is securely closed before operating the machine. Any loose or improperly installed cover can lead to thread tangles, machine damage, or inconsistent stitching.
Maintenance
Regular maintenance of your sewing machine, including the looper cover area, will prolong its lifespan and ensure optimal performance.
- Cleaning: Periodically open the looper cover and use a soft brush or vacuum cleaner to remove lint, dust, and thread scraps that accumulate around the looper mechanism.
- Inspection: Visually inspect the looper cover for any signs of damage, cracks, or loose fasteners. Ensure all springs and levers are intact and functioning correctly.
- Lubrication: Refer to your Juki machine's main instruction manual for specific lubrication points and schedules. The looper cover itself does not require lubrication, but the mechanisms it protects might.
Always disconnect power before performing any cleaning or inspection.
Troubleshooting
If you encounter issues related to the looper cover or the looper mechanism after installation, consider the following:
- Thread Breakage/Skipped Stitches:
- Ensure the looper cover is securely closed and not interfering with thread paths.
- Verify that the threads are correctly routed through all guides and tension discs.
- Check for any burrs or rough spots on the looper cover that might snag threads.
- Unusual Noise:
- Confirm that the looper cover is properly installed and not loose.
- Check for any foreign objects or debris trapped inside the looper area.
- Ensure no parts of the cover are rubbing against moving machine components.
- Cover Not Closing Properly:
- Re-check the alignment of the cover with its mounting points.
- Inspect for any bent or damaged parts on the cover or the machine that prevent proper closure.
If problems persist, consult your Juki machine's comprehensive service manual or contact a qualified sewing machine technician.
Specifications
| Feature | Detail |
|---|---|
| Product Type | Looper Cover Assembly |
| Brand | Cutex |
| Compatibility | Juki Industrial 5-thread Overlock Sewing Machines (MO-2416, MO-2416N, MO-2516, MO-2516N) |
| Part Function | Protects looper mechanism, guides thread path |
Warranty and Support
For information regarding warranty coverage or technical support for your Cutex Looper Cover Assembly, please refer to the documentation provided at the time of purchase or contact Cutex customer service directly. For issues related to your Juki sewing machine's overall operation, consult your machine's official manual or Juki support resources.
