TecTake Metal Storage Locker Cabinet 80x40x180cm User Manual

1. Introduction

This manual provides comprehensive instructions for the TecTake Metal Storage Locker Cabinet, Model 800633. Designed for versatile storage, this cabinet features two lockable doors, six adjustable shelves, and a robust steel construction. Please read this manual carefully before assembly and use to ensure safe and optimal operation.

2. Safety Information

Please observe the following safety warnings:

• Swinging Doors: Be aware of the swinging doors. Do not obstruct the 130° opening angle to prevent damage or injury.
• Load Capacity: Do not exceed the maximum load capacity of 40 kg (approximately 88 lbs) per shelf level. Overloading can compromise the cabinet's stability and lead to collapse.
• Key Management: Keep the cylinder lock key in a secure location and do not leave it in the lock to prevent unauthorized access or loss.

3. Package Contents

Verify that all the following components are included in your package:

• 1 x Lockable Metal Storage Cabinet
• 2 x Keys for the cylinder lock
• 1 x Set of Assembly Hardware (screws, nuts, etc.)
• 1 x Assembly Instructions Manual

Note: The cabinet is typically delivered in two separate packages. Ensure both packages have arrived before beginning assembly.

4. Assembly and Setup

The TecTake Metal Storage Locker Cabinet is designed for straightforward assembly. Follow the included assembly instructions carefully for best results.

1. Unpack Components: Carefully unpack all components and verify them against the parts list provided in the separate assembly instructions.
2. Assemble Frame: Assemble the main frame of the cabinet according to the diagrams in the assembly instructions. Ensure all panels are correctly oriented.
3. Install Shelves: Install the adjustable shelves at your desired heights. The shelves can be repositioned later if needed.
4. Attach Doors and Lock: Attach the cabinet doors and install the locking mechanism, including the rotating handle and cylinder lock.
5. Secure Connections: Ensure all screws and connections are tightened securely before placing any items inside the cabinet.

5. Product Features

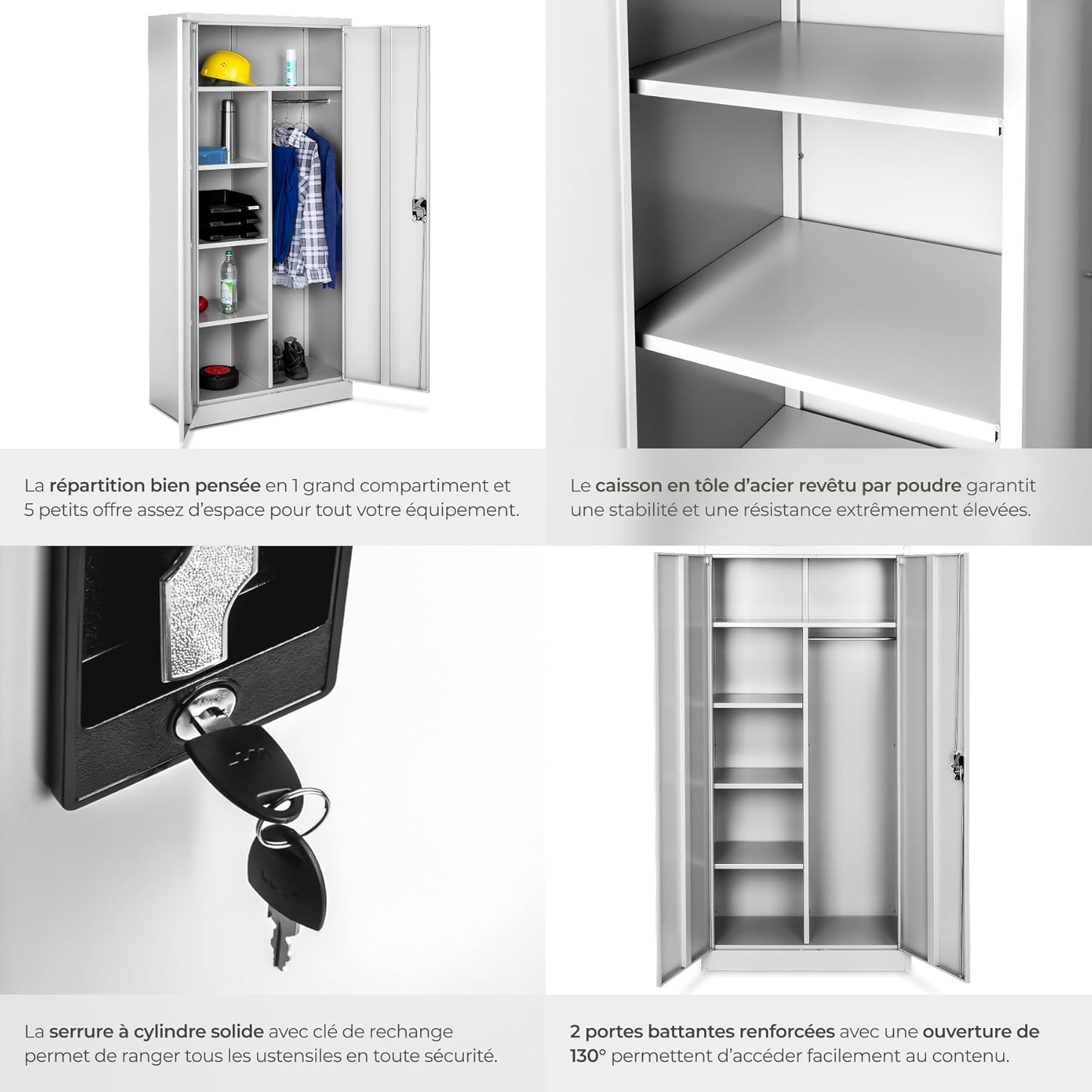

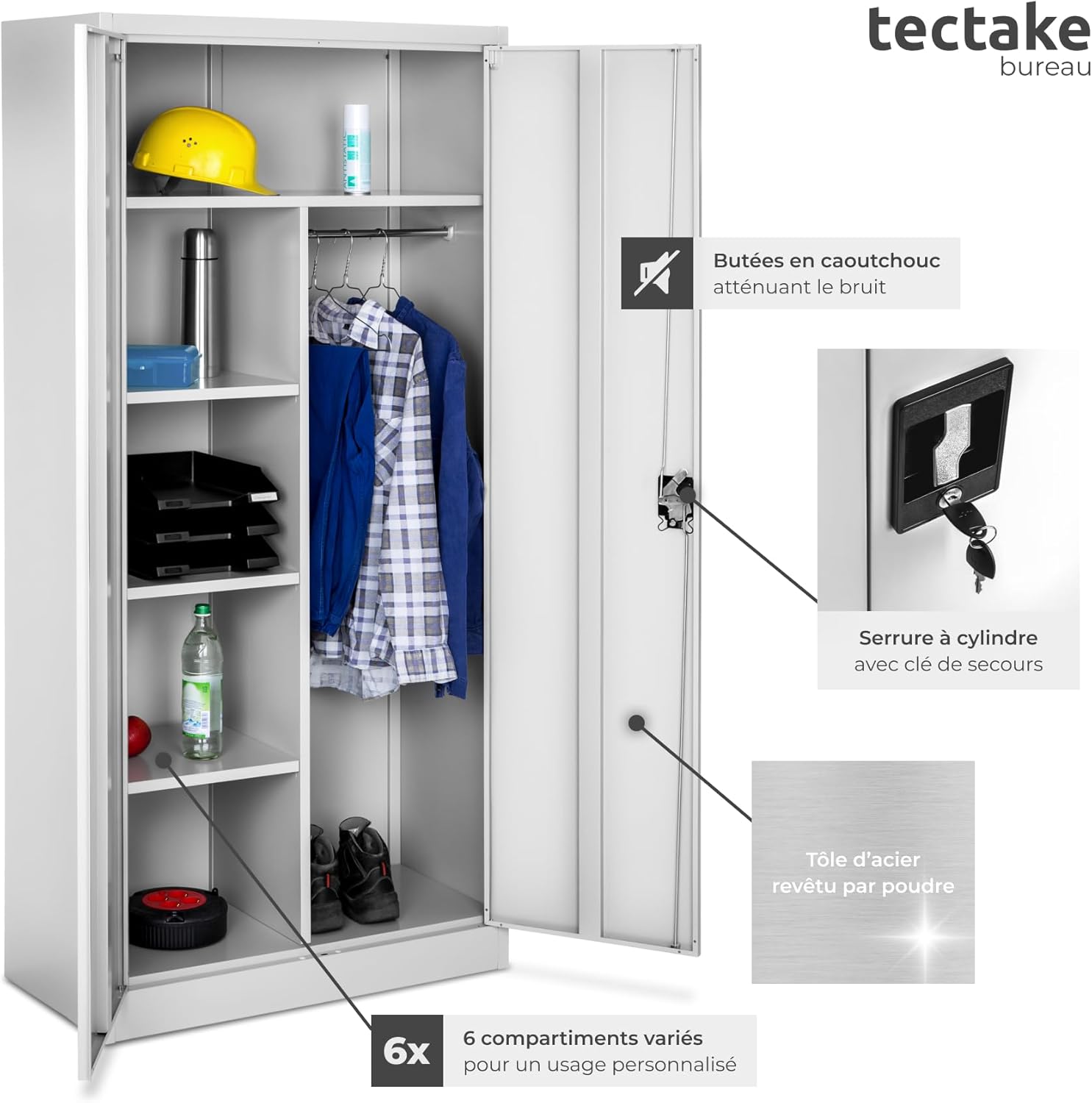

The TecTake Metal Storage Locker Cabinet offers a range of features for efficient and secure storage:

• Adjustable Shelves: Five levels of storage with individually height-adjustable shelves for flexible organization of various items.
• Integrated Hanging Rail: Includes a rail for hanging coats, jackets, or professional attire, enhancing its utility as a locker.
• Robust Construction: Made from durable, quality powder-coated steel sheets, reinforced with a box-section profile for exceptional stability and high resistance.
• Secure Locking System: Equipped with a rotating handle and a cylinder lock with two keys, ensuring secure storage of contents.
• Reinforced Swinging Doors: Doors are reinforced and offer a wide 130° opening angle for easy access. They are fitted with noise-dampening rubber buffers for quiet operation.
• Easy Maintenance: The interior features smooth, rimless shelves that facilitate easy and quick cleaning with a damp cloth.

6. Operating Instructions

This versatile cabinet is suitable for various environments and purposes:

• Storage: Utilize the multiple compartments to store binders, files, important documents, tools, and personal belongings. The integrated hanging rail is ideal for work clothes or personal garments.
• Adjusting Shelves: The shelves are individually height-adjustable. To change a shelf's position, carefully remove any items, lift the shelf, and reposition its supports to the desired height. Ensure the shelf is securely seated before reloading.
• Locking: To secure the cabinet's contents, close both doors and turn the rotating handle to engage the cylinder lock. Use one of the provided keys to lock the mechanism. Always remove the key after locking to prevent loss or unauthorized access.
• Weight Capacity: Each shelf can hold up to 40 kg. Distribute weight evenly and do not exceed this limit to prevent damage or instability.

7. Maintenance

Proper maintenance will ensure the longevity and optimal performance of your TecTake Metal Storage Locker Cabinet:

• Cleaning: Regularly wipe down the interior and exterior surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the powder-coated finish. The smooth, rimless shelves are designed for easy cleaning.
• Inspection: Periodically check all screws, bolts, and connections to ensure they remain tight and secure. Tighten any loose fasteners as needed.
• Lock Lubrication: If the lock mechanism becomes stiff or difficult to operate, apply a small amount of graphite powder or a silicone-based lubricant suitable for metal locks.
• Door Hinges: Ensure door hinges are free of debris and operate smoothly. If necessary, apply a small amount of lubricant to the hinges.

8. Troubleshooting

If you encounter any issues with your TecTake Metal Storage Locker Cabinet, refer to the following common troubleshooting tips:

• Difficulty with Assembly: Double-check the assembly instructions. Ensure all parts are correctly oriented and aligned according to the diagrams. Sometimes, a component might be installed backward.
• Doors Not Closing Properly: Verify that the cabinet is placed on a level surface. Uneven flooring can cause the frame to twist, preventing doors from closing correctly. Check for any obstructions inside the cabinet or along the door edges. Ensure hinges are properly installed and tightened.
• Lock Malfunction: Ensure the key is fully inserted and turned correctly. If the lock feels stiff, try lubricating it as described in the Maintenance section. If the lock is damaged or broken, contact customer support for assistance.
• Cabinet Instability: Ensure all assembly hardware is fully tightened. If the cabinet wobbles, check that it is on a level surface. For added stability, consider anchoring the cabinet to a wall if appropriate for your environment (wall mounting hardware not included).

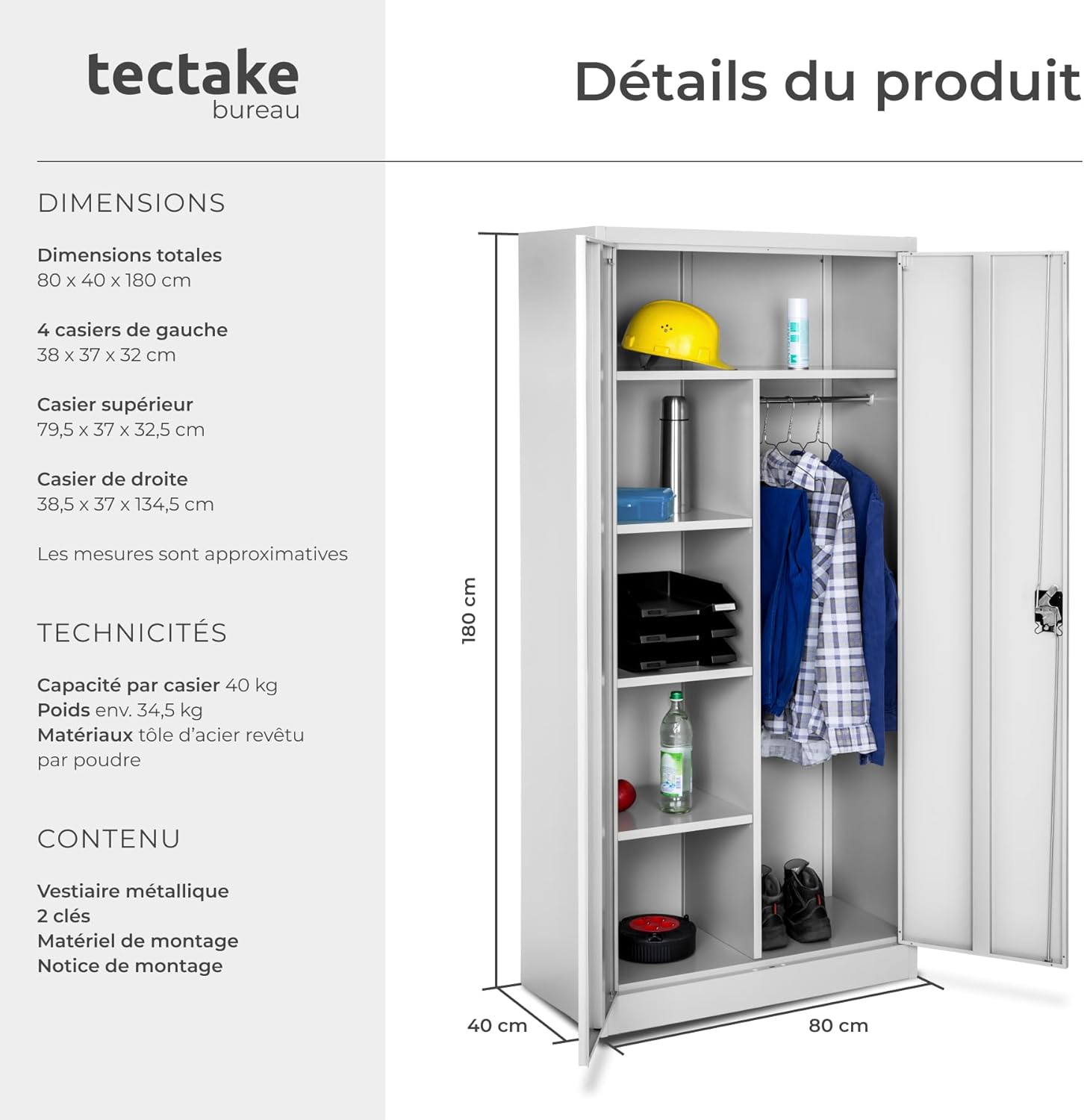

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact TecTake customer service directly. Keep your proof of purchase for any warranty claims.

For further assistance, please visit the official TecTake website or contact their customer support channels.
