Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your TecTake Metal Office Cabinet, Model 800599. Please read this manual carefully before assembly and use to ensure safe and efficient operation. Keep this manual for future reference.
Safety Instructions
- Ensure all components are present and undamaged before assembly. Do not use damaged parts.
- Assemble the cabinet on a soft, clean surface to prevent scratches.
- Assembly requires at least two people due to the weight and size of the components.
- Use only hand tools for assembly. Power tools can overtighten screws and damage the metal.
- Do not overload shelves. The maximum weight capacity per shelf is 40 kg.
- Secure the cabinet to a wall if there is any risk of tipping, especially in areas with children or pets. Mounting hardware for wall attachment is not included.
- Keep keys out of reach of children.
Package Contents
Verify that all the following components are included in your package:
- Cabinet panels (sides, top, bottom, back, doors, drawer fronts)
- Adjustable shelves (3 pieces)
- Drawers (2 pieces)
- Lock mechanisms and keys (8 keys total, 2 per lock)
- Assembly hardware (screws, bolts, rubber buffers)
- Assembly instructions (this manual)
Image: Product dimensions and included components. This diagram illustrates the overall size and main parts of the cabinet, including shelves, drawers, and doors.
Assembly Instructions
Assembly requires careful attention to detail. Follow the steps below precisely. It is recommended to have a second person assist with assembly.
- Prepare the Workspace: Clear a large, flat, and soft area for assembly to prevent damage to the cabinet parts. Unpack all components and verify against the package contents list.
- Assemble the Base Frame: Connect the bottom panel to the side panels using the provided screws. Ensure all connections are secure but do not overtighten.
- Install Back Panels: Slide the back panels into the grooves of the side panels. Secure them as indicated in the detailed diagram.
- Attach Top Panel: Secure the top panel to the side panels.
- Insert Shelf Supports: Place the shelf supports into the desired slots on the inner sides of the cabinet. The shelves are adjustable, allowing for flexible storage configurations.
Image: Detail of adjustable shelf supports and cylinder lock. This image shows how shelves can be positioned at various heights and the design of the locking mechanism.
- Assemble Drawers: Construct the two drawers according to the diagrams. Pay close attention to the orientation of the drawer slides and the central support. Incorrect orientation of the central support (part F) can prevent drawers and doors from closing properly.
Image: Two lockable drawers. This image highlights the integrated drawers, which are ideal for smaller items.
- Install Doors: Attach the four hinged doors. Ensure the hinges are correctly aligned for smooth operation. Apply the rubber buffers to the inside of the doors for silent closing.
- Install Locks: Insert the cylinder locks into the designated holes on the doors and drawers. Test each lock with its corresponding key. Each lock set comes with two keys.
- Final Check: Once assembled, gently lift the cabinet into its upright position. Check all connections for stability. Ensure doors and drawers open and close smoothly.
Image: Assembled cabinet with open doors. This view demonstrates the spacious interior and organizational possibilities.
Operating Instructions
- Doors: The cabinet features four hinged doors that open up to 130 degrees for easy access. To open, turn the key and pull the handle. To close, push the door shut until it latches, then turn the key to lock.
- Drawers: The two integrated drawers are designed for smooth operation. To open, turn the key and pull the drawer handle. To close, push the drawer fully in and turn the key to lock.
- Adjustable Shelves: The three shelves can be adjusted to different heights. To adjust, remove all items from the shelf, lift the shelf, reposition the shelf supports to the desired height, and then place the shelf back onto the supports. Ensure the shelf is level and securely seated before placing items on it.
- Locking Mechanism: Each door and drawer is equipped with a cylinder lock. Use the provided keys to secure your documents and valuables. Remember to keep spare keys in a safe place.

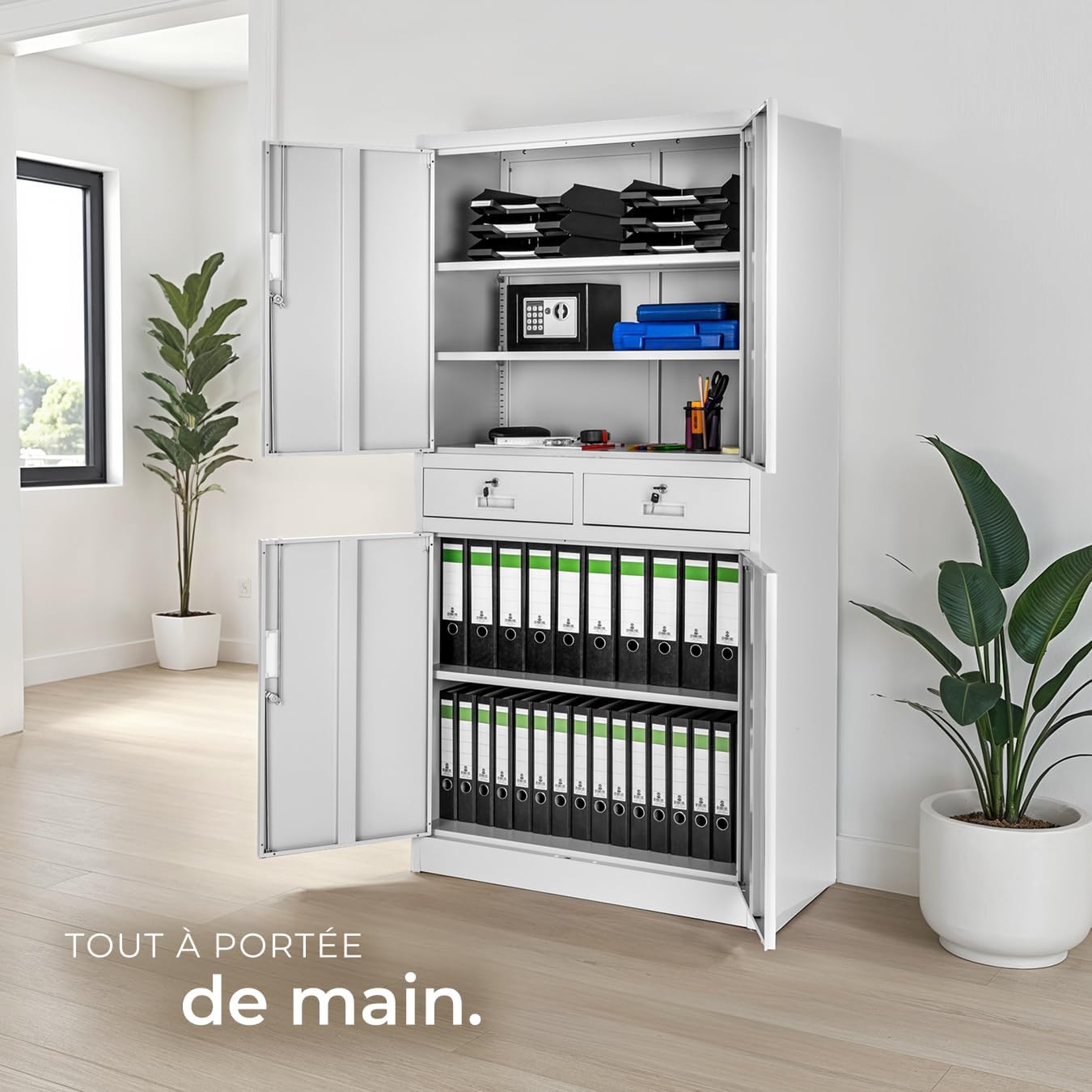

Image: Cabinet with all compartments open. This illustrates the full storage potential and accessibility of the unit.
Maintenance
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals, as these can damage the powder-coated finish.
- Lubrication: Periodically apply a small amount of silicone spray or graphite powder to the lock mechanisms and drawer slides to ensure smooth operation.
- Inspection: Regularly check all screws and connections to ensure they remain tight. Retighten if necessary, but do not overtighten.
- Weight Distribution: Distribute weight evenly across shelves and drawers to maintain stability and prevent warping.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors/Drawers do not close properly. |
|
|
| Keys do not turn in locks. |
|
|
| Cabinet feels unstable. |
|
|
Specifications
- Model Number: 800599
- Brand: TecTake
- Material: Alloy Steel (Powder-coated)
- Color: Light Grey
- Overall Dimensions (L x W x H): 80 x 40 x 180 cm (approximately 31.5 x 15.7 x 70.9 inches)
- Product Weight: 44 kg (approximately 97 lbs)
- Maximum Weight Capacity per Shelf: 40 kg (approximately 88 lbs)
- Features: 4 Hinged Doors, 2 Lockable Drawers, 3 Adjustable Shelves, Cylinder Locks
- Recommended Use: Documents, Files, Office Storage
Warranty and Support
TecTake products are designed for quality and durability. For any questions regarding assembly, operation, or if you encounter any issues with your product, please contact our specialized customer support. Please refer to your purchase documentation for specific warranty terms and contact information.
Note: Information regarding spare parts availability is not provided.
