Zeee 3S 10000mAh 11.1V 120C Lipo Battery User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Zeee 3S 10000mAh 11.1V 120C Lipo Battery with EC5 Connector. Please read this manual thoroughly before using the battery to ensure proper handling, charging, and storage, thereby maximizing performance and lifespan while ensuring safety.

The package includes two Zeee 11.1V 120C 10000mAh Lipo Batteries with EC5 Connectors and a user manual.

Package contents including two Zeee 10000mAh Lipo batteries and a user manual.

Image: Contents of the Zeee 3S Lipo Battery package, showing two batteries and the manual.

2. Safety Warnings

Lithium Polymer (LiPo) batteries require careful handling. Failure to follow these safety guidelines can result in fire, personal injury, and property damage.

Read Manual: Users must read the entire safety manual before using the battery.
Charger Type: Use only a Lithium Polymer (LiPo) specific balance charger. Using an incorrect charger can cause severe damage and fire.
Charge Rate: The charge rate should not exceed 1C. For a 10000mAh battery, this means a maximum charge current of 10 Amperes (1C = 1 x Capacity in Ah).
Unattended Charging: Never charge the battery unattended. Always monitor the charging process.
Physical Damage: Do not use batteries that are swollen, punctured, or show any signs of damage.
Temperature: Do not charge or discharge batteries in extreme temperatures. Keep batteries away from direct sunlight and heat sources.
Storage: Store batteries in a fireproof container or bag, away from flammable materials, and at room temperature.
Disposal: Dispose of damaged or depleted LiPo batteries according to local regulations. Do not throw them in regular trash.

3. Product Overview and Specifications

The Zeee 3S 10000mAh Lipo Battery is designed for high-performance RC models, offering a robust power source with an EC5 connector.

3.1 Key Specifications

Feature	Specification
Battery Voltage	11.1V
Capacity	10000mAh
Discharge Rate	120C
Configuration	3S1P
Cell Voltage Range	3.2V - 4.2V
Connector Type	EC5 Connector
Dimensions (LWH)	169mm * 48mm * 31.5mm (6.65in * 1.89in * 1.24in)
Approx. Weight	543g (19.15oz)
Battery Cell Composition	Lithium Polymer
Reusability	Rechargeable

Detailed specifications of the Zeee 11.1V 120C 10000mAh Lipo Battery, including capacity, voltage, discharge rate, connector, and dimensions.

Image: Visual summary of Zeee 3S Lipo Battery specifications.

3.2 Dimensions and Components

Understanding the physical characteristics of your battery is crucial for proper fit and connection in your RC model.

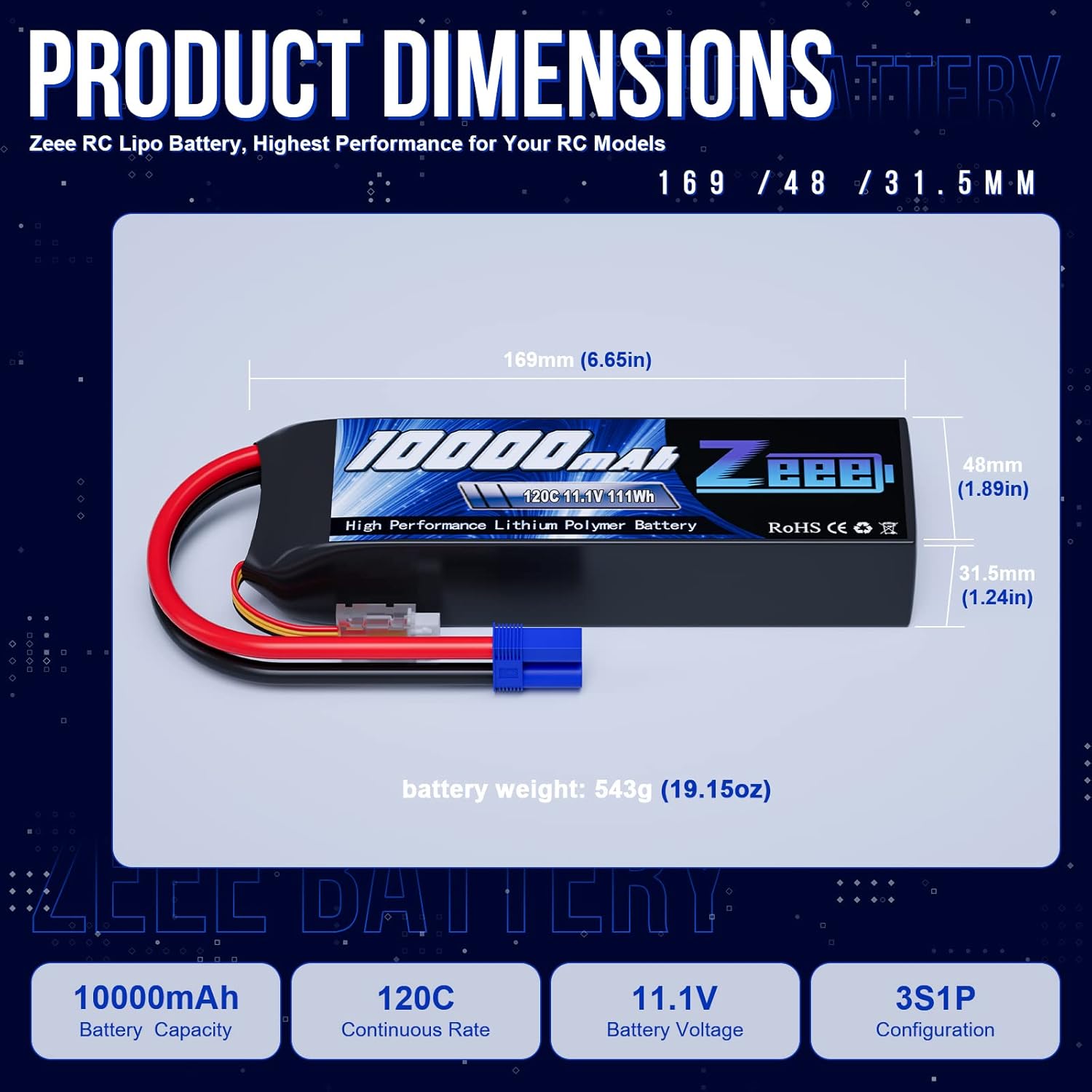

Diagram showing the dimensions of the Zeee 10000mAh 3S Lipo battery: 169mm length, 48mm width, 31.5mm height, and 543g weight.

Image: Detailed dimensions of the Zeee 3S 10000mAh Lipo Battery.

Close-up view of the Zeee Lipo battery showing the JST-XH balance connector, EC5 discharging plug, and 10AWG silicone line.

Image: Key components of the Zeee Lipo Battery, including connectors and wiring.

4. Setup

4.1 Charging the Battery

Always charge your Zeee Lipo battery using a dedicated LiPo balance charger. This ensures each cell is charged evenly, which is critical for battery health and safety.

Connect the main EC5 connector of the battery to the charger's output.
Connect the JST-XH balance connector to the balance port on your charger.
Set your charger to the LiPo charging mode for 3S (11.1V) batteries.
Set the charge current. The recommended charge rate is 0.5C to 1C. For this 10000mAh battery, a 1C charge rate is 10 Amperes. Do not exceed 10 Amperes.
Begin charging and monitor the battery throughout the process. Disconnect immediately if you observe any swelling, overheating, or unusual behavior.

A Zeee Lipo battery connected to a balance charger, illustrating the correct charging setup with a suggested 0.5-1C charge rate.

Image: Zeee Lipo battery connected to a balance charger for optimal charging.

4.2 Installation in RC Models

Ensure the battery fits securely within your RC model's battery compartment. Verify that the voltage, dimensions, and connector type match your model's requirements.

Carefully place the battery into the designated battery tray or compartment.
Secure the battery using straps or clips to prevent movement during operation.
Connect the EC5 plug of the battery to the corresponding EC5 connector on your RC model's Electronic Speed Controller (ESC).
Ensure all connections are firm and free from obstruction.

Video: This video demonstrates the manufacturing process of Zeee Lipo batteries and shows them being used in various RC vehicles, including installation in an RC car.

5. Operating Instructions

5.1 Compatibility

The Zeee 10000mAh 3S Lipo battery with EC5 connector is compatible with a range of RC models, including X-Maxx, RC cars, trucks, slash models, and other RC vehicles. Always verify that the battery's voltage, dimensions, and plug type are suitable for your specific model before use.

Various RC cars and trucks demonstrating the powerful performance of the Zeee Lipo battery in action on different terrains.

Image: Zeee Lipo batteries powering various RC vehicles, showcasing their performance.

A collage of RC cars, trucks, tanks, and buggies, indicating compatibility with Zeee Lipo batteries, with a note to check voltage, dimensions, and plug.

Image: Examples of RC models compatible with Zeee Lipo batteries.

5.2 Discharge Performance

The 120C discharge rate indicates the battery's ability to deliver high current for demanding applications. Always ensure your RC model's ESC and motor are rated to handle the power output of this battery.

Graph illustrating the discharge and cycle performance of Zeee Lipo batteries compared to other brands, showing superior discharge rate and longer cycle life.

Image: Discharge and cycle graph demonstrating the performance characteristics of Zeee Lipo batteries.

6. Maintenance

6.1 Storage

For long-term storage, charge the battery to a "storage voltage" (typically 3.8V per cell). Most LiPo chargers have a dedicated storage mode.
Store batteries in a cool, dry place, away from direct sunlight, heat, and flammable materials.
Always store LiPo batteries in a fireproof container or LiPo safe bag.

6.2 Care Tips

Inspect batteries for any damage (swelling, punctures, frayed wires) before and after each use. Do not use damaged batteries.
Avoid over-discharging the battery. Stop using the battery when your RC model's performance noticeably drops or when the voltage reaches the minimum safe level (typically 3.2V per cell under load).
Allow batteries to cool down before recharging them after use.
Keep connectors clean and free from corrosion.

7. Troubleshooting

If you encounter issues with your Zeee Lipo battery, consider the following:

Battery Not Charging:
- Ensure all connections (main and balance) are secure.
- Verify the charger settings are correct for a 3S LiPo battery (11.1V).
- Check if the charger itself is functioning correctly with another battery.
Reduced Run Time/Power:
- Confirm the battery is fully charged.
- Check for signs of battery degradation (e.g., swelling).
- Ensure your RC model's components (motor, ESC) are in good working order.
Battery Swelling:
Immediately discontinue use and charging. Swelling indicates internal damage and a potential safety hazard. Safely discharge the battery to 0V and dispose of it according to local regulations.

8. Warranty

Zeee provides a 12-month warranty for this product. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage resulting from misuse, improper charging, over-discharging, physical impact, unauthorized modifications, or failure to follow the instructions in this manual.

9. Support

For any product problems, technical assistance, or warranty inquiries, please contact Zeee customer support:

Via Amazon:
1. Go to "Your Orders" and click the "Contact Seller" option for your purchase.
2. Alternatively, click "Ask a question" on the Zeee storefront page.
Our support team aims to respond within 24 hours.
