COOKTRON AAMUS-CT-FS-IC312
Portable Induction Cooktop User Manual
Model: AAMUS-CT-FS-IC312
Brand: COOKTRON
Product Overview
This COOKTRON 1800W induction cooktop is designed for efficient and versatile cooking. It offers rapid heating and is suitable for various cooking tasks such as steaming, boiling, frying, and slow stewing. Its compact and portable design makes it ideal for use in various settings.
Image: The COOKTRON Portable Induction Cooktop, black with silver trim, featuring a pan with grilled steak and vegetables. Fresh vegetables are arranged around the cooktop, highlighting its use for preparing meals.
Important Safety Information
Please read all safety instructions carefully before operating the appliance. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Child Safety Lock: The cooktop features a child safety lock to prevent accidental operation when not in use.
- Automatic Standby: The induction cooktop will enter standby mode after 30 seconds if no function is selected, enhancing safety.
- High Temperature Warning: If the surface temperature exceeds 60°C (140°F) after shutdown, the LED display will show "H" to warn against touching the hot surface.
- Error Codes: The appliance will stop functioning and display relevant codes for unsuitable operations, indicating a need for attention.
- Ventilation: Ensure adequate ventilation around the cooktop during operation. Do not block air vents.
- Power Supply: Connect the appliance to a grounded electrical outlet with the correct voltage (120 Volts) and current (15A).
- Cookware Compatibility: Use only induction-compatible cookware. Non-magnetic materials will not heat.
Image: A visual representation of the child safety lock feature, showing a child in a kitchen setting with a lock icon.
Setup and Installation
The COOKTRON Portable Induction Cooktop is designed for ease of use and portability. No complex installation is required.
- Unpacking: Carefully remove the cooktop from its packaging. Retain packaging for future storage or transport.
- Placement: Place the cooktop on a stable, flat, heat-resistant surface. Ensure there is sufficient space around the unit for proper ventilation. Do not place it near heat sources or flammable materials.
- Power Connection: Plug the power cord into a standard 120V AC, 60Hz grounded electrical outlet.
- Initial Cleaning: Before first use, wipe the glass surface with a damp cloth to remove any dust or residue from manufacturing.
Operating Instructions
Familiarize yourself with the control panel for optimal use.

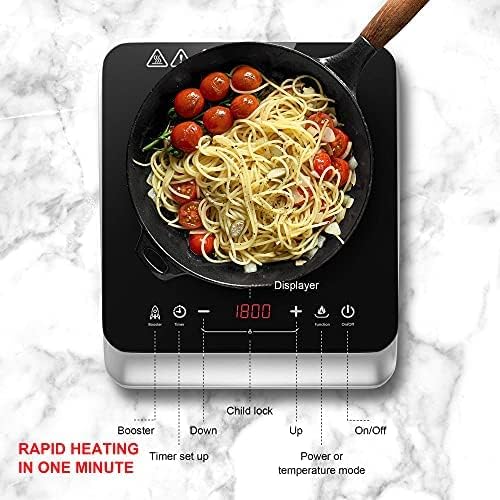

Image: The control panel of the induction cooktop, showing touch buttons for various functions including power, temperature/power adjustment, timer, booster, and child lock.
Basic Operation
- Power On: Place an induction-compatible pot or pan on the cooking zone. Press the On/Off button to turn on the cooktop.
- Select Mode: The cooktop typically defaults to a power setting. Use the Function button to switch between Power mode (Wattage) and Temperature mode (Fahrenheit/Celsius).
- Adjust Power/Temperature: Use the + and - buttons to adjust the power level (200W to 1800W in 200W increments) or temperature (140°F/60°C to 464°F/240°C in 20°F increments). A long press on + or - adjusts by 60°F.
- Booster Function: Press the Booster button for maximum power for rapid heating.
- Timer Setting: Press the Timer button, then use + and - to set the cooking time from 1 minute to 4 hours.
- Child Lock: To activate the child lock, press and hold the Child Lock button (often indicated by a lock icon). Repeat to deactivate.
- Power Off: Press the On/Off button to turn off the cooktop when cooking is complete.
Compatible Cookware
The induction cooktop requires cookware with a magnetic base. Compatible materials include:
- Stainless Steel (magnetic): Ensure it is magnetic, as not all stainless steel is.
- Cast Iron: All cast iron cookware is compatible.
- Enameled Iron: Cookware with an enameled iron base.
- Cast Aluminum (NOT pure aluminum): Only cast aluminum with a magnetic base.
Incompatible materials include ceramic, glass, pure aluminum, and copper.
The compatible cookware base diameter ranges from 5 inches (12cm) to 10 inches (26cm).
Image: A visual guide illustrating which types of cookware are suitable for the induction cooktop (Cast Iron, Magnetic Stainless Steel, Enameled) and which are not (Ceramic, Glass, Aluminum, Copper).
Maintenance and Cleaning
Regular cleaning ensures the longevity and optimal performance of your induction cooktop.
- Cool Down: Always allow the cooktop to cool completely before cleaning. The "H" indicator will disappear when it is safe to touch.
- Surface Cleaning: The smooth glass surface can be easily wiped clean with a damp cloth. For stubborn stains, use a mild detergent specifically designed for glass or ceramic cooktops.
- Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the glass surface.
- Spills: Wipe up spills immediately to prevent them from drying and becoming harder to remove.
- Base Cleaning: Wipe the base of the unit with a soft, dry cloth. Do not immerse the unit in water or any other liquid.
Image: A person cleaning the smooth glass surface of the COOKTRON induction cooktop with a blue microfiber cloth and a spray bottle, demonstrating its ease of cleaning.
Troubleshooting
If you encounter issues with your cooktop, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooktop does not turn on. | Not plugged in; power outage; circuit breaker tripped; child lock activated. | Check power cord connection; verify power supply; reset circuit breaker; deactivate child lock. |
| No heating or "E0" error. | Incompatible cookware; no cookware on surface; cookware not centered. | Use induction-compatible cookware; place cookware on the cooking zone; center cookware. |
| Cooktop shuts off during operation. | Overheating (e.g., blocked vents); internal sensor error; prolonged inactivity. | Ensure proper ventilation; allow unit to cool; restart the cooktop; check for error codes. |
| Unusual noise during operation. | Normal fan operation; cookware vibration; slight hum from induction technology. | This is usually normal. If noise is excessive or new, contact support. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
Detailed technical specifications for the COOKTRON Portable Induction Cooktop (Model: AAMUS-CT-FS-IC312).
- Model Number: AAMUS-CT-FS-IC312
- Brand: COOKTRON
- Color: Black
- Material: Glass
- Product Dimensions: 15.2"D x 2.53"W x 11.42"H
- Item Weight: 6.43 pounds (2.92 Kilograms)
- Wattage: 1800 watts
- Voltage: 120 Volts
- Controls Type: Touch
- Heating Elements: 1
- Burner Type: Induction
- Temperature Range: 140°F (60°C) to 464°F (240°C)
- Power Levels: 200W to 1800W (in 200W increments)
- Timer: 1 minute to 4 hours
- Special Features: 4H Timer, Child Lock, LCD Display, Temperature Control
- UPC: 673324912757
- Date First Available: June 22, 2022
Image: A detailed diagram illustrating the physical dimensions of the cooktop and key electrical specifications such as power (1800W), voltage (AC 120V~60Hz), max current (15A), and temperature range (140°F~464°F).
Product Videos
No official product videos from the seller were found with relevant content for embedding in this manual based on the provided data.
Warranty and Support
For warranty information or technical support, please refer to the documentation included with your product or contact COOKTRON customer service directly. Contact details can typically be found on the manufacturer's website or the product packaging.
You can also refer to the official User Guide (PDF) or User Manual (PDF) for additional information.
