VGR V-587 Rechargeable Hair Straightener Comb User Manual

1. Introduction

This manual provides detailed instructions for the safe and effective use of your VGR V-587 Rechargeable Hair Straightener Comb. Please read this manual thoroughly before first use and retain it for future reference. The VGR V-587 is a cordless hair straightening comb designed for convenient hair styling, featuring ceramic-coated bristles and two temperature settings.

Image 1.1: The VGR V-587 Rechargeable Hair Straightener Comb and its retail packaging.

2. Safety Information

To ensure safe operation and prevent damage, please observe the following safety precautions:

• Keep the device away from water or other liquids. Do not use it in a bathroom or near a water source.
• Do not use the device if the charging cable or the device itself appears damaged.
• Keep out of reach of children.
• Do not attempt to disassemble or repair the device yourself. Contact customer support for assistance.
• Ensure the device is fully charged before first use to optimize battery life.
• Avoid contact with skin, especially the scalp, when the comb is heated to prevent burns.
• The device features an automatic safety shut-off after approximately 15 minutes of inactivity.
• Only use the provided USB Type-C charging cable for charging.

3. Package Contents

Verify that all items are present in the package:

• 1 x VGR V-587 Electric Hair Straightener Comb
• 1 x USB Type-C Charging Cable
• 1 x User Manual Book (this document)

Image 3.1: The VGR V-587 package contents: straightener comb, USB Type-C charging cable, and user manual.

4. Product Overview

Familiarize yourself with the components of your VGR V-587 Hair Straightener Comb:

• Ceramic Coated Bristles: Designed for even heat distribution and smooth gliding through hair.
• Power Button: Used to turn the device on/off and select temperature settings.
• Indicator Light: Displays the current temperature setting (Red for 210°C, Blue for 190°C).
• USB Type-C Charging Port: For recharging the internal battery.

Image 4.1: Detail of the ceramic-coated bristles with PTC heat technology.

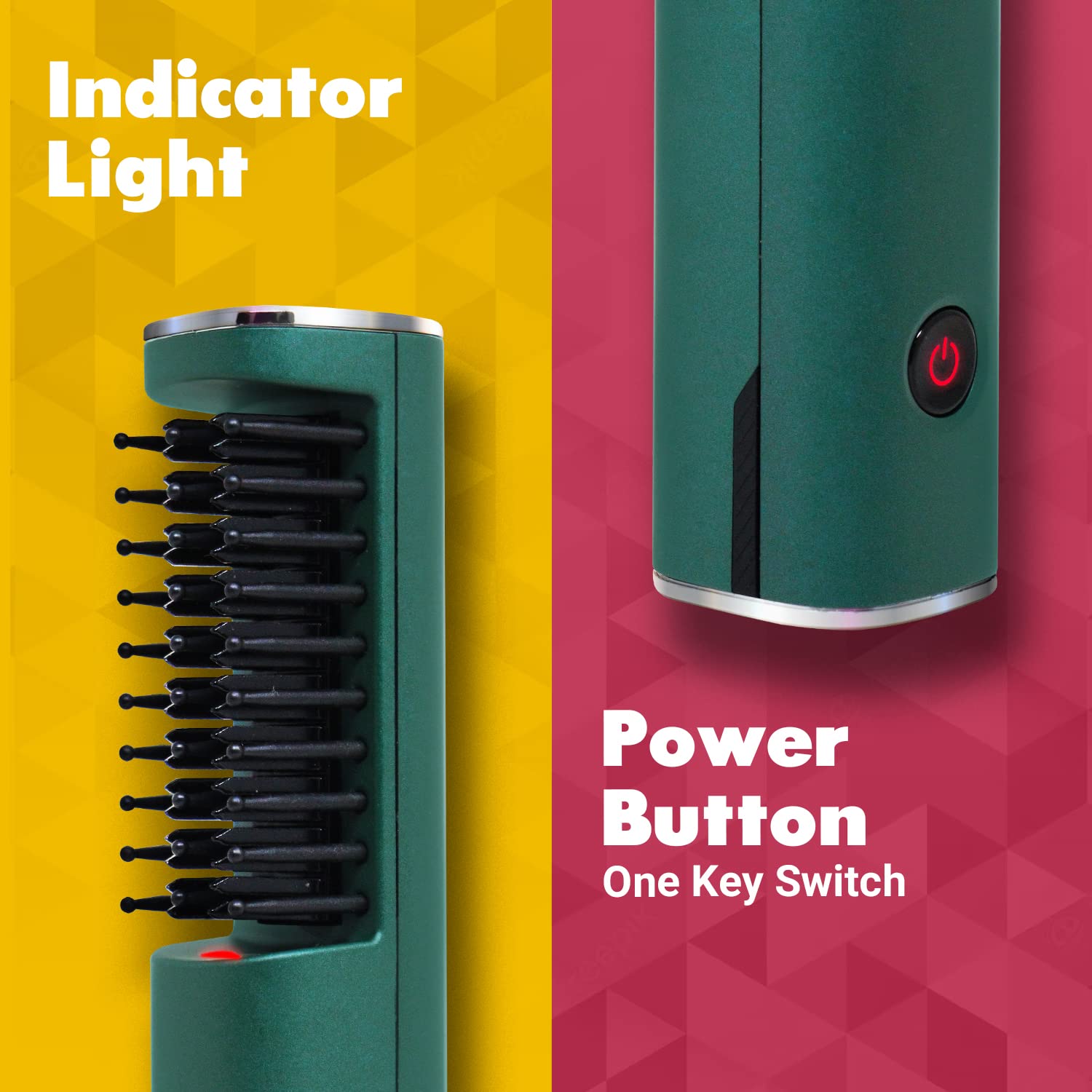

Image 4.2: Location of the power button and indicator light on the VGR V-587.

5. Charging the Device

The VGR V-587 is equipped with a 4000mAh Lithium-ion rechargeable battery, providing approximately 45 minutes of continuous operation on a full charge.

1. Connect the supplied USB Type-C charging cable to the charging port on the device.
2. Connect the other end of the USB cable to a compatible USB power source (e.g., computer, laptop, USB wall adapter, power bank).
3. The indicator light will show charging status (specific color/behavior not detailed in product info, assume it indicates charging).
4. A full charge takes approximately 4 hours. Ensure the device is fully charged before its first use.

Image 5.1: The VGR V-587 offers convenient USB charging from various sources and provides 45 minutes of runtime.

6. Setup

Before using your VGR V-587 for the first time:

1. Unpack all components and ensure they are intact.
2. Charge the device fully as described in Section 5.
3. Ensure your hair is clean, dry, and detangled before styling.

7. Operating Instructions

Follow these steps to straighten your hair with the VGR V-587:

1. Power On: Press and hold the Power Button for a few seconds until the indicator light illuminates.
2. Select Temperature:
   • Press the Power Button once to cycle between temperature settings.
   • The indicator light will show Blue for 190°C.
   • Press again, and the indicator light will show Red for 210°C.
   Choose the appropriate temperature for your hair type. Lower temperatures are suitable for fine or damaged hair, while higher temperatures are for thicker or coarser hair.
3. Heat Up: Allow the comb a few moments to reach the selected temperature.
4. Styling: Take a small section of dry hair and slowly comb through it from root to tip. Repeat until desired straightness is achieved.
5. Power Off: Press and hold the Power Button again until the indicator light turns off.

Automatic Shut-off: For safety, the device will automatically shut off after approximately 15 minutes of continuous inactivity.

Image 7.1: The VGR V-587 offers two temperature settings: 190°C (indicated by a blue light) and 210°C (indicated by a red light).

Image 7.2: The VGR V-587 includes an automatic shut-off feature for safety after 15 minutes of non-operation.

8. Maintenance

Proper maintenance ensures the longevity and performance of your device:

• Cleaning: Ensure the device is turned off, unplugged (if charging), and completely cool before cleaning. Use a soft, damp cloth to wipe the body and bristles. Do not use abrasive cleaners or immerse the device in water.
• Storage: Store the device in a cool, dry place, away from direct sunlight and moisture. Keep it in its original packaging or a protective pouch when not in use.

9. Troubleshooting

If you encounter issues with your VGR V-587, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact VGR customer support.

10. Specifications

11. Warranty and Support

Warranty: This product comes with a 1-year warranty. Please retain your purchase receipt as proof of purchase.

Customer Support: For any questions, concerns, or warranty claims, please contact VGR customer support:

• Email: customercare@vgrofficial.in
• Phone: 18002578939 (From 10:00 AM to 6:00 PM, Monday to Saturday)
• Website: www.vgrofficial.in

Manufacturer: Ningbo VGR Electric Appliances Co., Ltd. China
