Introduction
This manual provides essential instructions for the safe and efficient operation of your Black+Decker Electric Cooktop Pan, Model PC700-BR. Please read it thoroughly before first use and retain it for future reference.
Key Features:
- 2.5L Capacity
- Non-stick aluminum pan
- Glass lid with steam vent
- Cooktop/Heating base with two power levels: 350W and 700W
- Automatic shut-off: The unit automatically turns off when the pan is removed from the base.
Important Safety Instructions
To ensure safe operation and prevent injury or damage, please observe the following safety precautions:
- Read all instructions before using the appliance.
- Do not touch hot surfaces. Always use handles or knobs.
- To protect against electrical shock, do not immerse the cord, plugs, or the appliance's heating base in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from the outlet when not in use and before cleaning. Allow to cool completely before handling parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for repair.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors. This appliance is for indoor household use only.
- Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn the control knob to the "OFF" (O) position, then remove the plug from the wall outlet.
- Do not use the appliance for purposes other than its intended use.

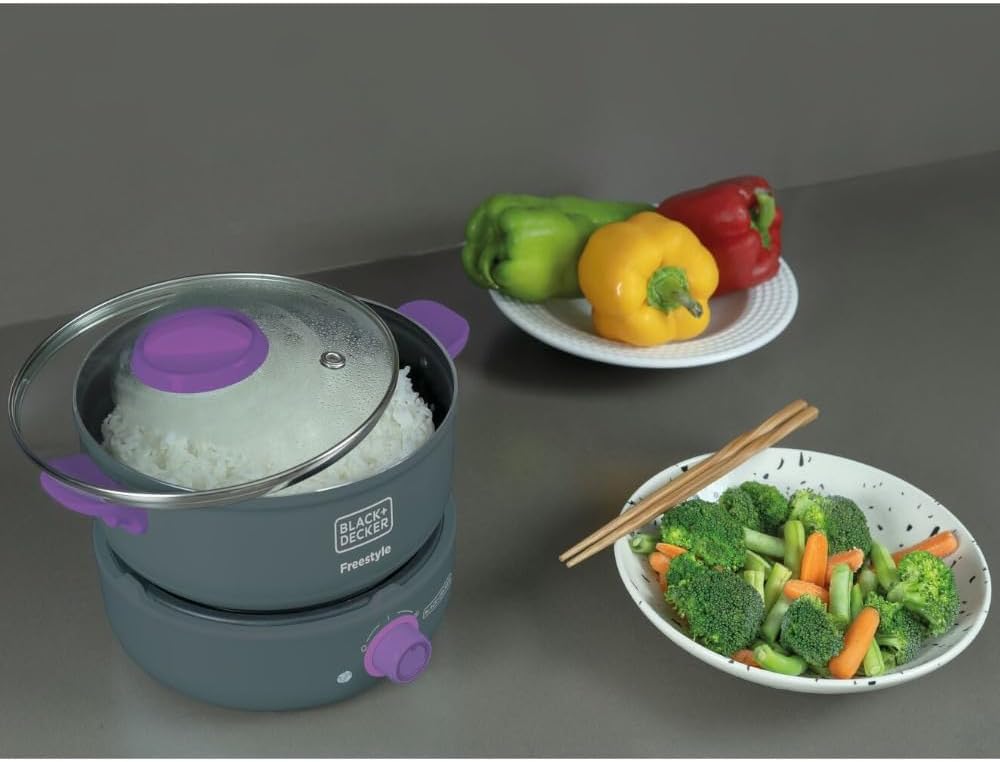

Product Overview
Familiarize yourself with the components of your Black+Decker Electric Cooktop Pan.
Components:
- Non-stick Pan (2.5L capacity)
- Glass Lid with Steam Vent
- Heating Base/Cooktop
- Control Knob (Power/Temperature Selector)
- Indicator Light
Setup and First Use
Unpacking:
- Carefully remove all packaging materials and labels from the appliance.
- Wash the non-stick pan and glass lid with warm, soapy water. Rinse thoroughly and dry completely.
- Wipe the heating base with a damp cloth. Do not immerse the base in water.
Assembly:
- Place the heating base on a stable, heat-resistant, and dry surface.
- Ensure the control knob is in the "OFF" (O) position.
- Place the non-stick pan securely onto the heating base. The automatic shut-off mechanism requires the pan to be correctly seated.
- Place the glass lid on the pan.
Operating Instructions
Cooking with the Electric Pan:
- Ensure the pan is properly placed on the heating base.
- Add your ingredients to the pan.
- Plug the appliance into a 127V electrical outlet.
- Turn the control knob to select the desired power level:
- I: Low power (350W) for gentle heating or simmering.
- II: High power (700W) for faster cooking or boiling.
- The indicator light will illuminate when the appliance is heating.
- Monitor your cooking. The glass lid allows for easy viewing.
- When cooking is complete, turn the control knob to the "OFF" (O) position and unplug the appliance.
Automatic Shut-off Feature:
The Black+Decker PC700-BR is equipped with an automatic shut-off safety feature. If the pan is lifted or removed from the heating base during operation, the heating element will automatically turn off. To resume heating, place the pan back onto the base and ensure the control knob is set to a power level (I or II).
Maintenance and Cleaning
Before Cleaning:
- Always unplug the appliance from the power outlet.
- Allow the appliance to cool completely before cleaning.
Cleaning the Pan and Lid:
The non-stick pan and glass lid can be washed with warm, soapy water using a soft sponge or cloth. Avoid abrasive cleaners or scouring pads that could damage the non-stick coating or glass. Rinse thoroughly and dry completely.
Cleaning the Heating Base:
Wipe the exterior of the heating base with a damp cloth. Do not immerse the heating base in water or any other liquid. Ensure no water enters the electrical components. Dry thoroughly before storage.
Storage:
Store the clean and dry appliance in a cool, dry place. You can store the pan and lid assembled on the base to save space.
Troubleshooting
Refer to the table below for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in. Power outlet not working. Pan not correctly seated on base. | Ensure the power cord is securely plugged into a working 127V outlet. Check if the pan is properly placed on the heating base, activating the automatic shut-off sensor. |
| Appliance heats slowly or not enough. | Incorrect power setting. | Ensure the control knob is set to the desired power level (I for 350W, II for 700W). |
| Pan coating is damaged. | Abrasive cleaning or metal utensils used. | Use only soft sponges and non-abrasive cleaners. Use wooden or silicone utensils to protect the non-stick surface. |
Specifications
- Model: PC700-BR
- Brand: Black+Decker
- Voltage: 127 Volts
- Power: 350W (Level I), 700W (Level II)
- Capacity: 2.5 Liters
- Pan Material: Aluminum with non-stick coating
- Lid Material: Glass
- Product Dimensions: Approximately 0.25 x 0.25 x 0.22 cm (L x W x H)
- Product Weight: 2 Kilograms
- Safety Features: Automatic shut-off when pan is removed
- INMETRO Registration: 00/0000 (as per product data)
Warranty and Support
For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Black+Decker customer service. Keep your purchase receipt as proof of purchase.
Customer Service Contact: Please visit the official Black+Decker website for regional contact information and support resources.
