KLADNDER 16"x16" Electric Heated Foot Warmer Instruction Manual

1. Introduction

This manual provides comprehensive instructions for the safe and effective use of your KLADNDER 16"x16" Electric Heated Foot Warmer. Designed for comfort and warmth, this device features multiple heat and timer settings, an automatic shut-off function, and a soft, washable flannel material. Please read this manual thoroughly before initial use and retain it for future reference.

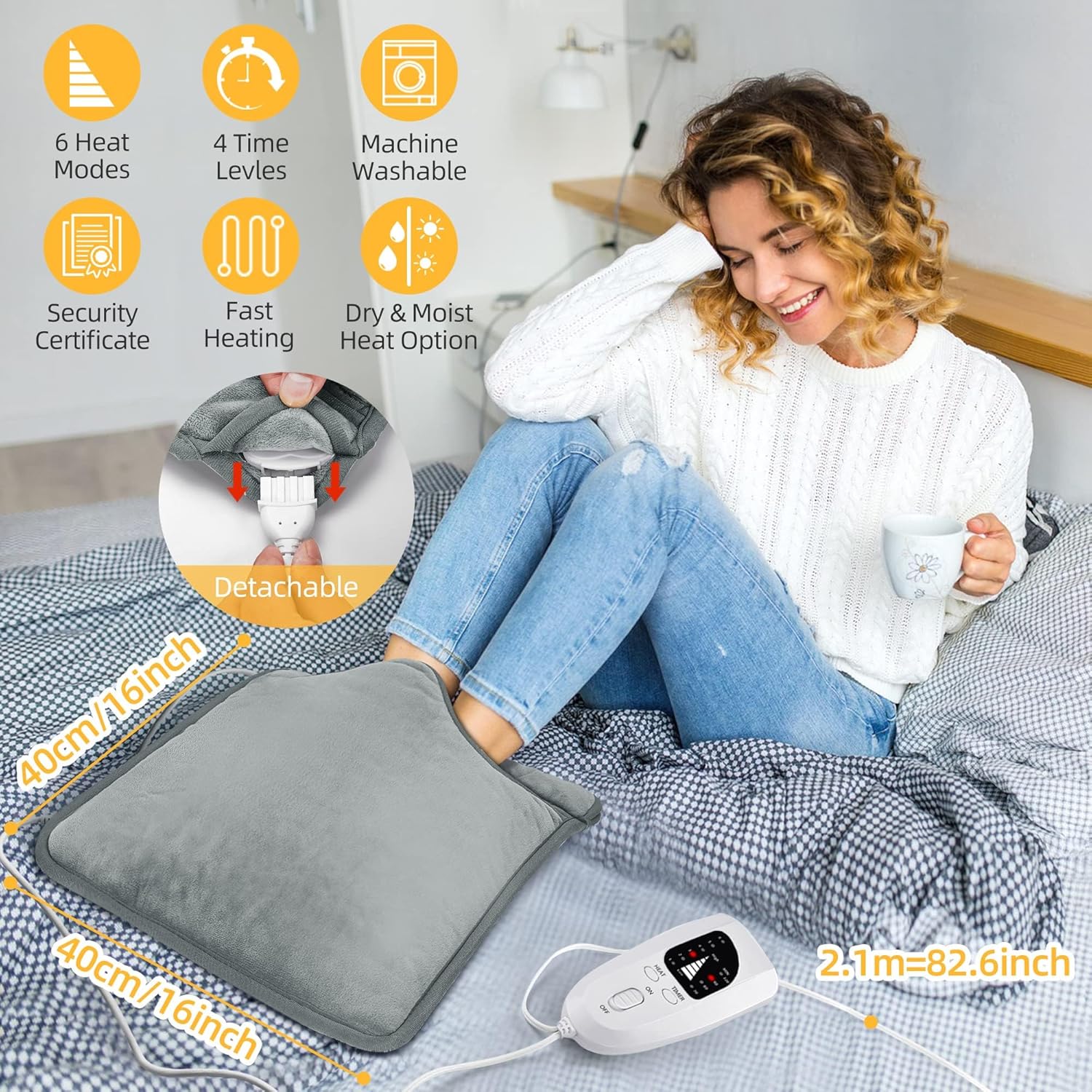

Figure 1: KLADNDER Electric Heated Foot Warmer with controller and power plugs.

Figure 2: Product dimensions (16x16 inches) and key features including 6 heat modes, 4 timer levels, and machine washability.

2. Safety Instructions

To ensure safe operation and prevent injury or damage, please adhere to the following safety guidelines:

• Always inspect the heating pad and power cord for any signs of damage before each use. Do not use if damaged.
• Do not use the heating pad while sleeping or if you are unable to feel heat adequately (e.g., due to impaired circulation, diabetes, or certain medications).
• Avoid prolonged direct skin contact with the heating pad, especially at higher temperature settings, to prevent burns.
• Do not fold, crease, or bunch the heating pad tightly during use, as this can cause overheating and damage.
• Keep the heating pad away from water and other liquids. Do not immerse the controller or power cord in water.
• Do not use pins or other metallic objects to fasten the heating pad, as this can damage the electrical wiring.
• This product is designed for household use only. Do not use it for commercial, medical, or industrial purposes.
• Unplug the heating pad from the power outlet when not in use or before cleaning.
• Do not attempt to repair or modify the heating pad or its controller. Contact qualified personnel for service.
• Ensure the power outlet voltage matches the product's specified voltage (127 Volts).

3. Setup

1. Unpack: Carefully remove the foot warmer and its controller from the packaging.
2. Connect Controller: Ensure the detachable controller is securely plugged into the heating pad.
3. Position: Place the foot warmer on a flat, stable surface where you intend to use it.
4. Power Connection: Plug the power cord into a standard 127-volt electrical outlet.

4. Operating Instructions

The KLADNDER Electric Heated Foot Warmer features an easy-to-use controller for adjusting heat and timer settings.

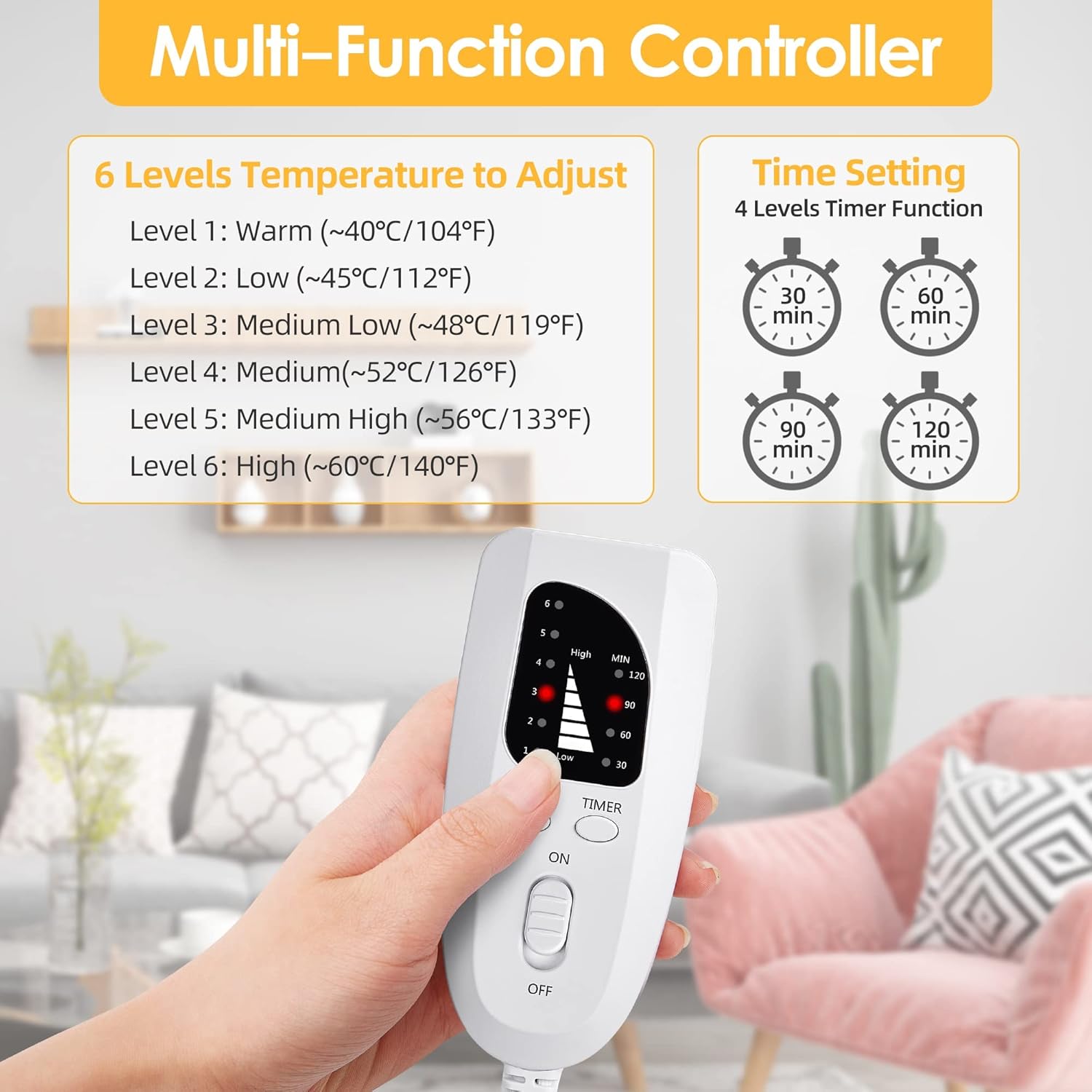

Figure 3: Multi-function controller with temperature and timer settings.

4.1 Power On/Off

• Press the ON button on the controller to turn on the foot warmer. The LED indicator will illuminate.
• Press the OFF button to turn off the foot warmer.

4.2 Temperature Settings

The foot warmer offers 6 heat levels. Use the 'HEAT' button to cycle through the settings:

• Level 1: Warm (~40℃ / 104℉)
• Level 2: Low (~45℃ / 112℉)
• Level 3: Medium Low (~48℃ / 119℉)
• Level 4: Medium (~52℃ / 126℉)
• Level 5: Medium High (~56℃ / 133℉)
• Level 6: High (~60℃ / 140℉)

Allow approximately 10 minutes for the foot warmer to reach the desired temperature.

4.3 Timer Settings

The foot warmer includes an automatic shut-off timer. Use the 'TIMER' button to select a duration:

• 30 minutes
• 60 minutes
• 90 minutes
• 120 minutes

The device will automatically power off after the selected time to conserve energy and enhance safety.

4.4 Moist Heat Therapy

For deeper penetrating relief, the heating pad can be used for moist heat therapy:

1. Lightly spray a fine mist of water onto the surface of the heating pad. Do not saturate the pad.
2. Place the pad on the desired area or insert your feet.
3. Proceed with normal operation as described above.

Figure 4: Applying a fine mist for moist heat therapy.

5. Maintenance

5.1 Cleaning Instructions

The KLADNDER Electric Heated Foot Warmer is machine washable for easy cleaning:

1. Disconnect Power: Always unplug the foot warmer from the electrical outlet before cleaning.
2. Detach Controller: Carefully detach the control panel from the heating pad. Do not wash the controller.
3. Washing: The fabric pad can be machine washed on a gentle cycle with mild detergent.
4. Drying: Do not use a dryer. Allow the pad to air dry completely before reattaching the controller and using it again. Avoid using chemical cleaners.

Figure 5: Detaching the control panel and machine washing the foot warmer.

5.2 Storage

When not in use, store the foot warmer in a cool, dry place. Ensure it is completely dry before storing. Do not place heavy objects on the pad during storage.

6. Troubleshooting

If you encounter issues with your KLADNDER Electric Heated Foot Warmer, please refer to the following common troubleshooting steps:

• Device does not turn on:
  • Ensure the power cord is securely plugged into a working electrical outlet.
  • Check that the controller is firmly connected to the heating pad.
  • Verify that the power outlet is functional by testing it with another appliance.
• Device is not heating:
  • Confirm that the device is powered on and a heat level has been selected.
  • Allow up to 10 minutes for the pad to reach the selected temperature.
  • Ensure the pad is not folded or bunched, which can interfere with heat distribution.
• Automatic shut-off activates unexpectedly:
  • The device has a built-in timer (30/60/90/120 minutes) and a 2-hour auto-off safety feature. This is normal operation.
  • If it shuts off much sooner than the selected timer, unplug and re-plug the device to reset it.

If problems persist after following these steps, please contact KLADNDER customer support for assistance.

7. Specifications

8. Warranty and Support

Specific warranty information for the KLADNDER Electric Heated Foot Warmer is not provided in the available product data. For details regarding warranty coverage, returns, or technical support, please refer to the product packaging or contact KLADNDER customer service directly through their official website or the retailer where the product was purchased.
