AVERA ASP02 Cordless 3-in-1 Vertical Vacuum Cleaner User Manual

Introduction

Thank you for choosing the AVERA ASP02 Cordless 3-in-1 Vertical Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

Image: The AVERA ASP02 Cordless 3-in-1 Vertical Vacuum Cleaner in its upright configuration.

Product Features

The AVERA ASP02 is designed for versatile cleaning with its innovative features:

• Powerful Suction: Equipped with a 130W high-power motor, providing efficient cleaning for pet hair, dust, crumbs, and lint. Operates at a low noise level of 64 dB.
• Pro Cyclone System: Ensures consistent suction throughout the cleaning process, regardless of the vacuum's angle.
• Long-lasting Battery: Features a 2000 mAh rechargeable battery, offering 25 to 45 minutes of working time on a single 4.5-hour charge. Ideal for larger homes.
• 3-in-1 Design: Easily converts between vertical, handheld, and upholstery vacuum modes.
• Washable Stainless Steel Filter: Eliminates the need for replacement filters, offering a cost-effective and environmentally friendly solution.
• Compact and Lightweight: Designed for easy maneuverability and storage, suitable for home, office, or car cleaning.

Image: Overview of key features including 3-in-1 design, cordless operation, included accessories, and lightweight design.

Image: Details on the Pro Cyclone technology, easy-to-open and empty dustbin, and 1-year warranty.

Package Contents

Verify that all components are present in the package:

• Main Vacuum Unit
• 2 Extension Tubes
• Angular Brush
• Bed Brush
• Flat Brush
• Crevice Tool
• Floor Brush
• Static Brush
• Charging Adapter
• Wall Mount/Storage Base
• User Manual

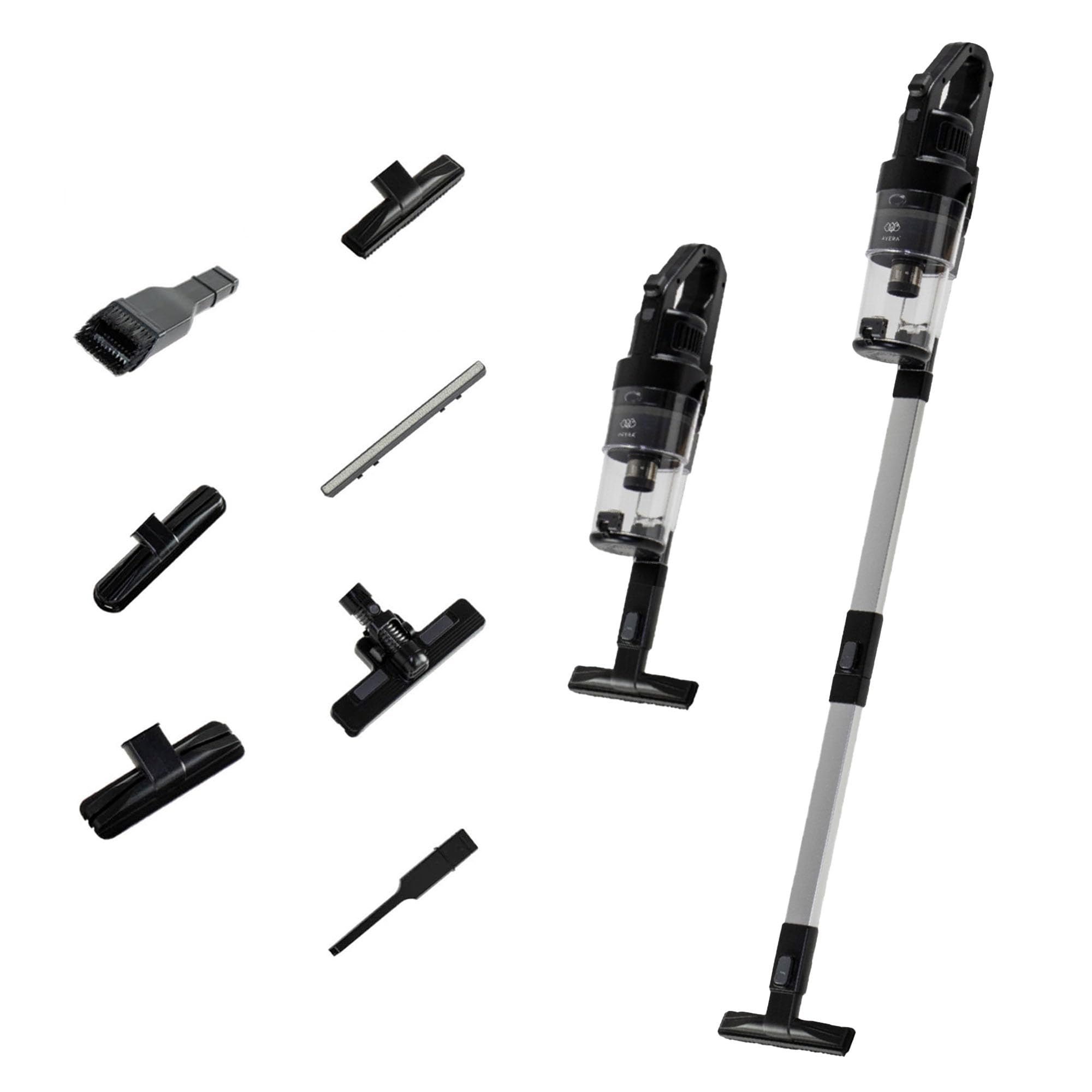

Image: All included accessories for the AVERA ASP02 vacuum cleaner, including various brushes and extension tubes.

Assembly

Follow these steps to assemble your AVERA ASP02 vacuum cleaner:

1. Attach the desired extension tube to the main vacuum unit.
2. Connect the appropriate cleaning head (e.g., floor brush, crevice tool) to the end of the extension tube. For handheld use, attach the cleaning head directly to the main unit.
3. Ensure all connections are secure before operation.

Charging

Before first use, fully charge the vacuum cleaner. To charge:

1. Connect the charging adapter to the charging port on the main vacuum unit or the wall mount.
2. Plug the adapter into a power outlet.
3. The indicator lights on the vacuum will show the charging status. A full charge takes approximately 4.5 hours.

Image: The AVERA ASP02 vacuum cleaner stored on its wall-mounted charging and accessory storage base.

Operation

To operate your AVERA ASP02 vacuum cleaner:

1. Press the power button to turn on the vacuum.
2. Select the desired power mode (the vacuum typically has two speed settings for different cleaning needs).
3. Use the appropriate attachment for the surface you are cleaning. The floor brush is ideal for hard floors and carpets, while the crevice tool and other brushes are perfect for upholstery, corners, and tight spaces.
4. Move the vacuum slowly over the surface to ensure thorough cleaning.

Image: A person using the AVERA ASP02 in vertical mode to clean a floor, highlighting its cordless and powerful operation.

Image: Demonstrates the versatility of the vacuum for various cleaning tasks around the home.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.

Emptying the Dustbin

Empty the dustbin after each use or when it reaches its maximum fill line:

1. Detach the dustbin from the main unit.
2. Press the release button to open the bottom flap and empty contents into a trash bin.
3. Close the flap securely.

Cleaning the Filter

The stainless steel filter is washable and should be cleaned regularly:

1. Remove the filter from the dustbin.
2. Rinse the filter under running water until clean.
3. Allow the filter to air dry completely before reinserting it into the dustbin. Do not use the vacuum with a wet filter.

Image: Demonstrates the process of rinsing the washable stainless steel filter under running water.

Cleaning the Brushes

Periodically check and clean the brushes to remove tangled hair or debris:

• Remove the brush roll from the floor head.
• Use scissors to cut away any tangled hair or threads.
• Wipe the brush and brush housing with a damp cloth.
• Reinstall the brush roll.

Troubleshooting

If you encounter issues with your AVERA ASP02, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact AVERA customer support.

Specifications

Detailed technical specifications for the AVERA ASP02:

• Brand: AVERA
• Model Name: ASP02
• Motor Power: 130 watts (0.174 horsepower)
• Battery: 2000 mAh (Lithium-ion)
• Runtime: 25-45 minutes
• Charging Time: 4.5 hours
• Filter Type: Washable Stainless Steel, Sponge
• Suction Power: 4.5 kPa (maximum)
• Noise Level: 64 dB
• Speeds/Power Levels: 2
• Form Factor: Stick (Vertical, Handheld)
• Recommended Surfaces: Upholstery, Car Floor, Pet Hair Removal
• Color: Black
• Portable: Yes
• Wireless: Yes
• Included Items: 2 Extension Tubes, Angular Brush, Bed Brush, Flat Brush, Crevice Tool, Floor Brush, Static Brush

Image: Visual representation of the AVERA ASP02's technical specifications, including power, pressure, and battery life.

Warranty and Support

The AVERA ASP02 Cordless 3-in-1 Vertical Vacuum Cleaner comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use.

For warranty claims, technical support, or any questions regarding your product, please contact AVERA customer service through their official channels. Keep your proof of purchase for all warranty-related inquiries.

For more information, visit the AVERA Brand Store.
