Haam Electric HM690SRF-H22LINV Double Door Refrigerator User Manual

1. Introduction

Thank you for choosing the Haam Electric HM690SRF-H22LINV Double Door Refrigerator. This manual provides important information regarding the installation, operation, and maintenance of your appliance. Please read it thoroughly before using the refrigerator to ensure safe and efficient operation. Keep this manual for future reference.

2. Safety Information

Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury.

• Ensure the refrigerator is connected to a properly grounded electrical outlet.
• Do not use extension cords or ungrounded adapters.
• Keep ventilation openings clear of obstruction.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Unplug the refrigerator before cleaning or performing any maintenance.
• Do not allow children to play with or inside the refrigerator.
• Handle with care during installation to avoid damage to the refrigerant circuit.

3. Product Overview

The Haam Electric HM690SRF-H22LINV is a 19.9 cubic feet double door refrigerator designed for optimal food preservation. It features a top freezer configuration and a sleek grey steel finish.

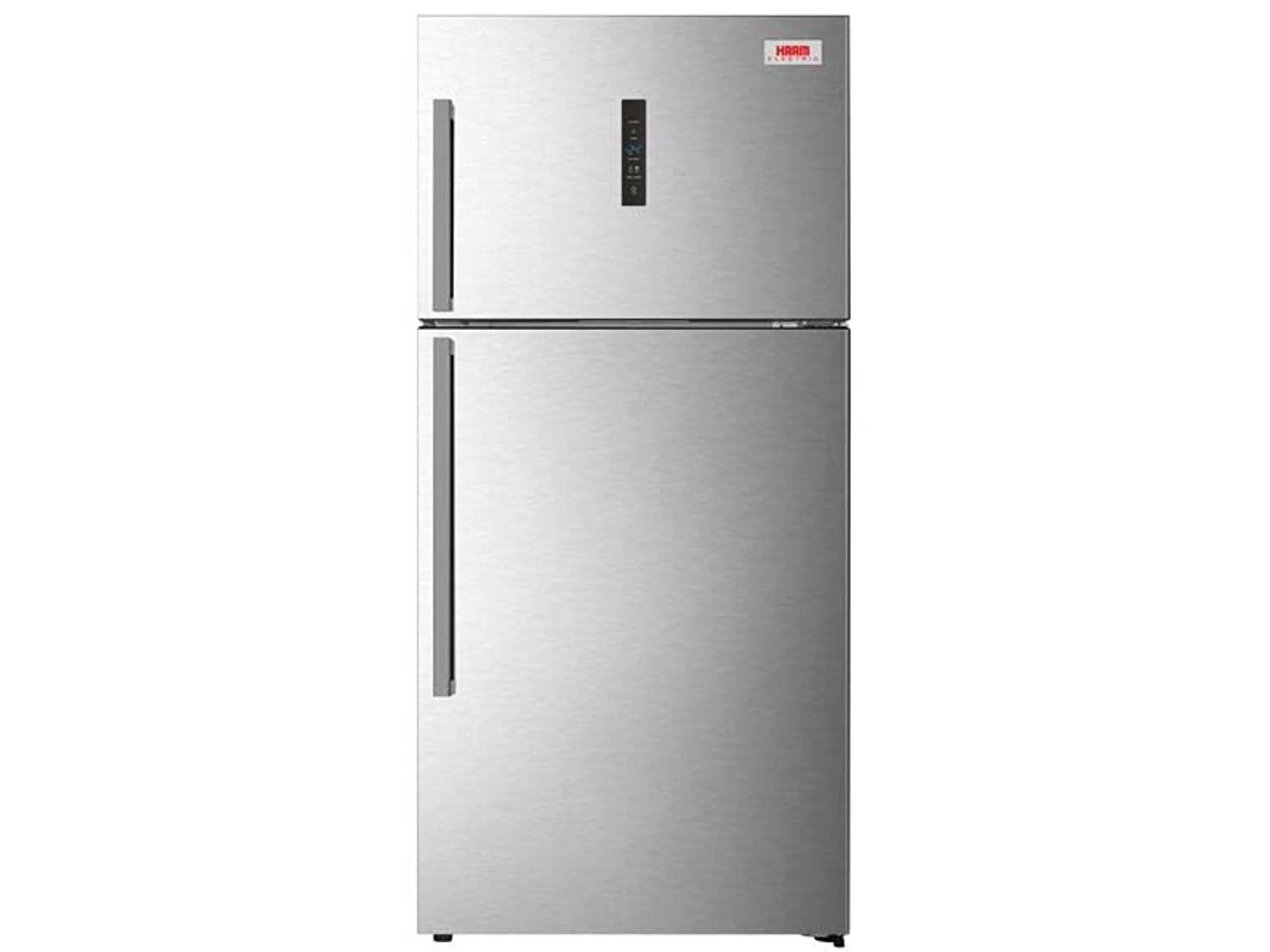

Figure 1: Exterior view of the Haam Electric HM690SRF-H22LINV Refrigerator.

Key features include:

• Quick Cooling and Freezing: Rapidly chills and freezes food to preserve freshness.
• Multi-directional Cold Air Flow: Ensures even cooling throughout the compartments.
• Odor and Bacteria Removal: An active odor filter helps eliminate unpleasant smells and unwanted bacteria, keeping food fresh.
• Extended Freshness: Designed to keep your stored items fresh for long periods.
• Energy Efficient: Provides appropriate energy and cooling based on internal conditions.

Figure 2: Interior view of the refrigerator compartment, showing shelves and storage.

Figure 3: Interior view of the freezer compartment, showing storage space.

4. Setup

4.1 Unpacking

Carefully remove all packaging materials. Inspect the refrigerator for any shipping damage. Report any damage to your retailer immediately.

4.2 Placement

• Place the refrigerator on a firm, level floor.
• Allow adequate space around the appliance for proper ventilation (at least 10 cm at the back and sides).
• Avoid direct sunlight or heat sources.
• Do not place in areas with extreme temperatures or high humidity.

4.3 Leveling

Adjust the leveling feet at the bottom front of the refrigerator to ensure it is stable and level. This helps the doors close properly and reduces vibration.

4.4 Initial Cleaning

Before first use, clean the interior and exterior of the refrigerator with a soft cloth and mild detergent. Rinse with clean water and dry thoroughly.

4.5 Power Connection

Plug the refrigerator into a dedicated 240V, 50/60Hz grounded electrical outlet. Allow the refrigerator to run for at least 2-4 hours empty before loading food to ensure it reaches the correct temperature.

5. Operating Instructions

5.1 Temperature Control

The refrigerator and freezer compartments have separate temperature controls. Refer to the control panel inside the refrigerator to adjust settings. Typically, a medium setting is recommended for general use. Adjust as needed based on ambient temperature and food load.

5.2 Quick Cooling/Freezing

Activate the quick cooling or freezing function when adding a large amount of fresh food to rapidly bring down the temperature. This feature helps preserve the quality of newly added items. Deactivate the function once the food is chilled/frozen to save energy.

5.3 Food Storage Tips

• Store raw meat and poultry on the lowest shelf to prevent drips onto other foods.
• Keep dairy products, cooked foods, and leftovers on middle shelves.
• Use crisper drawers for fruits and vegetables.
• Ensure all food is covered or sealed to prevent odor transfer and maintain freshness.

6. Maintenance

6.1 Cleaning

Regular cleaning helps maintain hygiene and efficiency. Unplug the refrigerator before cleaning.

• Interior: Clean with a solution of mild detergent and warm water. Wipe dry. Remove shelves and drawers for thorough cleaning.
• Exterior: Wipe with a soft cloth and mild detergent. For stainless steel surfaces, use a specialized cleaner.
• Door Seals: Clean door gaskets regularly with warm soapy water to ensure a tight seal.
• Condenser Coils: Periodically vacuum the condenser coils at the back or bottom of the refrigerator to improve efficiency.

6.2 Defrosting

This refrigerator features an automatic defrost system, eliminating the need for manual defrosting of the freezer compartment. Any accumulated frost will melt periodically and drain away.

7. Troubleshooting

Before contacting service, check the following common issues:

8. Specifications

Detailed specifications for the Haam Electric HM690SRF-H22LINV Refrigerator:

• Brand: Haam Electric
• Model: HM690SRF-H22LINV
• Configuration: Top Freezer Refrigerator
• Installation Type: Freestanding
• Number of Doors: 2
• Color: Grey
• Product Dimensions (D x W x H): 65 cm x 65 cm x 190 cm
• Total Capacity: 19.9 cubic feet (564 liters)
• Refrigerator Capacity: 15.8 cubic feet (447 liters)
• Freezer Capacity: 4.1 cubic feet (117 liters)
• Defrost System: Automatic
• Voltage: 240 Volt
• Special Features: Active odor filter, Quick cooling, Multi-directional cold air flow

Figure 4: Energy Efficiency Label. For more details, visit sls.gov.sa.

9. Warranty and Support

Your Haam Electric HM690SRF-H22LINV Refrigerator comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage period and service procedures.

For technical support, service requests, or to inquire about spare parts, please contact Haam Electric customer service through their official website or the contact information provided in your warranty documentation.
