VGR V-210 Multi-Function Rechargeable Trimmer and Shaver User Manual

1. Important Safety Information

Caution:

• Use the shaver on dry skin before charging.
• When shaving wet, be careful to avoid cuts and skin irritation.
• Take extra care when trimming sensitive areas like the nose.
• Do not use the shaver while charging.

2. Product Overview

The VGR V-210 is a versatile 3-in-1 grooming device designed for men, featuring a shaver, hair trimmer, and nose trimmer. It is rechargeable and comes with various accessories for comprehensive grooming.

Figure 2.1: Front view of the VGR V-210 multi-function shaver, showing the foil shaver head and power button.

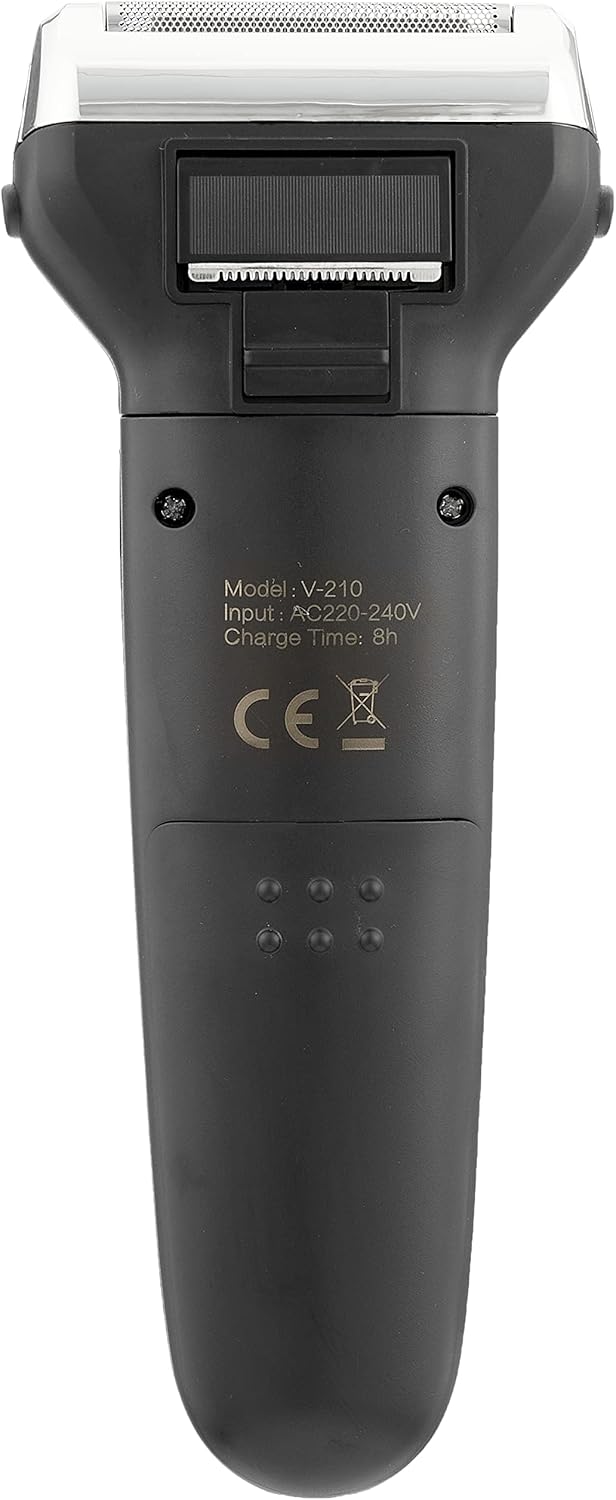

Figure 2.2: Rear view of the VGR V-210 shaver, displaying the model number (V-210), input voltage (AC220-240V), and charge time (8h).

Figure 2.3: Included attachments for the VGR V-210: a hair trimmer head with an adjustable comb, a nose trimmer head, and a bottle of lubricating oil.

Figure 2.4: Product packaging highlighting the VGR V-210's features, including 8 hours charging time, 60 minutes operating time, and included accessories like guide comb, oil, cleaning brush, and charging cable.

Package Contents:

• VGR V-210 Main Unit (Shaver)
• Hair Trimmer Head
• Nose Trimmer Head
• 1x Guide Comb
• Lubricating Oil
• Cleaning Brush
• Charging Cable

3. Setup and Initial Use

3.1 Charging the Device

1. Ensure the device is turned off.
2. Connect the charging cable to the device and plug it into a suitable power outlet (AC220-240V).
3. The charging indicator lights will illuminate. A full charge takes approximately 8 hours.
4. Do not use the device while it is charging.

3.2 Attaching/Detaching Heads

1. To attach a head (shaver, hair trimmer, or nose trimmer), align the head with the main unit and press firmly until it clicks into place.
2. To detach a head, gently pull it upwards while holding the main unit firmly.

4. Operating Instructions

The VGR V-210 offers up to 60 minutes of operating time on a full charge.

4.1 Using the Shaver Head

1. Ensure your skin is clean and dry for optimal results.
2. Turn on the device using the power button.
3. Hold the shaver at a right angle to your skin and move it against the direction of hair growth.
4. Stretch your skin with your free hand to ensure a close shave.

4.2 Using the Hair Trimmer Head

1. Attach the hair trimmer head to the main unit.
2. If desired, attach the guide comb to achieve a specific hair length.
3. Turn on the device.
4. Move the trimmer slowly and steadily against the direction of hair growth.
5. For defining lines and edges, use the trimmer without the guide comb.

4.3 Using the Nose Trimmer Head

1. Attach the nose trimmer head to the main unit.
2. Turn on the device.
3. Gently insert the trimmer tip into your nostril or ear canal.
4. Move the trimmer in a circular motion to trim unwanted hair. Exercise caution to avoid injury.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your VGR V-210.

5.1 Cleaning the Heads

1. Turn off and unplug the device before cleaning.
2. Detach the used head (shaver, hair trimmer, or nose trimmer).
3. Use the provided cleaning brush to remove any loose hairs from the blades and inside the head.
4. For thorough cleaning, the heads can be rinsed under running water. Ensure they are completely dry before reattaching or storing.

5.2 Lubrication

1. After cleaning and drying, apply a small drop of the provided lubricating oil to the blades of the shaver and trimmer heads.
2. Turn on the device for a few seconds to distribute the oil evenly.
3. Wipe off any excess oil with a soft cloth.
4. Lubrication helps maintain blade sharpness and smooth operation.

5.3 Storage

Store the device and its accessories in a cool, dry place, away from direct sunlight and moisture.

6. Troubleshooting

If you encounter issues with your VGR V-210, please refer to the following common solutions:

• Device not turning on: Ensure the device is fully charged. Check the charging cable and power outlet.
• Reduced performance: Clean the blades and heads thoroughly. Apply lubricating oil. If performance does not improve, the blades may need replacement (contact customer support for availability).
• Skin irritation: Ensure the blades are clean and lubricated. Shave against the direction of hair growth gently. If irritation persists, consult a dermatologist.

For further assistance, please contact VGR customer support.

7. Specifications

8. Warranty and Support

VGR products are manufactured to high-quality standards. For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official VGR website. Keep your proof of purchase for warranty claims.

For any questions or concerns not covered in this manual, please contact VGR customer service.
