1. Introduction
The NewAir 12-inch Air Circulator Fan is designed to provide efficient air circulation for various indoor environments. This fan incorporates RingForce™ technology to optimize airflow, offering powerful cooling with reduced noise levels. Its versatile design allows for use as a floor fan or a wall-mounted unit, making it suitable for homes, offices, and bedrooms.
Key Features:
- RingForce™ Technology: Accelerates and concentrates airflow for extended reach and maximum air coverage.
- Three Fan Speeds: Provides customizable airflow settings for various comfort levels.
- 360-Degree Pivot Head: Allows for precise direction of airflow.
- Compact and Lightweight: Designed for easy portability and storage.
- Floor or Wall Mountable: Offers flexible placement options.
2. Important Safety Instructions
To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions when using electrical appliances:
- Read all instructions before using this fan.
- Ensure the power source matches the electrical requirements of the fan.
- Do not operate any fan with a damaged cord or plug. Discard the fan or return to an authorized service facility for examination and/or repair.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
- Always unplug the fan before moving, cleaning, or servicing.
- Do not insert fingers or foreign objects into any opening on the fan.
- Do not use outdoors. This fan is designed for indoor use only.
- Close supervision is necessary when any appliance is used by or near children.
- Do not use the fan in wet or damp locations, such as bathrooms or laundry areas.
3. Package Contents
Verify that all components are present upon opening the package:
- NewAir 12-inch Air Circulator Portable Fan
- Quickstart Guide
- User's Manual (this document)
- Warranty Registration Card
4. Setup and Installation
Floor Placement:
Place the fan on a stable, flat surface. Ensure the non-slip feet are securely positioned to prevent movement during operation. Position the fan in an area where airflow can be optimized for the room size.

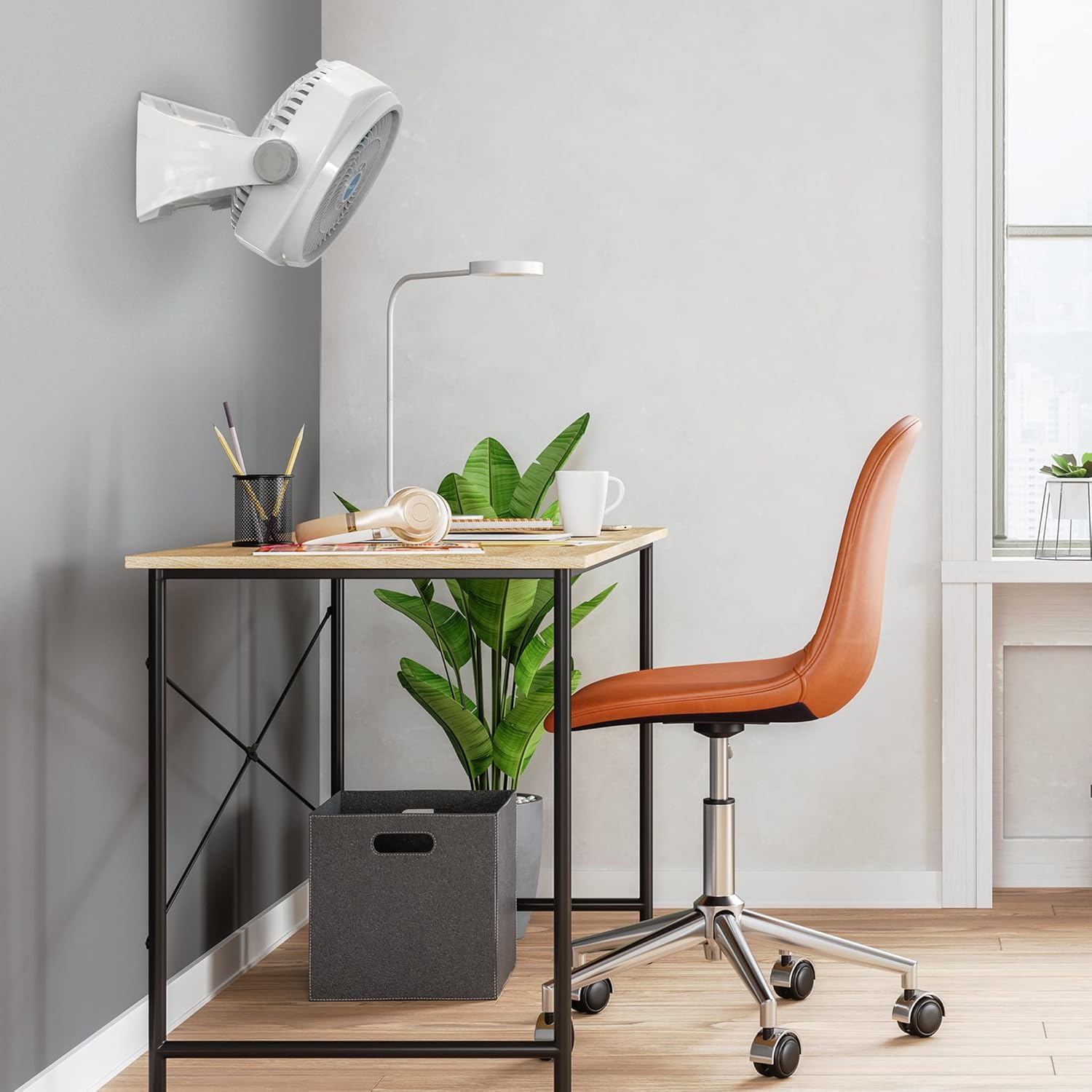

Wall Mounting:
The fan can be mounted on a wall to save floor space and direct airflow from a higher vantage point. Use appropriate hardware (not included) for your wall type to securely fasten the fan. The fan's design includes mounting points for this purpose.
5. Operating Instructions
Powering On/Off:

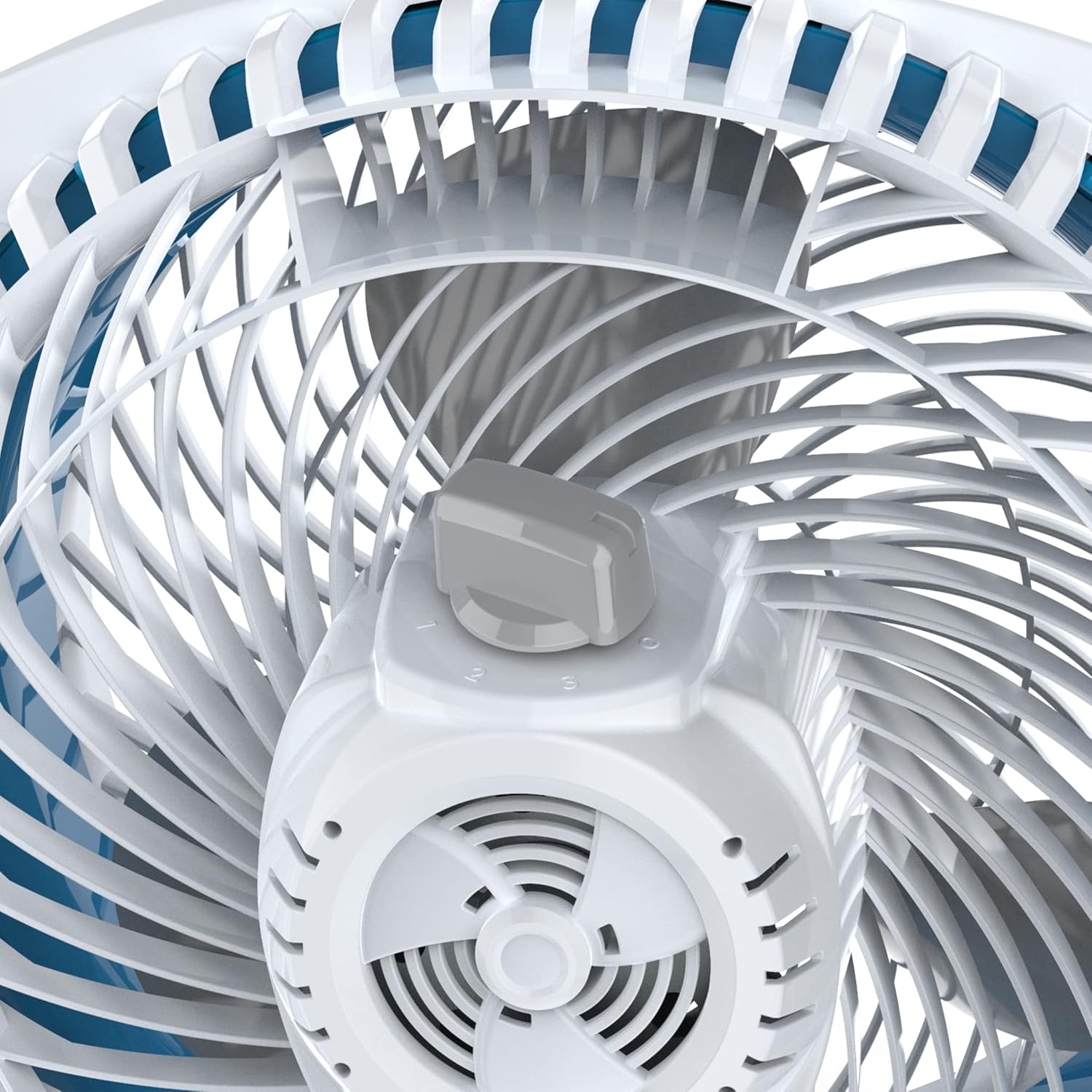

Plug the fan into a standard electrical outlet. Locate the control dial, typically on the side or back of the fan. Turn the dial to the '1', '2', or '3' position to power on the fan and select a speed. Turn the dial to '0' to power off the fan.
Adjusting Fan Speed:
The fan offers three speed settings: Low (1), Medium (2), and High (3). Rotate the control dial to select your desired airflow intensity.
Adjusting Airflow Direction:
The fan features a 360-degree pivot head. Manually tilt the fan head up or down, or rotate it left or right, to direct the airflow precisely where needed. This allows for targeted cooling or general room circulation.
6. Maintenance
Regular cleaning and maintenance will ensure optimal performance and extend the lifespan of your fan.
Cleaning:
- Always unplug the fan from the power outlet before cleaning.
- Use a soft, damp cloth to wipe the exterior surfaces of the fan. Do not use abrasive cleaners or solvents.
- For cleaning the fan blades, the front grille can typically be removed. Refer to the quickstart guide for specific instructions on grille removal for your model. Wipe the blades with a soft cloth.
- Ensure all parts are completely dry before plugging the fan back in.
7. Troubleshooting
If you experience issues with your NewAir Air Circulator Fan, consult the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on | No power supply Fan not plugged in correctly | Check if the power cord is securely plugged into a working outlet. Verify the power outlet is functional by plugging in another device. |
| Low airflow | Fan speed set too low Obstruction in front or back of fan Dust accumulation on blades/grille | Increase the fan speed using the control dial. Ensure there are no objects blocking the air intake or output. Clean the fan blades and grilles as described in the Maintenance section. |
| Unusual noise during operation | Fan not on a level surface Loose parts Foreign object inside fan | Place the fan on a stable, flat surface. Unplug the fan and check for any loose components. If found, contact customer support. Unplug the fan and carefully inspect for any foreign objects. Remove if safe to do so. |
If the problem persists after attempting these solutions, please contact NewAir customer support for assistance.
8. Specifications
Detailed technical specifications for the NewAir 12-inch Air Circulator Portable Fan (Model NFN12AWH00):
| Feature | Specification |
|---|---|
| Brand | NewAir |
| Model Name | NFN12AWH00 |
| Color | White |
| Product Dimensions | 15"D x 8"W x 16"H |
| Item Weight | 5.7 Pounds |
| Power Source | Corded Electric |
| Wattage | 69 watts |
| Voltage | 120V |
| Air Flow Capacity | 1000 Cubic Feet Per Minute (CFM) |
| Coverage Area | Up to 285 Sq. Ft. |
| Noise Level | 59.5 Decibels |
| Number of Power Levels | 3 |
| Special Features | Adjustable 360 Pivot, Adjustable Tilt, RingForce Technology |
| Mounting Type | Floor Mount, Wall Mount |
| Indoor/Outdoor Usage | Indoor |
9. Warranty and Customer Support
Warranty Information:
This NewAir product is covered by a 1-Year Limited Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please refer to the included Warranty Registration Card for full terms and conditions and registration instructions.
Customer Support:
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact NewAir customer support. You can find contact information on the NewAir official website or on your Warranty Registration Card.
Website: www.newair.com
