JINYISI 7pcs Car LED Bulbs Interior Light Kit User Manual

Introduction

This manual provides instructions for the installation and use of the JINYISI 7-piece LED interior light kit, designed specifically for Geely Emgrand EC7 and EC8 models manufactured between 2009 and 2015. This kit replaces your vehicle's standard interior bulbs with energy-efficient LED lights, enhancing visibility and modernizing the interior aesthetic.

The kit includes a total of 7 LED bulbs, featuring a T10 (W5W/194) interface type, operating at 12V, and providing 2400 Lumens of light output. These bulbs are designed with built-in load resistors to prevent dashboard error messages in compatible vehicles.

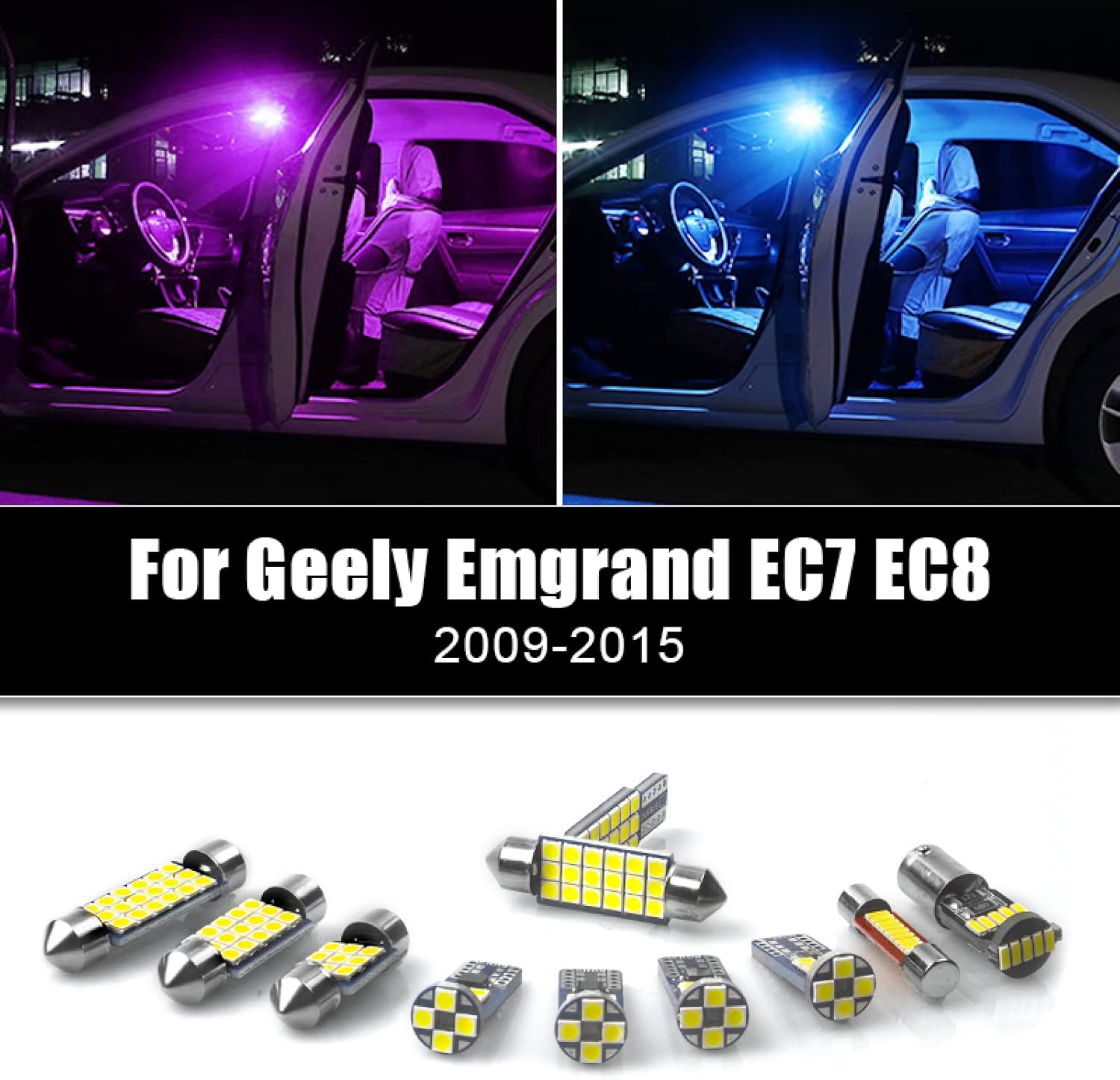

Image: Overview of the JINYISI 7pcs Car LED Bulbs Interior Light Kit, showing various bulb types and their application in a car interior.

Package Contents

The JINYISI 7pcs Car LED Bulbs Interior Light Kit includes the following components:

• 2 x Front Row Reading Lights
• 3 x Rear Row Reading Lights
• 1 x Glove Box Light
• 1 x Trunk Light

Image: The complete set of LED bulbs included in the kit, along with a small screwdriver tool for installation assistance.

Setup and Installation

Follow these steps to install the LED interior lights in your Geely Emgrand EC7 or EC8. Ensure the vehicle's ignition is off and the lights are turned off before beginning installation to prevent electrical issues or burns from hot bulbs.

1. Locate the Existing Bulb: Identify the incandescent bulb you wish to replace (e.g., front reading light, rear reading light, glove box light, or trunk light).
2. Remove the Light Cover: Carefully pry open the plastic light cover using a plastic trim removal tool or a small flat-head screwdriver to avoid scratching the interior.
3. Remove the Old Bulb: Gently pull out the existing incandescent bulb. Be cautious as the bulb may be hot if recently used.
4. Install the New LED Bulb: Insert the new LED bulb into the socket. Ensure it is seated firmly.
5. Test the Light: Turn on the vehicle's interior lights to check if the new LED bulb illuminates. If it does not light up, remove the LED bulb, flip it 180 degrees, and reinsert it. LED bulbs are polarity sensitive and will only work when inserted correctly.
6. Secure the Connection (if needed): If the bulb feels slightly loose in the socket, gently move the metal pin clips closer together to ensure a tighter connection.
7. Reattach the Light Cover: Once the LED bulb is working correctly, snap the light cover back into place.

Repeat these steps for all 7 bulbs included in the kit.

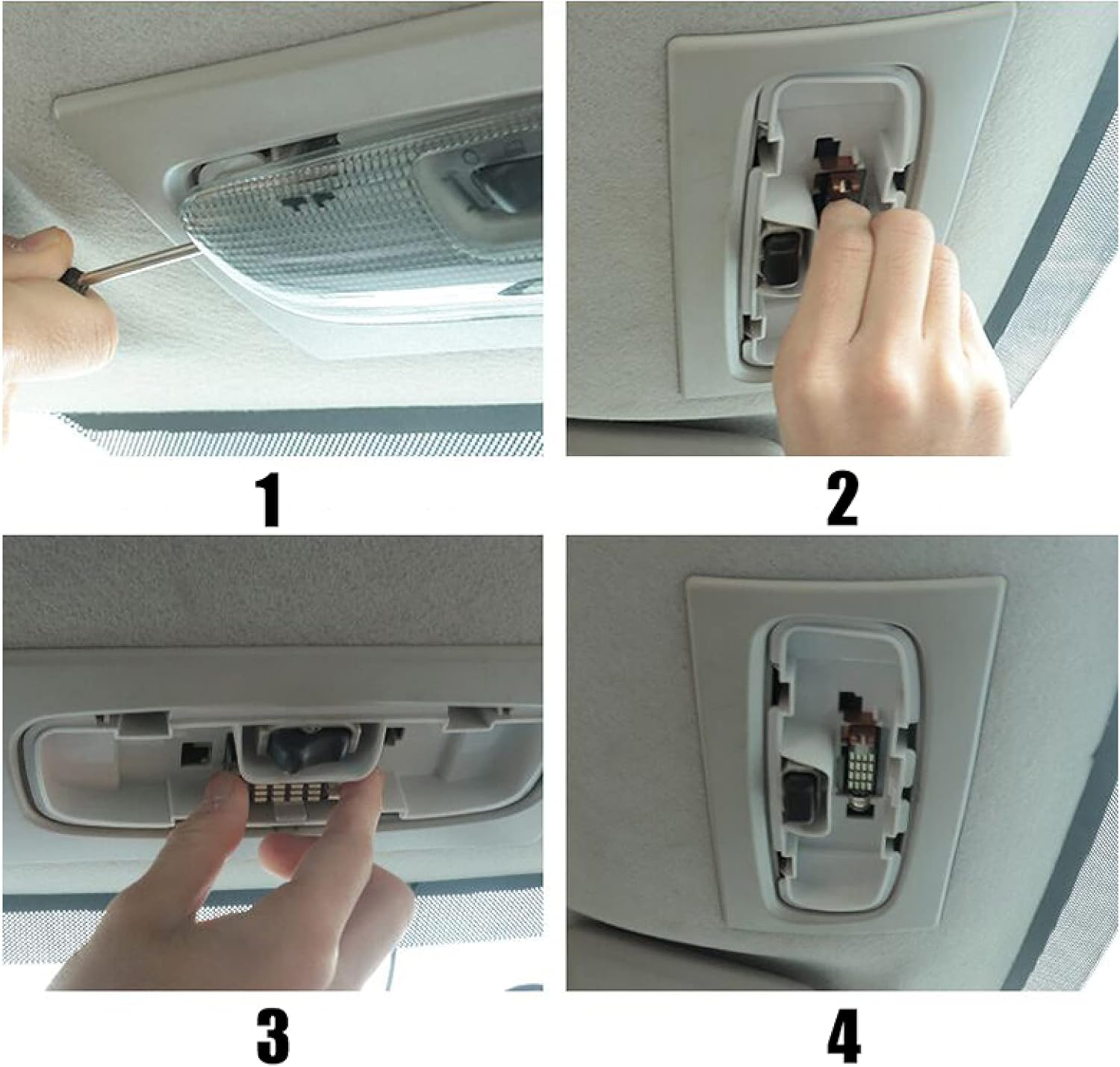

Image: A four-step visual guide demonstrating the process of removing an old bulb and installing a new LED bulb in a car's interior light fixture.

Operating Instructions

The JINYISI LED interior lights operate automatically with your vehicle's existing lighting system. They will illuminate when the car doors are opened, when the interior lights are manually switched on, or when the ignition is turned off, depending on your vehicle's specific wiring and settings.

These LED bulbs provide a super bright light output, improving visibility within the car's cabin, glove box, and trunk. Their low power consumption contributes to energy saving and environmental friendliness, while their durable construction ensures a long lifespan.

Image: A side-by-side comparison showing the significant increase in interior illumination after installing the LED bulbs, from a dim original light to a bright, clear LED light.

Image: A car's interior, including the dashboard and seats, is brightly illuminated by the installed LED bulbs during nighttime, showcasing improved visibility.

Maintenance

JINYISI LED bulbs are designed for long-term, maintenance-free operation. To ensure optimal performance and longevity, keep the light covers clean and free from dust and debris. Avoid using harsh chemicals or abrasive materials when cleaning the light covers, as this may cause damage.

Troubleshooting

• LED Bulb Does Not Light Up:
  If an LED bulb does not illuminate after installation, remove it from the socket, flip it 180 degrees, and reinsert it. LED bulbs are polarity sensitive and require correct orientation to function.
• Loose Connection:
  If a bulb flickers or does not maintain a consistent connection, gently move the metal pin clips within the socket closer together. This will create a tighter fit for the festoon-style bulb.
• Dashboard Error Messages:
  This LED kit is designed with built-in load resistors to prevent common dashboard error messages related to bulb outages. If an error message still appears, ensure all connections are secure and the correct bulb type is installed in each location.

Specifications

Warranty and Support

For any questions, concerns, or assistance regarding your JINYISI 7pcs Car LED Bulbs Interior Light Kit, please contact the seller or manufacturer directly. They are committed to providing timely responses and satisfactory solutions to ensure your product experience is positive.
