1. Introduction and Overview
This manual provides detailed instructions for the safe and efficient operation of your SMETA 60L 3-Way Absorption Refrigerator. Designed for versatility, this refrigerator can operate on 12V DC, 220-240V AC, or LPG gas, making it ideal for various applications including RVs, caravans, camping, and off-grid living.
The absorption cooling system ensures silent operation without a compressor, and its compact design allows for flexible placement. Please read this manual thoroughly before initial use to ensure proper installation and function.
Image: The SMETA 60L 3-Way Absorption Refrigerator shown alongside a gas cylinder, illustrating its multi-power capability.
Image: An open view of the refrigerator's interior, displaying various food items and icons representing AC 230V, GAS, and DC 12V power sources.
2. Safety Information
Always prioritize safety when operating this appliance. Failure to follow these instructions may result in property damage, injury, or death.
- Ventilation: Ensure adequate ventilation when operating the refrigerator, especially when using the gas mode. Proper airflow is crucial to prevent the accumulation of harmful gases.
- Gas Pressure: When operating on gas, ensure the gas pressure is maintained at 30 mbar. Incorrect pressure can affect performance and safety.
- Installation: Install the refrigerator on a stable, level surface. Refer to the setup section for detailed installation guidelines.
- Electrical Safety: Do not expose the refrigerator to water or excessive moisture. Ensure all electrical connections are secure and meet local regulations.
- Maintenance: Only qualified personnel should perform repairs or significant maintenance. Unplug the unit before cleaning or performing any maintenance.
Image: A comparison showing correct (0.5 PSIG) and incorrect (1 PSIG) gas regulators, emphasizing the need for a 30 mbar regulator for proper ignition and operation.
3. Setup and Installation
Proper setup is essential for optimal performance and longevity of your refrigerator.
3.1 Unpacking
- Carefully remove the refrigerator from its packaging.
- Inspect the unit for any shipping damage. If damaged, contact your retailer immediately.
- Remove all internal packing materials and protective films.
3.2 Placement
- Place the refrigerator on a firm, level surface to ensure proper operation of the absorption system.
- Allow sufficient clearance around the unit for proper ventilation, especially at the rear where the cooling unit is located.
- Avoid direct sunlight or heat sources, as this will reduce cooling efficiency.
Image: The SMETA refrigerator seamlessly integrated into the interior of an RV, demonstrating a typical installation scenario.
3.3 Door Reversibility
The refrigerator door is reversible to accommodate different installation needs. Refer to the diagram below for instructions on how to change the door swing direction.
Image: A diagram illustrating the reversible door feature, showing how the door can be adjusted to open from either the left or right side.
4. Operating Instructions
Your SMETA refrigerator offers three operating modes: Gas, AC (220-240V), and DC (12V). Select the appropriate mode based on your power availability.
4.1 Gas Mode Operation
This mode is ideal for off-grid use or when electrical power is unavailable.
- Step 1: Connect the refrigerator to your gas supply. Ensure the gas pressure is 30 mbar.
- Step 2: Press the safety valve button and hold it for 5 to 10 seconds.
- Step 3: While holding the safety valve button, press the ignition button.
- Step 4: Release the ignition button when the flame indicator starts to turn green. Wait 3 to 5 seconds before releasing the safety valve button.
- Step 5: After ignition, turn the thermostat knob to adjust the temperature in GAS mode.
Image: A detailed view of the refrigerator's control panel for gas operation, with step-by-step instructions for ignition and temperature adjustment.
4.2 AC (220-240V) Mode Operation
Use this mode when connected to a standard household electrical outlet.
- Step 1: Connect the refrigerator to a 220-240V AC power supply.
- Step 2: Turn the thermostat knob to regulate the temperature in AC mode.
4.3 DC (12V) Mode Operation
This mode is suitable for use in vehicles (cars, trucks, RVs) or with a 12V battery system.
- Step 1: For first-time use, set the temperature to the lowest setting and plug it into 220-240V AC. Test it indoors and let it cool for 6 to 8 hours.
- Step 2: Connect the 12V power supply. This allows the refrigerator to operate more efficiently when connected to a 12V power supply.
Image: Visual guide for connecting the refrigerator to 220V AC and 12V DC power sources, showing the respective plugs and sockets.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your SMETA refrigerator.
5.1 Cleaning
- Unplug the refrigerator before cleaning.
- Clean the interior with a soft cloth and mild detergent. Avoid abrasive cleaners.
- Wipe down the exterior with a damp cloth.
- Ensure the cooling unit at the back is free from dust and debris for optimal performance.
5.2 Storage
- If storing the refrigerator for an extended period, ensure it is clean and dry.
- Leave the door slightly ajar to prevent odors and mold growth.
Image: A diagram illustrating the internal absorption cooling system, highlighting its sealed nature and lack of moving parts, which contributes to silent operation and minimal maintenance.
6. Troubleshooting
Before contacting customer support, please refer to the following common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling |
|
|
| Gas burner not igniting |
|
|
| Excessive noise |
|
|
Image: An illustration highlighting the gas ignition point, which is crucial for troubleshooting gas mode operation issues.
7. Specifications
| Feature | Specification |
|---|---|
| Brand | SMETA |
| Model Number | DSG-60B1E (also T-DSG-60B1E) |
| Capacity | 60 Liters (approx. 61 Liters) |
| Power Sources | 12V DC, 220-240V AC, Gas (LPG/Natural Gas) |
| Temperature Range | 0°C to 10°C |
| Dimensions (L x W x H) | 46.2 x 48 x 56 cm (18.2 x 18.9 x 22 inches) |
| Weight | 21 Kilograms (46.3 lbs) |
| Cooling Technology | Absorption |
| Noise Level | Silent (approx. 21 dB) |
| Special Features | Compact, Silent Operation, Adjustable Shelf, Reversible Door |

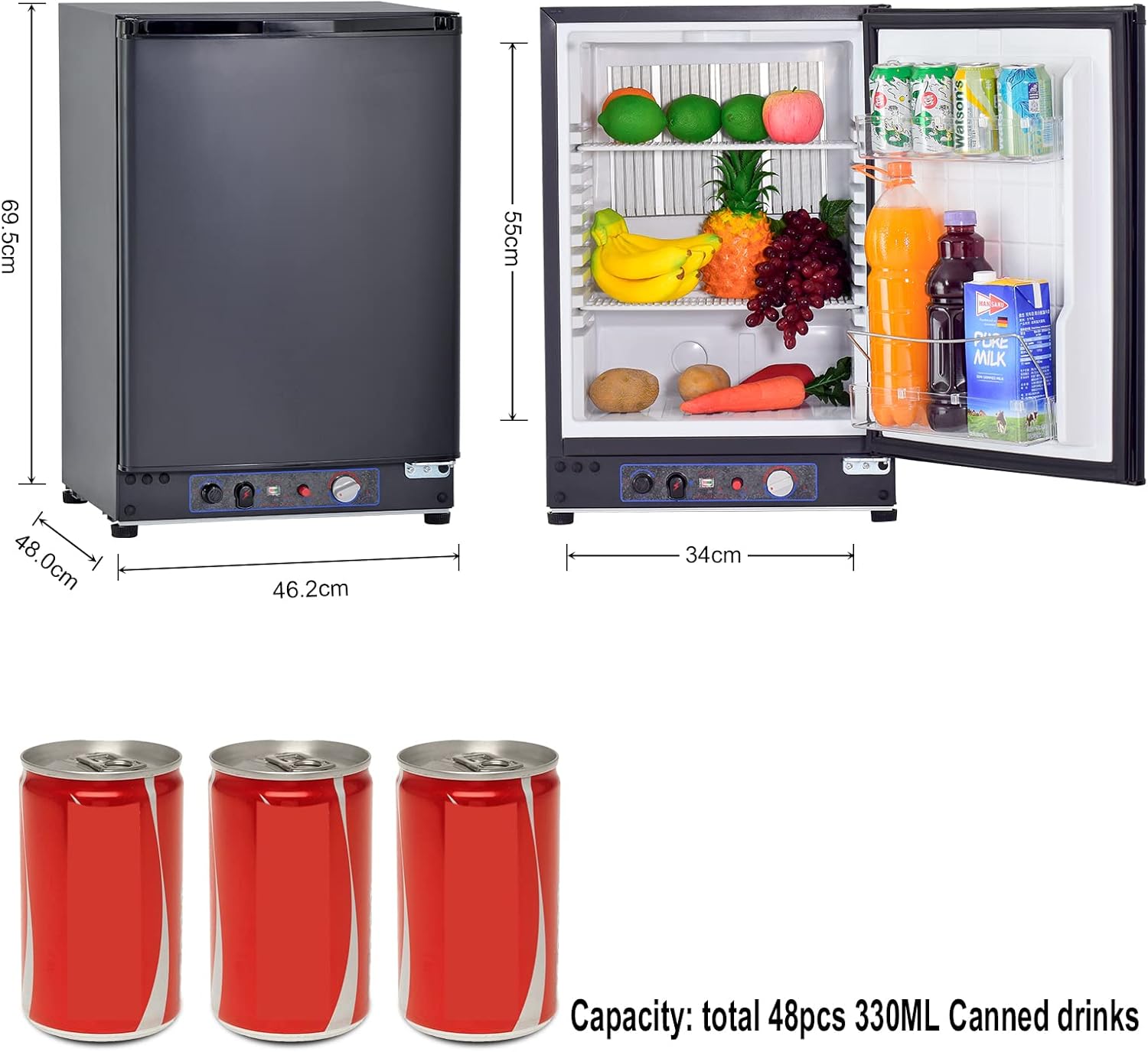

Image: A technical drawing showing the precise dimensions of the SMETA refrigerator, including height, width, and depth measurements.
Image: The energy efficiency label for the SMETA refrigerator (TSX-60B2E), indicating its annual energy consumption and noise level.
For more details, refer to the EPREL Product Information Sheet.
8. Warranty and Support
The manufacturer provides a 12-month warranty for this product, as indicated in the product data sheet. For warranty claims or technical support, please contact your retailer or SMETA customer service.
For further assistance, please visit the official SMETA website or contact the seller directly.
Image: A portion of the product data sheet, confirming the 12-month warranty period provided by the manufacturer.
