MUCAR CDE500 OBDII/EOBD Diagnostic Tool User Manual

1. Introduction

The MUCAR CDE500 is an advanced OBDII/EOBD diagnostic tool designed for comprehensive vehicle engine system analysis. This device allows users to read and clear fault codes, view live data, perform I/M readiness tests, and access various other diagnostic functions to help identify and resolve engine-related issues. It is an upgraded version of the Mucar CDL20, offering enhanced features and a user-friendly interface.

Image 1.1: The MUCAR CDE500 diagnostic tool being used by automotive professionals. This device is designed for professional automotive diagnostics.

2. Safety Information

Please read and understand all safety instructions before operating the MUCAR CDE500 diagnostic tool. Failure to follow these instructions may result in injury or damage to the device or vehicle.

• Always perform automotive testing in a well-ventilated area.
• Wear appropriate eye protection and clothing when working on vehicles.
• Keep the diagnostic tool away from hot engine parts or moving components.
• Do not connect or disconnect the tool while the vehicle's ignition is on or the engine is running, unless specifically instructed.
• Ensure the vehicle's battery is adequately charged before performing diagnostics to prevent data loss or incorrect readings.
• This device is designed for engine system diagnostics only. It does not support diagnostics for other systems such as instrument systems, anti-lock braking systems, airbag restraint systems, or transmission systems.

3. Product Overview

3.1 Device Components

The MUCAR CDE500 features a robust design with an integrated OBDII cable for direct connection to your vehicle. Key components include:

• LCD Screen: Displays diagnostic information.
• Function Buttons: For navigation and selecting options (HELP, I/M, OK, UP/DOWN/LEFT/RIGHT arrows, RETURN).
• OBDII Connector: Connects to the vehicle's Data Link Connector (DLC).
• LED Indicators: Three-color LEDs (Green, Yellow, Red) to quickly indicate vehicle status.
• USB Port: For software updates and data printing via PC.

Image 3.1: Front view of the MUCAR CDE500 diagnostic tool, showing the screen, buttons, and integrated cable.

3.2 Key Features

• Full OBD II/EOBD Diagnostics (10 Modes): Read Codes, Erase Codes, MIL Status, Live Data (2-in-1), EVAP System Test, On-Board Monitor Test (Mode 6), View Freeze Frame, O2 Sensor Test, Vehicle Information, I/M Readiness, DTC Lookup.
• One-click I/M Readiness and help shortcuts.
• 3-color LED screen for intuitive status indication (Green: no fault codes, Yellow: pending fault codes, Red: permanent fault codes).
• Live data display in both text and graphic formats.
• Reads Vehicle Information (VIN, CID, and CVN).
• Supports data preview and printing via PC.
• Integrated DTC library with detailed definitions.
• No external battery or charger required; powered directly from the vehicle's OBDII port.

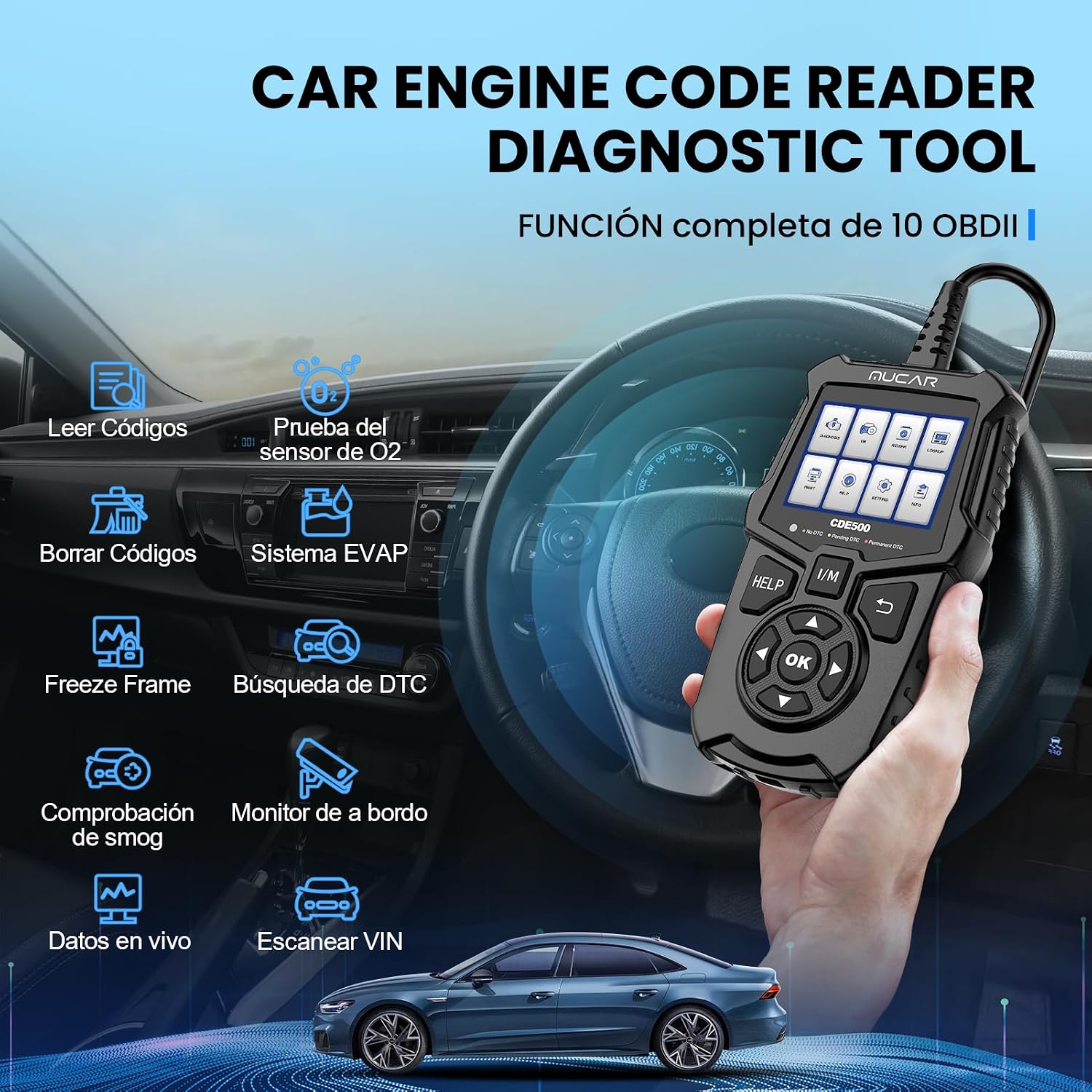

Image 3.2: The MUCAR CDE500 displaying its main diagnostic functions, including Read Codes, Erase Codes, O2 Sensor Test, EVAP System, Freeze Frame, DTC Lookup, Smog Check, On-Board Monitor, Live Data, and VIN Scan.

4. Setup

4.1 Connecting the Device

1. Locate the vehicle's 16-pin Data Link Connector (DLC). This is usually located under the dashboard on the driver's side.
2. Ensure the vehicle's ignition is OFF.
3. Firmly plug the MUCAR CDE500's OBDII connector into the vehicle's DLC.

4.2 Powering On

Once connected, turn the vehicle's ignition to the ON position (engine off). The MUCAR CDE500 will automatically power on and initiate communication with the vehicle's onboard computer.

5. Operating Instructions

Use the UP/DOWN/LEFT/RIGHT arrow buttons to navigate through menus and options. Press the 'OK' button to confirm a selection and the 'RETURN' button to go back to the previous screen.

5.1 Reading Diagnostic Trouble Codes (DTCs)

1. From the main menu, select 'Read Codes'.
2. The tool will scan the vehicle's engine control module (ECM) for stored DTCs.
3. DTCs will be displayed along with their descriptions. Refer to the integrated DTC library for detailed explanations.

5.2 Clearing Diagnostic Trouble Codes (DTCs)

Important: Only clear codes after the underlying issue has been resolved. Clearing codes without addressing the fault will likely result in the codes reappearing.

1. From the main menu, select 'Erase Codes'.
2. Confirm the action when prompted. This will clear all stored DTCs and turn off the Malfunction Indicator Light (MIL).

Image 5.1: The MUCAR CDE500 demonstrating the process of clearing engine fault codes and turning off the Check Engine Light (MIL).

5.3 I/M Readiness

The I/M Readiness function checks the status of the emission-related monitoring systems on the vehicle. This is useful for determining if the vehicle is ready for an emissions inspection.

1. From the main menu, select 'I/M Readiness'.
2. The tool will display the status of various monitors (e.g., O2 Sensor, EVAP System). 'OK' or 'Complete' indicates the monitor has run and passed; 'INC' or 'Incomplete' means the monitor has not yet completed its diagnostic cycle.

Image 5.2: The MUCAR CDE500 screen showing the I/M Readiness status, indicating whether various emission monitors are complete or incomplete.

5.4 Live Data Stream

View real-time data from the vehicle's sensors and components. This data can be displayed in text or graph format, allowing for dynamic analysis of engine performance.

1. Select 'Live Data' from the main menu.
2. Choose the parameters you wish to monitor.
3. Observe the data in real-time.

5.5 Other Diagnostic Functions

• Freeze Frame: View a snapshot of sensor data at the moment a fault code was set.
• O2 Sensor Test: Retrieve O2 sensor monitor test results.
• EVAP System Test: Initiate a test of the evaporative emission system.
• On-Board Monitor Test (Mode 6): Access results of on-board diagnostic monitoring tests for specific components/systems.
• Vehicle Information: Retrieve the Vehicle Identification Number (VIN), Calibration ID (CID), and Calibration Verification Number (CVN).

6. Software Update & Printing

The MUCAR CDE500 supports lifetime free software updates and allows for diagnostic data printing via a PC connection.

1. Step 1: Connect the scanner to your computer using a USB cable.
2. Step 2: Visit the official MUCAR website (www.mythinkcar.com). Navigate to the 'Download' section and locate the 'THINKOBD Update Tool' software. Download and install it on your PC.
3. Step 3: Run the installed update software. Follow the on-screen instructions to update the device firmware or to select and print diagnostic data.

Image 6.1: Visual guide for connecting the MUCAR CDE500 to a PC for software updates and printing diagnostic reports.

7. Vehicle Compatibility & Language Support

The MUCAR CDE500 is compatible with a wide range of vehicles and supports multiple languages.

• Vehicle Coverage: Works with most US vehicles from 1996 and newer, EU vehicles from 2000 and newer, and Asian vehicles from 2008 and newer that are OBDII compliant. It covers over 92 car brands and 10,000+ car models.
• Language Support: Supports English, French, Spanish, German, Russian, Japanese, and Polish.

Image 7.1: The MUCAR CDE500 supports over 92 car brands and 10,000+ models, along with 8 languages including English, French, German, Spanish, Italian, Portuguese, Russian, and Polish.

8. Maintenance

To ensure the longevity and optimal performance of your MUCAR CDE500 diagnostic tool, follow these maintenance guidelines:

• Keep the device clean by wiping it with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Store the tool in a dry, cool environment, away from direct sunlight and extreme temperatures.
• Avoid dropping the device or subjecting it to strong impacts.
• Regularly check the OBDII cable for any signs of damage (fraying, cuts). If damaged, discontinue use and seek professional repair or replacement.

9. Troubleshooting

If you encounter issues while using the MUCAR CDE500, refer to the following common problems and solutions:

• Device does not power on: Ensure the OBDII connector is securely plugged into the vehicle's DLC and the vehicle's ignition is in the ON position. Check the vehicle's battery for sufficient charge.
• Communication error / No connection to ECU: Verify that the vehicle is OBDII compliant (most US vehicles 1996+, EU 2000+, Asian 2008+). Check the connection of the OBDII cable. Ensure the vehicle's ignition is on. If the issue persists, try on another compatible vehicle to rule out a vehicle-specific problem. Consider updating the device software via PC.
• Codes reappear after clearing: This indicates that the underlying fault has not been resolved. The tool can only indicate if a module is faulty; it cannot identify the specific damaged component. Repairs must be completed before clearing fault codes for them to remain cleared.
• Incorrect readings: Ensure the vehicle's ignition is on and the engine is off when performing most diagnostic tests. Live data should be viewed with the engine running.

10. Specifications

11. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the documentation included with your product packaging or visit the official MUCAR website. Keep your purchase receipt as proof of purchase for warranty claims.
