Sage Bambino Espresso Machine User Manual

Introduction

The Sage Bambino is a compact espresso machine designed to deliver barista-quality coffee at home. Featuring a 54mm portafilter for optimal flavor extraction and an automatic steam wand for hands-free milk texturing, it allows you to create third wave specialty coffee with ease. Its innovative ThermoJet heating system ensures a rapid 3-second heat-up time, so you can enjoy your coffee without delay.

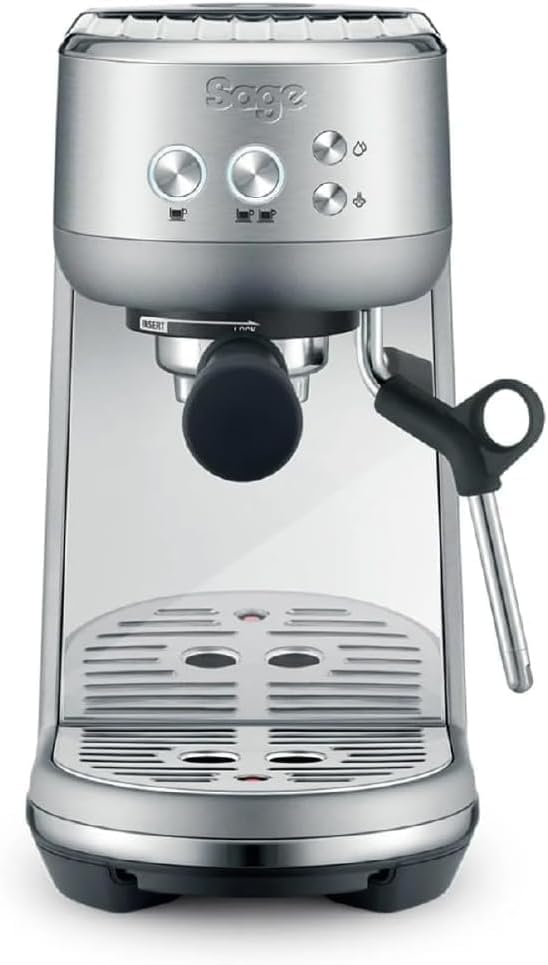

Front view of the Sage Bambino Espresso Machine in brushed stainless steel.

What's in the Box

Your Sage Bambino package includes the following components:

• Sage Bambino Espresso Machine: The main unit with integrated steam wand.
• 54mm Portafilter: For holding ground coffee during extraction.
• Single & Dual Wall Filter Baskets: Includes 1-cup and 2-cup single wall filters (for freshly ground coffee) and 1-cup and 2-cup dual wall filters (for pre-ground coffee).
• Milk Jug: Stainless steel jug for frothing milk.
• Tamper: Plastic tamper for compacting coffee grounds in the portafilter.
• Water Filter: For filtering water in the reservoir.
• Steam Wand Tip Cleaning Tool: For maintaining the steam wand.
• Descaler: A sachet of descaling powder for maintenance.

Overview of all accessories and components included with the Sage Bambino.

Setup

1. Unpack the Machine: Remove all packaging materials and place the machine on a flat, stable, heat-resistant surface. Ensure adequate space around the machine for ventilation and operation.
2. Install Water Filter: Remove the water tank from the back of the machine. Unpack the water filter and soak it in cold water for 5 minutes. Insert the filter into the filter holder inside the water tank.
3. Fill Water Tank: Fill the water tank with fresh, cold filtered water up to the MAX line. Reinsert the water tank firmly into the machine.
4. Initial Rinse Cycle: Before first use, perform a rinse cycle. Place a large container under the portafilter and steam wand. Press the 1-cup button to run water through the group head. Then, activate the steam wand to purge any air and water. This primes the machine and cleans internal components.

The 1.4L capacity water tank being filled, demonstrating its easy removal and re-insertion.

Operating Instructions

Making Espresso

The Bambino uses a 54mm portafilter and is designed for 19 grams of coffee for optimal flavor. Ensure your coffee beans are freshly roasted and ground for the best results.

1. Select Filter Basket: Choose the appropriate single or dual wall filter basket for your coffee type and desired shot size (1-cup or 2-cup). Place it into the portafilter.
2. Dose and Tamp: Grind fresh coffee beans directly into the filter basket. For best results, use approximately 19 grams of finely ground coffee for a double shot. Distribute the grounds evenly, then tamp firmly and level with the provided tamper.
3. Insert Portafilter: Wipe any excess coffee from the rim of the portafilter. Insert the portafilter into the group head and twist firmly to the right until it is securely locked.
4. Place Cup(s): Position your espresso cup(s) under the portafilter spouts.
5. Extract Espresso: Press the 1-cup or 2-cup button. The machine will pre-infuse the coffee at low pressure before increasing to full pressure for extraction. The extraction will stop automatically.

Precise 9 bar extraction delivered via the 15 bar Italian pump, producing rich espresso.

Automatic Microfoam Milk Texturing

The automatic steam wand allows for hands-free milk frothing, creating silky smooth microfoam perfect for latte art.

1. Fill Milk Jug: Fill the stainless steel milk jug with cold milk to just below the spout.
2. Position Steam Wand: Swing the steam wand over the drip tray and press the steam button to purge any condensed water. Then, swing the steam wand into the milk jug, ensuring the tip is submerged just below the surface.
3. Start Frothing: Press the steam button again. The machine will automatically texture the milk to your desired temperature and texture level (adjustable via the control panel).
4. Clean Steam Wand: Once frothing is complete, remove the milk jug. Wipe the steam wand immediately with a damp cloth. Swing the wand back over the drip tray and press the steam button to purge any milk residue from the tip.

The powerful steam wand quickly transforms milk into silky smooth microfoam for lattes and cappuccinos.

Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Sage Bambino.

• Daily Cleaning:
  • Empty and clean the drip tray after each use.
  • Rinse the portafilter and filter basket under hot water immediately after use.
  • Wipe down the exterior of the machine with a soft, damp cloth.
• Steam Wand Cleaning:
  • Always purge the steam wand after each use.
  • If the steam wand becomes blocked, use the provided steam wand tip cleaning tool to clear the holes.
• Descaling:

  Over time, mineral deposits can build up inside the machine, affecting performance. The machine will indicate when descaling is required. Use the provided descaler sachet or a suitable descaling solution following the instructions in the full product manual.
• Water Filter Replacement:

  Replace the water filter approximately every 3 months or as indicated by the machine to maintain water quality and reduce scale buildup.

Troubleshooting

For more detailed troubleshooting, refer to the comprehensive manual or contact Sage customer support.

Specifications

• Model Number: SES450BSS4GUK1
• Color: Brushed Stainless Steel
• Coffee Maker Type: Espresso Machine
• Operation Mode: Fully Automatic
• Voltage: 110 to 120 Volts
• Power: 1560 Watts
• Dimensions (H x W x D): 31cm x 19.5cm x 32cm (approx. 12.2 x 7.68 x 12.6 inches)
• Water Tank Capacity: 1.4 Liters
• Heating System: ThermoJet (3-second heat-up time)
• Pump Pressure: 15 Bar Italian Pump (delivers 9 bar extraction pressure)
• Portafilter Size: 54mm
• Special Features: Automatic Microfoam Milk Texturing, Low Pressure Pre-Infusion, Digital Temperature Control (PID)

Product dimensions: 31cm High x 19.5cm Wide x 32cm Deep, highlighting its compact design.

Warranty and Support

The Sage Bambino Espresso Machine comes with a 1 Year Limited Product Warranty. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical assistance, or general inquiries, please refer to the contact information provided in your product packaging or visit the official Sage Appliances website for support details specific to your region.

Always ensure you have your proof of purchase and the product's model number (SES450BSS4GUK1) available when contacting support.
