1. Introduction
Thank you for choosing the Reality Leuchten Halmstad R62672132 LED Ceiling Fan Light. This product combines efficient LED lighting with a powerful ceiling fan, designed for indoor use. This manual provides essential information for safe installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and retain it for future reference.

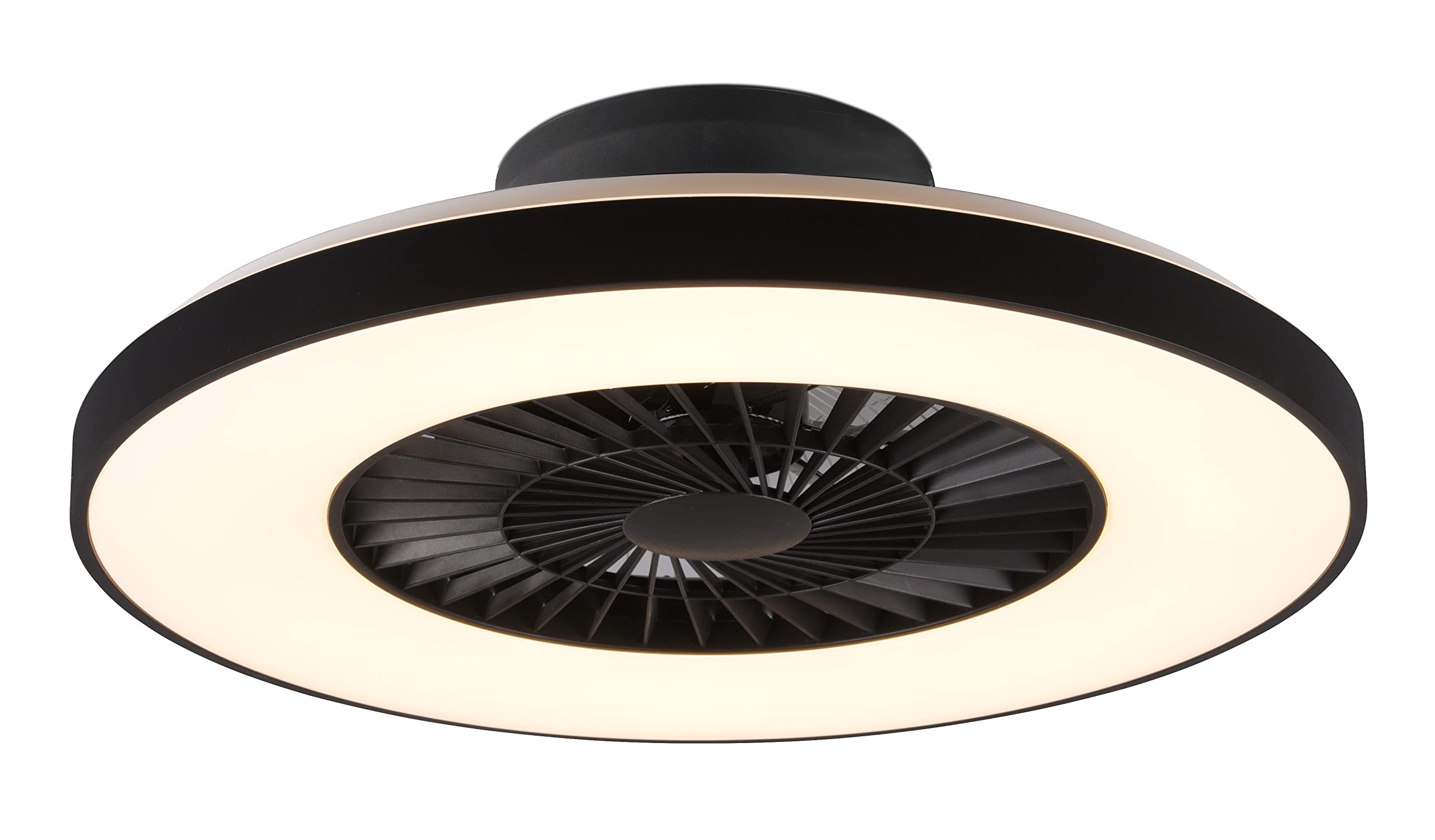

Image 1.1: Front view of the Halmstad LED Ceiling Fan Light.
The Halmstad LED Ceiling Fan Light is a combination lighting and fan unit, constructed from plastic with a matte black and white finish. It has a diameter of 60 cm and a height of 21 cm, making it suitable for various indoor spaces.
2. Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these basic precautions:
- Read all instructions carefully before installing and operating the fan light.
- Ensure the power supply is disconnected at the main circuit breaker before installation or maintenance.
- Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Mount the fan light securely to a structural ceiling joist or a suitable outlet box marked 'Acceptable for Fan Support of 15.9 kg (35 lbs) or less'.
- Do not insert fingers or any objects into the fan blades while the fan is operating.
- Ensure all electrical connections are secure and properly insulated.
- This product is designed for indoor use only. Do not expose to water or excessive humidity.
- Do not attempt to repair or modify the unit yourself. Contact qualified service personnel for repairs.
3. Package Contents
Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact customer support.
- Halmstad LED Ceiling Fan Light Unit (with integrated LED and fan)
- Remote Control
- Mounting Hardware (screws, anchors, etc. - specific items may vary)
- User Manual (this document)
Image 3.1: Included Remote Control.
4. Setup and Installation
This section outlines the general steps for installing your ceiling fan light. Professional installation by a certified electrician is highly recommended.
- Preparation: Turn off power at the circuit breaker. Ensure the mounting location is structurally sound and can support the weight of the fan light (approximately 4.9 kg).
- Mounting Bracket Installation: Secure the mounting bracket to the ceiling outlet box using the provided screws. Ensure it is firmly attached.
- Wiring: Connect the electrical wires from the ceiling to the fan light's wiring according to local electrical codes. Typically, this involves connecting live, neutral, and ground wires. Use appropriate wire connectors.
- Attaching the Fan Light: Carefully lift the fan light unit and attach it to the mounting bracket. Ensure all connections are secure and the unit is properly seated.
- Final Checks: Double-check all connections and ensure no wires are pinched. Restore power at the circuit breaker.
Image 4.1: Side profile of the fan light, illustrating ceiling attachment.
Image 4.2: Technical drawing with dimensions (Diameter: 593mm, Height: 205mm).
5. Operating Instructions
The Halmstad LED Ceiling Fan Light is operated using the included remote control. Ensure the remote control has working batteries installed.
5.1 Light Functions
- Power On/Off: Press the light button on the remote to turn the LED light on or off.
- Dimming: The light can be continuously dimmed from 100% to 10% brightness using the dimming buttons on the remote control.
- Color Temperature Adjustment: Adjust the light color continuously from warm white (3000 Kelvin) to cool white (6500 Kelvin) using the color temperature adjustment buttons.
- Night Light Mode: Activate the night light function for a soft, low-intensity illumination.
5.2 Fan Functions
- Power On/Off: Press the fan button on the remote to turn the fan on or off.
- Speed Control: The fan features three adjustable speeds. Use the speed control buttons on the remote to cycle through low, medium, and high settings.
- Timer Function: Set a timer for the fan to automatically turn off after a specified period. Refer to the remote control's specific buttons for timer settings.
- Separate Control: The light and fan functions can be operated independently.
5.3 DC Motor Benefits
The integrated DC motor offers several advantages:
- Latest Operating Technology: Ensures efficient and reliable performance.
- Low-Maintenance Motor: Designed for durability and minimal upkeep.
- Up to 60% Less Power Consumption: Energy-efficient operation reduces electricity costs.
- Smooth and Whisper-Quiet Operation: Provides comfort without disruptive noise.
Image 5.1: Benefits of the DC Motor.
5.4 Seasonal Operation
The fan can be used to optimize air circulation in both summer and winter:
- Summer Operation: The fan blades rotate to create a downward airflow, providing a cooling effect.
Image 5.2: Summer Operation (Downward Airflow).
- Winter Operation: The fan blades rotate in reverse (upward airflow) to circulate warm air trapped near the ceiling, helping to distribute heat more evenly throughout the room.
Image 5.3: Winter Operation (Upward Airflow).
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your fan light.
- Cleaning: Before cleaning, ensure the power supply is disconnected. Wipe the exterior surfaces of the fan light with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
- Dust Removal: Periodically clean dust from the fan blades and light cover using a soft brush or vacuum cleaner with a brush attachment.
- Inspection: Periodically check all mounting screws and connections to ensure they remain tight and secure.
- LED Light Source: The LED light source is integrated and not user-replaceable. If the LED fails, contact customer support for assistance.
7. Troubleshooting
If you encounter issues with your Halmstad LED Ceiling Fan Light, refer to the following troubleshooting guide:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan or Light does not turn on. | No power supply; loose wiring; remote control battery depleted. | Check circuit breaker. Ensure all wiring connections are secure. Replace remote control batteries. |
| Remote control is unresponsive. | Battery depleted; remote not paired; obstruction between remote and unit. | Replace remote control batteries. Ensure clear line of sight. Refer to pairing instructions (if applicable, not detailed in this manual). If issue persists, contact customer support. |
| Fan makes unusual noise. | Loose screws; unbalanced blades; motor issue. | Ensure all mounting screws are tight. Check for any obstructions. If noise persists, contact customer support. |
| Light flickers or dims unexpectedly. | Unstable power supply; faulty LED driver. | Ensure stable power. If issue persists, contact customer support. |
8. Specifications
| Feature | Specification |
|---|---|
| Brand | RL LIVE YOUR LIGHT (Reality Leuchten) |
| Model Number | R62672132 |
| Color | Matte Black / White |
| Material | Plastic |
| Dimensions (Diameter x Height) | 60 cm x 21 cm (593mm x 205mm) |
| Light Source | Integrated LED |
| LED Wattage | 40 Watt |
| Luminous Flux | 3900 Lumen |
| Color Temperature | Adjustable: 3000K (Warm White) to 6500K (Cool White) |
| Dimmable | Yes (Stepless) |
| Fan Power | 40 Watt |
| Fan Speeds | 3 Speeds |
| Special Features | Timer Function, Night Light Mode, Separate Light/Fan Control, DC Motor |
| Energy Efficiency Class | F |
| Weight | 4.9 Kilograms |
| Usage Environment | Indoor |
| Control Method | Remote Control |
Image 8.1: Energy Efficiency Class F.
9. Warranty and Support
This product comes with a manufacturer's warranty. Please refer to your purchase documentation or contact the retailer for specific warranty terms and conditions. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Reality Leuchten customer service through their official website or the retailer where the product was purchased.
