Introduction
This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your tectake Elaria Hanging Lounger. Please read these instructions carefully before use to ensure safe and correct operation and to maximize the lifespan of your product. The Elaria Hanging Lounger is designed for outdoor relaxation, featuring an ergonomic design, comfortable padding, and a protective sun canopy.
Setup and Assembly
The tectake Elaria Hanging Lounger requires assembly. Please ensure all components are present before beginning. Refer to the separate assembly instructions included in your product packaging for detailed, step-by-step guidance. A general overview of the assembly process is provided below:
- Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Verify that all parts listed in the assembly instructions are present.
- Assemble the Frame: Connect the main frame components according to the diagrams in the assembly manual. Ensure all screws and fasteners are securely tightened.
- Attach the Lounger Seat: Secure the ergonomic lounger seat to the assembled frame using the provided hardware. Pay attention to the suspension points for proper balance.
- Install the Sun Canopy: Attach the sun canopy to the designated points on the frame. Ensure it is securely fastened to provide adequate shade and UV protection.
- Place Padding and Accessories: Position the removable padded cushion onto the lounger seat. Attach the side storage bag if desired.
- Final Check: Before first use, inspect all connections and ensure the lounger is stable and secure on a flat, level surface.
Operating Instructions
The tectake Elaria Hanging Lounger is designed for comfortable outdoor relaxation. Follow these guidelines for safe and optimal use:
- Placement: Position the lounger on a flat, stable, and level surface to prevent tipping. Ensure there is sufficient clear space around the lounger for safe swinging.
- Weight Capacity: Do not exceed the maximum weight capacity of 100 kg (220 lbs). Overloading can compromise stability and safety.

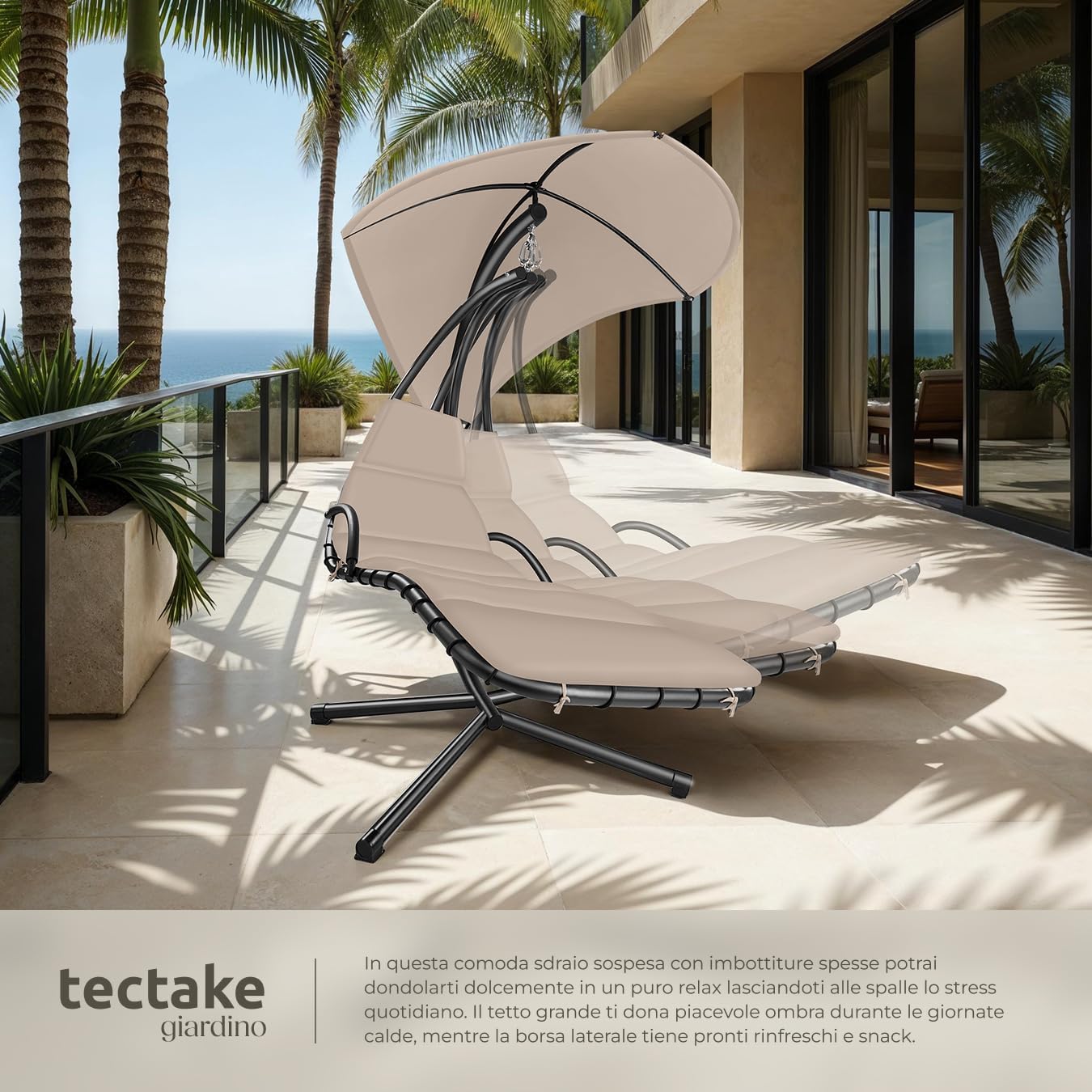

- Gentle Swinging: The lounger is designed for a gentle, relaxing swinging motion. Avoid aggressive or excessive swinging, which could lead to instability or damage.
- Sun Canopy: The integrated sun canopy provides shade and UV protection. Adjust its position as needed to block direct sunlight.
- Side Storage Bag: Utilize the convenient side bag for storing small personal items such as phones, books, or drinks. Do not overload the bag.
- Supervision: Children should always be supervised when near or using the lounger.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your tectake Elaria Hanging Lounger:
- Cleaning the Frame: Wipe the powder-coated steel frame with a damp cloth and mild soap. Rinse thoroughly and dry completely to prevent rust. Avoid abrasive cleaners.
- Cleaning the Fabric: The polyester fabric of the lounger and canopy is water-repellent. Clean with a soft brush or cloth and a mild soap solution. Rinse with clean water and allow to air dry completely before storage. The padded cushion may be removable for easier cleaning.
- Fastener Check: Periodically check all screws, bolts, and connections to ensure they remain tight. Retighten as necessary to maintain structural integrity.
- Weather Protection: While the lounger is designed to be weather-resistant, prolonged exposure to extreme weather conditions (heavy rain, strong winds, snow) can reduce its lifespan. Consider using a protective cover or storing the lounger indoors during harsh weather or off-season.
- Storage: When not in use for extended periods, store the lounger in a dry, protected area to prevent damage from elements.
Troubleshooting
If you encounter issues with your tectake Elaria Hanging Lounger, refer to the following common problems and solutions:
- Instability or Wobbling:
- Ensure the lounger is placed on a completely flat and level surface.
- Check all assembly bolts and screws. Tighten any loose connections.
- Verify that the frame components are correctly aligned as per the assembly instructions.
- Squeaking Noise During Swinging:
- Inspect the suspension points and moving parts for any friction.
- Apply a small amount of silicone-based lubricant to the pivot points if necessary. Avoid oil-based lubricants that can attract dirt.
- Sun Canopy Not Staying in Position:
- Check the canopy attachment points and ensure they are securely fastened.
- Ensure the canopy fabric is taut and properly stretched over its frame.
- Damage to Fabric or Frame:
- For minor scratches on the frame, touch-up paint suitable for powder-coated metal can be used.
- For significant damage to fabric or structural components, contact tectake customer support for advice on replacement parts or repair.

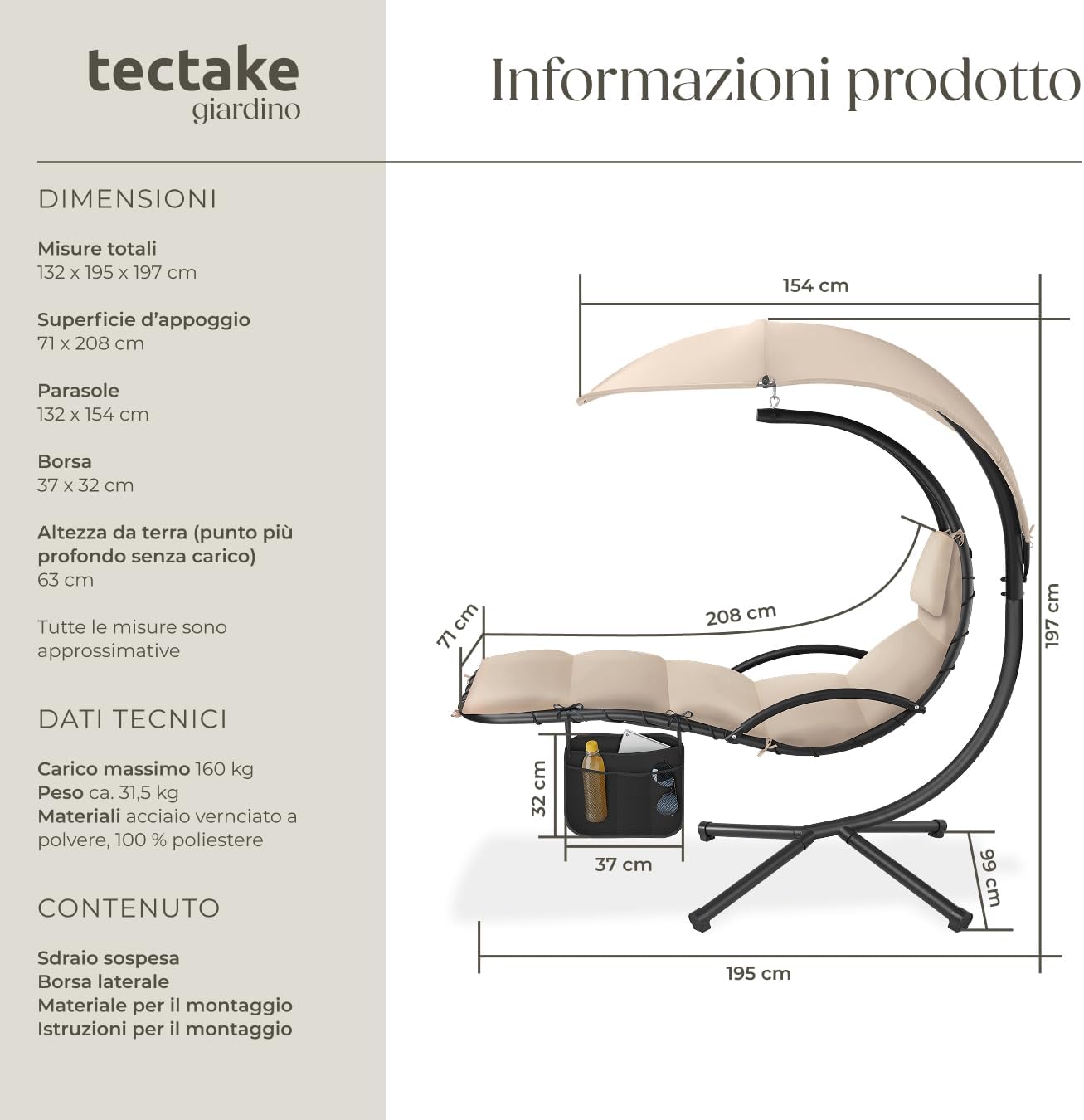

Product Specifications
The following are the key specifications for the tectake Elaria Hanging Lounger:
| Feature | Detail |
|---|---|
| Brand | tectake |
| Model | Elaria |
| Color | Beige |
| Material | Powder-coated steel frame, 100% Polyester fabric |
| Overall Dimensions (L x W x H) | Approx. 195 cm x 132 cm x 197 cm (76.8" x 52" x 77.6") |
| Lounger Surface Dimensions | Approx. 208 cm x 71 cm (81.9" x 28") |
| Sun Canopy Dimensions | Approx. 154 cm x 132 cm (60.6" x 52") |
| Side Bag Dimensions | Approx. 37 cm x 32 cm (14.6" x 12.6") |
| Height from Ground (lowest point, unloaded) | Approx. 63 cm (24.8") |
| Maximum Load Capacity | 100 kg (220 lbs) |
| Product Weight | Approx. 31.5 kg (69.4 lbs) |
| Parasol Fabric Weight | 170 g/m² |
Note: All measurements are approximate and may vary slightly.
Warranty and Support
For information regarding warranty coverage, returns, or technical support for your tectake Elaria Hanging Lounger, please refer to the documentation provided with your purchase or contact the retailer where the product was acquired. You may also visit the official tectake website for customer service contact details.
When contacting support, please have your purchase receipt and product model information (Elaria, ASIN: B09ZPB3B6T) readily available.
