Introduction
The WINIA DWM-K303PB is a 15 kg capacity twin tub washing machine designed for efficient laundry care. It features a vertical load design, a propeller washing system, two wash intensity levels, a bidirectional wash motor, and a 15-minute wash timer. This model includes a lint filter, a safety switch in the tub, independent motors, and an obturator for optimal performance.
Image: WINIA DWM-K303PB Twin Tub Washing Machine with lids open, showing the wash and spin tubs.
Setup and Installation
Proper installation ensures safe and efficient operation of your washing machine. Follow these steps carefully:
- Unpacking: Carefully remove all packaging materials, including any protective films or foam inserts. Ensure all accessories are present.
- Placement: Place the washing machine on a firm, level surface to prevent vibration and noise during operation. Avoid placing it in direct sunlight or in areas with high humidity. Ensure there is adequate space around the machine for ventilation and access.
- Water Connection: Connect the water inlet hose to a cold water tap. Ensure the connection is secure to prevent leaks. The twin tub design typically requires manual filling of the wash tub.
- Drainage: Position the drain hose to allow for proper water discharge. The hose should be placed in a sink or a standpipe, ensuring it is not kinked or blocked.
- Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the requirements specified on the product label. Do not use extension cords.

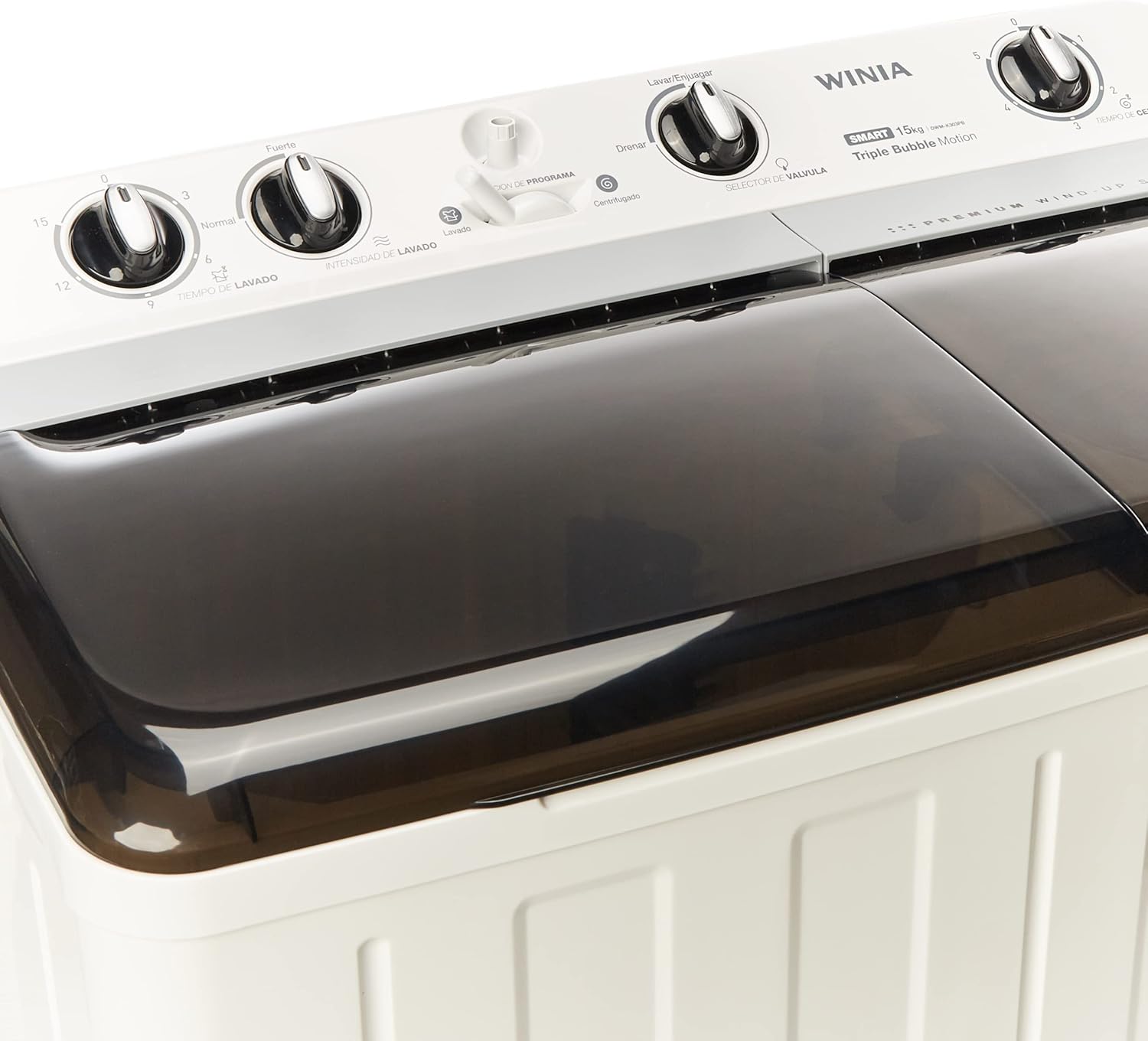

Image: Angled top view of the WINIA DWM-K303PB washing machine with lids closed, displaying the control panel with various knobs.
Operating Instructions
Follow these steps for effective washing and spinning:
Washing Cycle
- Load Laundry: Open the wash tub lid and place clothes loosely inside. Do not overload the tub beyond its 15 kg capacity.
- Add Detergent: Add the appropriate amount of detergent directly into the wash tub.
- Fill with Water: Fill the wash tub with water to the desired level.
- Select Wash Intensity: Turn the 'Intensidad de Lavado' (Wash Intensity) knob to select 'Normal' or 'Fuerte' (Strong) depending on the soil level of your clothes.
- Set Wash Time: Turn the 'Tiempo de Lavado' (Wash Time) knob to set the desired wash duration, up to 15 minutes. The machine will start washing automatically.
- Drain Water: Once the wash cycle is complete, turn the 'Selector de Válvula' (Valve Selector) knob to 'Drenar' (Drain) to empty the water from the wash tub.
Rinsing and Spinning Cycle
- Transfer Clothes: Carefully transfer the washed clothes from the wash tub to the spin tub. Distribute them evenly to ensure balance.
- Rinsing (Optional): For rinsing, you can either fill the wash tub with clean water and run a short wash cycle, then drain, or manually rinse clothes under running water before spinning.
- Secure Spin Tub: Close the inner and outer lids of the spin tub. Ensure clothes are not protruding.
- Set Spin Time: Turn the 'Tiempo de Centrifugado' (Spin Time) knob to set the desired spin duration, typically up to 5 minutes. The machine will begin spinning.
- Remove Clothes: Once the spin cycle is complete, open the lids and carefully remove the spun clothes.
Image: Top view of the WINIA DWM-K303PB washing machine with lids open, showing the wash tub, spin tub, and control panel.
Maintenance
Regular maintenance helps prolong the life of your washing machine and ensures optimal performance.
- Lint Filter Cleaning: The machine includes a lint filter. Regularly remove and clean the lint filter located inside the wash tub to prevent lint buildup and ensure efficient washing. Rinse it under running water and reinsert.
- Exterior Cleaning: Wipe the exterior of the washing machine with a soft, damp cloth. Do not use abrasive cleaners or solvents that could damage the surface.
- Tub Cleaning: Periodically clean the inside of the wash and spin tubs. You can run a short cycle with hot water and a cup of white vinegar to remove detergent residue and odors.
- Drain Hose: Ensure the drain hose is free from blockages and kinks.
- Storage: If the machine will not be used for an extended period, ensure both tubs are completely drained and dry. Store in a dry, well-ventilated area.

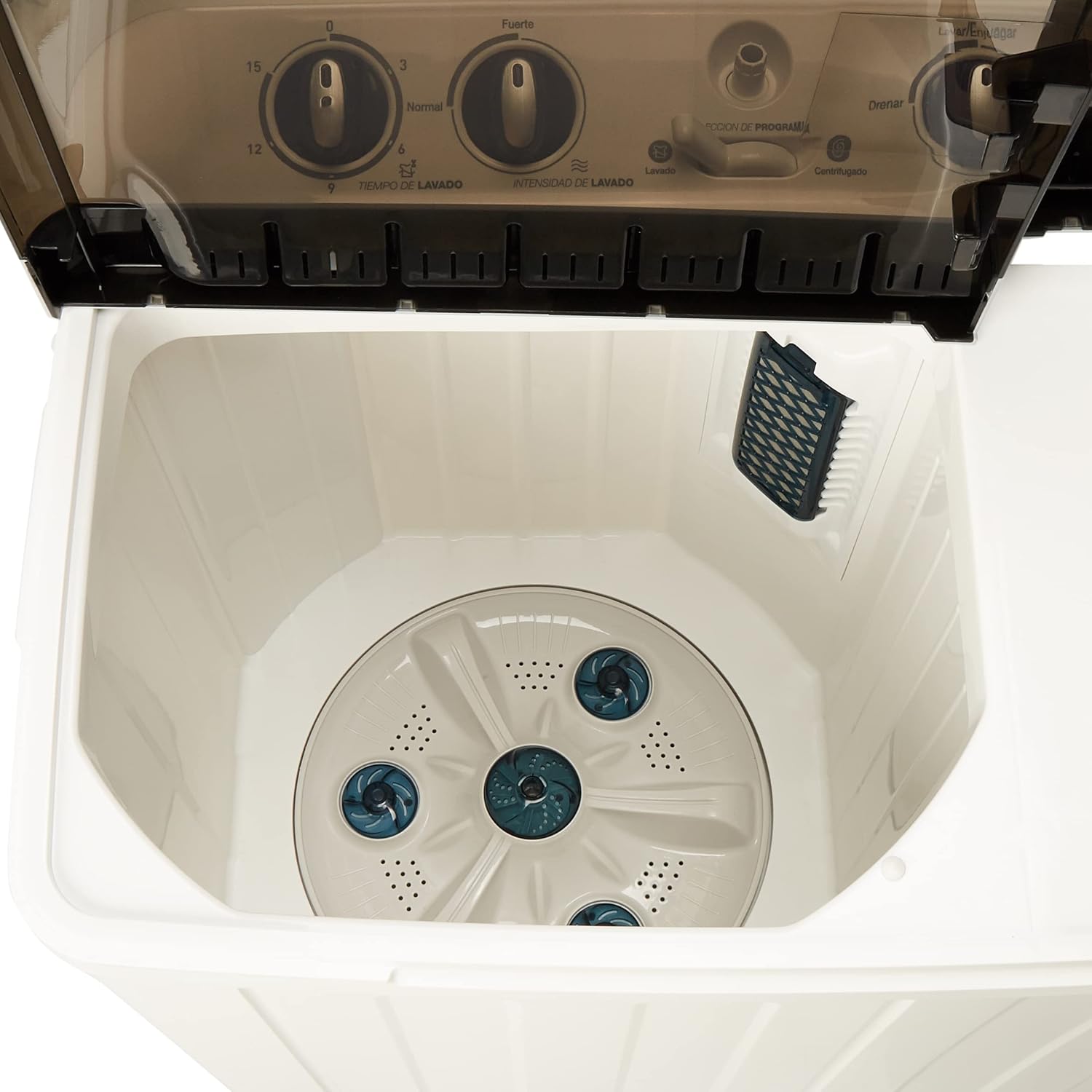

Image: Close-up view of the wash tub interior of the WINIA DWM-K303PB, highlighting the propeller agitator and lint filter.
Troubleshooting
Before contacting customer service, try these basic troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | No power supply Lid not closed properly | Check power cord connection and outlet Ensure wash/spin tub lids are fully closed |
| Water does not drain | Drain hose kinked or blocked Drain valve not set to 'Drenar' | Straighten drain hose, clear any blockages Turn 'Selector de Válvula' to 'Drenar' |
| Excessive vibration/noise | Machine not level Uneven load in spin tub | Adjust machine to be level Redistribute clothes evenly in the spin tub |
| Poor washing results | Overloading Insufficient detergent Dirty lint filter | Reduce load size Use recommended amount of detergent Clean the lint filter |
Specifications
- Brand: WINIA
- Model Number: DWM-K303PB
- Type: Twin Tub Washing Machine, Top Load
- Wash Capacity: 15 kg
- Spin Capacity: 7 kg
- Color: White
- Dimensions (Package): 99.6 x 87.2 x 54.4 cm
- Weight (Product): 29.4 kg
- Special Features: Programmable, Wind Dry Technology, Bidirectional Wash Motor, Lint Filter, Safety Switch
- Maximum Spin Speed: 800 RPM
- Control Type: Knobs
Warranty Information
For specific warranty terms and conditions, please refer to the warranty card included with your product or your purchase documentation. Warranty coverage typically includes manufacturing defects for a specified period from the date of purchase.
Customer Support
If you encounter issues that cannot be resolved using the troubleshooting guide, or if you require technical assistance, please contact WINIA customer support. Have your model number (DWM-K303PB) and purchase details ready when you call.
