Adviace Grill Parts Instruction Manual

Introduction

This instruction manual provides detailed guidance for the installation, maintenance, and troubleshooting of your new Adviace Grill Parts. This kit is specifically designed as a replacement for the Expert Grill XG10-101-002-02 and GBC2016WRS 3 Burner Gas Grill models. Over time, grill components can wear out or rust, affecting performance. This repair kit is intended to restore your grill to optimal working condition, extending its lifespan and ensuring consistent cooking results.

Image: Compatible Expert Grill 3-burner models, GBC2016WRS and XG10-101-002-02, demonstrating the perfect fit of the replacement parts.

Product Overview

Your Adviace Grill Parts kit includes essential components to refresh your grill's performance:

• 3 Replacement Grill Heat Plates: These plates are crucial for even heat distribution and protecting the burners from dripping grease.
• 3 Replacement Grill Burner Tubes: The burner tubes deliver gas to create the flame, ensuring efficient and consistent heat for cooking.

Image: The complete Adviace Grill Parts kit, featuring three stainless steel burner tubes and three black porcelain steel heat plates.

Key Features of Components:

•

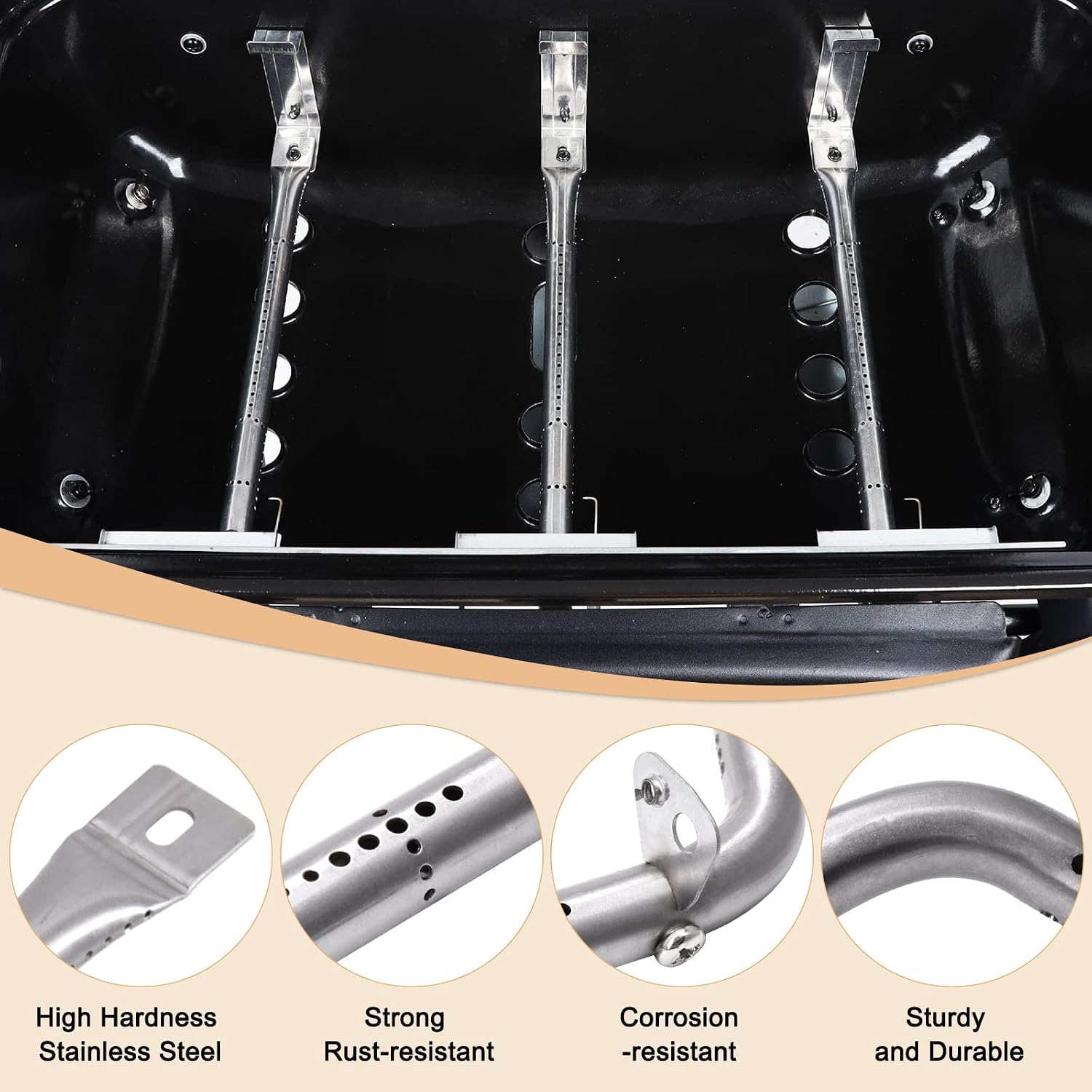

  Burner Tubes: Constructed from high-hardness stainless steel, these tubes are designed for durability, sturdiness, and resistance to corrosion and rust, ensuring long-lasting performance.

•

  Heat Plates: Feature an upgraded coating that provides enhanced anti-rust properties and prevents peeling, contributing to their extended lifespan and consistent heat distribution.

•

  Heat Plates (Enamel Process): Manufactured with an enamel production process, these heat plates offer a non-stick surface for oil and are easy to clean, simplifying grill maintenance.

Installation Guide

Replacing your grill's heat plates and burner tubes is a straightforward process that can significantly improve your grill's performance. Always ensure your grill is completely cool and disconnected from its gas supply before beginning any installation or maintenance.

Tools Required:

• Screwdriver (Phillips or Flathead, depending on your grill's fasteners)
• Gloves (recommended for protection)
• Wire brush or scraper (for cleaning old residue)

Step-by-Step Installation:

1. Preparation: Ensure the grill is off, cool, and the gas tank is disconnected. Open the grill lid and remove the cooking grates and warming rack.
2. Remove Old Components: Carefully lift out the old heat plates. Then, detach the old burner tubes from their connections and remove them from the grill. Note their orientation for reinstallation.
3. Clean Grill Interior: Use a wire brush or scraper to remove any accumulated grease, rust, or debris from the grill's firebox. A clean environment ensures optimal performance and longevity of new parts.
4. Install New Burner Tubes: Place the new Adviace burner tubes into their designated positions. Ensure they are properly seated and connected to the gas manifold.
5. Install New Heat Plates: Position the new Adviace heat plates directly over the burner tubes. Ensure they are securely in place and cover the burners adequately.
6. Reassemble Grill: Replace the cooking grates and warming rack. Reconnect the gas tank and perform a leak test before first use.

Image: A visual comparison showing rusty, worn-out grill components on the top, and the newly installed, pristine Adviace replacement parts on the bottom, illustrating how the kit makes your grill look and perform like new again.

Installation Video Guide:

For a visual walkthrough of the installation process, please refer to the official product video below. This video demonstrates the replacement of cooking grids, heat plates, and burner tubes, making the process easy to follow.

Maintenance

Proper maintenance of your new Adviace grill parts will ensure their longevity and your grill's continued optimal performance.

• Regular Cleaning: After each use, allow the grill to cool. Scrape off any food residue from the cooking grates. Periodically, remove the heat plates and burner tubes to clean any accumulated grease or debris from the firebox and the components themselves.
• Heat Plate Care: The porcelain steel heat plates are designed for easy cleaning. Use a soft cloth or sponge with mild soap and water. Avoid abrasive cleaners or harsh brushes that could damage the enamel coating.
• Burner Tube Inspection: Annually, or if you notice uneven flames, inspect the burner tubes for blockages (e.g., from insects or food debris). Use a small wire or pipe cleaner to clear any obstructions from the burner ports.
• Storage: If storing your grill for an extended period, ensure all parts are clean and dry to prevent rust or corrosion. Consider covering your grill to protect it from the elements.

Troubleshooting

Here are some common issues you might encounter and their potential solutions:

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please refer to the original grill's manual or contact customer support.

Specifications

Detailed specifications for the Adviace Grill Parts:

• Burner Dimensions: 12 inches (length) x 5/8 inches (diameter)
• Burner Material: Stainless Steel
• Heat Plate Dimensions: 11-5/8 inches (length) x 2-3/4 inches (width)
• Heat Plate Material: Porcelain Steel
• Included Components: 3 replacement grill heat plates, 3 grill burner tubes
• Product Weight: Approximately 1.7 pounds
• Compatible Grill Models: Expert Grill XG10-101-002-02, GBC2016WRS (3 Burner Gas Grills)

Image: Diagram illustrating the precise dimensions of the replacement heat plates (11 5/8" x 2 3/4") and burner tubes (12" x 5/8"), ensuring a perfect fit for compatible grills.

Warranty and Support

Adviace stands behind the quality of its products. For specific warranty information regarding your grill parts, please refer to the product packaging or contact Adviace customer support directly. If you have any questions about installation, compatibility, or require assistance with your Adviace Grill Parts, please reach out to our customer service team. We are committed to providing quality grill parts and support to ensure your satisfaction.

You can typically find contact information for support on the product packaging or through the seller's page where you purchased the item. For general inquiries, you may visit the Adviace Store on Amazon.
