Introduction
Thank you for choosing the Fasizi F540 V2 3300 KV Waterproof Brushless Motor. This high-performance motor is designed for 1/10 scale RC vehicles, offering robust power and reliability. Its waterproof design ensures durability in various operating conditions. This manual provides essential information for proper setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your motor.
Image 1: Overview of the Fasizi F540 V2 3300 KV Waterproof Brushless Motor with its three power wires and gold-plated connectors.
Product Features
- High Torque Design: Features a 4-pole, 12-slot high-torque motor design for powerful performance.
- Durable Construction: Equipped with a 6061 T6 billet aluminum machined heatsink for efficient heat dissipation.
- Optimized Efficiency: High-purity copper windings maximize efficiency and power delivery.
- High RPM Bearings: Incorporates oversized ABEC5 high RPM bearings for smooth and reliable operation.
- Universal Fit: Designed for universal fit, compatible with all 1/10 scale brushless RC cars, featuring a multiple mounting system for M3 screws.
- Waterproof Design: Engineered to withstand wet conditions, enhancing durability and versatility.
Setup
Proper installation is crucial for the motor's performance and longevity. Follow these steps carefully:
- Mounting the Motor:
Securely mount the motor into your 1/10 scale RC vehicle chassis using M3 screws. Ensure the motor is firmly attached to prevent movement during operation. The motor features multiple mounting points for versatile installation.

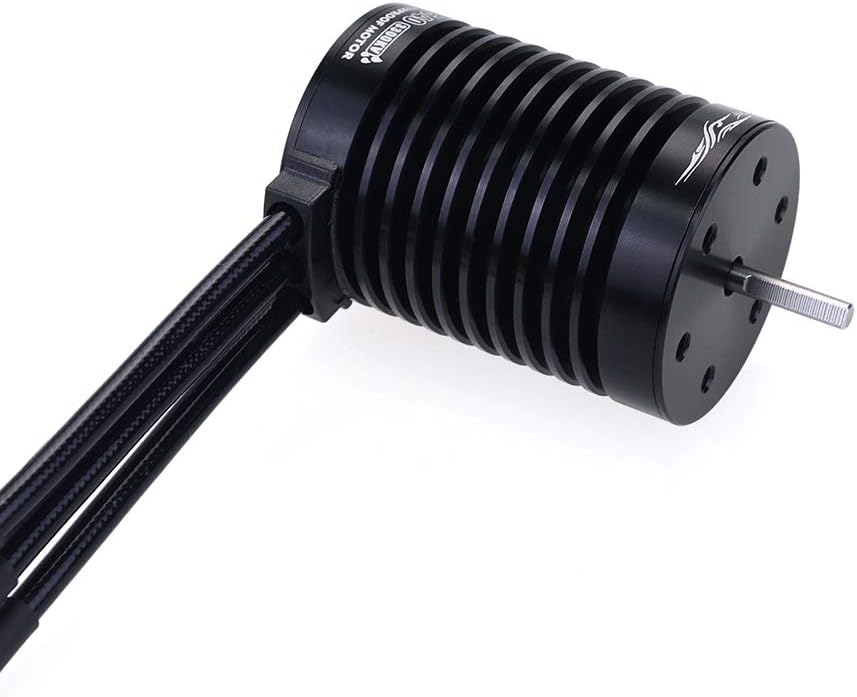

Image 2: Side view of the motor showing the mounting holes and the output shaft.
Image 3: Rear view of the motor, highlighting the M3 screw mounting points.
- Connecting to ESC:
Connect the three motor wires to your Electronic Speed Controller (ESC). Brushless motors do not have a specific polarity for these three wires, but ensure a secure connection. If the motor spins in the wrong direction, simply swap any two of the three motor wires connected to the ESC.
Image 4: Close-up of the motor's three power wires with gold-plated bullet connectors, ready for ESC connection.
- Gear Mesh Adjustment:
Proper gear mesh between the motor pinion gear and the spur gear is critical. A mesh that is too tight will cause excessive heat and wear, while a mesh that is too loose can strip gears. Adjust the motor position until there is a small amount of play between the gears, similar to the thickness of a piece of paper.
- Initial Power-Up:
Before running the vehicle, perform a quick check. Ensure all connections are secure, and the motor spins freely without obstruction. Test the throttle response at low speeds to confirm correct operation.
Operating Instructions
The Fasizi F540 V2 motor is designed for high performance in 1/10 scale RC vehicles.
- Battery Compatibility: Ensure your battery (LiPo or NiMH) and ESC are compatible with the motor's voltage and current requirements. Refer to your ESC manual for specific settings.
- Temperature Monitoring: While the motor features a heatsink, continuous high-stress operation can lead to heat buildup. Monitor motor temperature, especially during initial runs or after changing gearing. If the motor becomes excessively hot to touch (above 80°C / 176°F), allow it to cool down. Consider adjusting gearing or adding a cooling fan if overheating persists.
- Waterproof Operation: The motor is waterproof, allowing operation in wet conditions. However, ensure that other electronic components in your RC vehicle (ESC, receiver, servo) are also waterproof or adequately protected to prevent damage. After running in wet conditions, always clean and dry the motor thoroughly.
Maintenance
Regular maintenance will extend the life and performance of your motor.
- Cleaning: After each use, especially in dirty or wet conditions, clean the motor to remove dirt, dust, and moisture. Use a soft brush or compressed air. For wet conditions, rinse with fresh water and dry thoroughly.
- Bearing Inspection: Periodically check the ABEC5 bearings for smooth operation. If you notice any grinding or resistance, the bearings may need cleaning or replacement.
- Wire and Connector Check: Inspect all wires and connectors for signs of wear, fraying, or corrosion. Ensure connections remain tight and secure.
- Shaft Inspection: Check the motor shaft for any bends or damage that could affect gear mesh or bearing life.
Image 5: Side view of the motor, highlighting the heatsink fins for efficient cooling.
Troubleshooting
If you encounter issues with your motor, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor not spinning or inconsistent operation |
|
|
| Motor overheating |
|
|
| Loss of power or reduced speed |
|
|
Specifications
| Feature | Detail |
|---|---|
| Brand | Fasizi |
| Model Number | ELZ4859 |
| KV Rating | 3300 KV |
| Poles | 4-pole |
| Slots | 12-slot |
| Voltage | Up to 17 Volts (typical for 2-4S LiPo, check ESC compatibility) |
| Power (Horsepower) | 800 Watt |
| Weight | 125 Grams |
| Heatsink Material | 6061 T6 Billet Aluminum |
| Bearings | Oversized ABEC5 High RPM |
| Mounting System | Multiple M3 screw holes |
| Compatibility | 1/10 Scale Brushless RC Cars |
| UPC | 798339961054 |
| ASIN | B09Z2MJSLJ |
| Country of Origin | China |
Warranty Information
Specific warranty details for the Fasizi F540 V2 3300 KV Waterproof Brushless Motor are typically provided by the retailer or manufacturer at the time of purchase. Please retain your proof of purchase. For any warranty claims or inquiries, contact the seller directly or refer to the official Fasizi website for their warranty policy.
Support
For further assistance, technical support, or replacement parts, please contact your point of purchase or the manufacturer, Fasizi. When contacting support, please have your model number (ELZ4859) and purchase details readily available.
