NEO-TEC NS872 Gas Chainsaw User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your NEO-TEC NS872 Gas Chainsaw. Please read this manual thoroughly before operating the chainsaw to ensure your safety and the longevity of the product.

Image: The NEO-TEC NS872 Gas Chainsaw, featuring its orange and grey body with a long guide bar and chain. This powerful 72cc chainsaw is designed for efficient logging and wood cutting tasks.

2. Safety Information

WARNING: Chainsaws are dangerous tools. Improper use can result in serious injury or death. Always follow all safety precautions.

• Personal Protective Equipment (PPE): Always wear appropriate PPE, including a safety helmet, eye protection, hearing protection, heavy-duty gloves, chainsaw protective trousers or chaps, and safety boots.
• Work Area Safety: Ensure the work area is clear of bystanders, especially children and pets. Maintain a firm footing and balance. Do not operate in wet conditions or in the presence of flammable liquids or gases.
• Fuel Handling: Mix and handle fuel in a well-ventilated area, away from ignition sources. Use a proper fuel container. Do not smoke while refueling.
• Kickback Prevention: Be aware of kickback, which can occur when the moving chain at the tip of the guide bar contacts an object, or when the wood closes in and pinches the saw chain in the cut. Always hold the chainsaw firmly with both hands.
• Maintenance: Regularly inspect the chainsaw for damage, loose parts, or wear. Ensure the chain is sharp and properly tensioned.
• First Aid: Keep a first aid kit readily available when operating the chainsaw.

3. Setup

3.1 Fuel and Oil Mixture

The NEO-TEC NS872 is a 2-cycle engine and requires a specific fuel-to-oil mixture. Use high-quality 2-stroke engine oil (FB or FD oil) mixed with unleaded gasoline.

Image: A chart illustrating the recommended fuel-to-oil ratios for the chainsaw engine. For the first 10 hours of operation, a ratio of 30:1 (Petrol:2T FB Oil) or 35:1 (Petrol:2T FD Oil) is recommended. After 10 hours, a ratio of 45:1 (FB Oil) or 50:1 (FD Oil) should be used. Note: Bar and chain oil is not for the engine.

• For the first 10 hours of operation, use a break-in mixture: 30:1 (Petrol:2T FB Oil) or 35:1 (Petrol:2T FD Oil).
• After 10 hours, use the standard mixture: 45:1 (Petrol:2T FB Oil) or 50:1 (Petrol:2T FD Oil).
• Always use fresh, clean unleaded gasoline.
• Do not use bar and chain oil for the engine fuel mixture.

3.2 Bar and Chain Installation

Ensure the guide bar and saw chain are correctly installed and tensioned before operation. Refer to the detailed instructions in the full PDF user guide for specific steps.

4. Operating Instructions

4.1 Starting the Engine

Follow these steps to start your NEO-TEC NS872 Gas Chainsaw:

Image: A visual guide demonstrating the eight steps to start the chainsaw engine, including pushing the brake, pressing the throttle trigger, turning the switch shaft, and pulling the starter rope.

1. Push the Brake: Ensure the chain brake is engaged (pushed forward).
2. Press the Throttle Trigger: Fully press and hold the throttle trigger.
3. Turn Down Switch Shaft "1": Move the switch shaft to position "1" (Choke ON).
4. Pull the Starter Rope (Max 6 Times): Pull the starter rope firmly and steadily up to 6 times until the engine briefly fires or attempts to start.
5. Turn Up Switch Shaft "2": Once the engine briefly fires, move the switch shaft to position "2" (Choke OFF/Half Throttle).
6. Press Throttle Trigger, Switch Shaft Will Turn To 3: Briefly press the throttle trigger. The switch shaft should automatically move to position "3" (Idle).
7. Pull the Starter Rope Again: Pull the starter rope again until the engine starts and runs.
8. Pull The Back Brake And Hold Throttle Trigger: Disengage the chain brake (pull back) and briefly hold the throttle trigger to ensure smooth operation.

4.2 Carburetor Adjustment

The high-quality HLHIC carburetor automatically proportions the fuel and air mixture. However, depending on fuel grade, temperature, and altitude, minor adjustments may be necessary to optimize performance and ensure easy starting. Refer to the full user guide for detailed carburetor tuning procedures.

5. Maintenance

Regular maintenance is crucial for the safe and efficient operation of your chainsaw. Perform these tasks regularly:

• Cleaning: Clean the air filter, cooling fins, and chain brake mechanism after each use. Remove sawdust and debris from the engine housing.
• Chain Sharpening: Keep the saw chain sharp. A dull chain increases kickback risk and reduces cutting efficiency. Sharpening should be done regularly or by a qualified service technician.
• Chain Tension: Check and adjust chain tension frequently. A properly tensioned chain should be snug but still allow you to pull it around the guide bar by hand.
• Guide Bar Maintenance: Clean the guide bar groove and oil holes. Flip the guide bar periodically to ensure even wear.
• Spark Plug: Inspect and clean the spark plug periodically. Replace if worn or fouled.
• Fuel Filter: Check and replace the fuel filter as needed to ensure clean fuel delivery to the carburetor.

6. Troubleshooting

This section addresses common issues you might encounter with your chainsaw.

7. Specifications

Key technical specifications for the NEO-TEC NS872 Gas Chainsaw:

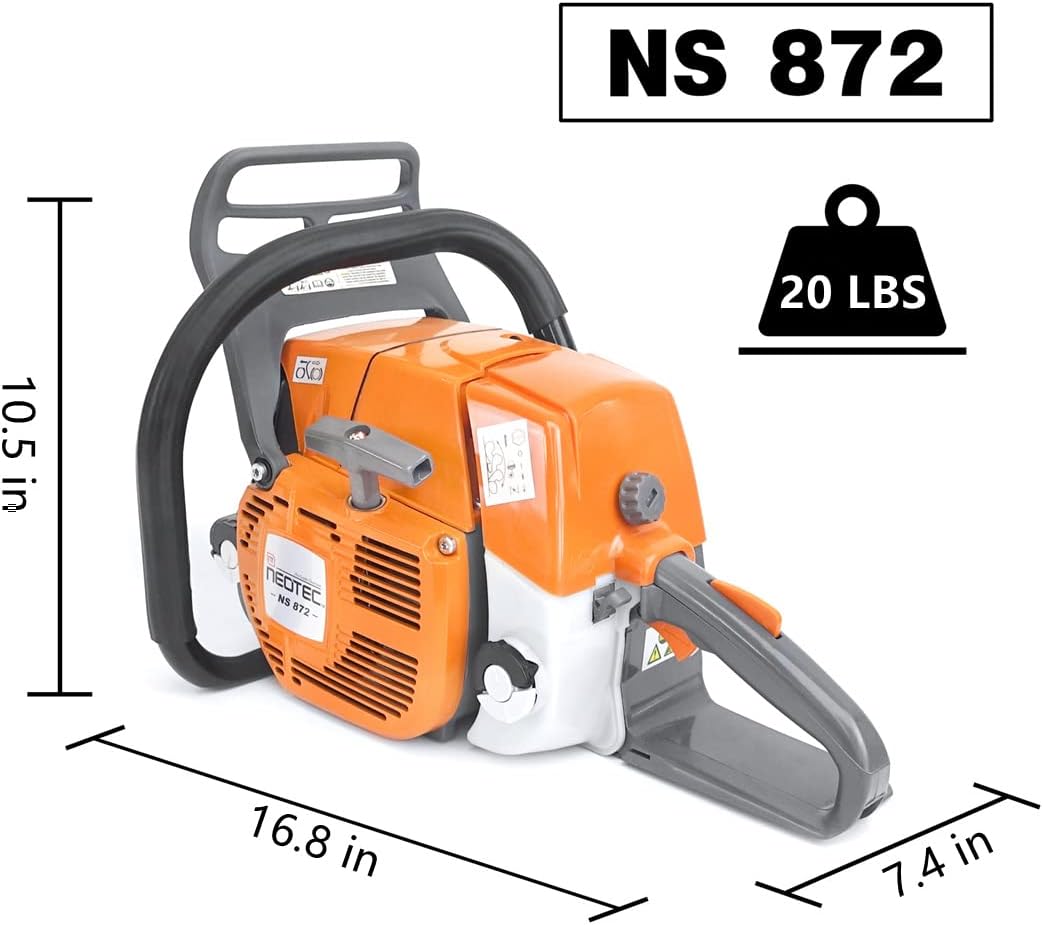

Image: The NEO-TEC NS872 chainsaw with its approximate dimensions (10.5 inches height, 16.8 inches length, 7.4 inches width) and weight (20 lbs) indicated.

Image: Illustration of the gravity casting cylinder block, highlighting its robust construction for longer lifespan and reduced fuel consumption.

8. Warranty and Support

Your NEO-TEC NS872 Gas Chainsaw comes with a 1-Year Warranty. This warranty covers manufacturing defects and ensures the quality of your product.

If you encounter any quality problems with your chainsaw, please contact NEO-TEC customer service. We provide mailing labels for convenient service. You can send your product to our local after-sales service outlets for free repair or replacement.

For further assistance or inquiries, please visit the official NEO-TEC store on Amazon or contact their customer support directly.
