VBESTLIFE Electric Thumb Throttle User Manual

1. Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your VBESTLIFE Electric Thumb Throttle. Designed for use with TSDZ-2 mid-drive motors and VLCD5 displays, this throttle offers precise speed control for your electric bicycle.

2. Product Overview

The VBESTLIFE Electric Thumb Throttle is a high-performance component crafted from durable ABS plastic. It is engineered for reliability and ease of use, providing a robust solution for electric bicycle speed management. Its lightweight design ensures convenient handling and storage.

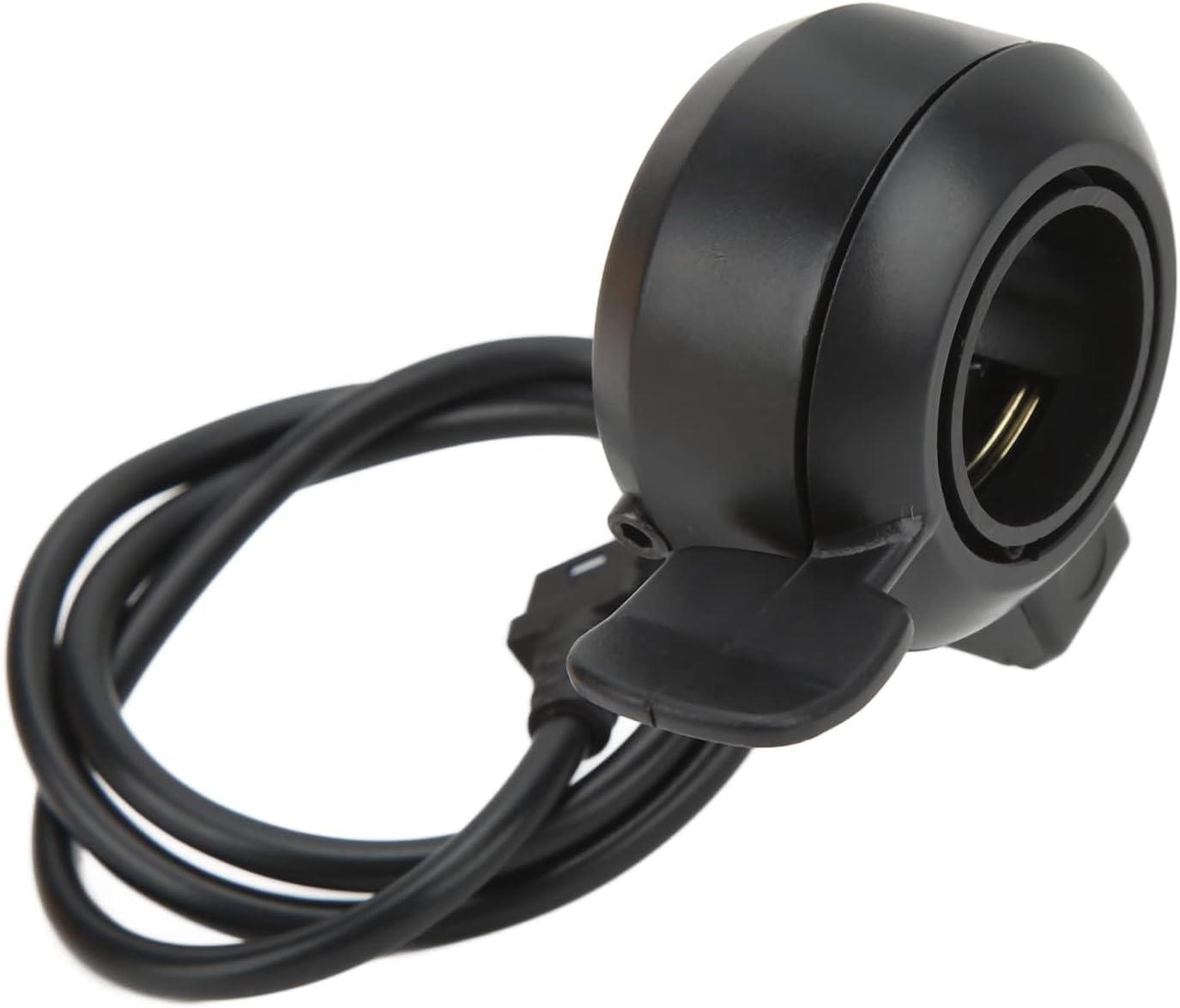

Figure 2.1: Front view of the VBESTLIFE Electric Thumb Throttle, showing the main body, thumb lever, and integrated cable with connector.

3. Features

• High-Quality Material: Constructed from durable ABS plastic, ensuring strength, hardness, and resistance to breakage.
• Easy Installation: Designed for straightforward installation, offering a user-friendly experience.
• High Compatibility: Specifically designed for TSDZ-2 mid-drive motors and compatible with VLCD5 displays.
• Professional Manufacturing: Exquisitely crafted to ensure product quality and practical functionality.
• High Performance: Precisely tested to achieve optimal matching and stable working performance.

4. Specifications

Figure 4.1: Image illustrating the wire length and applicable handlebar diameter for the throttle.

5. Setup and Installation

Follow these steps to properly install your electric thumb throttle:

1. Prepare Your Handlebars: Ensure the handlebar area where the throttle will be mounted is clean and free of obstructions. The throttle is designed for handlebars with a diameter of 22.2mm (0.87 inches).
2. Mount the Throttle: Slide the throttle onto the handlebar. Position it comfortably for thumb operation. Secure it firmly using any integrated clamping mechanism or screws, if applicable.
3. Connect to VLCD5 Display: Locate the appropriate port on your TSDZ-2 mid-drive motor's VLCD5 display unit. Carefully align the throttle's connector with the display's port and push firmly until it clicks into place. Ensure a secure connection.
4. Cable Management: Route the throttle cable along your bicycle frame, securing it with cable ties or clips to prevent snagging or interference with moving parts.
5. Test Functionality: Before riding, perform a static test to ensure the throttle responds correctly and smoothly.

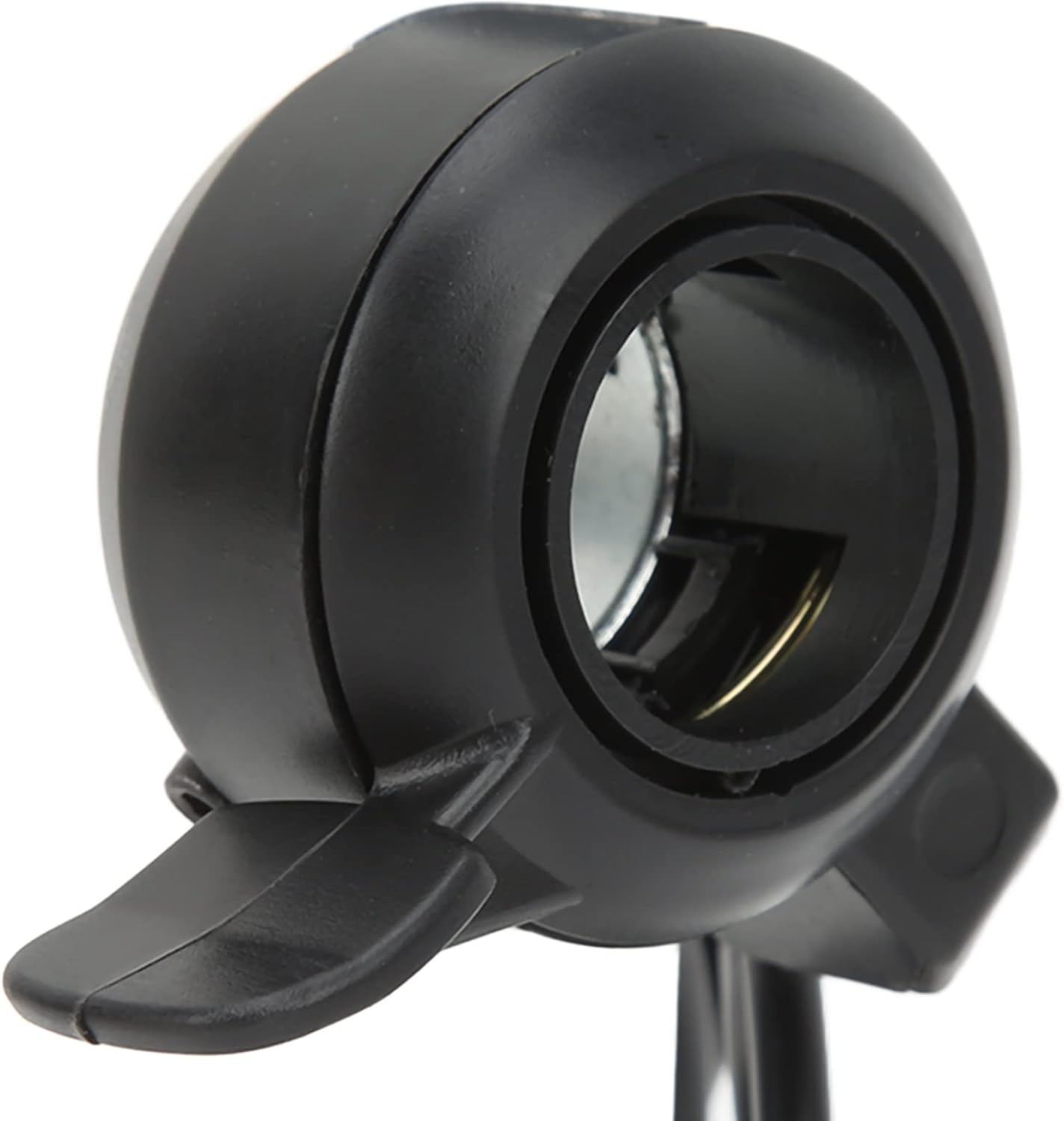

Figure 5.1: Side view of the throttle, highlighting the mounting ring for handlebar attachment.

6. Operating Instructions

Once installed and connected, the VBESTLIFE Electric Thumb Throttle provides intuitive speed control for your electric bicycle.

• Power On: Ensure your electric bicycle's power system and VLCD5 display are turned on.
• Engage Throttle: Gently press the thumb lever forward to engage the motor and control your speed. The further you press, the more power will be delivered, increasing your speed.
• Release Throttle: Release the thumb lever to reduce power and slow down. The throttle is designed to return to its neutral position when released.
• Smooth Operation: Apply pressure smoothly and gradually for optimal control and a comfortable riding experience.

7. Maintenance

To ensure the longevity and optimal performance of your VBESTLIFE Electric Thumb Throttle, follow these maintenance guidelines:

• Regular Cleaning: Wipe the throttle body with a soft, damp cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners.
• Inspect Connections: Periodically check the cable and connector for any signs of wear, fraying, or loose connections. Ensure the connection to the VLCD5 display remains secure.
• Check Mounting: Verify that the throttle remains securely mounted on the handlebar. Tighten any screws if necessary.
• Avoid Excessive Force: Do not apply excessive force to the thumb lever or attempt to disassemble the unit, as this may cause damage.
• Storage: If storing your bicycle for an extended period, ensure the throttle is clean and stored in a dry environment.

8. Troubleshooting

If you encounter issues with your electric thumb throttle, consider the following common troubleshooting steps:

• Throttle Not Responding:
  • Check if the VLCD5 display and the bicycle's power system are turned on.
  • Ensure the throttle cable is securely connected to the VLCD5 display. A loose connection can cause intermittent or no response.
  • Inspect the cable for any visible damage or kinks.
• Intermittent Operation:
  • This often indicates a loose or faulty connection. Re-seat the connector firmly.
  • Check for any debris or obstruction around the thumb lever mechanism.
• Stiff or Sticky Lever:
  • Clean the area around the thumb lever to remove any accumulated dirt or grime.
  • Do not lubricate the internal mechanism unless specifically instructed by the manufacturer.

If these steps do not resolve the issue, please contact customer support for further assistance.

9. Warranty and Support

For information regarding warranty coverage, please refer to the documentation provided at the time of purchase or contact the seller directly. For technical support or inquiries not covered in this manual, please reach out to VBESTLIFE customer service or the authorized reseller from whom you purchased the product.

You can often find support contact information on the product packaging or the official VBESTLIFE website.
