Introduction
This manual provides instructions for the proper installation, operation, and maintenance of your Onward 1451HBGXR 2 Pack Bottom Assembly Door Guides. These guides are designed for H Series frame systems, offering a reliable solution for bypass bottom glide applications.
Each pack contains two bottom assembly door guides with a durable zinc finish, ensuring smooth and consistent door movement.
Package Contents
- 2 x Onward Bottom Assembly Door Guides (1451HBGXR)
Setup and Installation
Proper installation is crucial for the optimal performance of your door guides. Please follow these steps carefully.
Tools Required:
- Screwdriver (appropriate for mounting screws)
- Measuring Tape
- Pencil or Marker
Installation Steps:
- Prepare the Door and Frame: Ensure the H Series frame system is clean and free of debris. Identify the exact location on the bottom of the door frame where the guides will be installed.
- Position the Guide: Place one door guide in its intended position on the bottom of the door frame. Ensure it is aligned correctly with the door's path and the existing frame system.
- Mark Mounting Holes: Using a pencil or marker, carefully mark the locations for the mounting screws through the guide's screw holes.
- Secure the Guide: Using the appropriate screwdriver, firmly attach the door guide to the frame using suitable mounting screws (not included). Do not overtighten.
- Repeat for Second Guide: Install the second door guide following the same procedure, ensuring symmetrical placement and proper alignment for the second door in a bypass system.
- Test Operation: Once both guides are securely installed, gently slide the doors to ensure smooth movement and proper engagement with the guides. Adjust if necessary.

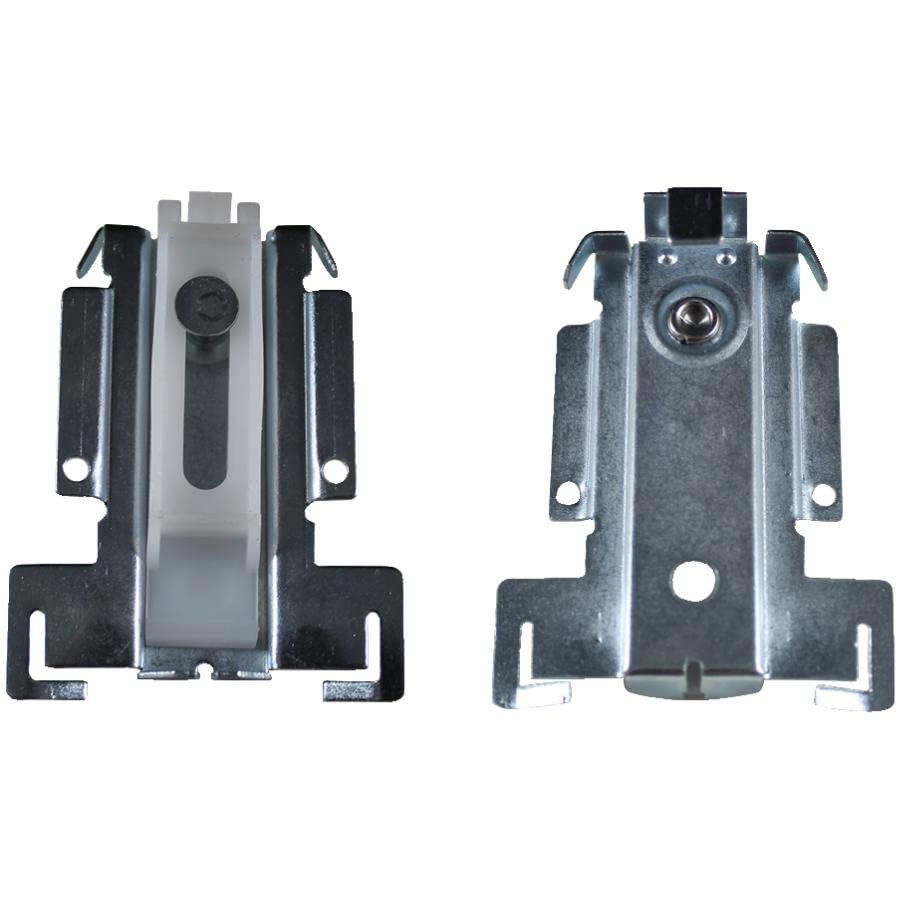

Image: An example of the Onward 2 Pack Bottom Assembly Door Guides, showing their design and potential placement on a door frame.
Operating the Door Guides
The Onward 1451HBGXR door guides are designed to provide stable and smooth movement for bypass doors within H Series frame systems. Once installed, they guide the bottom edge of the door, preventing it from swinging out or derailing.
Ensure that the doors are properly seated within the guides. If the door feels stiff or binds, refer to the Troubleshooting section.
Maintenance
Regular maintenance will prolong the life and ensure the smooth operation of your door guides.
- Cleaning: Periodically wipe the guides and the track area with a clean, damp cloth to remove dust and debris. Avoid abrasive cleaners.
- Inspection: Every few months, inspect the guides for any signs of wear, damage, or loose mounting screws. Tighten any loose screws immediately.
- Lubrication: While these guides are generally low-maintenance, a light application of a silicone-based lubricant to the contact points between the door and the guide can further enhance smoothness if needed. Avoid oil-based lubricants that can attract dust.
Troubleshooting
If you encounter issues with your door guides, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Door sticks or binds | Debris in the track or guide; Misalignment; Worn guides. | Clean the track and guides. Check for proper alignment and adjust if necessary. Inspect guides for wear and replace if damaged. |
| Door makes noise when sliding | Lack of lubrication; Debris; Loose components. | Clean the guides and track. Apply a silicone-based lubricant. Check and tighten all mounting screws. |
| Door wobbles or comes off track | Improper installation; Loose guides; Damaged guides. | Verify that guides are securely mounted and correctly aligned. Inspect for damage and replace if necessary. |
Specifications
| Feature | Detail |
|---|---|
| Manufacturer | ONWARD |
| Part Number | 1451HBGXR |
| Size | Units |
| Item Package Quantity | 1 (contains 2 guides) |
| Batteries Included | No |
| Product Dimensions (L x W x H) | 30.48 x 20.32 x 5.08 cm (12 x 8 x 2 inches) |
| Item Weight | 99.79 g |
| ASIN | B09YP56JZQ |
Warranty Information
For specific warranty details regarding your Onward 1451HBGXR 2 Pack Bottom Assembly Door Guides, please refer to the manufacturer's official website or the original purchase documentation. Warranty terms typically cover defects in materials and workmanship under normal use.
Customer Support
If you require further assistance, have questions about installation, or need to report a product issue, please contact Onward customer support. You can typically find contact information on the manufacturer's website or through your retailer.
