wangpeng Cooling Fan Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your new wangpeng replacement cooling fan. This fan is designed to replace the original cooling fan in compatible HP Pavilion DV6-7000 and DV7-7000 series laptops, ensuring optimal thermal performance for your device.

2. Safety Information

• Always disconnect the laptop's power adapter and remove the battery before performing any internal maintenance or component replacement.
• Exercise caution when handling electronic components to avoid electrostatic discharge (ESD). Consider using an anti-static wrist strap.
• If you are not comfortable with laptop disassembly and assembly, it is recommended to seek professional assistance.
• Keep small parts, such as screws, away from children.
• Do not force components into place. If a part does not fit easily, recheck the orientation and compatibility.

3. Compatibility

This wangpeng cooling fan is specifically designed for the following HP Pavilion laptop series and fan models:

• HP Pavilion DV6-7000 Series
• HP Pavilion DV7-7000 Series
• Compatible Fan Models: MF75090V1-C100-S9A, DFS481305MC0T

Please verify your laptop model and the existing fan's model number before installation to ensure compatibility.

4. Package Contents

Upon opening the package, please ensure all items are present and undamaged:

• 1 x wangpeng Replacement Cooling Fan (Model MF75090V1-C100-S9A or DFS481305MC0T)

5. Setup and Installation

Replacing a laptop cooling fan requires careful disassembly and reassembly. The following steps are general guidelines. Specific disassembly procedures may vary slightly depending on your exact laptop model. Refer to your laptop's service manual or a reputable online guide for detailed, model-specific instructions.

1. Preparation: Power off your laptop, disconnect the AC adapter, and remove the battery. Place the laptop on a clean, static-free work surface.
2. Accessing the Fan: Carefully open the laptop's bottom cover or keyboard assembly to gain access to the internal components, including the existing cooling fan. This may involve removing several screws and gently prying open plastic clips.
3. Disconnecting the Old Fan: Locate the old cooling fan. Disconnect its power cable from the motherboard. This is typically a small, multi-pin connector.
4. Removing the Old Fan: Unscrew the mounting screws that secure the old fan to the laptop chassis or heatsink assembly. Carefully lift and remove the old fan.
5. Installing the New Fan: Position the new wangpeng cooling fan in the same location as the old one. Ensure it aligns correctly with the screw holes and any air ducts.
6. Securing the New Fan: Fasten the new fan with the appropriate screws. Do not overtighten.
7. Connecting the New Fan: Carefully connect the new fan's power cable to the corresponding port on the motherboard. Ensure the connector is fully seated.
8. Reassembly: Reassemble your laptop by reversing the disassembly steps. Ensure all cables are properly routed and all screws are replaced.
9. Testing: Reinsert the battery and connect the AC adapter. Power on the laptop and observe if the fan operates correctly. Check for any unusual noises or error messages.

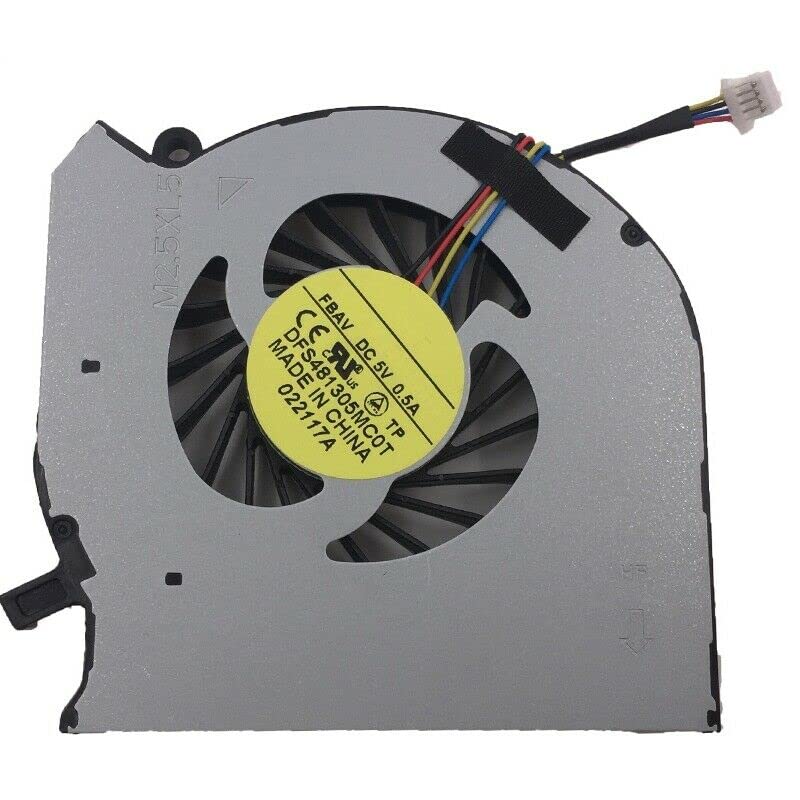

This image displays the wangpeng replacement cooling fan. It features a multi-bladed fan within a grey housing, a yellow label on the motor indicating 'FBAV DC 5V 0.5A DFS481305MC0T MADE IN CHINA', and a multi-colored wire leading to a white connector plug. This is the component you will be installing.

6. Operating Principles

The cooling fan is an essential component of your laptop's thermal management system. It draws cool air into the laptop and expels hot air, preventing internal components such as the CPU and GPU from overheating. The fan's speed is typically controlled automatically by the laptop's system based on temperature sensors.

7. Maintenance

To ensure the longevity and efficient operation of your cooling fan and laptop:

• Regular Cleaning: Periodically clean the laptop's air vents and fan blades to remove dust and debris buildup. Dust accumulation can impede airflow and reduce cooling efficiency. Use compressed air or a soft brush for this task, ensuring the laptop is powered off.
• Avoid Obstruction: Do not block the laptop's air vents during operation. Use the laptop on a hard, flat surface rather than soft surfaces like beds or couches.

8. Troubleshooting

If you encounter issues after installing the new fan, consider the following:

• Fan Not Spinning:
  • Ensure the fan's power connector is securely attached to the motherboard.
  • Verify that the fan blades are not obstructed by any cables or debris.
  • Check if the laptop is overheating, as the fan may only activate at certain temperatures.
• Unusual Noise:
  • Confirm that the fan is securely mounted and not vibrating against other components.
  • Inspect for any foreign objects (e.g., loose screws, dust clumps) caught in the fan blades.
• Laptop Overheating:
  • Ensure the fan is spinning.
  • Verify that the heatsink is properly seated and thermal paste/pads are correctly applied (if applicable to your specific repair).
  • Clean all air vents and ensure proper airflow.

9. Specifications

10. Warranty and Support

This wangpeng cooling fan comes with a 3-month warranty from the date of purchase. If you experience any issues or require technical assistance, please contact your retailer or wangpeng customer support with your purchase details.

For further support, please refer to the contact information provided by your seller or on the official wangpeng website.
