1. Introduction
Thank you for choosing the FDW 5-Piece Dining Table Set. This manual provides essential information for the safe assembly, operation, and maintenance of your new dining set. Please read it thoroughly before assembly and retain it for future reference.
This modern and stylish dining set features a rectangular table with a black marble grain finish and four matching chairs. Its compact design is ideal for dining rooms, kitchens, coffee bars, pubs, or any small dining area, offering both elegance and practicality.

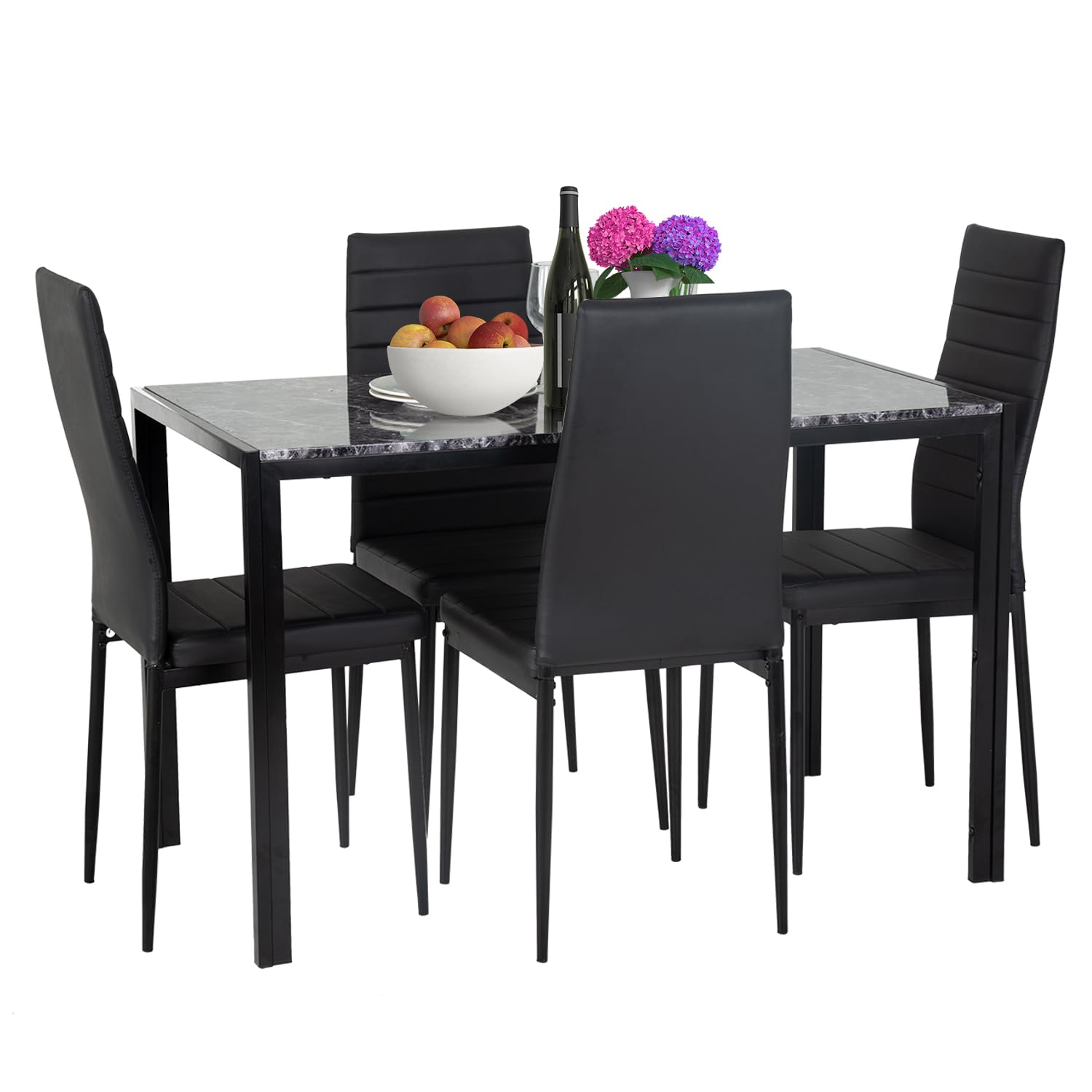

Figure 1.1: The FDW 5-Piece Dining Table Set in a typical home setting.
2. Safety Information
Please observe the following safety precautions to prevent injury or damage to the product:
- Always assemble the product on a soft, clean surface to prevent scratches.
- Ensure all screws and bolts are securely tightened before use. Periodically check and re-tighten all fasteners.
- Do not stand on the table or chairs.
- Do not exceed the maximum weight capacity for chairs (approximately 250 lbs per chair).
- Keep small parts away from children during assembly to avoid choking hazards.
- WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
3. Package Contents
Your FDW 5-Piece Dining Table Set package includes the following components. Please verify all parts are present before beginning assembly.
- 1 x Dining Table
- 4 x Dining Chairs
- 1 x Instruction Manual (this document)
- Assembly Hardware (screws, wrench, etc.)
Figure 3.1: Note that the product may arrive in two separate boxes.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | FDW |
| Model Number | DT-SQ324/DT-BB13 |
| Table Dimensions (L x W x H) | 47.4 x 27.7 x 29.3 inches |
| Chair Dimensions (L x W x H) | 16.1 x 16.1 x 38 inches |
| Material | MDF (Tabletop), Metal (Frame), Faux Leather (Chair Upholstery) |
| Color | Black (Marble Grain Tabletop, Black Chairs) |
| Item Weight | 33 Pounds |
| Assembly Required | Yes |
| Seating Capacity | 4 Persons |
Figure 4.1: Detailed dimensions of the dining table and chairs.
5. Setup & Assembly
Assembly of the FDW 5-Piece Dining Table Set is straightforward. All necessary tools and hardware are included in the package. It is recommended to have two people for assembly.
5.1. Assembly Steps
- Unpack Components: Carefully remove all parts from the packaging. Place them on a soft, clean surface to prevent damage. Verify all components listed in Section 3 are present.
- Assemble Table Frame: Connect the table frame components using the provided screws and Allen wrench. Ensure all connections are snug but do not overtighten until all parts are aligned.
- Attach Tabletop: Carefully place the tabletop onto the assembled frame. Align the pre-drilled holes and secure the tabletop to the frame using the appropriate screws.
- Assemble Chairs: Follow the individual chair assembly instructions provided in the package. Typically, this involves attaching the seat back to the seat base and then attaching the legs.
- Final Tightening: Once all components are assembled, go back and fully tighten all screws and bolts on both the table and chairs.
5.2. Assembly Video
Video 5.1: Step-by-step assembly guide for the dining table set. This video demonstrates the process of connecting the frame components and securing the tabletop.
6. Operating Instructions
The FDW 5-Piece Dining Table Set is designed for everyday use in various settings.
6.1. Space-Saving Design
The chairs are designed to tuck neatly under the table when not in use, maximizing space in smaller areas. This feature helps maintain a tidy and uncluttered environment.
Figure 6.1: Chairs can be stored under the table to save space.
6.2. Comfortable Seating
The chairs feature soft upholstered cushions with high-density sponge and a high-back design, providing comfortable support for extended periods.
Figure 6.2: Thick sponge cushion for enhanced comfort.
6.3. Versatile Arrangements
The set allows for flexible seating arrangements, accommodating family meals or intimate gatherings.
Figure 6.3: Examples of modular seating arrangements.
6.4. Product Overview Video
Video 6.4: An overview of the FDW 5-Piece Dining Table Set, highlighting its features and suitability for various spaces.
7. Maintenance
Proper care and maintenance will extend the life and appearance of your dining set.
- Cleaning the Tabletop: The tabletop is wear-resistant and waterproof. Wipe with a dry cloth to remove dust and spills. For tougher stains, use a damp cloth with mild soap and dry immediately. Avoid abrasive cleaners.
- Cleaning Chairs: Wipe the faux leather upholstery with a damp cloth. Avoid harsh chemicals that may damage the material.
- Frame Care: The metal frame can be wiped clean with a damp cloth. Ensure it is dried thoroughly to prevent rust.
- Regular Checks: Periodically inspect all screws and connections to ensure they remain tight. Re-tighten as necessary.
Figure 7.1: The smooth tabletop is easy to clean with a damp cloth.
8. Troubleshooting
If you encounter any issues with your dining set, refer to the following common solutions:
- Wobbly Table/Chairs: Ensure all screws and bolts are fully tightened. If the issue persists, loosen all fasteners slightly, gently rock the furniture to settle it, then re-tighten all fasteners evenly.
- Scratches on Floor: The product includes plastic pads on the table and chair legs to protect your floor. If these are missing or damaged, contact customer support for replacements.
- Missing Parts: If any parts are missing from your package, please refer to the 'Warranty & Support' section for contact information.
9. Warranty & Support
Specific warranty details for the FDW 5-Piece Dining Table Set are not provided in this manual. Please refer to your purchase documentation or contact the retailer for warranty information.
For customer support, assistance with assembly, or to report missing/damaged parts, please contact FDW customer service through the retailer where the product was purchased.
