Qiangsens DC 12V Submersible Pump Instruction Manual

Introduction

This manual provides essential information for the safe and efficient operation of your Qiangsens DC 12V submersible pump, Model SP-4212B. This pump is designed for various applications including rockery flowing water, fountain pools, aquariums, hydroponic systems, and solar water circulation systems. Please read these instructions thoroughly before installation and use to ensure proper function and longevity of the product.

Figure 1: Versatile applications of the Qiangsens submersible pump.

Safety Instructions

• Ensure the power supply matches the pump's voltage (DC 12V).
• This pump is designed for submersible use only. Do not operate the pump dry (without water). Dry running can cause damage.
• Always disconnect the power supply before performing any maintenance or installation.
• Do not lift the pump by its power cord.
• Keep children and pets away from the pump and water feature during operation.
• Ensure all electrical connections are secure and protected from water.

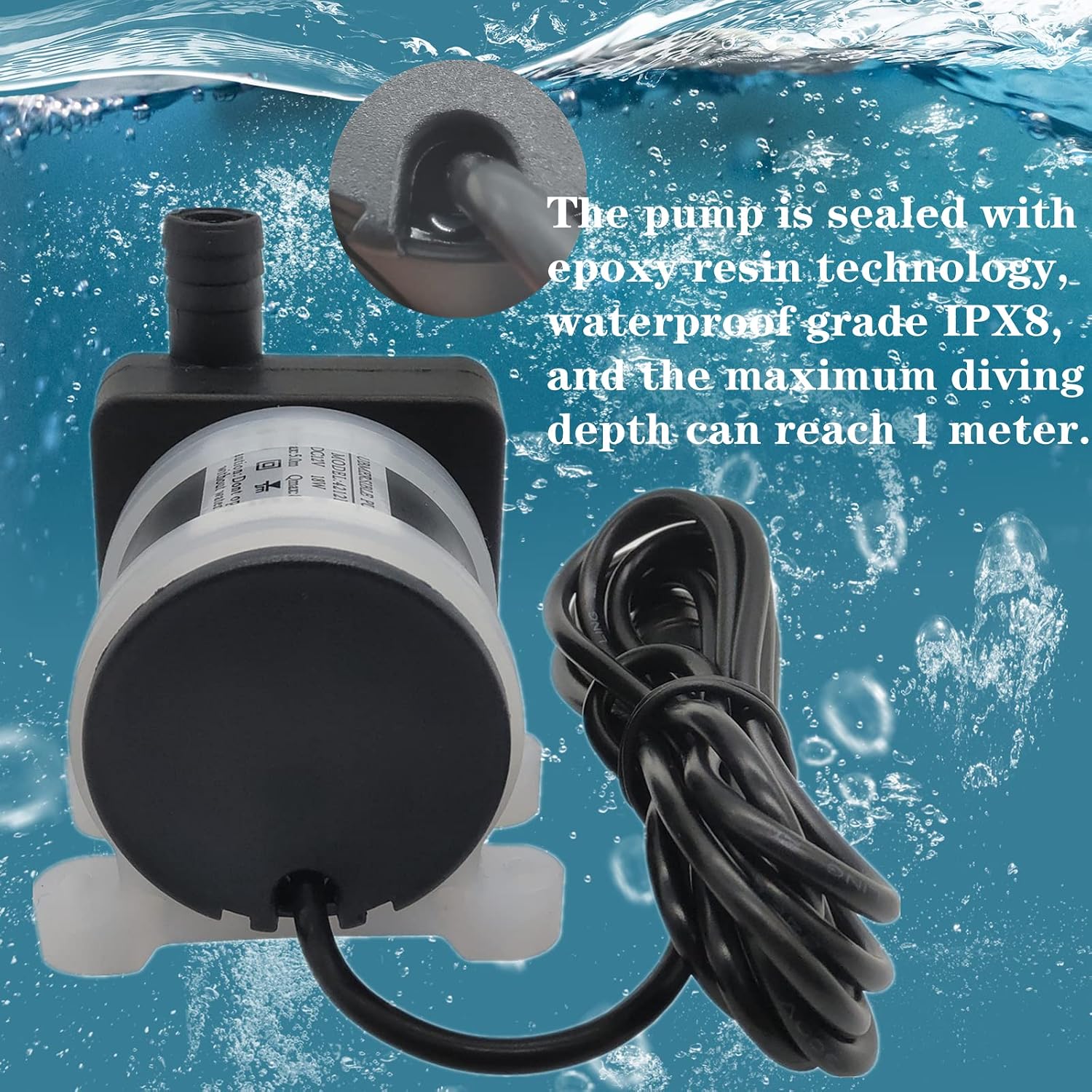

• The pump is sealed with epoxy resin technology and has a waterproof rating of IPX8. The maximum diving depth is 1 meter.

Figure 2: The pump features IPX8 waterproofing for safe submersible use.

Product Features

• High Performance: Max flow of 800 L/H (210 GPH) and a maximum lift height of 5 meters (16.4 ft).
• Quiet Operation: Built-in high-quality motor with a ceramic shaft core ensures low resistance and noise reduction, operating at less than 35dB.
• Durable Design: Constructed from plastic and polypropylene (PP) for long service life (over 35,000 hours).
• Integrated Filter: Equipped with a filter screen to prevent hard particles from entering the pump, ensuring smooth operation.
• Easy Installation: Includes a hose clamp with a handle for convenient and simple setup. The power cable is 1.5 meters long.
• Versatile Applications: Suitable for rockery flowing water, fountain pools, aquarium fish tanks, hydroponic systems, and solar water circulation systems.

Figure 3: High performance and quiet operation features of the pump.

Specifications

Figure 4: Detailed dimensions of the Qiangsens submersible pump.

Setup Instructions

1. Attach Filter Screen: Connect the provided filter screen to the pump's inlet. Ensure it is securely attached to prevent debris from entering the pump.
2. Connect Hose: Attach the desired hose to the pump's outlet. Use the included hose clamp with a handle to tighten the connection, ensuring no leaks.
3. Position the Pump: Place the pump fully submerged in the water. Ensure it rests on a stable surface and is not obstructed. The pump is designed for submersible installation.
4. Connect Power: Connect the DC 12V power cable to a compatible power source. Ensure the power source is appropriate for the pump's voltage and wattage requirements.

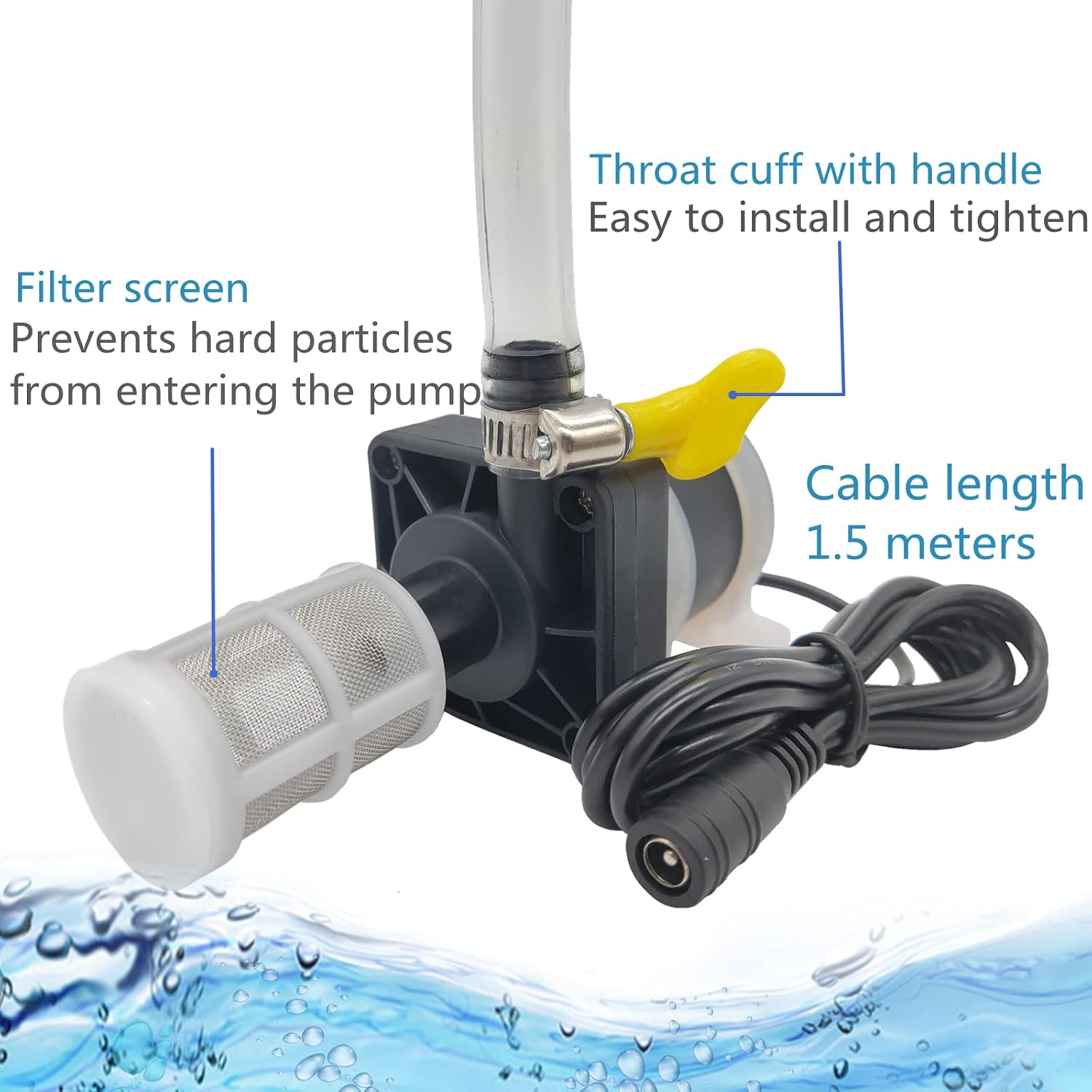

Figure 5: Pump components including filter screen, hose clamp, and power cable.

Figure 6: Installation diagrams for submersible and below-horizontal setups.

Operating Instructions

• Before powering on, ensure the pump is completely submerged in water. This is a non-self-priming pump and must not be operated dry.
• Connect the pump to a stable DC 12V power supply.
• The pump will begin to circulate water. Monitor the water flow to ensure proper operation.
• For optimal performance, ensure the water inlet and outlet are free from obstructions.
• When not in use, disconnect the power supply.

Figure 7: Pump in operation, demonstrating water flow.

Maintenance

Regular maintenance ensures the longevity and efficient operation of your pump.

1. Filter Cleaning: Periodically remove and clean the filter screen to prevent blockages from debris. A clogged filter reduces pump efficiency and can lead to damage.
2. Pump Cleaning: If the pump's performance decreases, disconnect power and remove the pump from the water. Inspect the impeller area for any debris or mineral buildup and clean thoroughly.
3. Winterization: In freezing conditions, remove the pump from the water and store it in a frost-free location to prevent damage.

Figure 8: The filter screen is easily accessible for cleaning.

Troubleshooting

Warranty and Support

For warranty information or technical support, please refer to the retailer where the product was purchased or contact Qiangsens customer service directly. Keep your purchase receipt as proof of purchase.
