1. Introduction
This manual provides detailed instructions for the assembly, use, and maintenance of your Madesa Emilly Pop Compact Kitchen Set. Please read all instructions carefully before beginning assembly or use to ensure proper installation and safe operation.

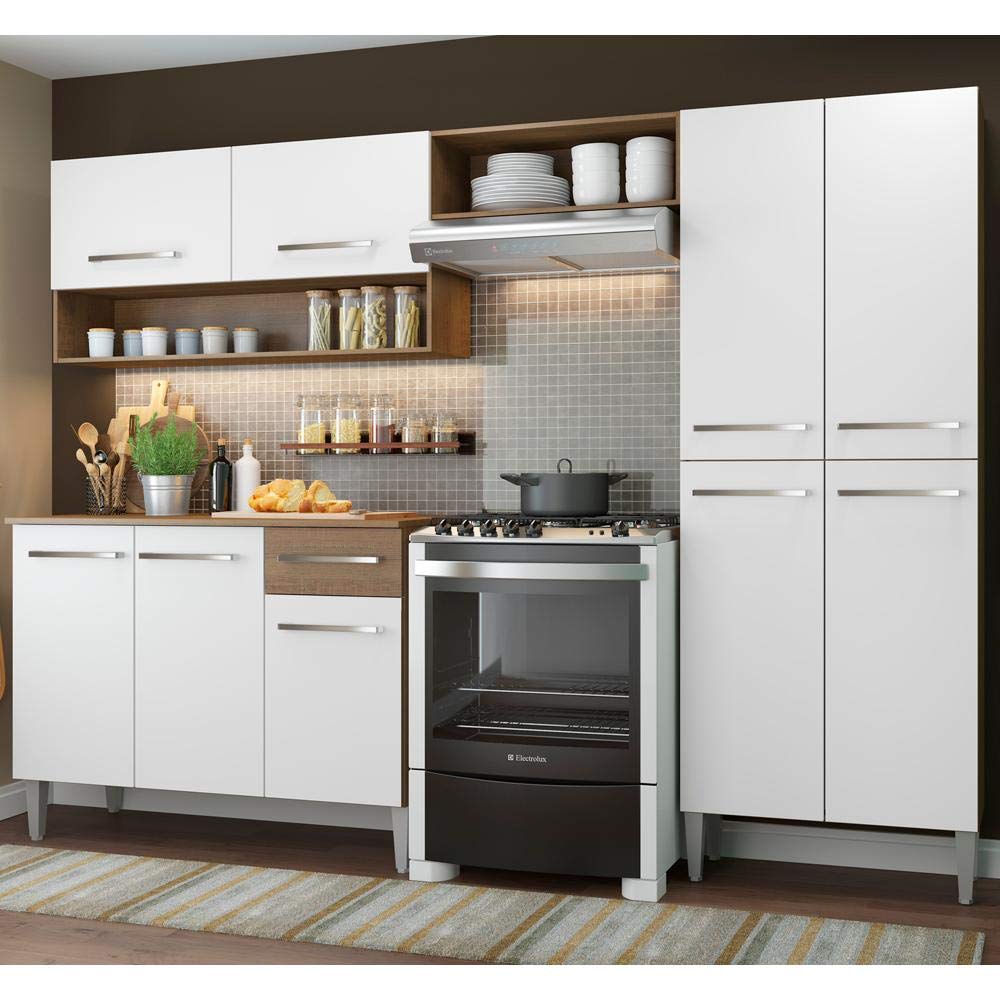

Image 1: The Madesa Emilly Pop Compact Kitchen Set, featuring rustic and white finishes.
2. Safety Information
Your safety is paramount. Adhere to the following guidelines:
- Follow assembly instructions carefully to avoid injuries.
- Ensure the kitchen set is properly secured to the wall to prevent tipping.
- Do not overload shelves and drawers beyond their recommended weight capacity.
- Use appropriate safety equipment (e.g., gloves, safety glasses) during assembly.
- Keep small parts and hardware away from children to prevent choking hazards.
3. Package Contents
Verify that all components are present before beginning assembly:
- One (1) pantry unit with 4 doors
- One (1) base cabinet with 3 doors, 1 drawer, and top
- One (1) overhead cabinet with 2 doors and 2 niches
- Metallic slides (350 mm) for drawers
- Metallic hinges (26 mm) for doors
- Adjustable PVC feet
- Installation manual
- Necessary hardware for assembly
Image 2: Key features such as aluminum handles, metallic hinges, and adjustable PVC feet.
4. Assembly Instructions
This product is designed for DIY assembly. Follow the included detailed installation manual step-by-step. Ensure you have adequate space and the necessary tools before starting.
- Prepare the Area: Clear a spacious, clean, and well-lit area for assembly.
- Identify Components: Unpack all parts and hardware. Refer to the parts list in the separate installation manual to identify each piece.
- Assemble Base Units: Begin with the base cabinet, attaching the sides, back, and bottom panels. Install the adjustable PVC feet.
- Install Drawers and Doors: Attach metallic slides for the drawer and metallic hinges for all doors. Mount the doors and drawer front.
- Assemble Pantry Unit: Follow similar steps for the pantry unit, ensuring all shelves are correctly positioned.
- Assemble Overhead Cabinet: Construct the overhead cabinet, including the two niches.
- Mount to Wall (Crucial): Securely fix the overhead cabinet and pantry unit to the wall using appropriate fasteners for your wall type. This prevents tipping and ensures stability.
- Final Adjustments: Adjust the PVC feet to level the cabinets and align doors and drawers as needed.
Image 3: Overall dimensions and individual component measurements for planning.
Image 4: Internal storage capacity of the kitchen set, demonstrating shelf layout.
5. Usage
The Madesa Emilly Pop Compact Kitchen Set is designed for functional and efficient organization in your kitchen or dining area. Utilize the various compartments for storing dishes, cookware, and other kitchen essentials.
- Storage: The pantry unit offers ample space for dry goods and larger items. The base cabinet and overhead cabinet provide versatile storage for everyday items.
- Drawer: The drawer is ideal for organizing cutlery and smaller utensils.
- Countertop: The included top on the base cabinet serves as a functional workspace for food preparation or appliance placement.
- Adjustable Feet: The adjustable PVC feet allow for leveling on uneven floors, ensuring stability and proper door/drawer alignment.
Image 5: Example of the kitchen set in use, showcasing its integration with appliances.
6. Care and Maintenance
To maintain the appearance and longevity of your Madesa Emilly Pop Compact Kitchen Set, follow these care instructions:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or solvents that can damage the finish.
- Spills: Clean up spills immediately to prevent staining or damage to the material.
- Heat and Moisture: Protect surfaces from excessive heat and moisture. Use placemats or coasters under hot items.
- Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading of the finish.
- Hardware: Periodically check and tighten all screws and hardware to ensure stability.
7. Troubleshooting
If you encounter any issues with your kitchen set, refer to the following common solutions:
- Wobbly Cabinet: Ensure the adjustable PVC feet are properly extended and leveled. Check that all assembly screws are tightened. Verify the unit is securely fixed to the wall.
- Misaligned Doors/Drawers: Adjust the metallic hinges and drawer slides. The installation manual provides specific instructions for hinge and slide adjustments.
- Stiff Drawer/Door: Check for any obstructions in the slides or hinges. Apply a silicone-based lubricant if necessary, ensuring it is safe for furniture.
- Damaged Part: If a part is damaged during assembly or use, contact Madesa customer support for assistance. Do not attempt to force damaged parts.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Madesa |
| Model | Emilly Pop |
| Color | Rustic/White |
| Product Dimensions (D x W x H) | 44 x 229 x 186 cm (17.3 x 90.2 x 73.2 inches) |
| Weight | 64.4 kg (141.9 lbs) |
| Material Type | Aluminum, Polyvinyl Chloride (PVC) |
| Special Features | Adjustable feet |
| Installation Type | Floor mounted / Under-counter |
| GTIN (EAN) | 7891760853325 |
Image 6: Visual representation of the kitchen set's height compared to an average person (165cm).
9. Warranty and Support
Madesa is committed to customer satisfaction. We are here to support you before and after your purchase.
- Warranty: This product may be eligible for extended warranty options. Please refer to your purchase documentation or contact Madesa for specific warranty details.
- Customer Support: If you encounter any problems with your product, please feel free to contact Madesa customer support at any time. Our team is ready to assist you with any questions or concerns regarding assembly, parts, or product functionality.
For further information or to explore other modules in the Emilly Line, visit the official Madesa store or website.
