Aputure LS 600D Professional 600W Daylight 5600K LED Video Light Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and effective operation of your Aputure LS 600D Professional 600W Daylight 5600K LED Video Light. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Instructions

Do not look directly into the light source when the light is on.
Do not place the light near flammable liquids or gases.
Ensure proper ventilation to prevent overheating. The unit uses natural heat dissipation.
Use only the specified power cables and accessories.
Keep the device dry. Do not expose it to rain or moisture.
Handle with care. The unit weighs 33 pounds. Ensure stable mounting.

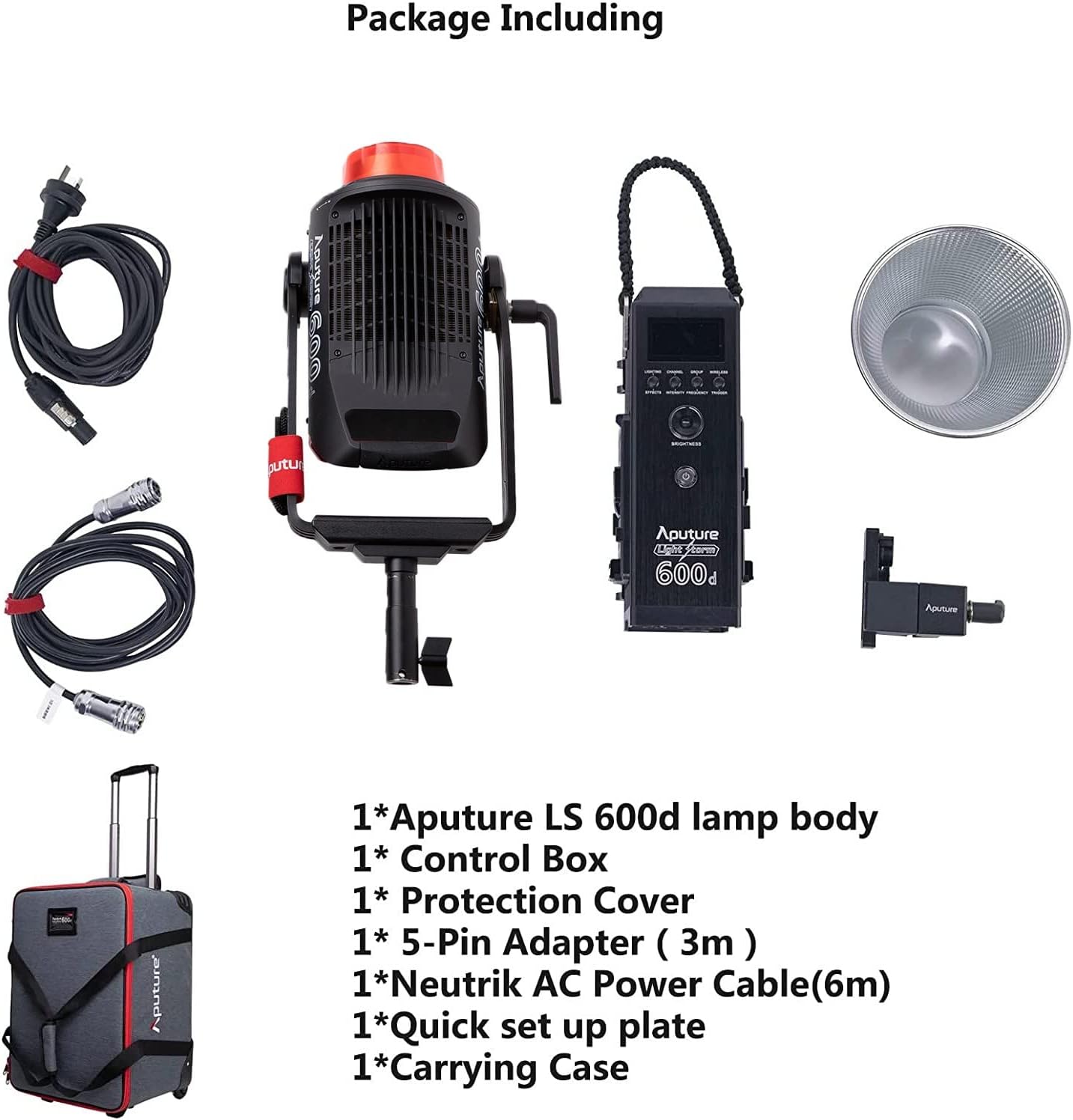

3. Package Contents

Verify that all items listed below are included in your package:

Aputure LS 600d lamp body
Control Box
Protection Cover
5-Pin Adapter (3m)
Neutrik AC Power Cable (6m)
Quick set up plate
Carrying Case

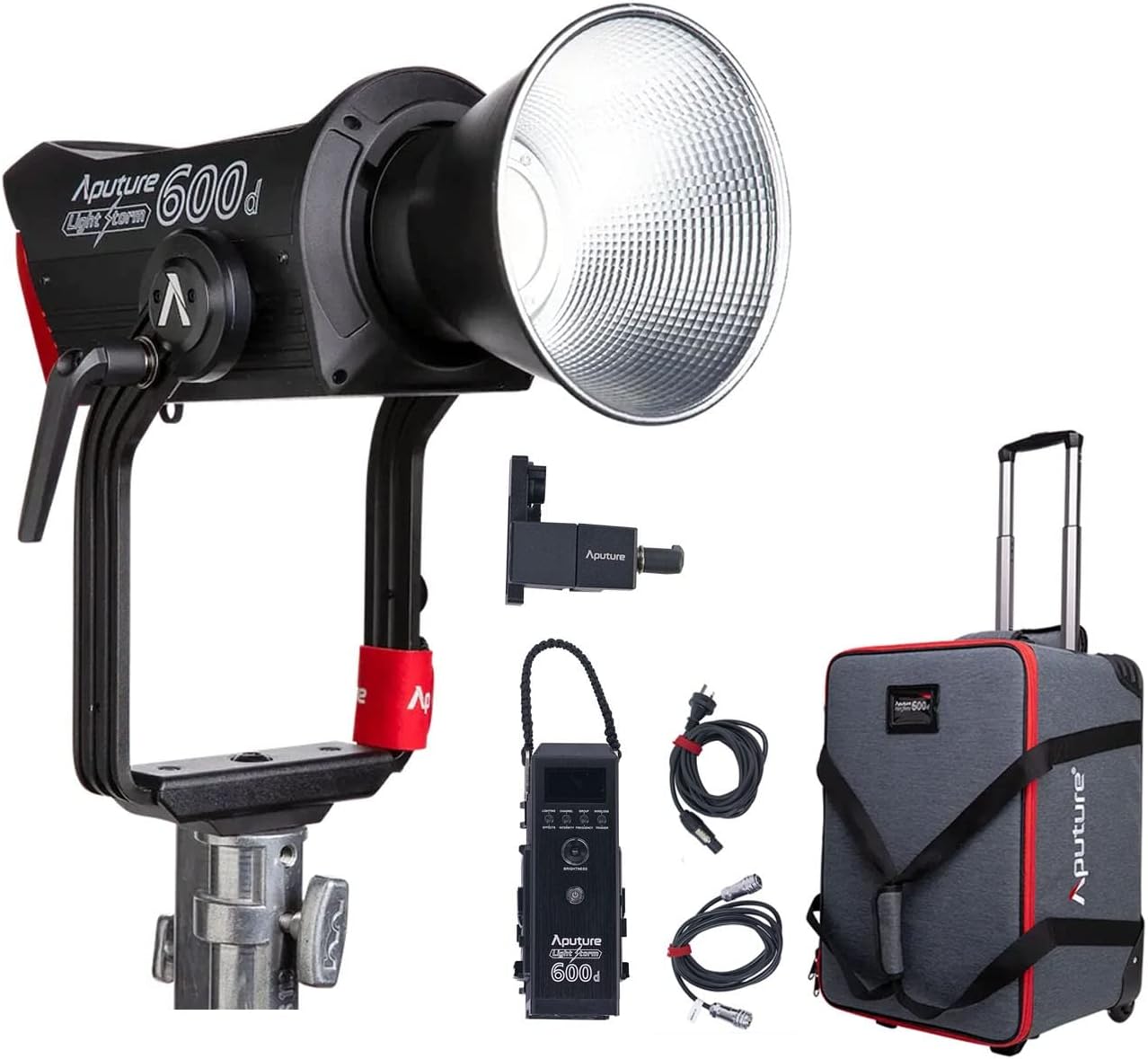

Aputure LS 600D package contents — **Figure 3.1:** Overview of the Aputure LS 600D Professional 600W Daylight LED Video Light and its included accessories in the carrying case.

The image above displays the main light unit, control box, cables, reflector, and the wheeled carrying case.

4. Product Overview

The Aputure LS 600D is a high-output 600W COB LED light designed for professional video and photography. It features a daylight-balanced 5600K color temperature, high CRI/TLCI ratings, and multiple control methods.

Aputure LS 600D light head and control box — **Figure 4.1:** The Aputure LS 600D light head (top) and its control box (bottom), highlighting key specifications like CCT, CRI, TLCI, CQS, and power output.

Key features include:

Max Power Output: ≤600W
CCT: 5600K
CRI: ≥96
TLCI: ≥96
Cooling Method: Natural heat dissipation
Control Methods: Manual, Sidus Link APP, DMX512
Bluetooth Operating Range: ≤ 80m / 262.5ft
Built-in Lighting FX: Paparazzi, Fireworks, Faulty Bulb, TV, Pulsing, Strobe, Explosion

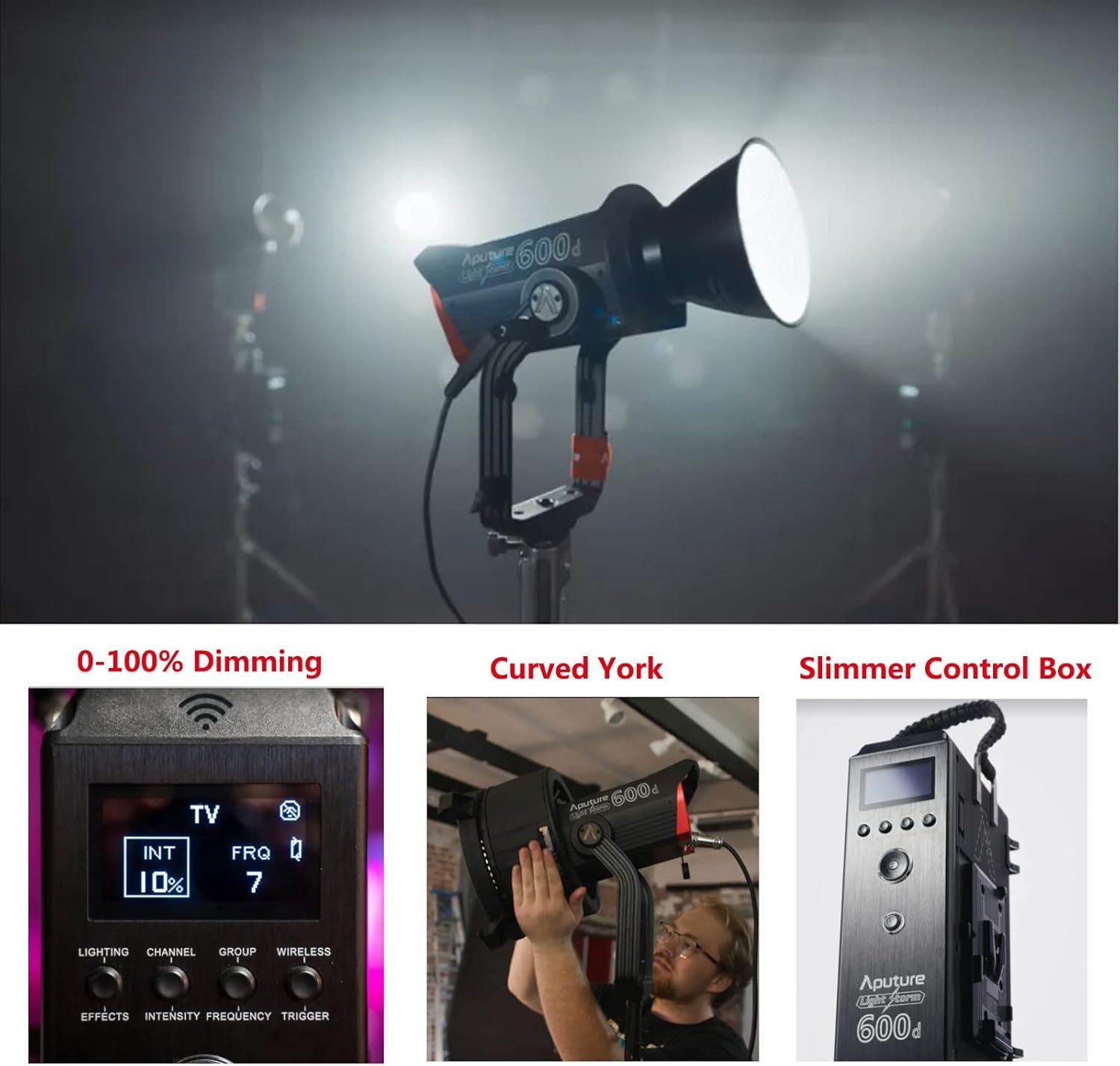

Aputure LS 600D control box display — **Figure 4.2:** Close-up of the control box display, showing intensity and frequency settings for lighting effects.

5. Setup

5.1 Assembling the Light Unit

Mounting the Lamp Body: Attach the Aputure LS 600d lamp body to a sturdy light stand using its curved yoke and mounting bracket. Ensure it is securely tightened.
Connecting the Control Box: Connect the control box to the lamp body using the provided 5-pin adapter cable.
Power Connection: Connect the Neutrik AC Power Cable to the control box and then to a suitable power outlet.
Attaching the Hyper-Reflector: Align the Hyper-Reflector with the Bowens Mount on the front of the lamp body. Twist clockwise until it locks into place.

Aputure LS 600D with Hyper-Reflector attached — **Figure 5.1:** The Aputure LS 600D light head with the Hyper-Reflector attached, ready for use.

5.2 Using the Universal Bowens Mount

The LS 600D features a universal Bowens Mount, allowing compatibility with a wide range of light modifiers such as the F10 Fresnel for intense brightness or the Light Dome 150 for softer light.

Aputure LS 600D with Light Dome 150 attached — **Figure 5.2:** The Aputure LS 600D with a Light Dome 150 softbox attached, demonstrating the versatility of the Bowens Mount.

To attach a Bowens mount accessory, align the accessory's mount with the light's mount, insert, and twist until it clicks securely.

6. Operating Instructions

6.1 Manual Control

The control box allows for direct adjustment of light intensity, color temperature, and special effects.

Power Button: Press to turn the unit on/off.
Brightness Dial: Rotate to adjust light intensity from 0-100%.
CCT Dial: Adjusts the color temperature (fixed at 5600K for this model).
Effects Button: Cycle through 8 built-in lighting effects (Paparazzi, Fireworks, Faulty Bulb, TV, Pulsing, Strobe, Explosion).

Aputure LS 600D control box with various settings — **Figure 6.1:** The control box showing various settings and buttons for manual operation.

6.2 Sidus Link App Control

For advanced control and remote operation, download the Sidus Link App on your smartphone or tablet. The light supports Bluetooth control up to 80m (262.5ft).

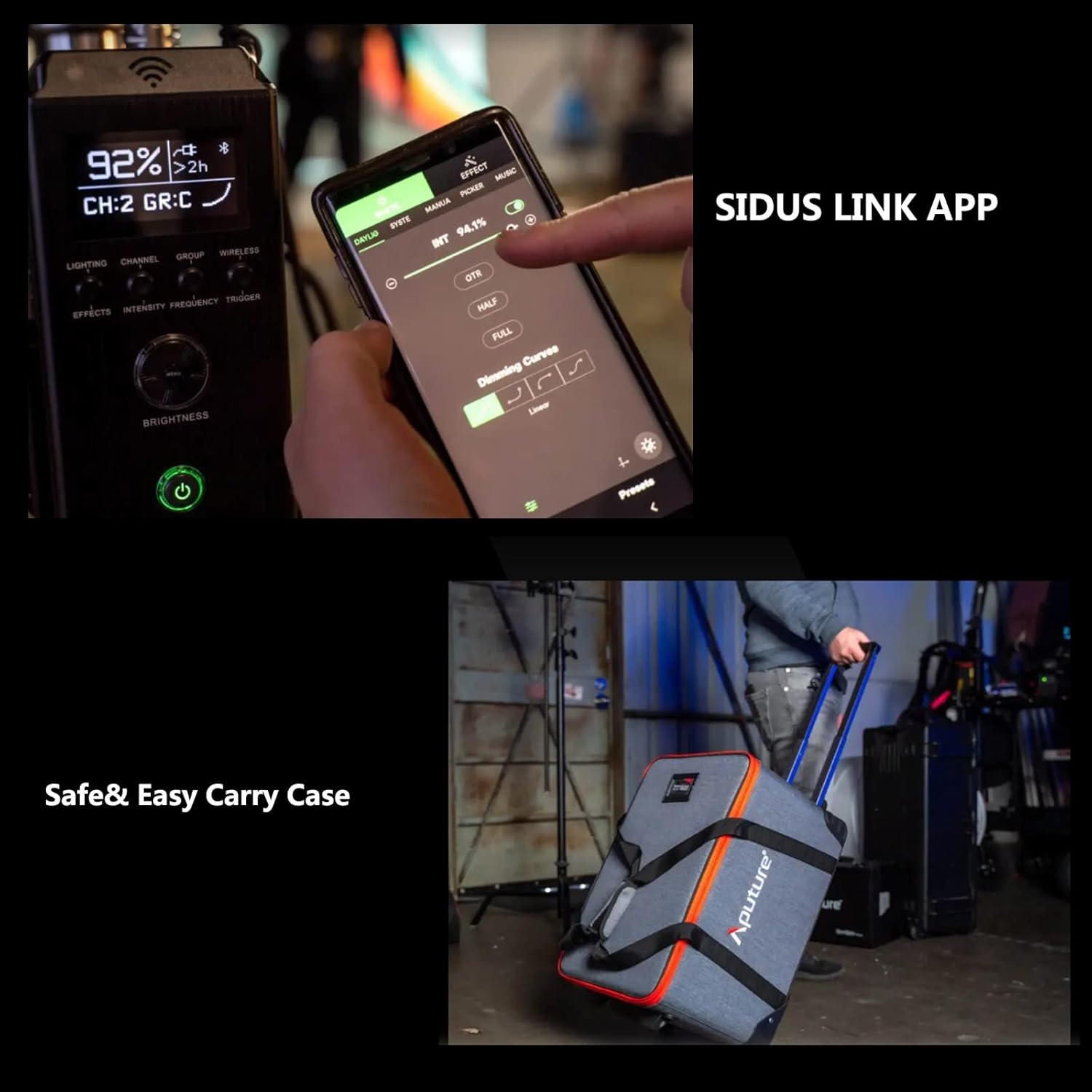

Sidus Link App interface controlling Aputure light — **Figure 6.2:** The Sidus Link App interface on a smartphone, demonstrating remote control over light intensity and dimming curves.

The app allows for precise adjustments, custom effects, and multi-light control.

7. Maintenance

Cleaning: Use a soft, dry cloth to clean the light body and accessories. Do not use abrasive cleaners or solvents.
Storage: Store the light and its accessories in the provided carrying case in a cool, dry place when not in use.
Inspection: Regularly inspect cables and connections for any signs of damage.

Aputure LS 600D packed in its carrying case — **Figure 7.1:** The Aputure LS 600D and its components neatly packed in the wheeled carrying case for safe storage and transport.

8. Troubleshooting

Problem	Possible Cause	Solution
Light does not turn on.	No power, loose connection.	Check power cable, ensure secure connections.
App cannot connect to light.	Bluetooth off, out of range, app issue.	Ensure Bluetooth is enabled, move closer to the light, restart app/light.
Light flickers.	Unstable power, faulty cable.	Try a different power outlet, replace power cable.

9. Specifications

Feature	Detail
Product Dimensions	16.25"L x 9.59"W x 16.25"H
Item Weight	33 pounds
Item Model Number	FP-AP-10056
Connectivity Technology	Bluetooth
Manufacturer	Aputure
Date First Available	April 11, 2022

Aputure LS 600D Photometrics table — **Figure 9.1:** Photometric data for the Aputure LS 600D at various distances and with different modifiers (Light Only, Hyper Reflector, F10 Fresnel).

10. Warranty and Support

For warranty information and technical support, please refer to the official Aputure website or contact your local distributor. Protection plans are available for extended coverage.

Visit the Aputure Store for more products and support resources.
