1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Napoleon BIB10RTPSS 10-inch Built-In Natural Gas Range Burner. Please read all instructions carefully before using the appliance. Retain this manual for future reference.
2. Included Components
Verify that all components are present before beginning installation:
- Range Burner Unit
- Cooking Grid
- User Manual (this document)
3. Safety Information
WARNING: For outdoor use only. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Always ensure adequate ventilation.
- Keep children and pets away from the appliance during operation.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Ensure all gas connections are properly sealed and checked for leaks before first use.
- A power supply kit (N370-1091-SER) is required for all Built-in 700 Series burners when used without a Built-in 700 Series Built-in Grill to power the control knobs.
4. Setup & Installation
This range burner is designed for built-in installation in an outdoor kitchen island. Due to the nature of gas appliances, professional installation by a qualified technician is highly recommended to ensure safety and compliance with local codes.
Dimensions:

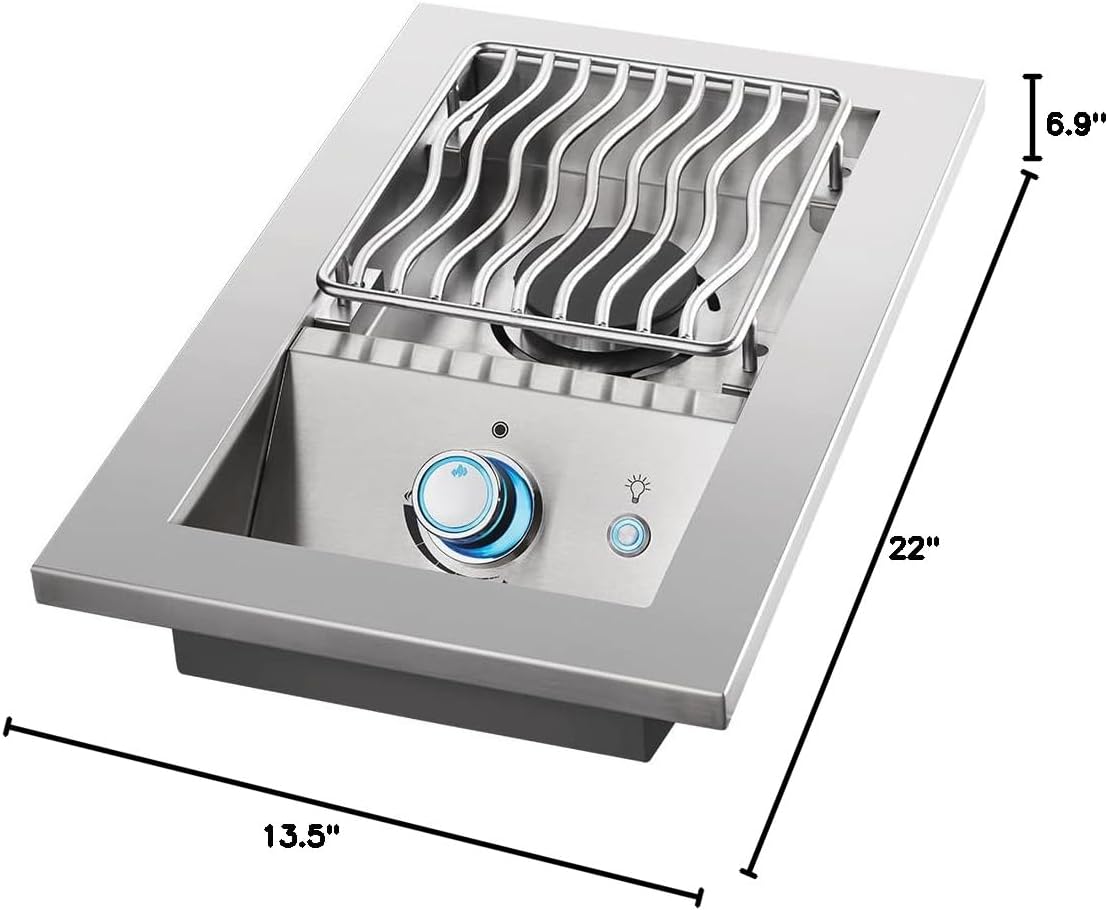

Figure 4.1: Product Dimensions (22"D x 13.5"W x 6.9"H)
Ensure the cutout in your outdoor kitchen island matches the product dimensions for a seamless fit. Proper clearances from combustible materials must be maintained as per local building codes and the detailed installation instructions provided with the product packaging.
5. Operating Instructions
5.1. Ignition System (JETFIRE™ Ignition)
The Napoleon BIB10RTPSS features a JETFIRE™ Ignition System for quick and reliable startup. The ergonomic control knob includes SafetyGlow, which illuminates blue when off and changes to red when the burner is in use, providing a visual safety indicator.
Figure 5.1: JETFIRE™ Ignition in action
Figure 5.2: Control knob with blue SafetyGlow (off/standby)
Figure 5.3: Control knob with red SafetyGlow (burner in use)
To ignite the burner:
- Ensure the gas supply is open.
- Push in the control knob and turn it counter-clockwise to the HIGH position.
- The JETFIRE™ ignition will spark, igniting the burner. The knob will glow red.
- Once lit, adjust the flame to your desired cooking temperature.
If the burner does not ignite within 5 seconds, turn the control knob to the OFF position, wait 5 minutes for gas to dissipate, and then repeat the ignition procedure. If repeated attempts fail, refer to the Troubleshooting section.
5.2. Cooking with the Range Burner
This 10-inch drop-in range burner is ideal for preparing side dishes, sauces, or boiling water while your main grill is in use. Place your cookware directly on the cooking grid.
Figure 5.4: Pot on the range burner
Adjust the flame intensity using the control knob to suit your cooking needs. The burner provides consistent heat for various culinary tasks.
5.3. Product Overview Video
Video 5.1: Official video showcasing the Napoleon Built-in 700 Series, including the range burner, highlighting its features and integration into an outdoor kitchen.
6. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your range burner.
- Cleaning the Cooking Grid: After each use, allow the grid to cool. Use a grill brush to remove any food residue. For stubborn stains, wash with warm soapy water and rinse thoroughly.
- Cleaning Stainless Steel Surfaces: Wipe down stainless steel surfaces with a soft cloth and a mild stainless steel cleaner. Avoid abrasive cleaners or scouring pads that can scratch the finish.
- Burner Maintenance: Periodically inspect the burner ports for blockages. Use a wire brush or a small wire to clear any debris. Ensure the burner is completely dry before re-use.
- Gas Connections: Annually check all gas connections for tightness and signs of wear.
7. Troubleshooting
If you encounter issues with your range burner, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite | No gas supply, clogged burner ports, faulty igniter. | Check gas tank/line, clear burner ports, contact customer support for igniter issues. |
| Low flame or uneven heat | Low gas pressure, partially clogged burner ports. | Ensure adequate gas supply, clean burner ports. |
| Knob lights not working | No power to the unit, loose wiring, faulty LED. | Check power supply connection (N370-1091-SER kit), ensure wiring is secure. Contact customer support if issue persists. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Napoleon |
| Model Number | BIB10RTPSS |
| Product Dimensions (D x W x H) | 22" x 13.5" x 6.9" |
| Fuel Type | Natural Gas |
| Heating Power | 10,000 British Thermal Units (BTU) |
| Burner Count | 1 (Single Range Style Burner) |
| Ignition System | JETFIRE™ Ignition |
| Control Knobs | Ergonomic, Backlit with SafetyGlow |
| Material Type | Marine Grade Stainless Steel |
| Installation Type | Built-In |
| Required Assembly | Yes |
9. Warranty Information
This Napoleon Built-In Component is backed by a Lifetime Bumper to Bumper Warranty. For specific terms, conditions, and registration details, please refer to the warranty card included with your product or visit the official Napoleon website.
10. Support
For further assistance, technical support, or to order replacement parts, please contact Napoleon customer service. Have your model number (BIB10RTPSS) and serial number ready when contacting support.
Manufacturer: Wolf Steel Ltd.
