1. Safety Information
Please read and understand all instructions before assembling and using this bunk bed. Failure to follow these instructions may result in serious injury.
- Always use the 3-step ladder to access the top bunk.
- Keep the trundle secured when not in use to prevent tripping.
- Always follow assembly instructions carefully to ensure stability.
- Do not attempt to move the assembled bed frame without help to prevent injury.
- Ensure all fasteners are securely tightened before use and check periodically.
- The top bunk is not suitable for children under six years of age.
- Use only mattresses that are 6 inches or less in thickness for the top bunk and trundle.
- Never allow more than one person on the top bunk.
2. Product Overview
The Tatub Twin Over Full Bunk Bed with Trundle is designed for space-saving and versatility. Crafted from solid pine wood, it features a twin-sized upper bunk, a full-sized lower bunk, and a convenient pull-out trundle bed. The design includes guard rails for safety and a sturdy ladder for access.

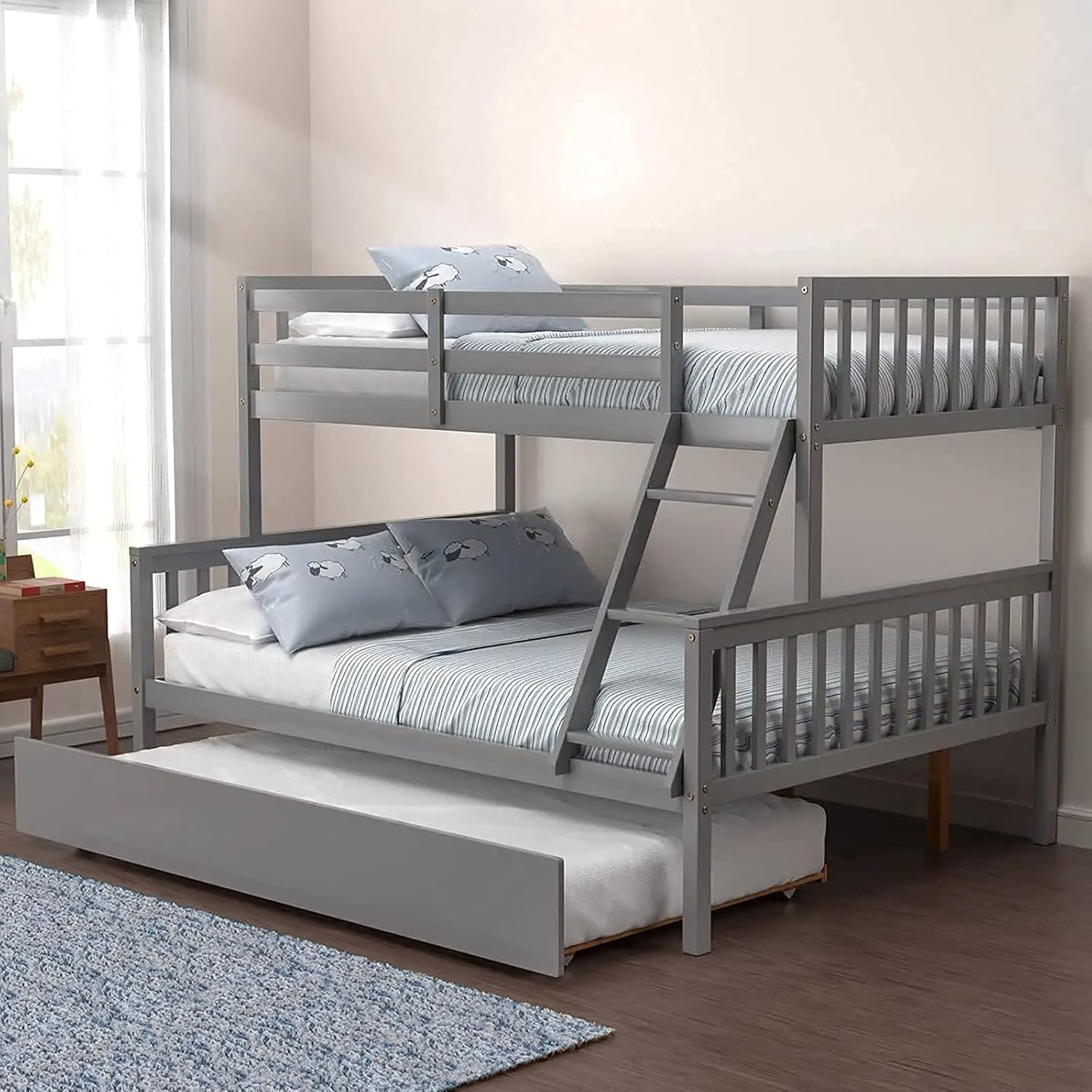

Image 2.1: Tatub Twin Over Full Bunk Bed with Trundle, Grey finish.
Video 2.2: A brief overview of the Tatub Twin Over Full Bunk Bed with Trundle, showcasing its features and design.
3. Setup and Assembly
Assembly of the Tatub Bunk Bed requires careful attention to detail. It is recommended to have at least two adults for assembly. All necessary hardware is included. Please refer to the detailed assembly instructions provided in the packaging for step-by-step guidance.
- Unpack all components and verify against the parts list.
- Assemble the lower bed frame first, ensuring all connections are secure.
- Attach the support beams and slats for the lower bed.
- Assemble the upper bed frame, including guard rails.
- Carefully lift and secure the upper bed frame onto the lower bed frame.
- Install the ladder securely to the bunk bed.
- Assemble the trundle bed frame and insert the mattress.
- Ensure all bolts and screws are fully tightened before placing mattresses on the beds.
4. Operating Instructions
4.1 Using the Trundle Bed
The trundle bed is designed for easy access and storage. It features four wheels for smooth movement.
- To extend: Gently pull the trundle bed from underneath the lower bunk until it is fully extended.
- To retract: Push the trundle bed back underneath the lower bunk until it is fully stored. Ensure it is completely under the bed when not in use to prevent obstruction.
Image 4.1: Illustration of the trundle bed's pull-out mechanism.
4.2 Separating the Bunk Beds
This versatile bunk bed can be separated into three individual beds: a twin bed, a full bed, and a trundle bed. This allows for flexible room arrangements as needs change.
- To separate: Carefully disassemble the connecting hardware between the upper and lower bunks. This process should be performed by at least two adults to ensure safety.
- Once separated, the individual bed frames can be placed as desired. Ensure all exposed connection points are covered or smoothed to prevent injury.
Image 4.2: Visual representation of the 3-in-1 bed conversion feature.
5. Maintenance
Regular maintenance will help prolong the life and ensure the safety of your Tatub Bunk Bed.
- Cleaning: Wipe the wood frame with a dry, soft cloth. Avoid using harsh chemicals or abrasive cleaners that may damage the finish.
- Fasteners: Periodically check all bolts, screws, and other fasteners to ensure they are tight. Re-tighten as necessary to maintain stability and prevent wobbling.
- Slats: Inspect bed slats regularly for any signs of damage or wear. Replace any damaged slats immediately to ensure proper mattress support.
6. Troubleshooting
If you encounter any issues with your bunk bed, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed wobbles or feels unstable | Loose fasteners or incorrect assembly. | Check and tighten all bolts and screws. Review assembly instructions to ensure all parts are correctly installed. |
| Squeaking noises | Loose connections or friction between wood parts. | Tighten all fasteners. Apply a small amount of paraffin wax or silicone spray to contact points between wood components if squeaking persists. |
| Trundle does not slide smoothly | Obstruction under the bed or dirty wheels. | Clear any objects from the path of the trundle. Clean the wheels and their tracks. |
7. Specifications
Detailed specifications for the Tatub Twin Over Full Bunk Bed with Trundle:
- Size: Twin/Full
- Product Dimensions: 79"L x 57"W x 59.9"H
- Color: Grey
- Material: Solid Pine Wood
- Finish Type: Wood
- Included Components: Bunk Bed with Trundle, Ladder, Guard Rails
- Compatible Mattress Size: Twin (upper), Full (lower), Twin (trundle)
- Suggested Mattress Thickness: 6 inches or less for upper bunk and trundle.
- Weight Capacity: Upper: 200 lbs, Lower: 250 lbs, Trundle: 200 lbs
- Item Weight: 75 pounds
- Assembly Required: Yes
Image 7.1: Detailed dimensions and weight capacities for the Tatub Bunk Bed.
8. Warranty and Support
This product does not come with a manufacturer's warranty as per the provided information.
For any questions regarding assembly, missing parts, or product issues, please contact Tatub customer support through your original point of purchase. Please have your model number (Bunk Bed) and purchase details ready when contacting support.
