Domi Outdoor Living 12' x 12' Hardtop Gazebo Instruction Manual

1. Introduction

This instruction manual provides comprehensive guidance for the assembly, operation, and maintenance of your Domi Outdoor Living 12' x 12' Hardtop Gazebo. Please read this manual thoroughly before beginning assembly or use to ensure safe and correct installation and to maximize the lifespan of your product. Retain this manual for future reference.

The Domi Outdoor Living Hardtop Gazebo is designed to provide a durable and comfortable outdoor living space, featuring a robust aluminum frame, a galvanized steel double roof for ventilation and weather protection, and integrated curtains and netting for privacy and insect control.

2. Important Safety Information

Adherence to the following safety guidelines is crucial for preventing injury and damage to the product.

• Secure Foundation: Always secure the gazebo to a stable foundation using the pre-drilled holes in the base of each post. Expansion screws are required for this purpose and are not included with the product. Ensure the foundation is level and capable of supporting the gazebo's weight and wind loads.
• Assembly Precautions: Assembly typically requires two or more adults. Do not attempt to assemble alone. Wear appropriate safety gear, such as gloves, to prevent cuts or pinches. Keep children and pets away from the assembly area.
• Component Handling: Be cautious when handling all components, especially the metal roof panels, to avoid sharp edges. Handle the mosquito netting and privacy curtains carefully to prevent entanglement or tearing.
• Weather Conditions: Do not assemble the gazebo during strong winds, heavy rain, or other adverse weather conditions. In anticipation of severe weather, it is recommended to remove curtains and netting to reduce wind resistance.
• Snow Load: While the galvanized steel roof is designed to shed rain and snow, heavy snow accumulation can cause structural damage. In areas with significant snowfall, it is advisable to regularly clear snow from the roof or consider disassembling the roof panels for the winter season.
• Fire Safety: Keep all heat sources, including barbecues, fire pits, and heaters, at a safe distance from the gazebo structure, curtains, and netting. The materials are not fireproof.
• Regular Inspection: Periodically inspect all bolts, nuts, and connections to ensure they remain tight and secure. Check for any signs of wear or damage to the frame, roof, curtains, or netting and address them promptly.

3. Product Overview and Features

The Domi Outdoor Living Hardtop Gazebo is engineered for durability and comfort, providing an ideal outdoor space for various activities.

3.1 Key Features

• Ventilated Double Roof Design: The two-tiered galvanized steel roof promotes air circulation, maintaining a comfortable temperature within the gazebo. Its sloped design facilitates efficient drainage of rain and snow.
• Efficient Drainage System: Rainwater is channeled from the eaves through the poles to the ground, preventing water accumulation on the roof and extending the gazebo's lifespan.
• Sturdy Aluminum Frame: Constructed with a powder-coated aluminum frame (4.72"x4.72" posts), offering superior resistance to fading and rust. Designed to withstand wind ratings up to 40 MPH.
• Integrated Netting & Curtains: Features a double-track system with double-sided zippers for easy operation. The mosquito netting provides ventilation and insect protection, while privacy curtains offer a secluded and comfortable environment.
• Versatile Ceiling Hooks: Equipped with hooks for hanging decorative items, fans, lights, or heaters, enhancing the functionality and ambiance of your outdoor space.
• Spacious Design: Measuring 12' L x 12' W x 10.1' H, providing 144 square feet of coverage, suitable for various outdoor activities or as a car shelter.

3.2 Product Components

Familiarize yourself with the main components of your gazebo:

Figure 3.2.1: Fully assembled Domi 12'x12' Hardtop Gazebo, showcasing its design and spaciousness.

Figure 3.2.2: Detail of the ventilated double-layer roof, highlighting air circulation and integrated top mosquito net.

Figure 3.2.3: Illustration of the gazebo's drainage system, showing how rainwater is directed away from the roof.

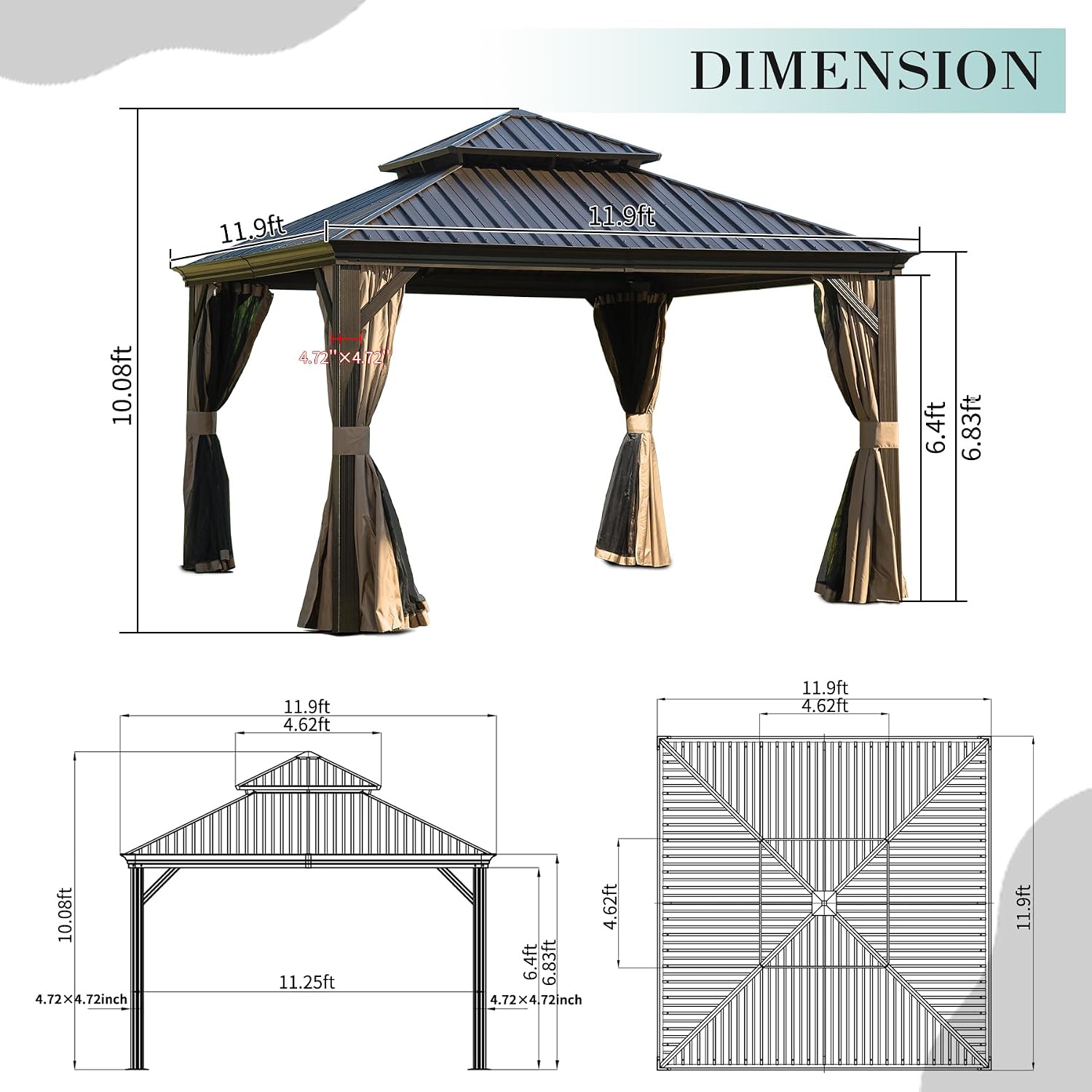

Figure 3.2.4: Detailed dimensions of the 12'x12' gazebo, including overall height and post dimensions.

Figure 3.2.5: Comparison illustrating the robust 4.7" x 4.7" aluminum stand poles for enhanced stability.

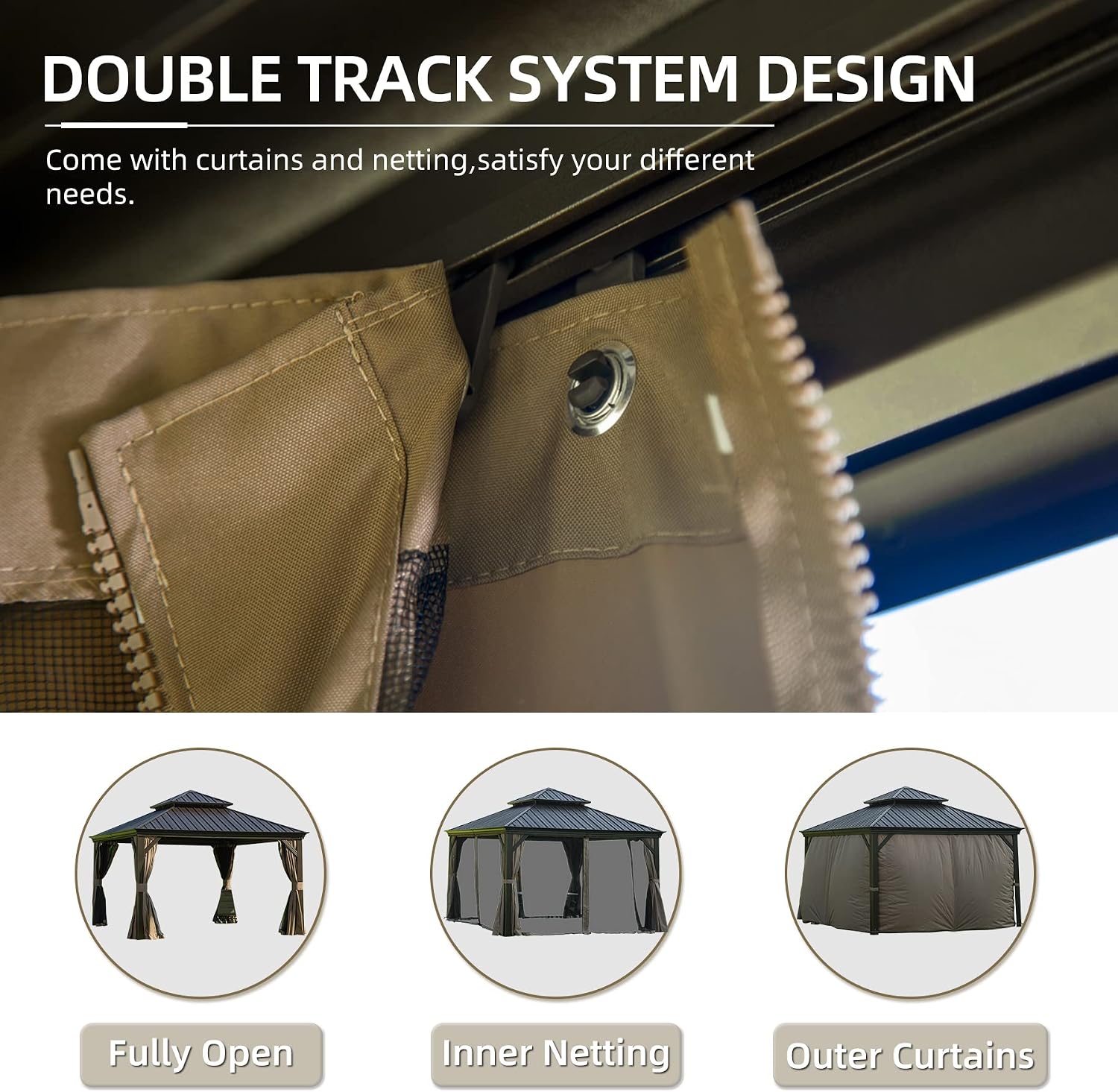

Figure 3.2.6: The double-track system for curtains and netting, allowing flexible configuration for privacy or ventilation.

Figure 3.2.7: Structural details emphasizing the triangular support, anchored base, and durable aluminum frame.

4. Setup and Assembly

Careful assembly is essential for the stability and longevity of your gazebo. Follow the included manufacturer's assembly instructions precisely. The following general guidelines will assist you.

4.1 Before You Begin

• Site Selection: Choose a level, stable area for installation. Ensure adequate clearance around the gazebo for assembly and future use.
• Unpack and Inventory: Carefully unpack all boxes and verify that all parts listed in the manufacturer's parts list are present and undamaged. Organize components by type and label for easier access.
• Tools Required: Gather all necessary tools as specified in the manufacturer's manual. Typically, this includes wrenches, screwdrivers, a ladder, and potentially a power drill for securing the base.
• Assistance: Assembly is significantly easier and safer with at least two people. Some steps, particularly lifting the roof structure, may require three or more individuals.

4.2 Assembly Steps (General Guidelines)

1. Frame Assembly: Begin by assembling the main support posts and horizontal beams according to the numerical sequence in the provided manual. Ensure all connections are loosely fastened initially.
2. Roof Structure: Assemble the upper roof frame. This often involves connecting multiple smaller sections. It is crucial to keep bolts loose during this stage to allow for alignment.
3. Roof Panel Installation: Install the galvanized steel roof panels. Work systematically, ensuring panels overlap correctly for water shedding. Apply silicone sealant (if provided) to seams as recommended to prevent leaks. Tighten roof panel fasteners only after all panels are correctly aligned and in place.
4. Final Tightening: Once the entire structure is assembled and aligned, systematically tighten all bolts and nuts. Start from the base and work upwards, ensuring the gazebo remains plumb and square.
5. Anchoring: Securely anchor the gazebo to your chosen foundation using appropriate expansion screws or other anchoring hardware (not included). This step is critical for wind resistance.
6. Curtains and Netting: Install the double-track system for the curtains and netting. Attach the curtains and netting to their respective tracks.

Important Tip: Many users find it beneficial to leave all bolts and nuts slightly loose during the initial assembly of sections, especially for the roof, to allow for minor adjustments and alignment. Only fully tighten all fasteners once the entire structure is correctly positioned and aligned.

5. Operating Instructions

Your Domi Hardtop Gazebo is designed for ease of use and adaptability to various outdoor conditions.

5.1 Using the Curtains and Netting

The gazebo features a dual-track system for flexible use of the mosquito netting and privacy curtains:

• Mosquito Netting: The inner track is for the mosquito netting, providing protection from insects while allowing airflow and maintaining an open view. The netting sections can be zipped together for full enclosure.
• Privacy Curtains: The outer track is for the privacy curtains, offering shade, privacy, and protection from light wind or rain. These can also be zipped together for complete enclosure.
• Securing: When not in use, the curtains and netting can be tied back to the gazebo posts using the integrated straps.

5.2 Ventilation

The double-tiered roof design naturally promotes air circulation. For enhanced ventilation, ensure the mosquito netting is closed while the privacy curtains are tied back, allowing maximum airflow while keeping insects out.

5.3 Utilizing Ceiling Hooks

The integrated ceiling hooks are designed to support lightweight items such as decorative lights, small fans, or patio heaters. Ensure that any hung items do not exceed the specified weight limit for the hooks and are positioned safely away from the fabric components.

6. Maintenance

Regular maintenance will help preserve the appearance and structural integrity of your gazebo.

• Cleaning the Frame: Clean the aluminum frame with a mild soap solution and water. Rinse thoroughly with clean water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the powder coating.
• Cleaning the Roof: The galvanized steel roof can be cleaned with a soft brush or cloth and water to remove dirt, leaves, and debris. For stubborn stains, use a mild detergent. Ensure proper drainage during cleaning.
• Curtains and Netting Care: The fabric components can be spot cleaned with a mild soap and water solution. For deeper cleaning, consult the fabric care labels. Ensure they are completely dry before storing or zipping up for extended periods to prevent mildew.
• Hardware Inspection: Periodically check all nuts, bolts, and screws for tightness. Re-tighten any loose fasteners to maintain structural stability.
• Winterization: In regions with heavy snowfall, it is recommended to remove accumulated snow from the roof to prevent structural strain. For prolonged winter storage, consider disassembling the roof panels or purchasing a compatible winter cover (search for B0DCNM7LJ9 for a suitable cover). Store curtains and netting indoors in a dry place.

7. Troubleshooting

This section addresses common issues you might encounter during assembly or use.

8. Specifications

9. Warranty and Support

For specific warranty information regarding your Domi Outdoor Living Hardtop Gazebo, please refer to the warranty card included with your product packaging or contact Domi Outdoor Living customer service directly. Warranty terms typically cover manufacturing defects under normal use.

If you require assistance with assembly, have questions about product parts, or need to report a missing/damaged component, please contact the manufacturer's customer support. Contact details are usually provided in the product packaging or on the official Domi Outdoor Living website.

For replacement parts or further inquiries, please have your model number (12'x12' Hardtop Gazebo, Dark Brown) and ASIN (B09WHH9JHT) readily available.
