AFMAT Hands-Free Electric Pencil Sharpener PSX6 User Manual

1. Introduction

Thank you for choosing the AFMAT Hands-Free Electric Pencil Sharpener, Model PSX6. This device is designed for efficient and precise sharpening of pencils with minimal effort. Please read this manual thoroughly before use to ensure proper operation and maintenance.

2. Safety Information

• Keep the sharpener away from water or other liquids to prevent electric shock.
• Do not insert fingers or foreign objects into the sharpening hole.
• Ensure the shavings reservoir is properly closed before operation.
• This product is not a toy. Keep out of reach of small children.
• Use only the specified USB charging cable.

3. Product Overview

The AFMAT PSX6 is a fully automatic electric pencil sharpener featuring a hands-free operation, rechargeable battery, and adjustable sharpness settings. It is designed for pencils with a diameter between 6mm and 7.8mm.

Components:

• Sharpening Hole
• Shavings Reservoir (transparent)
• Sharpness Adjustment Switch
• USB Charging Port
• Power Indicator Light

Image: AFMAT Electric Pencil Sharpener showing its dimensions (7.1 inches height, 3.5 inches diameter) and the included 40-inch USB cable. The transparent shavings reservoir is also visible.

4. Setup

4.1 Charging the Battery

The sharpener is equipped with a 2000 mAh rechargeable battery. Before first use, or when the power indicator light shows low battery, charge the device.

1. Connect the provided USB cable to the sharpener's USB charging port.
2. Connect the other end of the USB cable to a compatible USB power adapter (not included) or a computer's USB port.
3. The power indicator light will illuminate during charging.
4. A full charge provides approximately 300 sharpenings. The sharpener can be used while charging, though optimal performance is achieved after a full charge.

Image: The AFMAT electric pencil sharpener connected to a power outlet via a USB cable for charging. A laptop with a USB port is also shown, indicating alternative charging methods.

5. Operating Instructions

5.1 Sharpening a Pencil

The sharpener features a fully automatic, hands-free operation.

1. Ensure the shavings reservoir is securely closed.
2. Gently insert a pencil into the sharpening hole. The sharpener will automatically grip the pencil.
3. The sharpener will automatically feed the pencil, sharpen it, and then eject it once the desired sharpness is achieved. This process typically takes 4-8 seconds.
4. Remove the sharpened pencil.

Note: This sharpener is suitable for pencils with a diameter of 6mm to 7.8mm. It is not recommended for very soft core colored pencils, as they may break during sharpening.

Image: A visual comparison showing the AFMAT sharpener automatically sharpening a pencil to an even tip (left) versus a manual sharpener requiring hands and potentially resulting in uneven tips (right).

5.2 Sharpening Short Pencils

The AFMAT PSX6 is designed to accommodate pencils as short as 2.4 inches (6 cm), allowing for full utilization of your pencils.

Image: The AFMAT electric pencil sharpener shown with a short pencil (2.4 inches) being inserted, demonstrating its ability to sharpen pencils down to a small size.

5.3 Adjusting Sharpness Settings

The sharpener offers two sharpness settings: Sharp and Blunt. Use the switch located on the front of the device to select your preferred tip.

• Sharp: For a fine, pointed tip.
• Blunt: For a slightly less pointed, more durable tip.

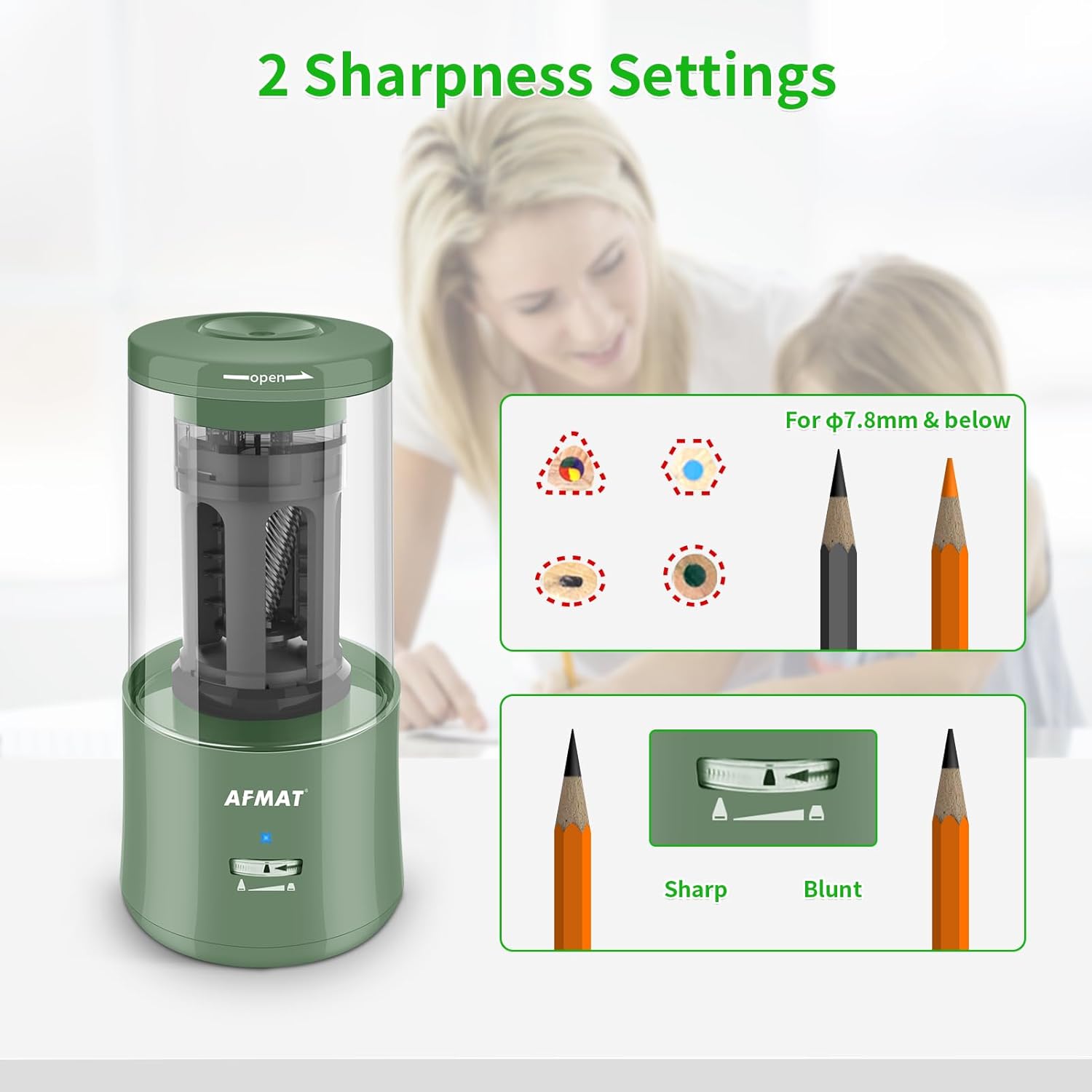

Image: The AFMAT electric pencil sharpener displaying its sharpness adjustment switch, allowing users to select between 'Sharp' and 'Blunt' pencil tips.

5.4 Lead Breakage Prevention System

The sharpener incorporates a lead breakage prevention system to ensure smooth sharpening and minimize lead damage, especially for #2/graphite/colored pencils within the 7.8mm diameter range.

Image: A diagram illustrating the lead breakage-free system of the AFMAT sharpener, showing how it prevents lead from breaking during sharpening and writing.

6. Maintenance

6.1 Emptying the Shavings Reservoir

The transparent shavings reservoir has a large capacity, reducing the frequency of emptying. When it appears full:

1. Twist the top cover counter-clockwise to unlock and remove it.
2. Carefully empty the pencil shavings into a waste bin.
3. Replace the top cover and twist clockwise to lock it securely in place.

6.2 Blade Replacement

The sharpener features an industrial-grade helical blade designed for durability, capable of over 8000 sharpenings. The blade is replaceable to extend the product's lifespan.

1. Ensure the sharpener is powered off and disconnected from any charging source.
2. Remove the top cover and empty the shavings reservoir.
3. Carefully unclip or unscrew the blade assembly (refer to specific diagrams if available in packaging).
4. Replace with a genuine AFMAT replacement blade.
5. Reassemble the sharpener, ensuring all parts are securely fitted.

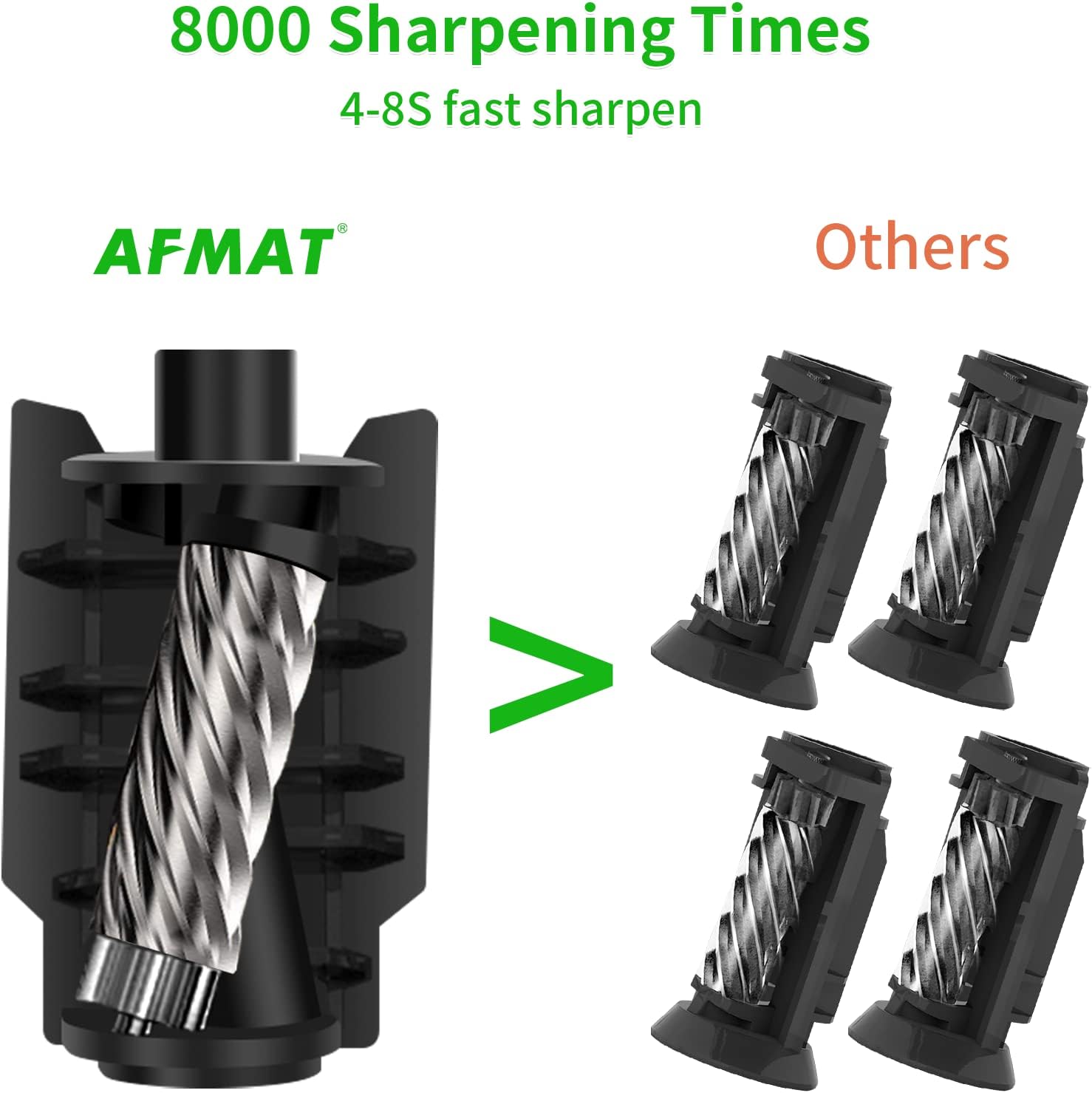

Image: A comparison highlighting the durable helical blade of the AFMAT sharpener, designed for over 8000 sharpening cycles, contrasting it with other blades.

6.3 Cleaning

Wipe the exterior of the sharpener with a soft, dry cloth. Do not use abrasive cleaners or immerse the unit in water.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact AFMAT customer service directly. Contact details can typically be found on the product packaging or the official AFMAT website.
