Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your CANPUMP CE 3648 G Triplex Pressure Washer Pump. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the unit.
Image: The CANPUMP CE 3648 G Triplex Pressure Washer Pump, showing its brass manifold and black crankcase.
Product Overview
The CANPUMP CE 3648 G is a high-performance triplex plunger pump designed for commercial power washing applications. It features durable construction and an external unloader valve for precise pressure control.
- Construction: Forged brass and anodized aluminum with cooling fins.
- Plungers: 18 mm ceramic-coated solid stainless steel.
- Seals: German-made packing seals.
- Unloader Valve: Italian-made detachable and pressure-adjustable external bypass unloader valve with water filter.
- Oil Inspection: Integrated sight glass for easy oil level checks.
Image: A cutaway view illustrating the internal components of the CANPUMP CE 3648 G pump, highlighting the plunger mechanism and brass manifold.
Setup and Installation
- Unpacking: Carefully remove all components from the packaging. Verify that all parts listed in the manual are present.
- Oil Level Check: The pump is pre-filled with SAE 15W-40 oil. Before first use, check the oil level using the sight glass. Ensure the oil level is within the recommended range.
- Mounting: Securely mount the pump to a compatible 13 HP gas engine with a 1-inch horizontal shaft. Ensure all mounting bolts are tightened to the manufacturer's specifications.
- Unloader Valve Assembly: Attach the detachable external bypass unloader valve. Ensure it is securely bolted to the pump manifold. The unloader valve includes a built-in water filter.
- Water Inlet Connection: Connect a standard ¾-inch garden hose to the pump's water inlet. Ensure the connection is tight to prevent air leaks.
- High-Pressure Outlet Connection: Connect your high-pressure hose to the pump's quick-connect outlet.
- Bypass Line: Connect the bypass line from the unloader valve to a suitable water reservoir or buffer tank. This ensures cold water continuously flows through the pump when the trigger is released, preventing overheating.

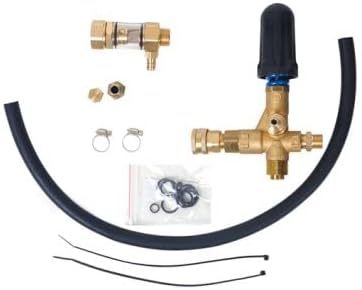

Image: Included accessories such as extra O-rings, a bypass hose, and the unloader valve assembly.
Operating Instructions
- Water Supply: Ensure a continuous and adequate water supply to the pump. Never run the pump dry.
- Engine Start-up: Start the gas engine according to its manufacturer's instructions.
- Purging Air: Before applying pressure, squeeze the trigger on your spray gun to allow water to flow through the system and purge any trapped air. Continue until a steady stream of water emerges.
- Adjusting Pressure: The unloader valve allows for pressure adjustment. Turn the adjustment knob on the unloader valve to increase or decrease the output pressure to your desired level.
- Operation: Once the system is primed and pressure is set, you can begin power washing. When the spray gun trigger is released, the unloader valve diverts water through the bypass line, reducing pressure on the pump.
- Shut Down: To shut down, release the spray gun trigger, turn off the engine, and then turn off the water supply. Relieve any remaining pressure in the system by squeezing the spray gun trigger.
Image: An individual operating a pressure washer, demonstrating the application of the pump for cleaning tasks.
Maintenance
- Oil Changes: Regularly check the oil level using the sight glass. Change the SAE 15W-40 oil after the first 50 hours of operation, and then every 100-200 hours or annually, whichever comes first. Refer to the exploded view and parts list for drain plug location.
- O-Ring and Seal Inspection: Periodically inspect all O-rings and seals for wear or damage. Replace as necessary using the provided spare O-rings or genuine CANPUMP replacement parts.
- Water Filter Cleaning: The unloader valve has a built-in water filter. Inspect and clean this filter regularly to prevent debris from entering the pump.
- Winterization: In freezing temperatures, drain all water from the pump and hoses, or use a pump protector/antifreeze solution to prevent damage.

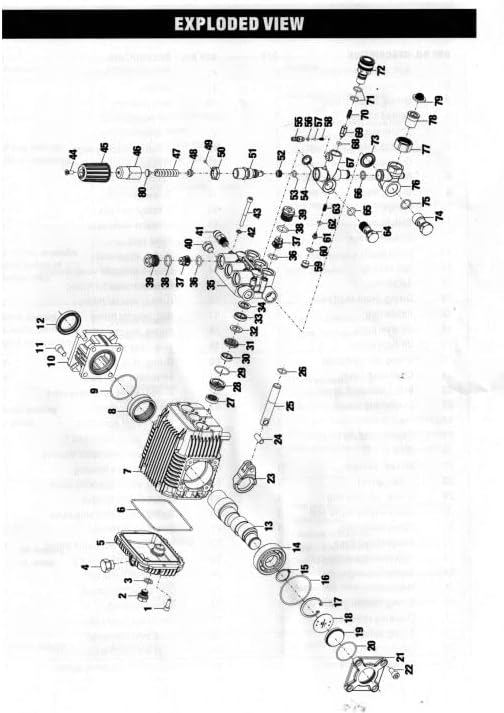

Image: Exploded view diagram showing all internal and external components of the pump with numbered references.

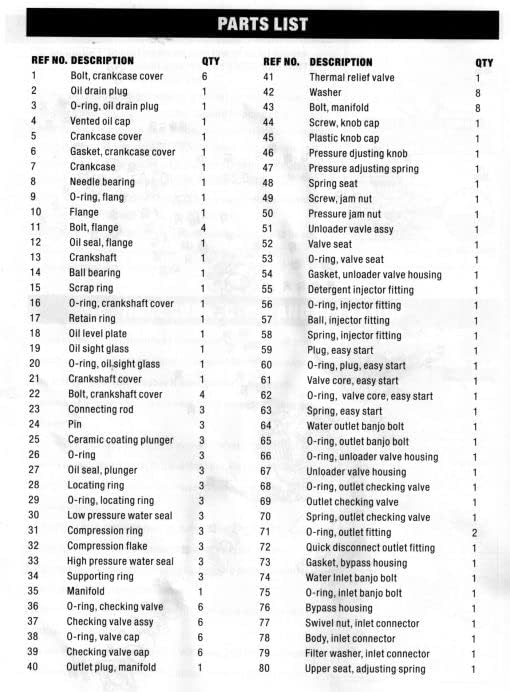

Image: Detailed parts list corresponding to the exploded view, with reference numbers, descriptions, and quantities.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No water flow or low pressure |
|
|
| Pump making unusual noise |
|
|
| Oil leakage |
|
|
| Unloader valve not adjusting pressure correctly |
|
|
Specifications
| Model | CE 3648 GP |
| Pressure | 3600 PSI (248 bar) |
| Flow Rate | 4.8 US GPM (18.1 L/min) |
| Power Requirement | 13 HP Gas Engine |
| RPM | Full speed (Engine dependent) |
| Pump Mechanism | Triplex Plunger |
| Shaft Size | 1 inch (Horizontal) |
| Inlet Connection | ¾-inch Standard Garden Hose |
| Outlet Connection | Quick-Connect |
| Dimensions (L x W x H) | 14 x 10.5 x 9.5 inches |
| Item Weight | 28 pounds |
Image: Diagram illustrating the physical dimensions (length, width, height) of the CANPUMP CE 3648 G pump.
Support Information
For technical assistance, spare parts, or any inquiries regarding your CANPUMP CE 3648 G Pressure Washer Pump, please contact our support team.
- Availability: 7 days a week, 5 hours a day.
- Contact Methods: Toll-free phone, email, and live chat support.
- Location: Support services are provided from Canada.
Please refer to the contact information provided with your purchase documentation or visit the official CANPUMP website for current support details.
