GYMAX Foldable Magnetic Rowing Machine User Manual

1. Introduction and Overview

Thank you for choosing the GYMAX Foldable Magnetic Rowing Machine. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read it thoroughly before use and keep it for future reference.

This rowing machine is designed for home fitness, offering a full-body workout with adjustable magnetic resistance. Its foldable design ensures convenient storage, making it ideal for various living spaces.

2. Safety Information

To ensure your safety and prolong the life of your rowing machine, please observe the following precautions:

• Consult a physician before starting any exercise program, especially if you have pre-existing health conditions.
• Always place the rowing machine on a flat, stable surface during use.
• Keep children and pets away from the equipment during operation.
• Ensure all bolts, nuts, and connections are securely tightened before each use.
• Do not exceed the maximum user weight capacity of 120 kg (264 lbs).
• Wear appropriate athletic clothing and footwear.
• Stop exercising immediately if you feel dizzy, faint, or experience any pain.

3. Package Contents

Please check that all components are present before assembly. If any parts are missing or damaged, contact customer service.

• Main Frame Assembly
• Seat and Rail
• Footrests (pre-attached or separate)
• Handlebar and Strap
• LCD Monitor
• Assembly Hardware (bolts, washers, nuts, tools)
• User Manual

4. Setup and Assembly

Follow these steps to assemble your GYMAX Magnetic Rowing Machine. It is recommended to have two people for assembly.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the package contents list.
2. Attach Stabilizers: Secure the front and rear stabilizers to the main frame using the provided bolts and washers. Ensure they are tightly fastened.
3. Install Seat Rail: Attach the seat rail to the main frame. Slide the seat onto the rail, ensuring it moves smoothly.
4. Connect Footrests: If not pre-attached, secure the pivoting footrests to the main frame. Ensure the foot straps are correctly installed.
5. Mount Handlebar: Connect the handlebar to the resistance mechanism using the pull strap.
6. Install LCD Monitor: Attach the LCD monitor to its designated bracket on the main frame and connect the sensor cables.
7. Final Check: Review all connections to ensure they are secure. Test the seat movement, handlebar pull, and footrest stability.

5. Operating Instructions

5.1 Adjusting Resistance

Your rowing machine features 10 levels of magnetic resistance. To adjust the resistance:

• Locate the tension control knob, usually found near the front of the machine.
• Turn the knob clockwise to increase resistance (levels 1-10).
• Turn the knob counter-clockwise to decrease resistance.
• Levels 1-4 are suitable for gentle, relaxing workouts.
• Levels 5-7 are for moderate intensity, focusing on heart and lung exercise.
• Levels 8-10 are for high intensity, muscle strengthening workouts.

5.2 Using the LCD Monitor

The multi-function LCD monitor tracks your workout progress. It typically displays the following metrics:

• Time: Duration of your workout.
• Count (Strokes): Number of rowing strokes performed.
• Total Count: Total strokes accumulated over time.
• Calories: Estimated calories burned during the workout.
• Distance: Simulated distance covered.
• Scan: Automatically cycles through all display functions.

Use the 'MODE' button to select the desired display function and 'SET' or 'RESET' buttons for adjustments or to clear data.

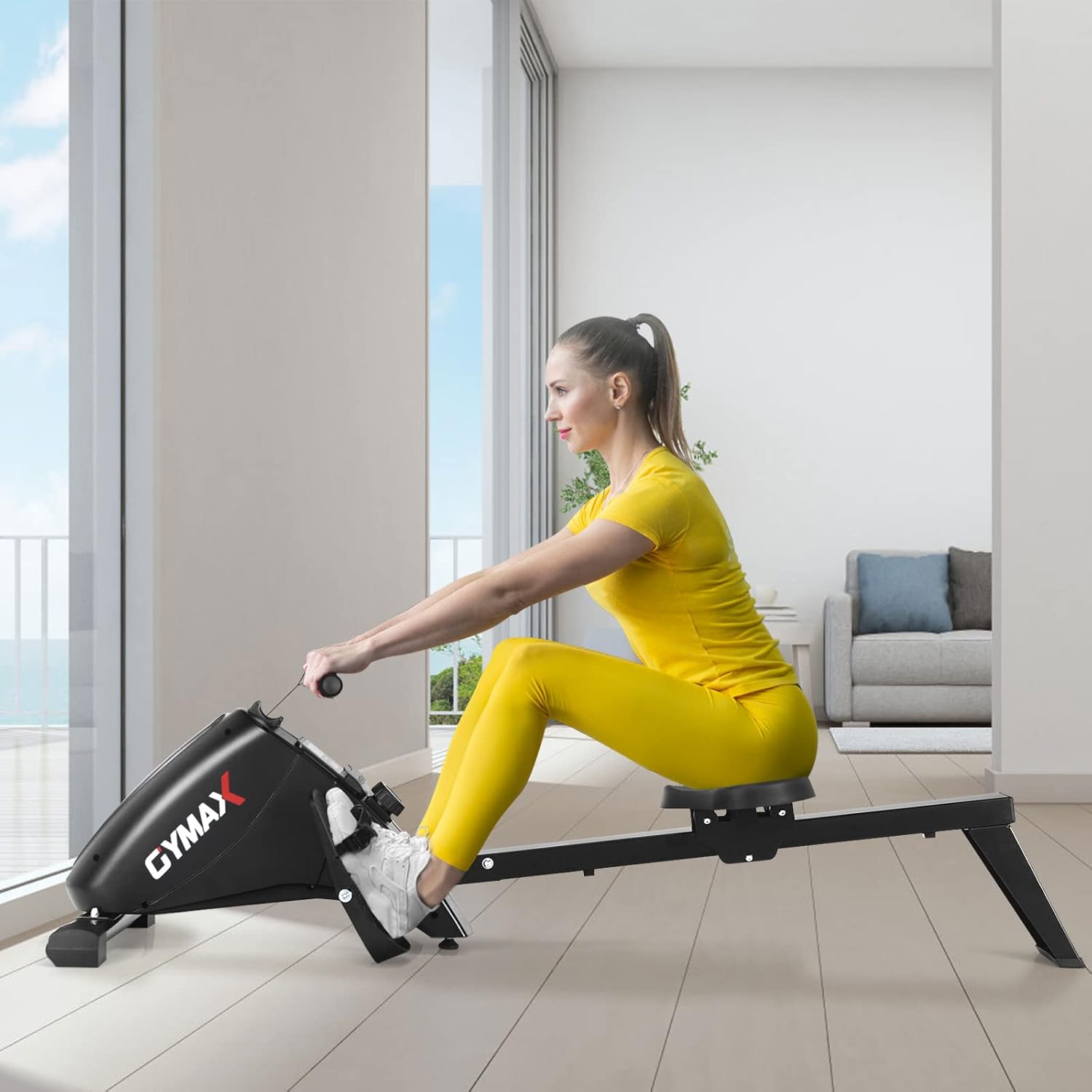

5.3 Proper Rowing Technique

Achieving an effective workout requires proper form. The GYMAX Rower is designed with a 15° incline for optimal comfort and exercise intensity. Follow these general steps for proper rowing technique:

1. The Catch: Sit with knees bent, shins vertical, arms extended forward, and back straight. Grip the handle firmly.
2. The Drive: Push off with your legs, then lean back slightly from your hips, and finally pull the handle towards your abdomen.
3. The Finish: Legs are extended, body leans back slightly, and the handle is at your abdomen.
4. The Recovery: Extend your arms forward, then lean forward from your hips, and finally bend your knees to return to the catch position.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your rowing machine.

• Cleaning: Wipe down the machine with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Check Connections: Periodically inspect all bolts, nuts, and moving parts. Tighten any loose connections.
• Rail Cleaning: Keep the seat rail clean and free of debris to ensure smooth seat movement.

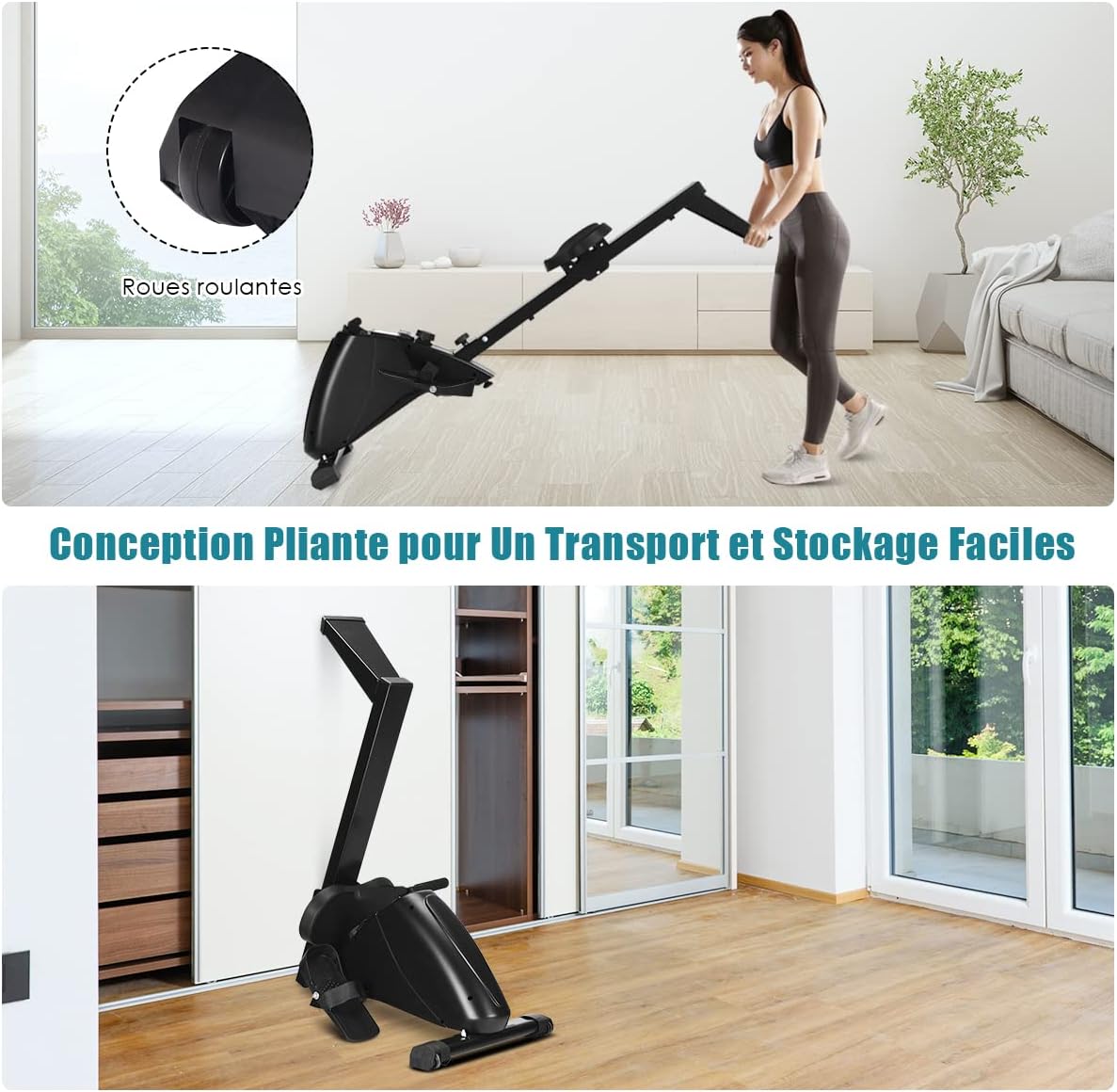

• Storage: When not in use, fold the rowing machine and store it in a dry, cool place away from direct sunlight.

7. Troubleshooting

If you encounter any issues with your GYMAX Rowing Machine, refer to the following common problems and solutions:

• LCD Monitor Not Displaying:
  • Check if the battery is correctly installed or needs replacement.
  • Ensure all sensor cables are securely connected to the monitor.
• Resistance Feels Inconsistent or Too Easy/Hard:
  • Verify that the tension control knob is set to the desired level.
  • Inspect the magnetic resistance mechanism for any obstructions or damage.
• Excessive Noise During Operation:
  • Check for any loose bolts or connections and tighten them.
  • Ensure the seat rollers are clean and moving smoothly on the rail.
  • The flywheel is designed to be silent; if noise persists, contact customer support.

For issues not covered here, please contact GYMAX customer support.

8. Specifications

9. Warranty and Support

GYMAX products are manufactured to high-quality standards. For warranty information, product support, or to purchase replacement parts, please contact GYMAX customer service through your retailer or the official GYMAX website. Please have your model name (Rower) and ASIN (B09VS4LXQT) ready when contacting support.
