1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your QREZAA Music LED Shower System. This advanced shower system integrates LED lighting, music playback via Bluetooth, and dual shower functions (rainfall and waterfall) to enhance your bathing experience. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
2. Product Overview
2.1 Components
The QREZAA Music LED Shower System includes the following main components:
- 580x380mm Dual-Function LED Top Spray Shower Head with Sound Function
- Hot and Cold Three-Function Main Body (Valve)
- Square Handheld Shower Head
- 1.5m Shower Stainless Steel Hose
- Light Controller (Remote)
- Installation Accessories (Panel, Switch, Screw Package, Embedded Box)

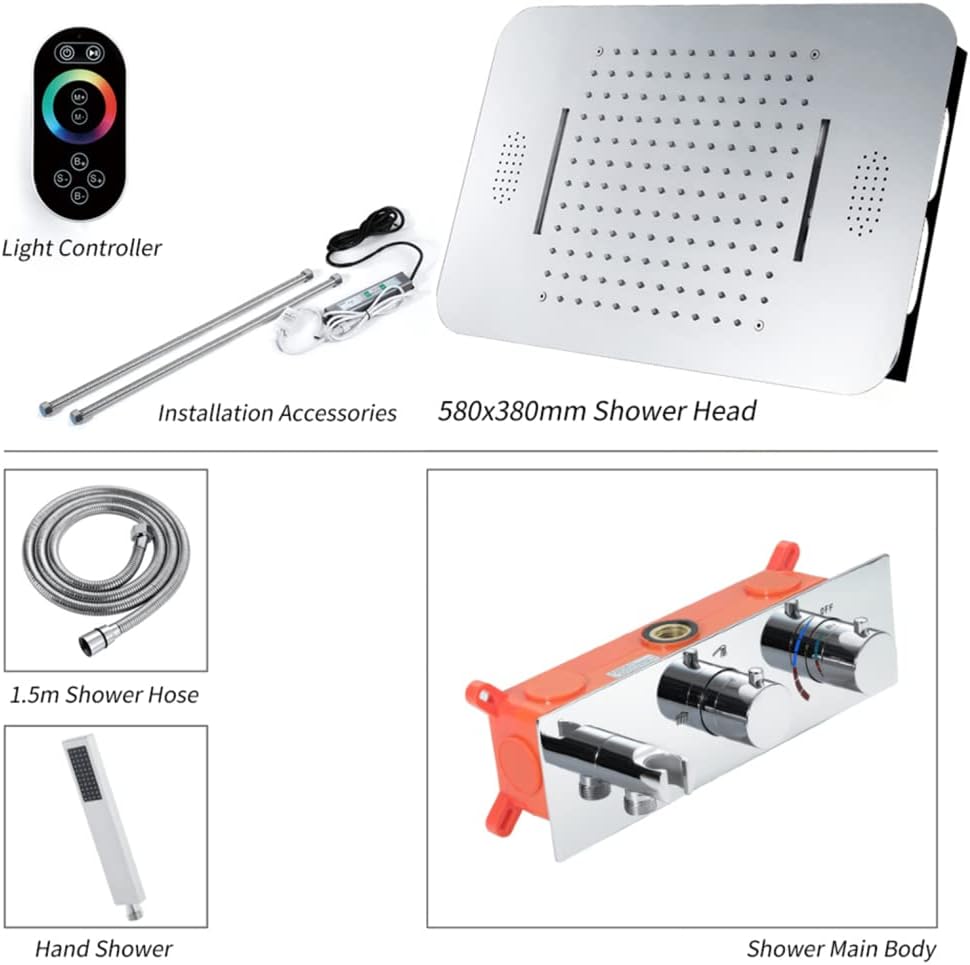

Figure 2.1: All components included in the QREZAA Music LED Shower System package. This image displays the light controller, installation accessories, 580x380mm shower head, 1.5m shower hose, hand shower, and the shower main body.
2.2 Key Features
- LED Lighting: 16 adjustable colors, controllable via remote or mobile application.
- Music Playback: Integrated speakers with Bluetooth connectivity for streaming music from your mobile device.
- Dual Shower Functions: Offers both rainfall and waterfall spray modes from the main shower head.
- Premium Materials: Shower head and hose made from high-quality 304 stainless steel; shower controller and hand shower made from brass, ensuring durability and corrosion resistance.
- Thermostatic Control: Hot and cold three-function main body for precise temperature management.

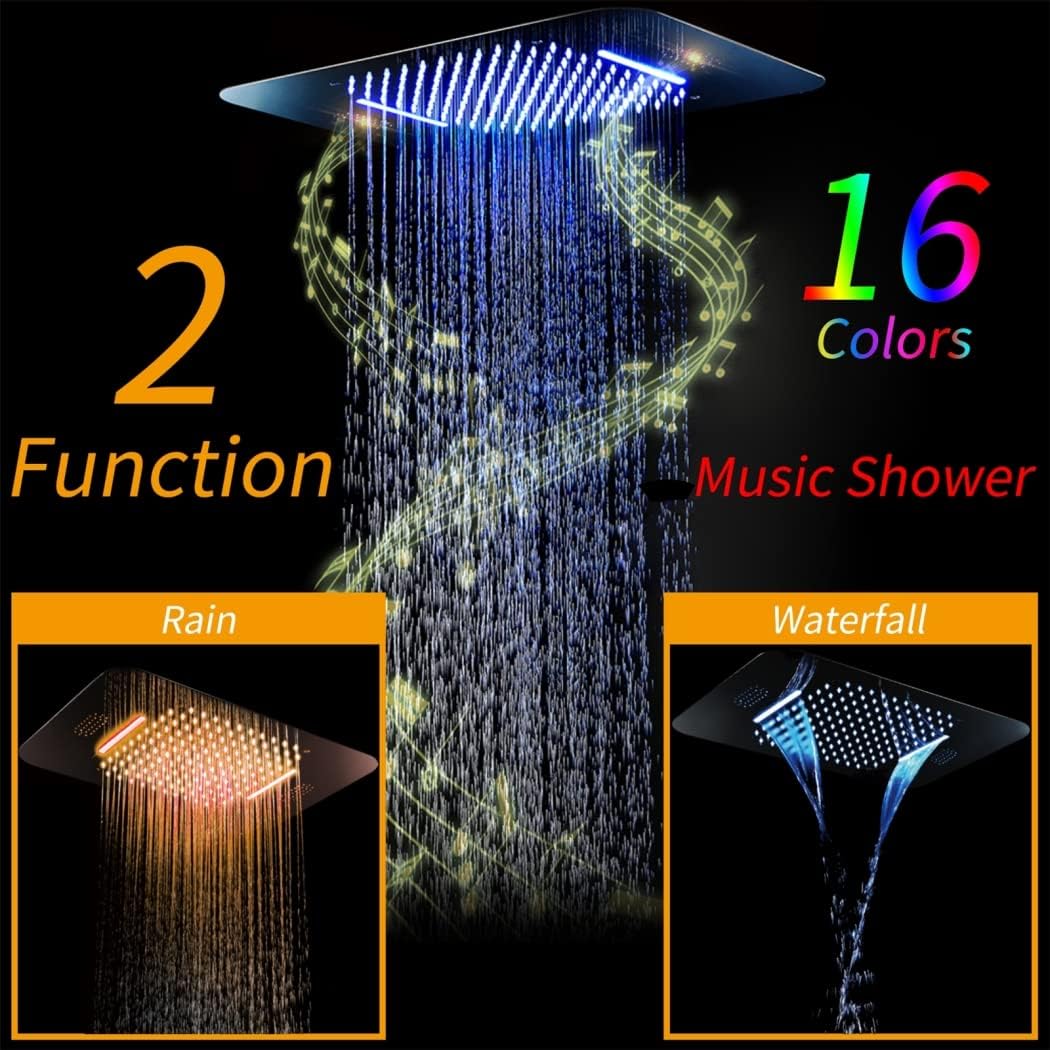

Figure 2.2: Visual representation of the two distinct shower functions, rainfall and waterfall, alongside the 16 available LED color options.
Figure 2.3: Detailed view of the 580x380mm shower head, highlighting its 304 stainless steel construction, and providing specifications for water pressure (0.3~0.5MPA) and shower flow rate (16~28L/min).
3. Setup and Installation
Professional installation is recommended for this shower system. Ensure all local plumbing and electrical codes are followed.
3.1 Pre-Installation Checklist
- Verify all components are present and undamaged.
- Ensure water supply lines (hot and cold) are accessible.
- Confirm electrical supply (100-220V, 50/60Hz) is available for the LED shower head.
- Prepare necessary tools for plumbing and electrical work.
3.2 Installation Steps
- Mounting the Main Body: The embedded depth of the valve body is recommended to be 40-45mm. Consider the depth of plastering and tiles. Install the main body securely into the wall, ensuring proper alignment for hot and cold water inlets.
- Connecting Water Lines: Connect the hot and cold water supply lines to the designated inlets on the main body.
- Installing the Shower Head: Securely mount the 580x380mm shower head to the ceiling or wall. The height of the shower head is subject to the actual installation height. Connect the water outlet from the main body to the shower head.
- Electrical Connection for LED: Connect the LED shower head to a multi-socket 100-220V, 50/60Hz power source. A single control switch should be installed in a dry zone for safety.
- Installing Hand Shower and Hose: Attach the 1.5m stainless steel hose to the main body and connect the square handheld shower head.
- Testing: After installation, slowly turn on the water supply and check for any leaks. Test all shower functions and LED lights.
Figure 3.1: Technical diagram illustrating the recommended installation dimensions, water connections, and electrical requirements for the shower system. Dimensions are in millimeters.
Figure 3.2: Dimensional drawing of the shower system components, including the shower head, main control body, and hand shower, with measurements in millimeters.
4. Operating Instructions
4.1 Water Flow and Temperature Control
The main body features two rotary knobs:
- Left Knob: Selects the water outlet function (Rainfall, Waterfall, Hand Shower).
- Right Knob: Controls water temperature (Hot/Cold) and turns the water flow ON/OFF. Rotate to adjust temperature; push or pull to turn on/off.
Figure 4.1: Close-up view of the main control panel, showing the two rotary knobs for selecting shower functions and adjusting water temperature.
Figure 4.2: Detailed image of the square handheld shower head, which can be selected via the main control panel.
4.2 LED Lighting Control
The LED lights in the shower head can be controlled using the provided remote control or a mobile application (after connecting to WiFi).
- Remote Control: Use the remote to turn the LED lights ON/OFF, select from 16 colors, adjust color temperature, dynamic speed, and dynamic brightness. The remote supports up to 64 light colors.
- Mobile Application: Connect the shower system to your mobile phone via WiFi to control LED colors and effects.

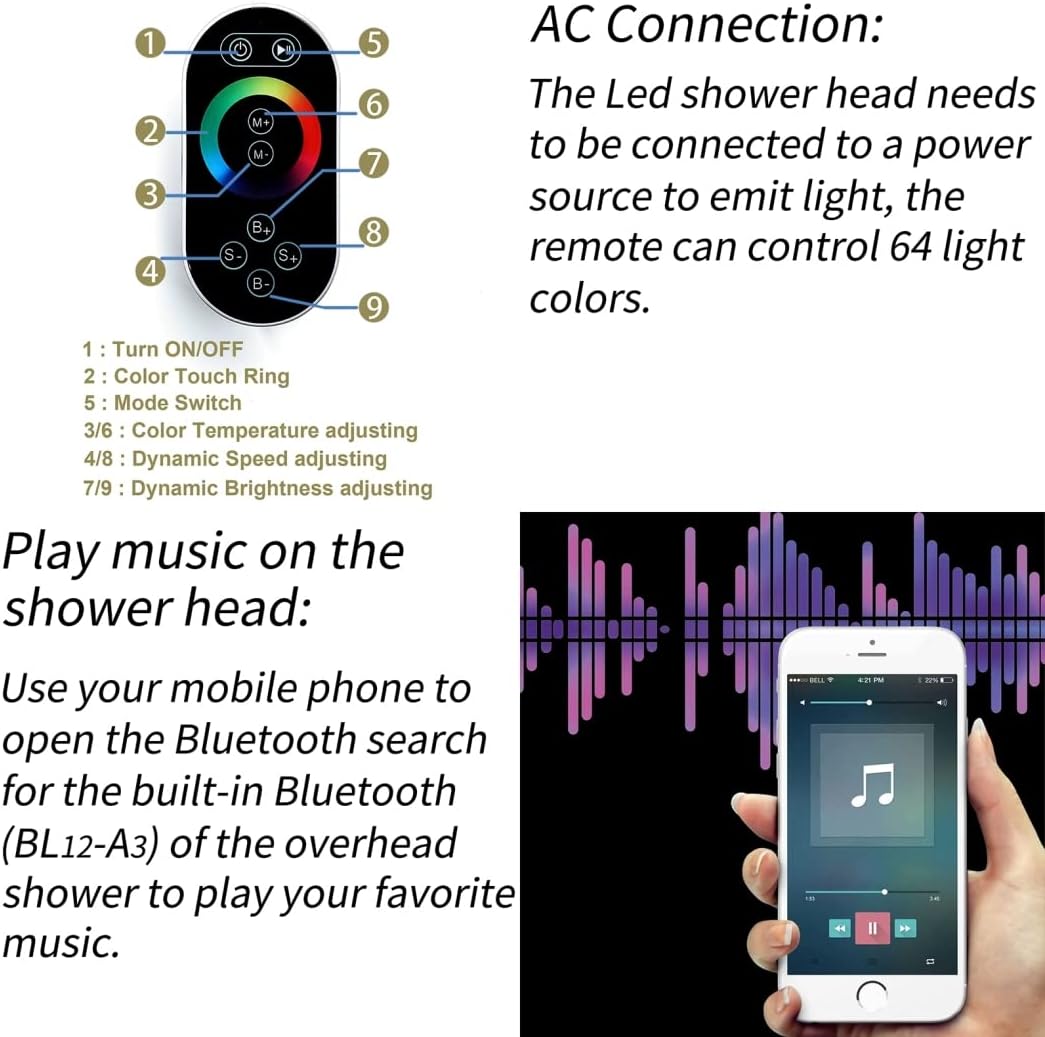

Figure 4.3: This image illustrates the functions of the remote control for LED lights and provides instructions for connecting your mobile phone via Bluetooth to play music.
4.3 Music Playback
The shower head features integrated speakers for music playback.
- Bluetooth Connection: Use your mobile phone to search for the built-in Bluetooth device (BL12-A3) of the overhead shower. Pair your device to play your favorite music.
Video 4.1: This video demonstrates the product's features, including music playback via Bluetooth, dynamic LED color changes, and the activation of both rainfall and waterfall shower functions.
5. Maintenance
Regular maintenance ensures the optimal performance and appearance of your shower system.
- Cleaning: Clean the shower head and other components regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the 7-layer technical electroplating coating and material finishes.
- Nozzle Maintenance: Periodically check and clean the silicone nozzles on the shower head to prevent mineral buildup and ensure consistent water flow.
- General Care: Wipe down surfaces after each use to prevent water spots and soap scum accumulation.
6. Troubleshooting
If you encounter any issues, refer to the following troubleshooting guide before contacting support.
| Problem | Possible Cause | Solution |
|---|---|---|
| No LED lights | No power supply; remote control battery low; loose connection. | Check electrical connection to the shower head. Replace remote control batteries. Ensure all electrical connections are secure. |
| Music not playing | Bluetooth not paired; mobile device volume low; shower system volume low. | Ensure your mobile device is paired with 'BL12-A3'. Increase volume on both your mobile device and the shower system. |
| Weak water flow | Clogged nozzles; low water pressure; valve obstruction. | Clean shower head nozzles. Check household water pressure. Inspect the main valve for any obstructions. |
| Inconsistent water temperature | Thermostatic valve issue; unbalanced water pressure. | Ensure hot and cold water supplies are balanced. If the problem persists, professional inspection of the thermostatic valve may be required. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | QREZAA |
| Model Number | 14616806-056-677 |
| ASIN | B09V6V9886 |
| UPC | 722806677056 |
| Color | Chrome |
| Material | Stainless Steel (Shower Head, Hose), Brass (Handle, Hand Shower, Main Body) |
| Finish Type | Brushed |
| Number of Handles | 1 |
| Mounting Type | Wall Mount |
| Shower Head Dimensions | 580mm x 380mm |
| Water Pressure Range | 0.3 ~ 0.5 MPA |
| Shower Flow Rate | 16 ~ 28 L/min |
| LED Power Supply | 100-220V, 50/60Hz |
| Date First Available | March 10, 2022 |
8. Warranty Information
The QREZAA Music LED Shower System comes with a 5-year quality warranty. This warranty covers manufacturing defects and ensures the product meets quality standards under normal use and service.
Please retain your proof of purchase for warranty claims.
9. Customer Support
For any questions, concerns, or assistance with your QREZAA Music LED Shower System, please contact our professional customer service team. We are committed to providing a satisfactory response within 24 hours.
When contacting support, please provide your model number, a detailed description of the issue, and any relevant pictures to help us assist you efficiently.
