1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Prity K2 10 kW Wood-Burning Fireplace Stove. Please read all instructions carefully before using the appliance. Retain this manual for future reference.
The Prity K2 is a powerful wood-burning stove designed for heating residential spaces, featuring a robust 2mm steel body and a durable 3-4mm steel top plate.
Image 1.1: The Prity K2 10 kW Wood-Burning Fireplace Stove, showcasing its design and presence in a modern living space.
2. Important Safety Instructions
Failure to follow these safety instructions can result in property damage, serious injury, or death. Always prioritize safety when operating your wood-burning stove.
- Professional Installation: Installation must be performed by a qualified professional in accordance with all local and national building and fire codes.
- Clearance to Combustibles: Maintain adequate clearance from combustible materials (walls, furniture, curtains, etc.) as specified by local regulations and the installer.
- Fuel Type: Only burn dry, seasoned wood. Do not burn trash, plastics, treated wood, or any other unauthorized materials, as this can cause dangerous emissions and damage the stove.
- Carbon Monoxide: Ensure proper ventilation and install carbon monoxide detectors in your home.
- Hot Surfaces: The stove's exterior surfaces, including the door handle, become extremely hot during operation. Use heat-resistant gloves when operating the stove or handling fuel.
- Children and Pets: Keep children and pets away from the stove when it is in use. Consider installing a protective barrier.
- Chimney Maintenance: Regularly inspect and clean your chimney or flue pipe to prevent creosote buildup and reduce the risk of chimney fires.
- Ash Disposal: Dispose of ashes in a metal container with a tight-fitting lid, away from combustible materials. Ashes can retain heat for several days.
3. Product Components
The Prity K2 stove consists of several key components designed for efficient and safe wood burning.
- Firebox: The primary chamber where wood is burned. Constructed from durable 2mm steel.
- Top Plate: A robust 3-4mm steel plate forming the top surface of the stove.
- Loading Door: Front-facing door with a heat-resistant glass window for loading fuel and observing the fire.
- Ash Pan: A removable drawer located below the firebox for collecting ashes.
- Primary Air Inlet: Controls the air supply to the bottom of the fire, crucial for ignition and intense burning.
- Secondary Air Inlet: Provides air to the upper part of the firebox, aiding in cleaner combustion and reducing emissions.
- Flue Collar: Connection point for the chimney pipe, typically 130 mm in diameter.
4. Setup and Installation
Proper installation is critical for the safe and efficient operation of your Prity K2 stove. It is highly recommended that installation be carried out by a certified professional.
- Location Selection: Choose a suitable location that meets all local building codes and provides adequate clearance from combustible materials. The stove is designed for freestanding mounting.
- Floor Protection: Install the stove on a non-combustible floor protector (hearth) that extends beyond the stove's footprint according to local regulations.
- Flue Connection: Connect the stove to a properly sized and installed chimney or flue system. The flue pipe diameter for the Prity K2 is 130 mm. Ensure all connections are sealed and secure to prevent smoke leakage.
- Ventilation: Ensure the room has adequate ventilation to supply combustion air and prevent negative pressure.
- First Burn: Perform a small, low-temperature burn initially to cure the paint and seals. This may produce some odor and smoke, so ensure good ventilation during this process.

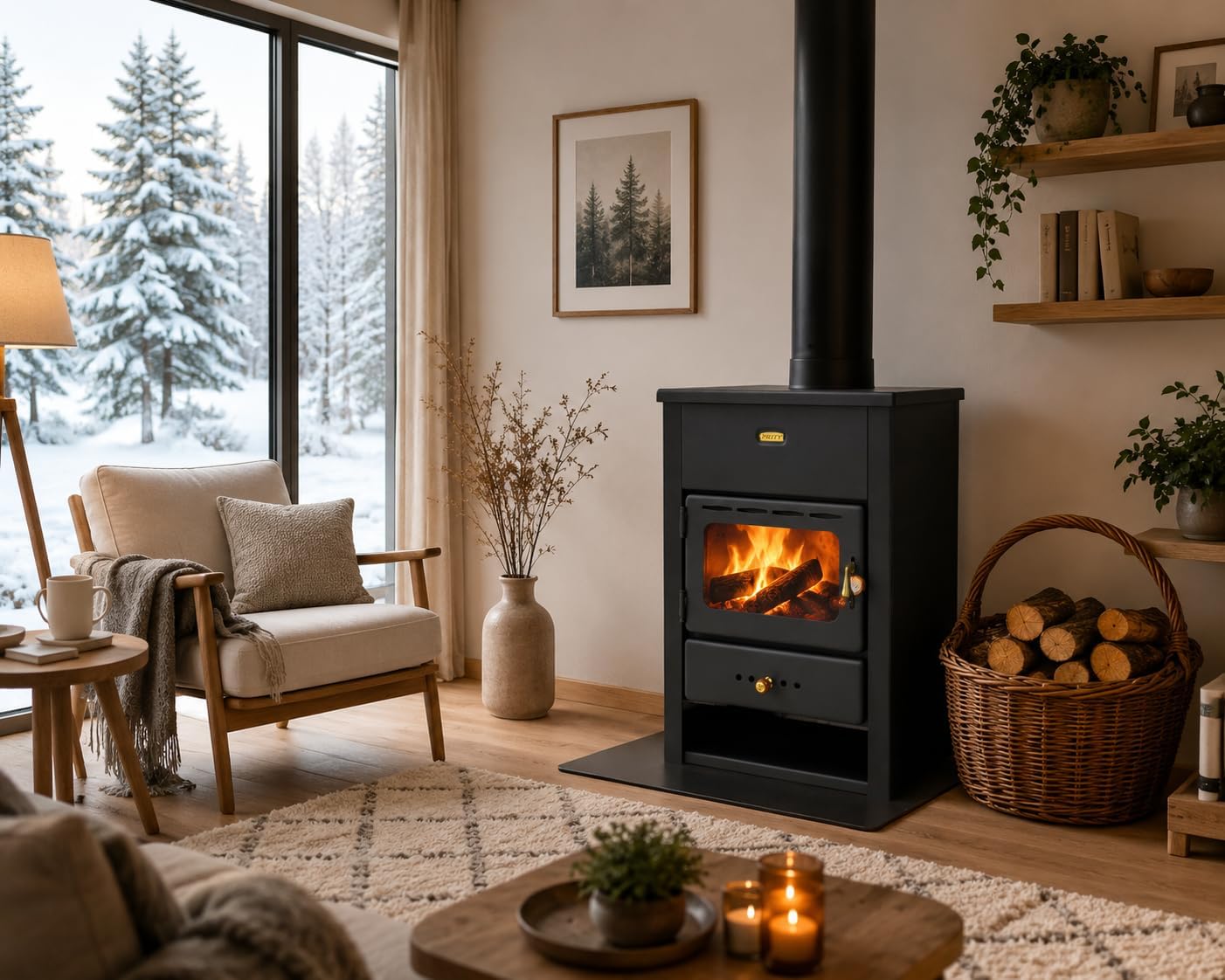

Image 4.1: An example of the Prity K2 stove installed in a living space, demonstrating typical placement and flue connection.
5. Operating Instructions
Follow these steps for safe and efficient operation of your Prity K2 wood-burning stove.
- Loading Fuel: Open the loading door using a heat-resistant glove. Place dry, seasoned wood into the firebox. Do not overfill.
- Lighting the Fire: Place kindling and a firelighter (or paper) on top of the wood. Open both primary and secondary air inlets fully. Ignite the kindling.
- Establishing the Fire: Once the fire is well-established and the wood is burning brightly, close the loading door. Allow the stove to heat up.
- Controlling Airflow:
- Primary Air: Primarily used for ignition and boosting a dying fire. Reduce primary air once the fire is burning strongly.
- Secondary Air: Controls the burn rate and efficiency. Adjust to achieve a steady, clean burn with lively flames. Too much air can lead to rapid burning and heat loss; too little can cause smoldering and creosote buildup.
- Refueling: When the fire has died down to embers, open the primary air inlet fully for a few minutes to revive the embers. Carefully open the loading door (using gloves) and add more wood. Close the door and adjust air inlets.
- Overnight Burn: For extended burn times, load larger pieces of wood and reduce both primary and secondary air inlets to a minimum, ensuring the fire does not go out completely.
Image 5.1: The Prity K2 stove in operation, showing the visible flames through the glass door, indicating proper combustion.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your Prity K2 stove.
- Ash Removal: Remove ashes regularly from the ash pan. Do not allow ash to build up and touch the bottom of the grate, as this can restrict airflow and damage the grate. Ensure the stove is cool before removing ashes.
- Glass Cleaning: Clean the glass door with a specialized stove glass cleaner when the stove is cool. Avoid abrasive cleaners.
- Chimney Sweeping: Have your chimney or flue pipe professionally swept at least once a year, or more frequently if burning resinous wood or experiencing heavy use.
- Seal Inspection: Periodically check the door and glass seals for wear and tear. Replace worn seals to maintain airtightness and efficiency.
- Exterior Cleaning: Wipe the exterior of the stove with a damp cloth when cool. Do not use harsh chemicals.
7. Troubleshooting
This section addresses common issues you might encounter with your Prity K2 stove.
| Problem | Possible Cause | Solution |
|---|---|---|
| Smoke entering the room | Poor draft, blocked chimney, negative pressure in room, door opened too quickly. | Check chimney for blockages. Ensure adequate ventilation. Open door slowly. Consult a professional if draft issues persist. |
| Fire difficult to start or maintain | Wet wood, insufficient air supply, cold chimney. | Use dry, seasoned wood. Ensure primary air inlet is fully open during ignition. Pre-heat chimney if necessary. |
| Low heat output | Insufficient fuel, restricted air supply, poor quality fuel, chimney issues. | Add more fuel. Adjust air inlets. Use recommended fuel. Check chimney for blockages. |
| Glass blackens quickly | Wet wood, insufficient secondary air, low burning temperature. | Use dry wood. Increase secondary air. Ensure the stove operates at optimal temperature. |
| Loud "knocking" sound when cooling | Thermal expansion and contraction of metal components. | This is a normal characteristic of metal stoves as they heat up and cool down. It does not indicate a fault. |
8. Technical Specifications
Detailed specifications for the Prity K2 10 kW Wood-Burning Fireplace Stove.
| Brand | Prity |
| Model | K2 |
| Material | Stainless Steel (Body: 2mm, Top Plate: 3-4mm) |
| Color | Black |
| Heat Output | 10 Kilowatts |
| Efficiency Class | A |
| Ventilation Type | Direct Ventilation |
| Mounting Type | Freestanding Mount |
| Overall Dimensions (W x D x H) | 490 x 460 x 810 mm |
| Combustion Chamber Dimensions (W x D x H) | 410 x 365 x 400 mm |
| Weight | 79 kg |
| Flue Pipe Diameter | 130 mm |
| Approximate Heating Area | 57 m² |
| Approximate Heating Volume | 154 m³ |
| Requires Assembly | No |
| Portable | No |
| UPC / GTIN | 791689133546 |
| ASIN | B09V2R1XBC |
9. Warranty Information
For specific warranty terms and conditions, please refer to the documentation provided with your purchase or contact the retailer. Generally, products are covered against manufacturing defects for a specified period from the date of purchase.
10. Customer Support
If you have any questions, require technical assistance, or need to report an issue with your Prity K2 stove, please contact your retailer or the manufacturer, Prity 95 LTD, directly. Have your model number (K2) and purchase details ready when contacting support.
Manufacturer: Prity 95 LTD
