FineMade Takoyaki Maker Pan with Temperature Control

1. Introduction

Thank you for purchasing the FineMade Takoyaki Maker Pan. This appliance is designed to help you easily prepare delicious Japanese takoyaki (octopus balls), as well as other spherical treats like mini ebelskiver, aebleskiver, and mini rounded pancakes. Its non-stick cooking plate and adjustable temperature control ensure consistent results and easy cleanup. Please read this manual thoroughly before use to ensure safe and optimal operation.

2. Important Safety Instructions

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

3. Parts List

The FineMade Takoyaki Maker Pan includes the following components:

• Takoyaki Maker Unit with Non-Stick Cooking Plate
• Adjustable Temperature Control Knob
• Power Indicator Light (Red)
• Ready Indicator Light (Green/Orange)
• Two Stainless Steel Turning Forks
• Instruction Manual with Recipes

Image: The FineMade Takoyaki Maker Pan, showing the main unit, the non-stick cooking plate with 18 molds, and the included turning forks.

4. Setup

1. Unpack all components and remove any packaging materials.
2. Wipe the cooking plate with a damp cloth and dry thoroughly.
3. Place the Takoyaki Maker on a stable, heat-resistant, and dry surface. Ensure there is adequate ventilation around the unit.
4. Plug the power cord into a standard 120V AC electrical outlet. The red power indicator light will illuminate.
5. Turn the temperature control knob to your desired setting (Light for warming, Dark for cooking). The green/orange ready indicator light will illuminate when the desired temperature is reached.

Video: A demonstration of setting up the Takoyaki Maker, including plugging it in and adjusting the temperature control knob. The indicator lights are shown illuminating.

5. Operating Instructions

5.1 Preheating

Before adding batter, ensure the Takoyaki Maker is preheated. Plug in the unit and set the temperature control knob to the 'Dark' setting for cooking. The red power light will be on. Once the green/orange ready light illuminates, the unit has reached the optimal cooking temperature.

Image: A detailed view of the temperature control knob, showing 'Light' and 'Dark' settings, along with the red power indicator and green/orange ready indicator lights.

5.2 Making Takoyaki (Octopus Balls)

1. Prepare your takoyaki batter according to a recipe (a traditional takoyaki recipe is included in the manual).
2. Lightly oil each mold on the non-stick cooking plate.
3. Pour batter into each mold, filling it about two-thirds full.
4. Add your desired fillings, such as diced octopus, green onions, and ginger.
5. Once the edges of the batter begin to set and brown, use the provided turning forks to rotate the takoyaki balls 90 degrees. This will allow the uncooked batter to flow into the bottom of the mold, forming a spherical shape.
6. Continue to turn the takoyaki balls every few minutes until they are golden brown and cooked through (approximately 4-6 minutes total).
7. Remove the cooked takoyaki from the molds and serve immediately with your favorite toppings.

Image: Freshly cooked takoyaki balls in the maker, demonstrating the even heating and spherical shape achieved.

5.3 Making Mini Pancakes, Ebelskiver, or Other Spherical Treats

The Takoyaki Maker can also be used to prepare mini pancakes, ebelskiver, or other small, round snacks. Follow a similar process as for takoyaki, adjusting the batter and fillings as needed. The included manual provides a recipe for sweet pancakes.

6. Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your FineMade Takoyaki Maker.

1. Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
2. Wipe the non-stick cooking plate with a soft, damp cloth or sponge. For stubborn residue, use a small amount of mild dish soap. Avoid abrasive cleaners or scouring pads, as these can damage the non-stick coating.
3. Wipe the exterior of the appliance with a damp cloth. Do not immerse the unit in water or any other liquid.
4. The turning forks can be washed with warm, soapy water or placed in the dishwasher.
5. Ensure all parts are completely dry before storing.

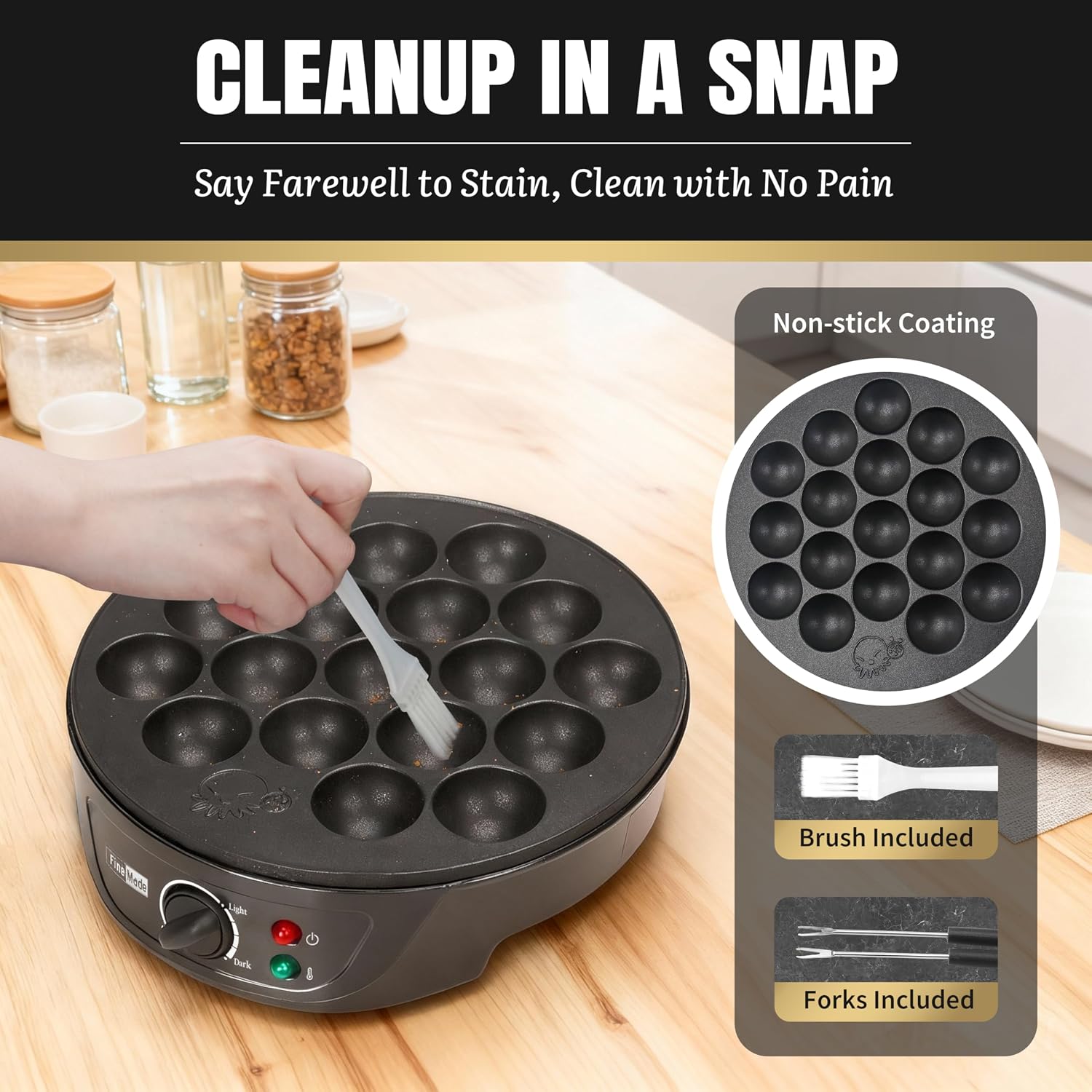

Image: A hand using a small brush to clean the non-stick cooking plate of the Takoyaki Maker, highlighting the ease of cleaning.

7. Troubleshooting

• Appliance does not turn on: Ensure the power cord is securely plugged into a working electrical outlet. Check if the power indicator light is on.
• Food sticks to the cooking plate: Ensure the cooking plate was lightly oiled before adding batter. The non-stick coating may wear over time; ensure proper cleaning and avoid metal utensils.
• Food cooks unevenly: Ensure the appliance is preheated properly until the ready indicator light illuminates. Adjust the temperature control knob as needed for desired browning.
• Smoke or unusual odor during first use: This is normal for new heating appliances and should dissipate after a few minutes of initial use. Ensure adequate ventilation.

8. Specifications

• Brand: FineMade
• Model Number: TM001
• Product Dimensions: 8.9"D x 8.9"W x 2.6"H (22.6 cm D x 22.6 cm W x 6.6 cm H)
• Item Weight: 2.16 pounds (0.98 kg)
• Material: Aluminum with Non-Stick Coating
• Color: Black
• Wattage: 700 watts
• Voltage: 120 Volts
• Number of Molds: 18
• Special Features: Non-Stick Coating, Temperature Control

Image: A diagram illustrating the physical dimensions of the Takoyaki Maker Pan, including its diameter and height.

9. Warranty and Support

FineMade products are manufactured to the highest quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official FineMade website. Keep your purchase receipt as proof of purchase for any warranty claims.
